Product Overview

The DSDP 140B counter board, product ID 57160001- ACX, is a high-performance product carefully crafted by ABB for industrial automation control systems. Its main function is to achieve precise counting and play a key role in various complex industrial scenarios, helping to improve production efficiency and control accuracy.

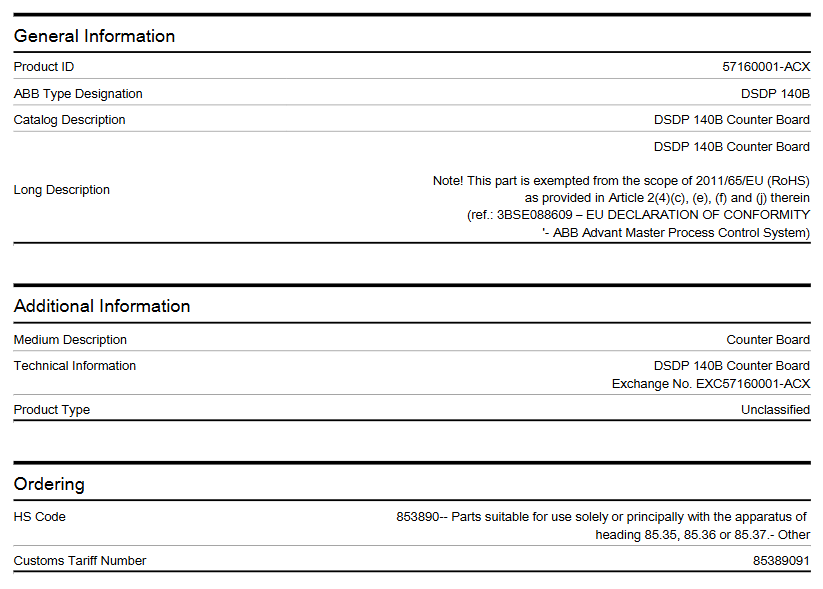

Product Core Information

Product Name: DSDP 140B Counter Board

Product identification:

Product ID: 57160001-ACX

ABB model name: DSDP 140B

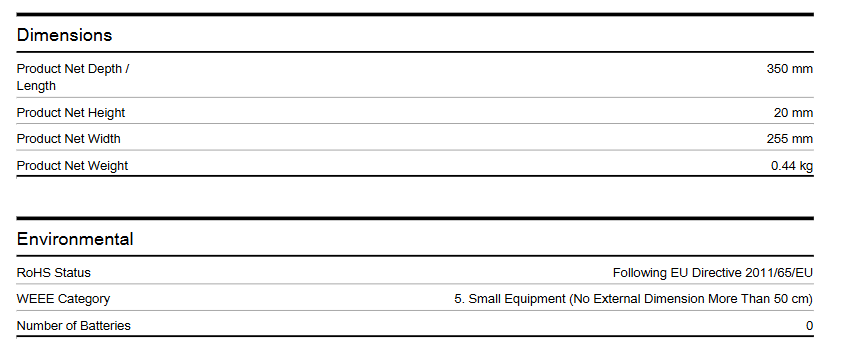

Physical specifications

Size:

Net depth/length: 350mm

Net height: 20mm

Net width: 255mm

Weight: Net weight is 0.44kg

Environmental and Compliance Information

RoHS status: Compliant with EU Directive 2011/65/EU requirements

WEEE category: 5 Small devices (all external dimensions do not exceed 50 centimeters)

Battery condition: No batteries included (Number of Batteries is 0)

Product category

This product belongs to multiple control systems and I/O module categories, as follows:

Control System Products - I/O Products - S100 I/O - S100 I/O - Modules - DSDP 140B Positioning Module

Control System -800xA - I/Os - S100 I/O - I/O Modules

Control System - Advance OCS (with Master software) - Controller - MasterPiece 200 and 200/1- I/O modules

Control System - Advant OCS (with Master software) - I/Os - S100 I/O - I/O Modules

Control System - Advant OCS (with MOD 300 software) - I/Os - S100 I/O - I/O Modules

Control System - Compact Product Suite - I/Os - S100 I/O - I/O Modules

Core functions

Accurate counting: With high-speed counting technology, it is possible to accurately count the number of products and equipment operation times on the production line, providing accurate data support for production management. For example, on an automotive parts production line, the number of parts produced per hour can be accurately counted.

Speed measurement: By analyzing the frequency of the input signal, it is possible to quickly calculate the operating speed of the equipment, such as the running speed of the conveyor belt, the speed of the motor, etc., to help operators understand the operating status of the equipment in a timely manner and optimize the production process.

Position control: By combining the characteristics of input signals and counting results, precise control of equipment position can be achieved, which plays an important role in the positioning operation of automated mechanical equipment, ensuring that the equipment accurately reaches the designated position and improving production accuracy.

Precautions

During the installation process, it is essential to ensure that the power is cut off to prevent electric shock hazards and equipment damage caused by misoperation. At the same time, it is necessary to strictly follow the steps in the product installation manual to ensure correct and secure installation.

When connecting with other devices, it is necessary to carefully check whether the input and output voltage, signal type, and other parameters match, in order to avoid equipment failure or damage caused by parameter mismatch. For example, if a device with mismatched voltage is connected to the input port of the DSDP 140B counter board, it may burn out the circuit inside the board.

During use, pay attention to the temperature and humidity of the working environment. If it exceeds the specified working temperature range (-40 ° C to 70 ° C), it may affect the performance and lifespan of the equipment; Excessive humidity may cause problems such as circuit board short circuits. Therefore, try to install the equipment in a dry and well ventilated environment as much as possible.

Regularly maintain and inspect the equipment, such as checking whether the connection lines are loose and whether the equipment is operating normally. If any abnormal situation is found, the machine should be stopped in a timely manner for troubleshooting and maintenance to prevent the fault from expanding.
