ABB 3BSE003832R1 SC510 Submodule Carrier without CPU

From: | Author:Wang | Time :2025-07-24 | 270 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:



ABB 3BSE003832R1 SC510 Submodule Carrier without CPU

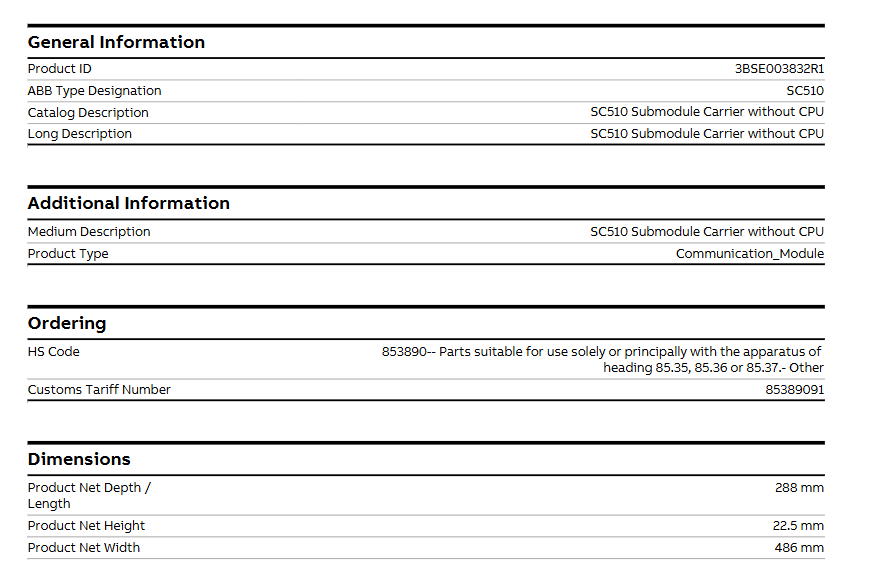

Product Core Information

Product Name: SC510 Submodule Carrier without CPU

Product identification:

Product ID: 3BSE003832R1

ABB model name: SC510

Product type: Communication-Module

Media description: Consistent with the product name, clearly defining its functional positioning as a "CPU free submodule carrier"

Ordering and Customs Information

HS code: 853890, classified as "parts (other) applicable to equipment under items 85.35, 85.36, or 85.37", belonging to the category of industrial control equipment related accessories.

Customs tariff number: 85389091, providing a basis for specific customs clearance and tax declaration.


Physical specifications

Size parameters:

Net depth/length: 288mm

Net height: 22.5mm

Net width: 486mm

Weight: Net weight 0.67kg, belonging to lightweight design, easy to install and integrate into various control systems.

Environmental and Compliance Information

RoHS compliance: Complies with the EU Directive 2011/65/EU, which restricts the use of certain hazardous substances (such as lead, mercury, etc.) in electronic and electrical equipment and meets environmental requirements.

WEEE category: classified as "5 Small equipment (with all external dimensions not exceeding 50 centimeters) "is applicable to the recycling and disposal standards for electronic and electrical equipment waste.

Battery situation: Number of Batteries is 0, no need to rely on battery power supply, reducing maintenance costs and environmental risks.

SCIP Information: Number 64ca723a-0669-4eec-a128-1d20dd256d13, registered in Sweden (SE), meets the requirements of the European Union Regulation on the Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) regarding the transmission of item information.

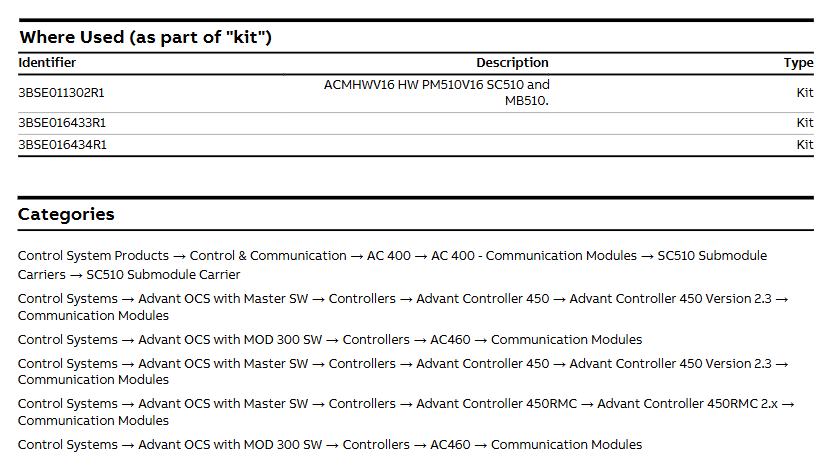

Associated suite

3BSE011302R1: AMHWV16 HW PM510V16 SC510 and MB510, Kit

3BSE016433R1: Unclear description, Kit

3BSE016434R1: Unclear description, Kit


Product category

This product belongs to multiple control systems and communication module categories, reflecting its wide compatibility and application scenarios:

Control system products - Control and communication - AC 400- Communication module - SC510 submodule carrier - SC510 submodule carrier

Control System - Advant OCS with Master SW - Controller - Advant Controller 450- Advant Controller 450 Version 2.3- Communication Module

Control System - Advant OCS with Master SW - Controller - Advant Controller 450RMC - Advant Controller 450RMC 2. x - Communication Module

Control System Advant OCS with MOD 300 SW Controller AC460 Communication Module


Product Function and Positioning Speculation

Based on the attributes of "submodule carrier" and "communication module", the core functions of SC510 can be inferred as follows:

As the installation and connection carrier for submodules, it provides physical interfaces and electrical connection support for other functional submodules (such as input/output modules, signal processing modules, etc.).

Participate in communication and interaction within the control system, assist in data transmission and collaborative work between different modules and controllers, and ensure the overall stability and efficiency of the system.

Due to the "CPU free" design, its functionality focuses more on hardware level carrier and communication adaptation, relying on external controllers (such as Advant Controller 450, AC460, etc.) to achieve complex logic control.


Applicable scenarios

Based on its category and associated suite, SC510 is mainly used in industrial automation control systems, especially ABB's Advant OCS, AC 400 and other series control systems, which can be used for:

Equipment Control and Communication Integration in Manufacturing Production Lines

Construction of automated monitoring systems for industrial processes such as chemical, energy, and water treatment

Modular connection and collaborative operation of various subsystems in large industrial equipment
