Siemens 6AG1204-2BB10-4AA3 Ethernet Switch



Siemens 6AG1204-2BB10-4AA3 Ethernet Switch

Product basic information

Product model: 6AG1204-2BB10-4AA3

Series: Siemens SIPLUS NET SCALANCE X series, full name SIPLUS SCALANCE X204-2, designed based on 6GK5204-2BB10-2AA3, specifically for medium stress environments. The document version date is April 13, 2017, and was last modified on April 5, 2017. The content may be adjusted with product iteration.

Core positioning: Management type industrial Ethernet switch, supporting PROFINET-IO device functions, integrated redundancy manager, suitable for industrial communication scenarios that require stability and redundancy, with electronic manual (CD format) and optional C-type plug.

Core hardware and electrical specifications

（1） Interface configuration

Number and specifications of interface types

Four 10/100Mbit/s RJ45 Ethernet ports for connecting network components or terminal devices

Ethernet optical ports with 2 100Mbit/s multi-mode BFOC optical ports, supporting optical signal transmission and compatible with multi-mode optical fibers

One 2-pole terminal block for signal contact interface, used for external signal feedback

1 4-pole terminal block (main power supply)+1 redundant power interface for power interface, supporting redundant power supply and improving system reliability

Storage expansion supports C-PLUG removable storage for configuring backups, firmware updates, etc

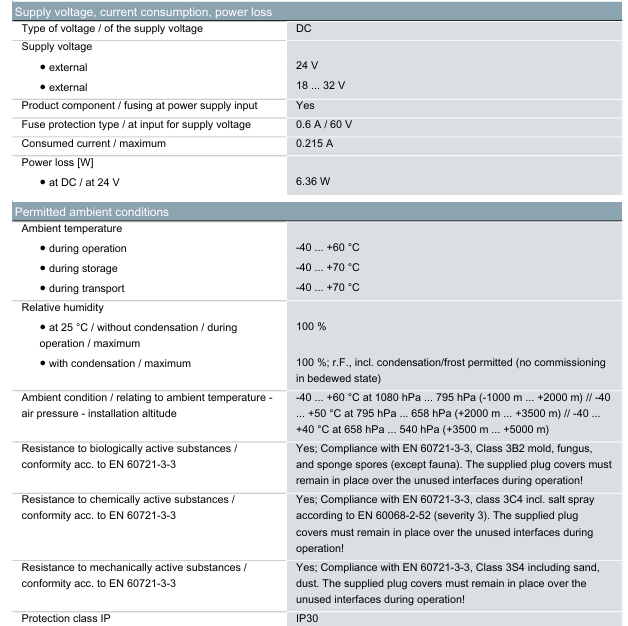

（2） Power supply and power consumption

Parameter category specific specifications

Power supply type: direct current (DC) power supply

The normal power supply range is 24V, and the allowable range is 18-32V

Input protection built-in fuse, specification 0.6A/60V, to prevent overcurrent damage to equipment

Current and Power Consumption Maximum Consumption Current 0.215A, Typical Power Consumption 6.36W at 24V DC

Electrical parameters of signal contacts: rated operating voltage 24V DC, maximum operating current 0.1A

（3） Machinery and Protection

Parameter category specific specifications

Dimensions width 60mm, height 125mm, depth 124mm, compact design, saving installation space

Weight net weight 0.78kg, lightweight and easy to install

Installation methods support 35mm DIN rail installation, wall installation, S7-300 rail installation, suitable for various industrial site layouts

Protection level IP30, can prevent solid foreign objects from entering (diameter>2.5mm), suitable for installation in control cabinets

Environmental adaptability

（1） Temperature and humidity

Environmental condition range requirements

Working temperature -40 ° C to+60 ° C, suitable for high and low temperature industrial environments

Storage/transportation temperature -40 ° C to+70 ° C, meeting harsh transportation and storage needs

Maximum 100% without condensation at a relative humidity of 25 ° C, condensation/frosting allowed (not adjustable in condensation state)

（2） Special environmental tolerance

Pressure and altitude:

-1080hPa-795hPa (altitude -1000m to+2000m): operating temperature -40 ° C to+60 ° C

-795hPa-658hPa (altitude+2000m to+3500m): operating temperature -40 ° C to+50 ° C

-658hPa-540hPa (altitude+3500m to+5000m): operating temperature -40 ° C to+40 ° C

Biological/Chemical/Mechanical Tolerance: Complies with EN 60721-3-3 standard,

-Bioactive substances: 3B2 grade (resistant to mold, fungi, sponge spores, excluding animals)

-Chemical active substance: Grade 3C4 (including EN 60068-2-52 salt spray test, Grade 3)

-Mechanical active substance: 3S4 level (resistant to sand and dust), unused interfaces need to be covered with dust caps

（3） Compliance in hazardous areas

Compliant with EN 60079-0:2006 and EN 60079-15:2005 standards, certified level II 3 G Ex nA II T4 KEMA 07 ATEX 0145X, suitable for use in hazardous areas of the corresponding level.

Functional characteristics

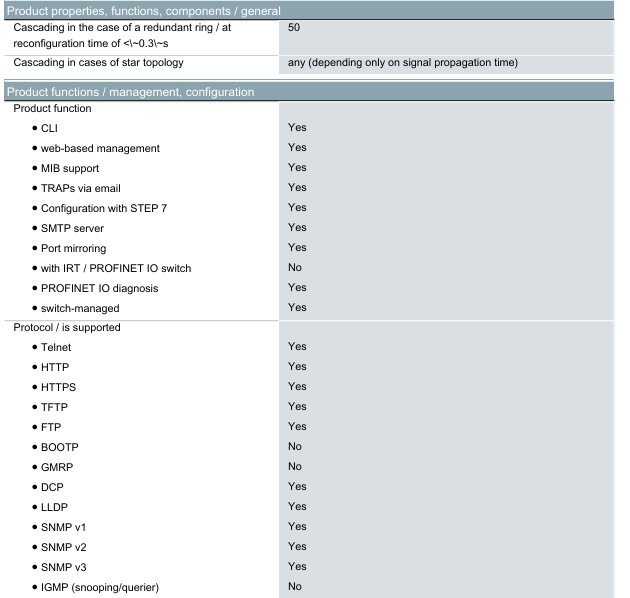

（1） Network Management and Configuration

Specific abilities of functional categories

Management methods support CLI (Command Line Interface), web-based management, MIB support, STEP 7 configuration, and multiple ways to adapt to different user habits

Alarm and log support sending TRAP alarms via email for remote monitoring; Support port diagnosis, packet size/type statistics, error statistics, and assist in fault location

Protocol support - Basic protocols: Telnet, HTTP, HTTPS, TFTP, FTP, DCP, LLDP

-SNMP protocol: v1/v2/v3, meeting network management requirements of different security levels

-Security protocol: SSH, ensuring remote management communication security

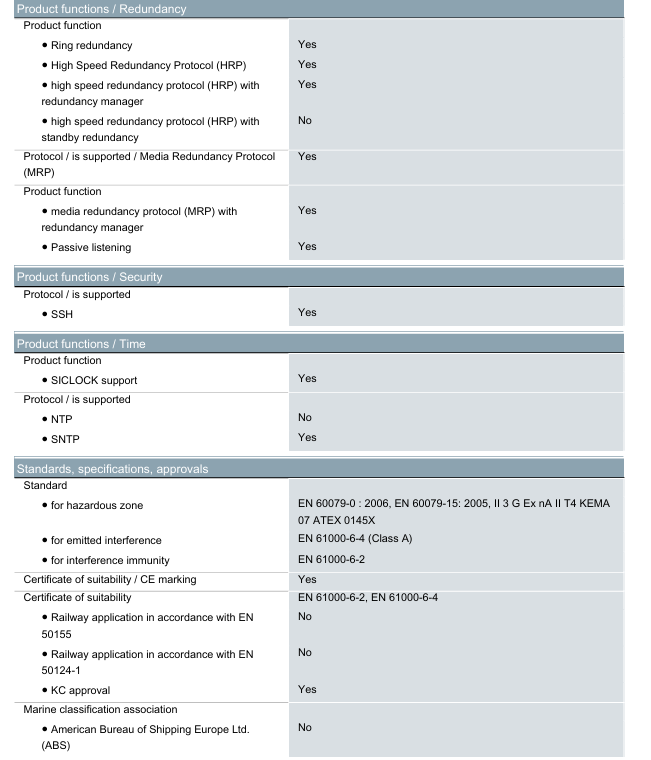

（2） Redundancy and Topology

Specific abilities of functional categories

The redundancy protocol supports MRP (Media Redundancy Protocol) and HRP (High Speed Redundancy Protocol), integrates a redundancy manager, and does not support HRP backup redundancy

Redundancy performance: When cascading redundant loops, the reconstruction time is less than 0.3s, quickly restoring communication and reducing the impact of faults

Topology supports star topology that can be cascaded arbitrarily (limited only by signal propagation time), suitable for complex industrial network layouts

（3） Other key functions

DHCP function: Supports DHCP clients, can automatically obtain IP addresses, and simplifies network configuration.

Time synchronization: Supports SICLOCK and SNTP protocols, but does not support NTP to ensure time consistency of network devices.

PROFINET Function: As a PROFINET-IO device, it supports PROFINET IO diagnostics but does not support IRT (Real Time) function.

Port function: Supports port mirroring, facilitating network traffic analysis and troubleshooting.

Certification and Compliance

（1） Basic certification

CE certification, KC certification, in compliance with EN 61000-6-2 (anti-interference) and EN 61000-6-4 (interference emission, Class A) electromagnetic compatibility standards.

（2） Special scenario authentication

Not supporting railway applications (EN 50155, EN 50124-1 standards), not supporting maritime classification society certification (ABS, BV, DNV, etc.), only applicable to conventional industrial and hazardous area scenarios.
