ABB AC700F controller with direct S700 I/O

AlzChem GmbH in Trostberg, a subsidiary of Evonik Industries

AG, produces specialty chemicals products with a wide range

of uses. These chemicals are used, for example, in the production of crop protection products, pigments, dyes, pharmaceuticals and polymers.

In the past, an inverted filter centrifuge in a system for extracting natural substances was PLC-controlled at AlzChem GmbH.

The program code for the PLC, a standard program from the

manufacturer, was not transparent and needed specialists to

make changes. The program was not intuitive and diagnostic

analyses were only available to a very limited extent. In order

to simplify programming and to optimize the process control,

AlzChem thus decided to use the AC 700F controller. This replaced the PLC and was integrated into the existing Freelance

800F system without any problems.

This offers several advantages for AlzChem: The use of one

single engineering tool to configure the entire system simplifies

engineering and saves a significant amount of time during

commissioning. After transferring the program the system is

easy to understand and maintenance is simpler.

During the operating and maintenance phase, the wide range

of diagnostic options (sequence control-, hardware -, interlock

diagnostics), the intuitive graphical user interface and mature

alarm and report management allow costs to be cut. This

reduces downtime of the application and cuts maintenance

Project: System for extracting natural substances,

AlzChem GmbH, Trostberg, Germany

Industry: Chemicals

expenditures. All this improves the efficiency of the entire

system and the slightly higher acquisition costs compared to

a PLC amortize within a very short time.

Hartmut Rohner, Head of Electrical Systems, Instrumentation

and Control at AlzChem, is particularly impressed by the simple

and clear handling of the AC 700F controller and the Freelance

800F system. “It is easy for anyone to learn how to operate

the software and hardware. In contrast, it was practically impossible to understand the standard program supplied by the

manufacturer together with the centrifuge.” Mr. Rohner also

sees clear advantages over other systems when it comes to

maintenance and faultfinding. Whereas with other manufacturers faultfinding is only possible using a handheld device in

the field, Freelance 800F provides extensive analysis options

right in the control room. “Now I look at the status and can

see straight away where the error is. That is not possible that

simply in other systems.” This makes fault finding and maintenance substantially easier.

Northam Platinum Ltd. is based in Johannesburg, South Africa,

and mines and produces precious metals. Convertors are

used to extract platinum from ore. These convertors are driven

using electrical motors. Until now, a PLC controlled the motors’

direct motor starters. This operating mode was not reliable

and efficient enough for Northam, as the motors thus operate

constantly at full output. That reduces the lifespan of the components and causes higher repair and maintenance costs to

increase.

When the application was modernized and converted to frequency converters to increase energy efficiency, the outdated

PLCs were to be replaced. Customer requirements were a

more compact controller, an improved presentation of alarms

and results and an excellent cost/benefits ratio.

Northam opted for the new AC 700F controller when replacing

PLCs for the converters. Northam has been using the Freelance

800F system to control its smelting furnaces and other applications for many years and is convinced by the systems performance.

One AC 700F controller now regulates one variable-speed

drive. The motor output can be adjusted at any time to the

current operating requirements of the application, as frequency

converters can be simply driven by the controller. The adjustment allows up to 50% of energy savings and processes can

be better controlled. The increase in efficiency resulting from

the intelligent speed control can be used in two ways: to increase productivity or to keep production stable while simultaneously reducing energy consumption.

Integration of the AC 700F controller into the existing Freelance

800F system and the easy engineering with just one engineering tool, “Control Builder F” simplify commissioning and maintaining of the entire application. The configuration is particularly

simple as the visualization is also created with Control Builder

F. Separate tools for programming the PLCs and to create

operator images are no longer needed. Technicians now only

need to handle a uniform engineering tool system wide. Production data and information such as signal descriptions,

current and historical data, reports and detailed status information can be recorded over several years in the information

management tool PGIM 800F.

As a result of its positive experience, Northam will modernize

additional converters and other small plants using the AC 700F

controller in the near future.

Osby Parca produces high-performance boilers for hot water

and steam. The product range spans from electric boilers with

36 kW through to oil boilers with 16 MW. Osby Parca offers a

wide variety of solutions: for solid fuels, steam, gas, oil, electricity and heat recycling, flue gas cleaning and biomass systems. These boilers are delivered to both small customers and

key accounts - from sole proprietors for pipe installations to

industrial customers and distance heating plants.

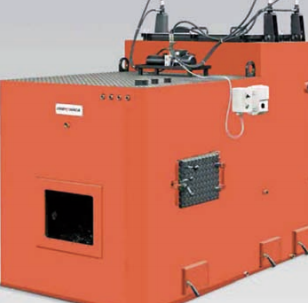

In order to control the fully-automated solid fuel boiler Osby

PB2, Osby Parca has been using ABB’s compact Freelance

800F control system for several years. This boiler, with output

of 350 to 3000 kW is used to burn dry wood fuels such as

pellets and briquettes. The control adjusts the combustion to

the current load to ensure that there is a constant inlet temperature. Sensors and actuators regulate the draught in the

firing plant, the movement of the grate and the fuel supply.

Adjusting the draught in the firing plant controls the amount

of air for the combustion process. This allows continuous

control across the entire range of outputs. The combination

of the boiler and the control system allowed Osby Parca to

win several projects and it has equipped various power plants

in Sweden.

The Osby P500 model is a solid-fuel boiler for burning dry

wooden fuels such as pellets, briquettes, peat and wood

chips. The product range comprises four boilers with output

of 100 - 1000 kW. In the past, Osby Parca used a PLC to

control these boilers, as process control technology with

comprehensive features was too expensive for the smaller

models. In the majority of cases, the boilers were independent

sub-sections of a total plant and as a result they were controlled as a “standalone solution”. That is why many users often

decided to use the lowest-priced hardware/software solution

when selecting the automation systems to be used.

This clearly shows the advantages offered by the great scalability of the Freelance 800F system together with the new

AC 700F controller. Osby Parca can now use the wide-ranging

advantages offered by Freelance 800F at a price similar to

PLC + SCADA systems when controlling the smaller boilers.

Compared to PLC + SCADA, a process control system offers

more functionality, for example automatically generated diagnostic information and alarms as well as easy and fast online

optimizations of applications.

In addition, simplified remote diagnostics in central control

rooms is possible, as the control technology automatically

generates system alarms and system diagnostics, which are

available using PC technology.

Osby Parca is very pleased: “The AC 700F Controller combines

the functionality of a control system with the price level of a

PLC with a visualization solution. The uniform tool for configuring the controller and the operator station with automatically

generated faceplates (operator windows) saves time for engineering and commissioning. Time can also be saved in ongoing

operation and for maintaining the application thanks to advanced

diagnostics opportunities and improved alarm handling. This

cuts installation costs and significantly increases the plant’s

economic efficiency.”

Osby Parca is convinced of the opportunities offered by the

Freelance 800F control system and in future it will fit even

more boilers with AC 700F and AC 800F controllers.

At Sasol in Brünsbüttel the AC 700F controller has been installed to control a pneumatic conveyor system for aluminum

oxide powder. This system was controlled using a PLC in the

past. Sasol is a convinced, long-standing user of the compact

control system Freelance 800Fand thus decided to use the

AC 700F Controller when replacing the PLCs. Customer requirements were the transfer of the existing application into

the new controller, the subsequent optimization of process

control through the use of diagnostic features and short setup

and installation times.

In addition, the system was to be configured by one of the

customer’s application engineers, who had never worked with

the Freelance 800F system before. After a short training period

and with ABB’s support during the start-up phase, it was possible to successfully put the project in operation in the shortest

timeframe. The easy-to-learn and intuitive configuration of

Freelance 800F was the crucial factor for Sasol when they

chose the control system.

Thanks to the compact footprint of the AC 700F controller,

the old PLC control could be exchanged without having to

modify the control cabinets - even the existing wiring in the

control cabinet remained unchanged. This allowed considerable advantages to be gained in respect of operation and fault

diagnostics but with minimal outlay. The main advantages of the

compact Freelance 800F system compared to a PLC solution

are the simple configuration, operating the plant from the

control room and the possibility of remote access for maintenance work.

A touch screen operator station replaces the switches and

lights at the control cabinet formerly used as operation elements. This makes it easier for plant operators to control the

equipment locally and also allows all of the other systems

connected to the process control system to be used.

At Sasol, other outdated control cabinets are to be modernized

with the new AC 700F controller in the near future

上一篇： ABB Abilit......

下一篇： ABB Contra......

ADLINK HPCI-14S12U - Industrial Control Backplane 12PCI Backplane PCI-14S Passive Backplane
ADLINK PCIe-GIE74C - image acquisition card 4-CH GigE Vision PoE+ Frame Grabber
ADLINK PCI-8164 - control card 4-Axis Advanced Motion Controller Board
ADLINK PCIe-U304 - 4 Port USB3 PCIe Frame Grabbers USB Screw Hole Card
ADLINK PCI-9112 - Multi-Function Data Acquisition Card DAQ Card
ADLINK PCI-7432 - 51-12013-0A50 4-CH Isolated Numérique I/O PCI Cartes Digital I/O Card
ADLINK PCA-6106P3-0C1 REV.C1 - backplane 6-Slot Passive Backplane Board
ADLINK PCI-7224 - 24-CH Opto-Isolated Digital I/O PCI Board
ADLINK CPCI-7433R(G) - Digital Input Board Rear I/O CompactPCI Card
ADLINK EBP-13E4 - 51-46703-0A30 Industrial PC Backplane Passive Backplane
ADLINK PCIE-HDV62 - Image acquisition card High Definition Video Frame Grabber
ADLINK EBP-13E4 - 51-46703-0A30 Industrial Backplane Board Passive Backplane
ADLINK 90111-B1 / CPCI-6770 - PCB CPU MODULE CompactPCI Single Board Computer
ADLINK PCI-7248 - DATA ACQUISITION PCI CARD 48-CH Parallel Digital I/O Board
ADLINK PCI-7230 - 51-12003-0a50 board PCI7230 32-CH Isolated Digital I/O Card
ADLINK PCI2A000CB - 51-20000-0B30 Multi-Function DAQ Card Baseboard
ADLINK PCI-8134-005 - 4-Axis Motion Controller Card
ADLINK PCI-7224 - 24-CH Opto-Isolated Digital I/O PCI Card
ADLINK PCI-7434 - 64-CH Isolated Digital Output Card
ADLINK PCI-8132 - motion control card 2-Axis Servo & Stepper Controller
ADLINK PCI-8134 - Motion Controller PCI Card 4-Axis Controller Board
ADLINK PCI-8164 - Motion Control Card 51-12406-0A40 4-Axis Controller
ADLINK 51-12001-0C20 - Circuit Board Data Acquisition Interface Module Hardware
ADLINK NuPR0-840 - industrial control motherboard Full-Size PICMG CPU Board
ADLINK PCI-7444 - 51-12023-0A10 card 128-CH Isolated Digital Output Board
ADLINK PCI-1612B - data acquisition card 4-Port RS-232/422/485 Serial Communication Card
ADLINK PCI-6208V 009 - 8/16-CH 16-Bit Analog Output Cards PCB-I-E-482=6BX3
ADLINK NUPRO-935A/LV - industrial control motherboard Full-Size PICMG SBC Board
ADLINK PCI-9114DG - Multi-Function DAQ Card Data Acquisition PCI Card
ADLINK ACL-7130 - Data acquisition card Isolated Digital I/O Board
ADLINK ABX-6300D-4E1-BP - board ABX6300D4E1BP Video Interface Expansion Card
ADLINK CPCI-6940 - CPCI-6940/D1539/M16-0(EA)-000E 6U CompactPCI Processor Board
ADLINK NuPRO-760 - industrial control motherboard Half-Size PICMG SBC CPU Board
ADLINK IMB-M42H (G)-0020 - industrial control motherboard LGA1155 Micro-ATX Mainboard
ADLINK RTV-24 / PCI-MP4S - 51-12519-1C30 4-Channel Real Time Video Capture Board
ADLINK PCI-8134 - 4-Axis Servo & Stepper Motion Controller Card
ADLINK MXC-6101D - V.PC000.002.ST.00 Box PC Configurable Embedded Computer
ADLINK PCI-8134A - 51-12421-0A10 Motion Control Card 4-Axis Controller Card
ADLINK DIN-100S / DIN-100SA1 - Technology SCSI-II TB 100-PIN Terminal Block Board
ADLINK DIN-812M001 / DIN812M001 - 51-14034-0A1 51140340A1 Terminal Module Breakout Interface
ADLINK PCI-8164 - Servo motion control 4-Axis Advanced Controller Card
ADLINK PCIe-GIE64 - Acquisition card GigE Vision PoE+ Frame Grabber
ADLINK M-302 - Industrial control motherboard ATX PC Board Mainboard
ADLINK PCI-8134 - Motion Controller PCI Card 4-Axis Controller Board
ADLINK PCI-RTV24 - Image capture card Analog Video Frame Grabber
ADLINK PCI-8102 - Motion control card 2-Axis Servo & Stepper Controller Board
ADLINK PCI-9112 REV.B1 - Card Multi-Function Data Acquisition Card
ADLINK HSI-DI32-M-N / HSL-TB32-M-DIN - Discrete I/O MODULE Distributed Automation Module System
ADLINK PCI-7296 - IO card REV.A3 96-CH Parallel Digital I/O Card
ADLINK DIN-814P-A4 / 814Y - terminal board Motion Control Interface Block
ADLINK DIN-814P-A4 - 51-14056-0A10 PCB-I-E-2736=ZA01 Screw Terminal Board Breakout
ADLINK M-322 - motherboard Industrial Control Computer Mainboard
ADLINK NUPRO-406 REV:B1 - industrial control motherboard Full-Size PICMG CPU Board
ADLINK AMP-204C - card DSP-Based 4-Axis Advanced Pulse-Train Controller
ADLINK HPCI14S REV.B1 - industrial computer baseboard 14-Slot Passive Backplane
ADLINK PCI-7250 - 8-CH Relay Output & 8-CH Isolated DI PCI Card
ADLINK EBP-13E2 - baseplate Passive Backplane Industrial Computer Chassis Board
ADLINK LPCI-3488A - PCI-GPIB card 51-12801-0A30 acquisition card IEEE-488 Interface Board
ADLINK PCI-6216V-GL - 51-12201-0C30 16-CH 16-Bit Voltage Analog Output Card
ADLINK ACL-8454 - 16-CH Isolated Digital I/O & 4-CH Counter Card
ADLINK HPCI-9S7U - backplane Passive Backplane Compatible with NuPRO-A301 852 841 842
ADLINK DAQ-2010-007 - Simultaneous-Sampling Multi-Function Data Acquisition Card
ADLINK MP-C154 - 51-64205-0A10 Motion Control Card 4-Axis Controller Board
ADLINK MXE-202/mSSD16B/WiFi-BT - Matrix Rugged I/O Platform Embedded Fanless Computer
ADLINK CM-920-R-17 - PC/104-Plus Single Board Computer Module Intel Celeron M
ADLINK PCI-7250 NSMP - 8-CH Relay Output & 8-CH Isolated DI Card
ADLINK PCI-8164 - 4-Axis Motion Controller PCI Card W/ Cable and Breakout Box
ADLINK EMX-100 - Ethernet-based 4-axis Motion Controllers Distributed Motion Module
ADLINK PCI-8134A - Press control card 4-Axis Motion Controller Board
ADLINK M-845EG REV:3.2 - industrial motherboard Pentium 4 Socket 478 Micro-ATX
ADLINK PCI-9114A Rev A2 DG - card High-Resolution Multi-Function Data Acquisition Board
ADLINK IEC-915GV - REV 1.1 Industrial motherboard Socket 478 CPU Board
ADLINK PCI-9111DG(G) - Data Acquisition Card Multi-Function DAQ Card
ADLINK HPCI-15S10 REV:B2 - Industrial computer base plate Passive Backplane Board
ADLINK NuPR0-840 / NuPR0-840DV - industrial control motherboard Full-size PICMG CPU Board
ADLINK RTV-24 / PCI-MP4S - 51-12519-1C30 4-Channel Real Time Video Capture Board
ADLINK NUPRO-780 - industrial control motherboard Pentium III Single Board Computer
ADLINK PCI-7296 - 0050 card 96-CH Opto-Isolated Parallel DIO Card Set
ADLINK NUPRO-780 - industrial control motherboard PICMG Full-Size SBC
ADLINK PCI-7248 - 51-12006-0A3 002 Pci 7248 48-CH Parallel Digital I/O Card
ADLINK PCI-7230 - 32-CH Isolated Digital I/O Card
ADLINK AMP-204C - motion control card 4-Axis Advanced Controller Board
ADLINK PCI-1714UL - Card Ultra High-Speed 4-CH Simultaneous Sampling DAQ
ADLINK NuPRO-E330 - industrial computer equipment motherboard PICMG 1.3 SHB SBC
ADLINK AMP-204C - DSP-Based 4-Axis Advanced Pulse-Train Motion Controller Module
ADLINK PCI-7256 - 001 51-12206-0A2 REV.A2 LPCI-7256 16-CH Latching Relay Output Card
ADLINK ND6050 - NUDAM DIGITAL I/0 MODULE Distributed I/O Unit
ASEM BM100 - Box PC Embedded Fanless Industrial Computer
ADLINK PCI-7250 - PCI Acquisition Card 8-CH Relay Output & Isolated DI Board
ADLINK PCI-8164 - Servo motion control 4-Axis Controller Card
ADLINK NuPRO-A40H - Industrial Motherboard 51-41807-1A30 OSP LGA1155 H61
ADLINK ADMAX X300 SERVER - 51066010-0A30 motherboard Multi-Processor Mainboard
ADLINK CMe-GIE62+ - 51-32903-0A30 control card PC/104-Plus GigE Vision Frame Grabber
ADLINK NUPRO-780 - industrial control motherboard Full-Size PICMG SBC CPU Board
ADLINK ETX-AT-N270-18/GKTEL - 51-71111-OB10 motherboard ETX CPU Module Board
ADLINK DIN-812M - interface module Terminal Block Connection Board
ADLINK IMB-M42H - industrial control motherboard LGA1155 Micro-ATX Mainboard
ADLINK PXIS-2508 - 8-slot 3U PXI Instrument Chassis Power Hardware Assembly
ADLINK AMP-208C - Motion Control card DSP-Based 8-Axis Pulse-Train Controller
ADLINK PCI-9111 / PCI-9111DG - Multi-Function Data Acquisition Card DAQ Board
ADLINK IEEE-488 GPIB card - Bus Interface Controller Communication Board
ADLINK RTV-24 - 51-12519-1C30 image acquisition card Video Frame Grabber Card
ADLINK TB-24P/24-01 - Board 24 Way Screw Terminal Breakout Board
ADLINK HSL-DI16DO16-DB-NN - 51-23015-0A40 Distributed Discrete I/O Module Set
ADLINK PCI-7442 - switch quantity card data acquisition card 64-CH Isolated Card
ADLINK ACL-7130 REV. B2 - industrial control capture card Isolated Digital I/O PCI Card
ADLINK PCI-6S / PCI6S - Backplane 6-Slot Passive Backplane Chassis Board
ADLINK ACL-8113A - card Isolated Digital Input Card
ADLINK CPCI-6208V-003 - board cPCI CompactPCI 8-CH Analog Output Card
ADLINK DIN-100S-01(G) - SCSI 100-Pin Terminal Block Interface Board
ADLINK PCI-7433 - Isolated Digital Input Card 64-CH
ADLINK PCI-9812 - Synchronous sampling analog input card High-Speed DAQ Board
ADLINK PCI-7434 REV.B1 - PLOTECH PCB-I-E-1182=6EX2 64-CH Isolated Digital Output Card
ADLINK PCIe-RTV24 - 51-18016-0A20 4-CH Real-Time Video Capture Card PCIe Frame Grabber
ADLINK PCI-8144 / PCI-8144N - Motion control card 4-Axis Stepper Motor Controller
ADLINK DIN-68S-01 - terminal board 68-Pin Connector Terminal Block
ADLINK MP-C154 - Motion control card 4-Axis Advanced Controller Card
ADLINK PCI-7248 (G) - Motherboard 48-CH Parallel Digital I/O Card
ADLINK MXE-1301(G) - Intel Atom D2550+NM10 MXE 1300 Series 93-4130-0030 Embedded Computer
ADLINK PRO-841 Rev 2.0 / PRO-060907000670 - CPU 2.26GHz & RAM Industrial PC Board
ADLINK cPCI-6626 - 6U CompactPCI 2.0 Blades i7-2710QE PCB-I-E-2570=9N41
ADLINK MXC-6322D(G) - Industrial Fanless Computer
ADLINK cPCI-8168-004 - CompactPci NulPC Motion Control Board 51-36402-0A3
ADLINK CPCI-7300[G] - COMPACTPCI Digital I/O Card Data Acquisition
ADLINK CPCI-6626/2710/M4G - COMPACTPCI COMPUTER BOARD
ADLINK cPCI-8168-009 - cPCI NulPC Motion Control Board
ADLINK cPCI-6626/2710/M4G - VME CPU Board Computer Board
ADLINK CPCI-R6200(G)-0040 - COMPACTPCI CONTROL BOARD
