ABB ACS800-04/U4 driver module

ABB ACS800-04/U4 driver module

Safety instructions

Operation safety

Only qualified electricians are allowed to perform installation and maintenance. After power failure, wait for 5 minutes for the intermediate circuit capacitor to discharge.

Measure and confirm that the voltage at the input terminals (U1/V1/W1) and DC terminals (UDC+/UDC -) is close to 0V before starting the operation.

Do not operate when the control cable is live to avoid conducting insulation tests on the drive.

Grounding requirements

The drive, motor, and ancillary equipment must be independently grounded, and the specifications of the grounding conductor must comply with safety standards (such as copper conductor ≥ 10 mm ²).

European CE compliant installation requires 360 ° high-frequency grounding to suppress electromagnetic interference.

Mechanical and Electrical Safety

Avoid single person operation during transportation, pay attention to the high temperature risk of the heat sink, and prevent conductive dust from entering the drive.

When handling printed circuit boards, it is necessary to wear a grounding wristband, and the bending radius of fiber optic cables should not be less than 35 mm.

Driver Overview and Compatibility

Product positioning

ACS800-04/U4 is an IP20 driver module suitable for industrial automation scenarios, supporting direct torque control (DTC) and compatible with permanent magnet synchronous motors.

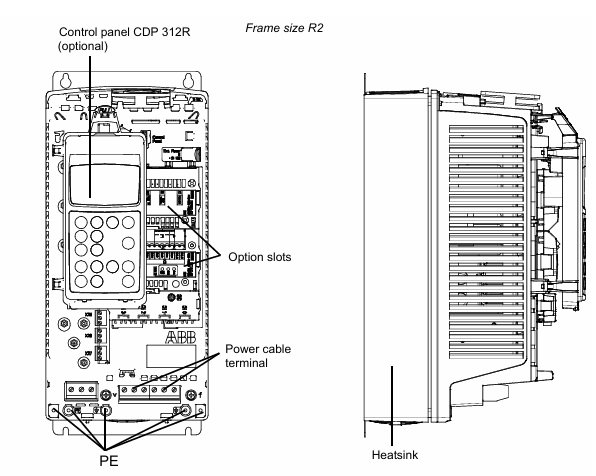

Framework classification

Divided by power into R2 to R6 frames, different frames correspond to size, heat dissipation requirements, and installation methods (such as flange installation IP55).

Installation and Debugging

Mechanical Installation

Sufficient heat dissipation space needs to be reserved (such as 200mm space above the R2 frame), and the ventilation design of the cabinet needs to meet the air flow requirements.

During flange installation, IP55 protection must be ensured, and grounding must be connected independently.

electrical installation

Power connection: The input cable should match the rated voltage (208-690 V AC), use a symmetrical shielded cable, and ground the shielding layer 360 °.

Motor connection: Select cable specifications based on the frame (e.g. R2 frame motor cable ≤ 16 mm ²), avoiding the use of power factor compensation capacitors.

Control connection: Analog signals require twisted pair shielded cables, while digital inputs/outputs require attention to logic thresholds (12 V DC is "1").

Installation of safety features

Prevent accidental startup (+Q950): An external AGPS board is required, powered by 230 V AC, and locked by a switch to prevent accidental startup.

Safe torque shutdown (+Q967): External ASTO board, 24 V DC power supply, in compliance with EN 61800-5-2 standard.

Technical parameters and performance

RATING

Current/power: For example, the R2 frame has a rated current of 5.1 A (230 V AC) and a continuous power of 1.1 kW; the R6 frame has a rated current of 290 A (690 V AC) and a continuous power of 200 kW.

Overload capacity: light load (10% overload) can last for 1 minute/5 minutes, heavy load (50% overload) can last for 1 minute/5 minutes.

Electrical characteristics

Input voltage fluctuation ± 10%, frequency 48-63 Hz, power factor 0.98 (rated load).

Output voltage 0 to input voltage, frequency 0-300 Hz, switching frequency 3 kHz (2 kHz for 690 V units).

Heat dissipation and derating

When the ambient temperature exceeds 40 ° C, the rated current will decrease by 1% for every 1 ° C increase; When the altitude exceeds 1000 meters, the rating will decrease by 1% every 100 meters.

Maintenance and component replacement

Routine maintenance

Clean the heat sink every 6-12 months and check the fan's operating status annually (with a lifespan of approximately 6 years).

Capacitor replacement cycle: R4 and above frames take about 10 years and need to be reformed according to the manual.

component replacement

When replacing the fan, attention should be paid to model matching (such as the R2 frame fan requiring a flow rate of 35 m ³/h), and the functionality of the capacitor needs to be verified after replacement.
