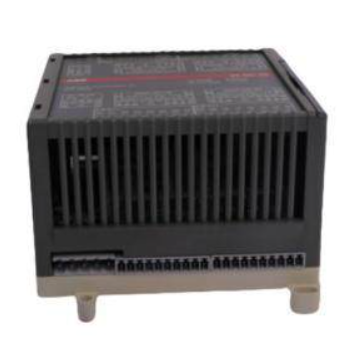

ABB UAD149A0011 3BHE014135R0011 Controller Module



ABB UAD149A0011 3BHE014135R0011 Controller Module

Product overview

ABB UAD149A0011 3BHE014135R0011 is a powerful controller module that occupies an important position in industrial automation control systems. It is designed specifically for ABB's AC 800M and AC 800PEC control systems, and can efficiently achieve key tasks such as data exchange, signal processing, and equipment control within the system. It is one of the core components for building a stable and intelligent industrial automation architecture.

Function characteristics

Communication function: As a communication module, it enables the AC 800M system to communicate smoothly with other devices on the Profibus network. Profibus is a widely used fieldbus standard in the industrial field. With excellent communication protocol conversion and data transmission capabilities, UAD149A0011 ensures fast and accurate data exchange between different devices, effectively improving the information flow efficiency of the entire industrial network.

Integrated I/O: This module integrates analog and digital I/O signal processing functions and can support multiple types of input and output signals. Whether it is analog signals from sensors such as temperature and pressure, or digital signals representing equipment status such as switch on/off and motor on/off status, they can be accurately collected and processed by it, and control signals can be output according to the system's preset logic to achieve precise control of various industrial equipment.

High reliability diagnosis: Built in powerful self diagnostic function that can monitor its own working status in real time. By continuously monitoring hardware circuits, software programs, and data transmission processes, once a fault or abnormality is detected, the module will quickly issue an alarm and generate detailed diagnostic reports to help maintenance personnel quickly locate the problem, greatly reducing system downtime and ensuring the continuity and stability of industrial production.

Fast scanning and response: With fast scanning speed, it can complete the acquisition and processing of input signals in a very short time, and output control instructions in a timely manner. This feature significantly reduces the response delay of the system, enabling industrial automation systems to quickly respond to various changes in the production process, improving production efficiency and product quality.

Technical Parameter

Electrical parameters

Rated input voltage: 24VDC, suitable for common industrial DC power supply systems, ensuring stable power supply.

Isolation voltage: reaches a high standard, such as 2500Vrms, effectively isolates electrical interference between different circuits, ensuring the safety and reliability of the system.

Power consumption: Maintain at a reasonable level, with specific values depending on the actual workload. Lower power consumption helps reduce system operating costs.

Physical parameters

Size: Approximately 145mm x 145mm x 145mm, the compact design allows for flexible installation within limited control cabinet space, saving space resources.

Weight: Moderate weight facilitates installation and maintenance operations. Specific weight values can be found in the product manual.

I/O parameters

Analog input: Supports multiple types of analog input signals, such as 0-10V, 4-20mA, etc., with high resolution and accuracy, capable of accurately collecting analog data.

Analog output: It can output stable analog signals, which are used to control regulating valves, frequency converters and other equipment. The output accuracy is high and can meet the strict requirements of industrial control.

Digital input/output: With multiple digital input/output channels, it can quickly process digital signals, respond quickly, and is suitable for various switch control scenarios.

Application scenarios

Industrial automation production line: In automated production lines such as automobile manufacturing and electronic equipment production, UAD149A0011 can connect various sensors, actuators, and controllers to achieve comprehensive monitoring and precise control of the production process. For example, it can control the movement of the robotic arm based on the position information of the parts fed back by sensors, ensuring accurate grasping and assembly of the parts, and improving the automation level and production efficiency of the production line.

Process control system: In the field of process control in industries such as chemical, power, metallurgy, etc., this module can collect real-time process parameters such as temperature, pressure, flow rate, etc., and output control signals according to preset control strategies to adjust various equipment in the production process, such as valves, pumps, etc., to ensure stable operation of the production process, optimize production processes, improve product quality and production safety.

Intelligent building control system: In intelligent buildings, UAD149A0011 can be used to connect and control lighting systems, air conditioning systems, security systems, etc. By analyzing and processing various sensor data, intelligent adjustment of the building's interior environment can be achieved, such as automatically adjusting lighting brightness based on indoor light intensity, automatically controlling air conditioning operation based on temperature changes, and improving the intelligence level and energy utilization efficiency of the building.
