Emerson AMS 3210 Axis Position Monitor

Emerson AMS 3210 Axis Position Monitor

Product positioning and core functions

AMS 3210 is a dual channel axis position monitor primarily designed for small, low channel applications. Its core function is to measure relative axis displacement signals, and specific equipment applications include:

Power equipment: small steam turbine, gas turbine, water turbine

Fluid machinery: compressors, pumps, fans

Configuration flexibility: Measurement settings, alarm thresholds, and output parameters can be customized on-site through software to meet different operating conditions

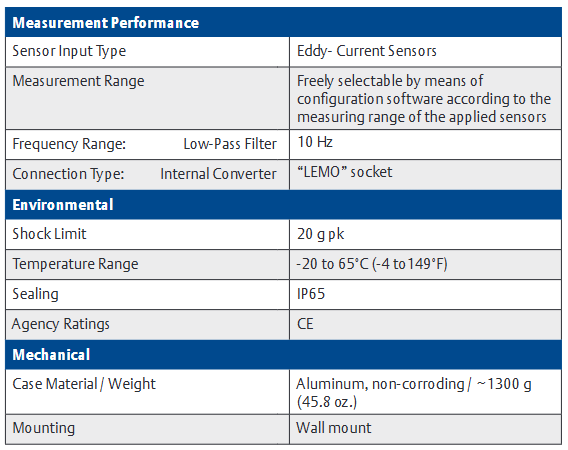

Measure performance parameters

The product is based on Eddy Current Sensors to measure axial displacement, with the following core performance indicators:

Specific parameters of performance category

Sensor input type Eddy Current Sensors

The measurement range does not have a fixed preset range, and can be freely selected through configuration software based on the measurement range of the selected sensor

Frequency range (low-pass filter) 10 Hz (filters out high-frequency interference to ensure measurement signal stability)

Connection type (internal converter) "LEMO" interface (dedicated connector to ensure signal transmission reliability)

Environmental and mechanical characteristics

1. Environmental adaptability

Environmental parameter requirements

Impact limit 20 g pk (peak acceleration, to cope with impact vibration during equipment operation)

Temperature range: -20~65 ° C (corresponding to -4~149 ° F), meeting the temperature change requirements of industrial environments

Protection level IP65 (completely dust-proof, able to withstand low-pressure water spray, suitable for industrial scenes with high dust and humidity)

Certification qualification CE certification (compliant with EU electromagnetic compatibility, safety and other related directives)

2. Mechanical specifications

Mechanical parameter details

Shell material/weight: corrosion-resistant aluminum alloy (balancing lightweight and durability)/approximately 1300 g (45.8 oz)

Installation method: Wall mounted installation (saves space and facilitates on-site layout)

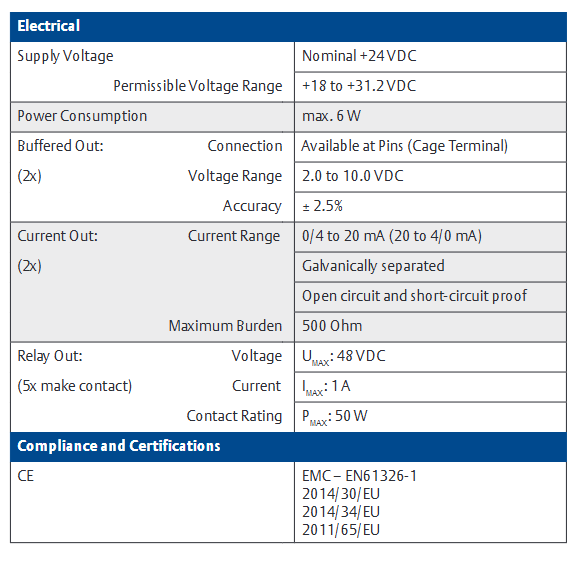

Electrical characteristics

1. Power supply and power consumption

Supply voltage: nominal voltage+24 VDC, allowable voltage range+18~+31.2 VDC (suitable for industrial power supply fluctuations)

Power consumption: Maximum 6 W (low-power design, reducing operating energy consumption)

2. Output interface parameters

The product offers multiple output types to meet different signal transmission and control requirements, with specific specifications as follows:

Output type detailed parameters

Buffer output (2 channels) - Connection method: Cage Terminal for easy wiring and maintenance

-Voltage range: 2.0~10.0 VDC

-Accuracy: ± 2.5% (ensuring signal output accuracy)

Current output (2 channels) - Current range: 0/4~20 mA (supports reverse output of 20~4/0 mA)

-Electrical isolation: Galvanically separated to avoid interference from grounding loops

-Protection function: Open circuit and short circuit protection (improving equipment safety and durability)

-Load capacity: Maximum 500 Ohm (compatible with input impedance of most receiving devices)

Relay output (5 normally open contacts) - Maximum voltage: 48 VDC

-Maximum current: 1 A

-Maximum power: 50 W (can drive small actuators or alarm devices)

3. Compliance certification

Compliant with EN61326-1:2014 standard (electromagnetic compatibility requirements, applicable to electrical equipment in industrial environments)

Meet the requirements of the EU 2014/30/EU (EMC Directive), 2014/34/EU (ATEX Directive, Safety of Equipment in Potential Explosive Environments), and 2011/65/EU (RoHS Directive, Restriction of Hazardous Substances)

Ordering information and size

1. Model and configuration differences

The product offers two core models, with the main difference being the integration method of the eddy current converter. Users need to choose according to their needs:

Model Product Description

A3210/022-000 AMS 3210 axis position monitor with built-in eddy current converter (no additional converter required, ready to use out of the box)

A3210/022-020 AMS 3210 Axis Position Monitor, External Eddy Current Converter (Converter to be ordered separately for greater flexibility)

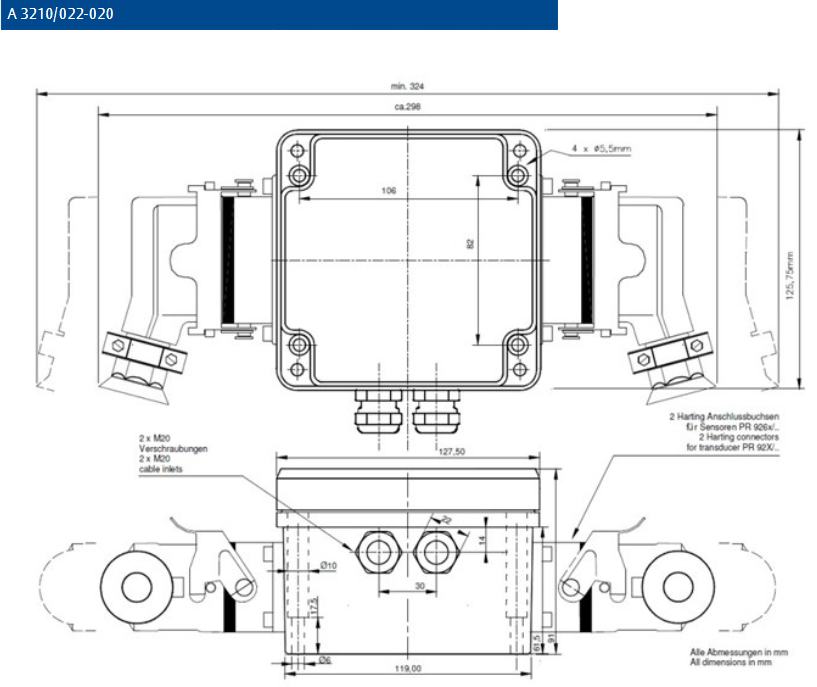

2. Size specifications

Model A3210/022-000: Key dimensions (unit: mm) include 127.5, 127.50, 60, 119.00, etc., equipped with 4 mounting holes with a diameter of 6mm (specific details need to refer to the drawing annotations)

Model A3210/022-000: Key dimensions are approximately 296mm (other detailed dimensions shall be subject to official drawings)

Note: All dimensions are in millimeters (mm), and detailed dimension drawings can be referred to official materials based on actual needs
