Automation Direct GS2 series AC frequency converter: in-depth analysis from technical specifications to installation and application

Introduction: Market positioning and core technologies of GS2 series

In the field of modern industrial automation control, as the core component of motor drive, the performance of AC frequency converter directly determines production efficiency and energy utilization. The GS2 series frequency converter launched by Automation Direct, as an upgraded version of the GS1 series, has become the preferred choice for many small and medium power application scenarios due to its compact design, rich feature set, and high cost-effectiveness. This series not only covers basic voltage/frequency (V/Hz) control, but also integrates advanced functions such as PID control, dynamic braking, and detachable keyboard, making it perform well in typical applications such as fans, pumps, conveyor belts, and compressors.

This article will comprehensively analyze the technical specifications, model definitions, installation environment requirements, electrical wiring specifications, and rich accessory ecosystem of the GS2 series based on its technical documents, aiming to provide engineers with a detailed technical reference guide.

Model Code and Series Overview

Understanding the model code of a product is the first step in selecting and maintaining it. The model structure of the GS2 series is clear and can intuitively reflect the key parameters of the equipment.

1.1 Model Naming Rules

Taking model GS2-47P5 as an example, its composition logic is as follows:

GS2: Series name, representing that this series has PID control, dynamic braking, and RS-232/485 communication functions.

4: Voltage level code. 1 represents 115V level, 2 represents 230V level, 4 represents 460V level, and 5 represents 575V level.

7P5: Applicable motor capacity. 0P2 is 0.25HP, 7P5 is 7.5HP, and 010 is 10HP.

1.2 Power coverage range

The GS2 series provides a wide power coverage to meet the needs of light to medium loads:

Motor rated power: from 0.25 HP (0.2 kW) to 10 HP (7.5 kW).

Voltage level adaptability: Supports single-phase 115V input (low power), single-phase/three-phase 230V input, three-phase 460V input, and three-phase 575V input, adapting to different industrial power grid environments worldwide.

In depth analysis of core technical specifications

The technical specifications of the GS2 series reflect its competitiveness among products of the same level, mainly reflected in control characteristics, overload capacity, and output performance.

2.1 Control and output characteristics

Control mode: Adopting sine pulse width modulation (SPWM) technology, the carrier frequency can be adjusted between 1kHz and 12kHz. High carrier frequency can help reduce motor noise, but it will increase the heat loss of the frequency converter, which needs to be balanced in the design.

Starting torque: Provides 125% starting torque at 0.5Hz and up to 150% at 5Hz. This is thanks to its automatic torque boosting and automatic slip compensation functions, ensuring smooth and powerful low-speed starting.

Overload capacity: It has an overload capacity of 150% rated current for one minute, which is sufficient to cope with most start-up impact loads.

Frequency resolution: The output frequency resolution reaches 0.1 Hz, ensuring precise speed control.

2.2 Braking and protection functions

Dynamic braking: Built in braking circuit. Without using a braking resistor, the braking torque is about 20%; Combined with optional braking resistors, the braking torque can reach up to 125%. This is crucial for quick stopping or potential loads such as cranes and elevators.

DC braking: The parameters can be adjusted within a wide range, with a frequency set at 60-0 Hz and a braking current of 0-100%. The start and stop times can be independently set to effectively prevent inertia sliding when the motor stops.

Protection mechanism: It integrates electronic thermal overload protection, stall prevention (during acceleration/operation), over torque detection, and automatic restart function for instantaneous power outage.

2.3 Detailed specifications for each voltage level

For the convenience of engineering selection, the following is a summary of key parameters for each voltage level:

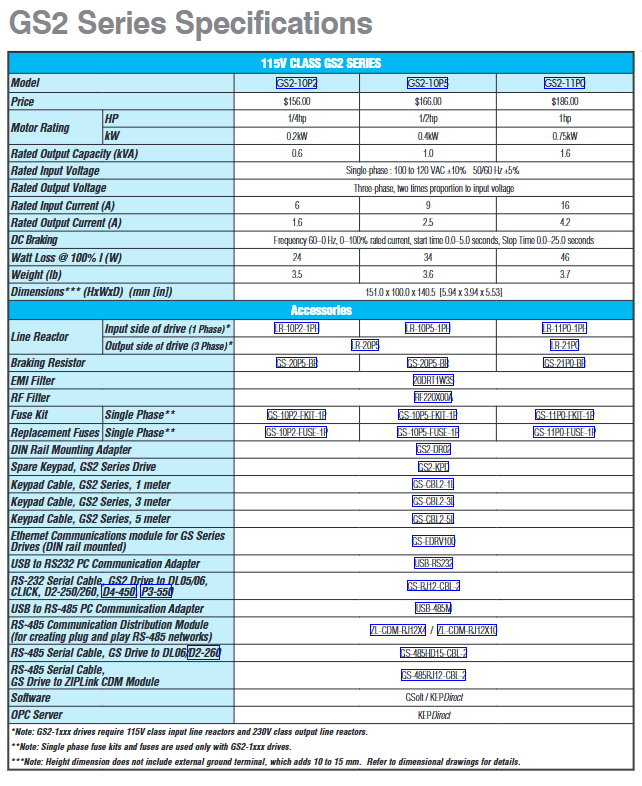

115V level (GS2-1xxx)

Input: Single phase 100-120 VAC ± 10%.

Output: Three phase, voltage is twice the input voltage.

Applicable models: GS2-10P2 (0.25HP), GS2-10P5 (0.5HP), GS2-11P0 (1HP).

Weight: Lightweight design, approximately 3.5-3.7 lb.

230V level (GS2-2xxx)

Input: Low power models support single-phase/three-phase input, while high-power models (above 5HP) only support three-phase input.

Power range: covering 0.5HP to 7.5HP.

Key difference: GS2-20P5 to GS2-23P0 support single-phase input, which greatly facilitates on-site environments lacking three-phase power supply.

Weight: Models with 3HP and below are compact, while models with 5HP and above increase in weight to 8.5 lb, and attention should be paid to installation load-bearing capacity.

460V level (GS2-4xxx)

Input: Three phase 380-480 VAC.

Power range: 1HP to 10HP.

Loss: Under full load operation, the loss is between 73W and 255W, and the heat dissipation design needs to pay attention to this heat source.

575V level (GS2-5xxx)

Input: Three phase 500-600 VAC.

Special note: This series of models (such as GS2-51P0) does not have CE certification, which needs special attention in export projects to Europe.

Braking resistor: Some models require two resistors to be used in parallel or series, and the selection should strictly refer to the manual.

Installation environment and mechanical design

Correct installation is the foundation for the long-term stable operation of the frequency converter. The installation design of the GS2 series balances compactness and heat dissipation requirements.

3.1 Environmental Requirements

Environmental temperature: The standard operating temperature range is -10 ° C to 50 ° C. For models with 7.5 HP and above, the upper temperature limit is reduced to 40 ° C. If you need to operate between 40 ° C and 50 ° C, you need to reduce the capacity (set the carrier frequency to below 2.1kHz and the current to below 80%).

Humidity: 20% to 90% RH, without condensation.

Altitude: The installation altitude is limited to below 1000 meters. High altitude environments can affect heat dissipation due to thin air.

3.2 Size and heat dissipation space

The GS2 series is mainly divided into two physical size frames:

Small frame size: 151.0 x 100.0 x 140.5 mm, suitable for most low-power models.

Large frame size: 220.0 x 125.0 x 189.5 mm, suitable for models with 5HP and above.

Suggested installation spacing:

To ensure air circulation, the GS2 frequency converter must be installed vertically. The document clearly requires:

Top and bottom: At least 6 inches (150mm) of space must be reserved.

On both sides: At least 2 inches (50mm) of space must be reserved.

Warning: The frequency converter generates a large amount of heat during operation. It is recommended to install an auxiliary cooling fan in the control cabinet and be careful not to install the frequency converter under a heat source (such as a transformer or resistor).

3.3 Power loss reference

In thermal design calculations, the power loss of the frequency converter must be considered. For example, GS2-4010 (10HP) loses approximately 255W at full load. If this heat cannot be effectively dissipated, it will cause a sharp increase in the temperature inside the control cabinet.

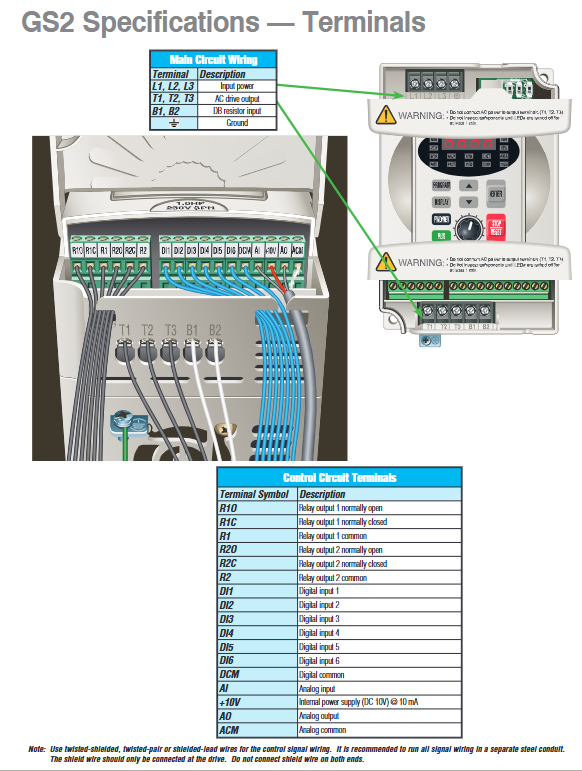

Definition of Electrical Wiring and Terminals

GS2 provides flexible terminal configuration and supports multiple control modes.

4.1 Main circuit terminals

Input terminals: L1, L2, L3. For single-phase input models (such as GS2-1xxx or some GS2-2xxx), only L1 and L2 (or optional two-phase) need to be connected.

Output terminals: T1, T2, T3, connected to the motor. It is strictly prohibited to accidentally connect the power supply to the output terminal.

Brake terminals: B1, B2, used to connect external brake resistors.

Grounding: The grounding resistance must be less than 0.1 ohms to ensure safety and reduce noise interference.

4.2 Control circuit terminals

The control circuit provides rich digital and analog interfaces:

Digital inputs (DI1-DI6): 6 programmable digital input terminals. The default functions include forward/stop, reverse/stop, external faults, multi-stage speed selection, jog, etc. Supports NPN or PNP wiring methods.

Analog Input (AI): 1 configurable analog input, supporting 0-10VDC or 0/4-20mA signals, with a resolution of 10 bits. Suitable for PID feedback or external frequency setting.

Relay output (R1, R2): Two sets of relay outputs with a contact capacity of up to 120VAC/24VDC 5A. Default used to indicate 'running' and 'faulty'.

Analog Output (AO): 1 analog output that can be used to monitor frequency, current, or process variables, with a resolution of 8 bits.

Serial Communication (RJ-12): Standard configuration with RS-232/RS-485 interface, supporting Modbus RTU protocol. Caution: Do not insert the phone line into this port to avoid damaging the device.

Rich attachment ecosystem

In order to meet the requirements of different working conditions, the GS2 series provides a complete list of accessories, enhancing the robustness and connectivity of the system.

5.1 Anti interference and protection components

Line reactor:

For GS2-1xxx models: 115V level reactors are required on the input side, and 230V level reactors are required on the output side (this special configuration requires special attention).

For other models: Standard reactors can be installed on the input or output side to suppress harmonics and protect the rectifier bridge.

EMI/RF filter: effectively reduces electromagnetic interference. Note that the 575V model does not provide EMI filter options.

Fuse kit: Provides single-phase and three-phase fuse kits and spare parts. The fuse is the key to protecting the frequency converter from short-circuit impact and must be strictly configured according to the rated configuration.

5.2 Operation and Communication

Remote keyboard and cable: The keyboard is detachable and supports remote operation through 1-meter, 3-meter, or 5-meter cables, making it easy to install the control cabinet panel.

Communication module:

GS-EDRV100: Ethernet communication module that supports Modbus TCP for easy access to modern industrial Ethernet networks.

USB adapter: USB-485M or USB-RS232 adapter simplifies the connection of PC configuration programs.

Configuration software: GSoft software provides a graphical parameter configuration interface, which is superior to manual key input and greatly improves debugging efficiency.

5.3 ZIPLInk Wiring Solution

In order to solve the problem of complicated wiring between frequency converters and PLCs, Automation Direct has launched the ZIPLink system.

Pre wired cable: By connecting the module with pre soldered cables and DIN rails, the terminals of the frequency converter are converted to standard wiring terminals or RJ interfaces.

Compatibility: Supports DirectLOGIC (DL05/06), CLICK, and Productivity 3000 series PLCs, achieving "plug and play" functionality.

Network construction: With the ZL-CDM communication distribution module, it is easy to build an RS-485 multi driver network.

Typical application scenarios

The GS2 series' feature set determines its wide range of applications:

Heating, Ventilation, and Air Conditioning (HVAC): By utilizing PID function, the fan and water pump speed can be accurately adjusted based on pressure or temperature sensor feedback, achieving constant pressure water supply or constant temperature control, with significant energy-saving effects.

Material conveying: The S-shaped curve acceleration/deceleration function can reduce start stop impact and prevent material spillage; The frequency hopping function can avoid mechanical resonance points.

Compressor and fan: Variable torque V/F mode is suitable for this type of load, and automatic energy-saving operation can further optimize energy consumption.

Machine tool transformation: high starting torque and electronic thermal protection function make it suitable for application in equipment such as lathes and drilling machines.

Alternative selection and upgrade reference

The document provides a detailed comparison table of Hitachi frequency converters, which is of great reference value for upgrading and renovating old equipment.

7.1 Function Comparison

GS2 vs Hitachi L100/SJ100: L100 only supports V/Hz, SJ100 supports sensorless vectors. The GS2 series corresponds to the upgrade of L100 and SJ100, with V/Hz and PID functions. However, in terms of non inductive vectors, GS2 does not provide them and needs to be upgraded to the DuraPulse (GS3) series.

GS2 vs Hitachi SJ300: The SJ300 has full vector control function. If the original system relies on high-precision speed control, it is recommended to upgrade to the GS3 series.

7.2 Precautions for power matching

When selecting alternatives, not only should the power be matched, but also the following checks should be conducted:

Input power supply: Although some Hitachi SJ300 models are labeled as three-phase, they support single-phase applications. The GS2 replacement model marked with an asterisk in the document needs to confirm the presence of a three-phase power supply on site.

Size and wiring: The physical size and terminal arrangement of the substitute model may be different from the original model, requiring re drilling and wiring.

Power limitation: Some alternative models may have higher power than the original model, and the maximum output power needs to be limited in the internal parameters of the frequency converter to protect the motor.
