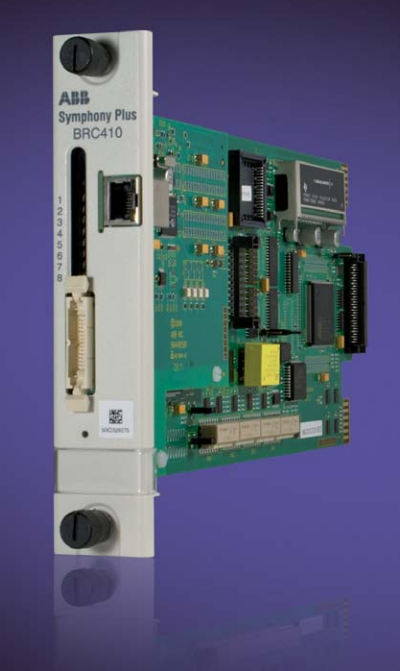

ABB Symphony Plus S+ Control BRC410

From:ABB | Author:Wang | Time :2025-01-04 | 259 visit: | Share:

ABB Symphony Plus S+ Control BRC410

SymphonyTM Plus es la nueva
generación de la ampliamente
aclamada familia Symphony de
sistemas de control distribuido
de ABB, el DCS más utilizado en
todo el mundo en los sectores
de generación de energía y de
suministro de agua. En conjunto,
existen más de 6.000 instalaciones
de DCS de Symphony en
funcionamiento por todo el mundo,
de entre las cuales, más de 4.000
son aplicaciones relacionadas con
la energía y el suministro del agua.
Ninguna otra plataforma de automatización posee tan amplio
registro de campos y tan extensa base de instalaciones en
energía y agua como Symphony. Durante más de 30 años,
ABB ha desarrollado la familia Symphony, garantizando que
cada nueva generación mejorara a sus predecesoras y que
fuese compatible con las versiones anteriores, todo ello en
consonancia con la política de siempre de ABB “Desarrollo
sin caer en desuso”.
En Symphony Plus se ha incluido un conjunto integral de
aplicaciones de hardware y software de control basado en
estándares que cumplen los requisitos para el control total
de la planta. Siguiendo la política “Desarrollo sin caer en
desuso”, el S+ Control BRC410 representa la más reciente
incorporación a la familia Bridge Controller y combina la
eficacia de controlador del BRC400 con las capacidades de
integración de dispositivos del HPG800.


Descripción general
El BRC410 aúna en un solo módulo el rendimiento y la
capacidad de controlador del BRC400 con la capacidad de

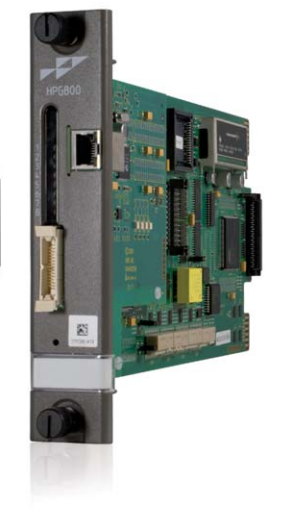

comunicaciones Modbus TCP del HPG800. Se puede utilizar
en combinación redundante con los módulos BRC400 o
HPG800, facilitando de este modo una actualización en línea
de las capacidades del controlador o de la puerta de enlace
del dispositivo en funcionamiento. El BRC410 con Harmony
Gateway Software (HGS) permite a los usuarios de Symphony
Plus actualizar las interfaces de comunicaciones serie RS232
o RS485 existentes a 100 MB Ethernet mediante el protocolo
de comunicaciones Modbus TCP. Además, BRC410 ofrece
capacidad y rendimiento suficientes como para fusionar las
interfaces de serie múltiples en una única interfaz 100 MB
Ethernet.
Las actualizaciones en línea de las funciones del BRC410
son posibles con la instalación del BRC410 como módulo de
respaldo redundante tanto del BRC400 como del HPG800.
Encontrará una descripción general funcional de las
capacidades del BRC410 en la figura 2.


Controlador de procesos eficaz
En primer lugar, el BRC410 es un controlador de alto
rendimiento. Basado en un procesador Freescale Coldfire de
32 bits y 160 MHz, el controlador BRC410 se puede adaptar
a una amplia gama de aplicaciones y requisitos de procesos.
Configurado mediante la herramienta S+ Engineering
Composer, el BRC410 dispone de una amplia biblioteca de
más de 150 algoritmos de control o de códigos de funciones
predefinidos (figura 3). Estas funciones proporcionan la
capacidad de diseñar fácilmente complejas estrategias de
control que se adapten a cualquier aplicación de control,
incluido el control continuo, secuencial, por lotes y avanzado.
Además de los bloques de funciones estándares, el BRC410
admite la programación “C” y los lotes.
Entre las características del controlador BRC410 se incluyen:
− Fiabilidad mejorada del controlador
− Proporciona un nivel de rendimiento 10 veces mayor que el
que ofrecían los controladores de generaciones anteriores
− Compatibilidad simultánea con todos los subsistemas de
E/S de Harmony
− Firmware descargable
− Memoria de configuración de usuario ampliada (NVRAM
de 2 MB)
− Compatibilidad con 30.000 bloques de funciones
− Capacidad de configuración en línea flexible


Compatibilidad integral con E/S
El BRC410 proporciona compatibilidad simultánea con todos
los subsistemas de E/S de Harmony y es capaz de ofrecer
control de bucle cerrado para 2.000 puntos de E/S en menos
de 250 ms. Las opciones de E/S de Harmony ofrecen una
amplia variedad de capacidades de entrada/salida y de
acondicionamiento de señales que todas juntas forman la
solución de automatización óptima. Mediante los códigos
de funciones estándares, la herramienta S+ Engineering
Composer se utiliza para configurar y mantener todos los
módulos y canales de E/S del BRC410.
El controlador BRC410 se puede comunicar con hasta 64
módulos de E/S en bastidor locales con, a su vez, otros
módulos de E/S en bastidor remotos conectados mediante el
módulo RIO22. El uso de los módulos de E/S de secuencias
de eventos (SOE) en bastidor garantiza una resolución de
marca de tiempo de milisegundos en todo el sistema.
Además de los módulos de E/S en bastidor tradicionales, el
BRC410 ofrece control de turbinas integrado mediante una
serie de módulos en bastidor específicos para el control de
turbinas. Se incluyen los siguientes módulos:
− Módulo servo hidráulico (HSS)
− Módulo de protección de turbinas (TPS)
− Módulo de sincronización automática de turbinas (TAS)
− Módulo de supervisión de condiciones (CMM)
Las capacidades de E/S remotas del BRC410 se amplían
más con el sistema S800 I/O. S800 I/O proporciona opciones
para todos los tipos de señales y se ha creado con un diseño
DIN modular y compacto para facilitar el montaje local en los
sensores de la planta. Las comunicaciones y los módulos
redundantes ofrecen una conexión con tolerancia a fallos con
el sistema S800 I/O.
