Baldor BSM series AC servo motor

Baldor BSM series AC servo motor

Comparison of core product line parameters

Product Series Inertia Characteristics Torque Range (Nm) Speed Range (rpm) Protection Level Core Advantages Applicable Scenarios

BSM N series low inertia 0.45-40 1200-10000 IP54 (IP55 with shaft seal) high dynamic response, excellent acceleration performance, precise positioning, high-speed transmission

BSM C series high inertia 1.2-134 1200-10000 IP54 (IP55 with shaft seal) has good load matching, strong economy, inertia load, and continuous operation

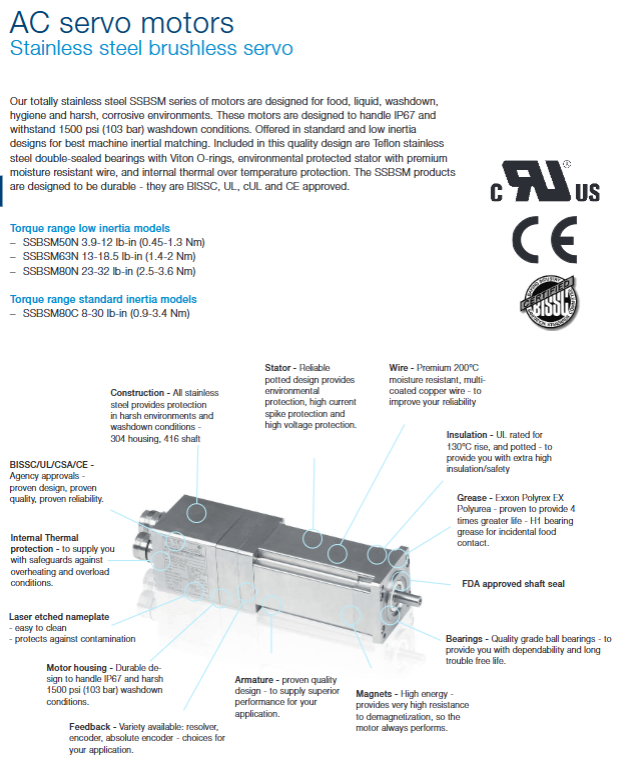

SSBSM series low/standard inertia 0.45-3.6 (N-type); 0.9-3.4 (Type C) 4000-10000 IP67 all stainless steel, corrosion-resistant and washable for food processing and hygiene scenarios

BSM25/33 series standard inertia 2.1-15.6 1800-7000 IP54 circular shell, foot/flange dual installation portable device, universal automation

Key technical characteristics

(1) Power performance

Torque output: BSM N series peak torque is 4 times continuous torque, C series is 3 times, meeting high acceleration requirements

Speed adaptation: Rated speed of 1200rpm to 9000rpm at 320Vdc, doubled speed at 640Vdc (maximum speed limit to be confirmed)

Dynamic response: Mechanical time constant as low as 0.24ms (BSM100C series), supporting fast positioning

(2) Structure and Protection

Material and process: neodymium iron boron magnetic steel, epoxy resin encapsulated winding, galvanized hardware, SSBSM adopts 304 shell+416 axis

Protection design: basic IP54, IP55 after shaft seal configuration, SSBSM up to IP67, resistant to 1500psi (103bar) flushing

Temperature adaptation: ambient temperature -29 ℃ -40 ℃, maximum winding temperature 155 ℃, no derating at 1000m altitude

(3) Feedback and Control

Feedback options: Resolver (anti-interference), Incremental Encoder (1000/2500ppr), Absolute Encoder (BiSS/OnDet/SSI/Hiperface), Hall Sensor

Control adaptation: Supports torque/speed/position modes, compatible with EtherCAT/POWERLINK/Modbus TCP protocols

Safety protection: built-in thermal switch (155 ℃± 5 ℃ action), overcurrent protection, anti demagnetization design

Supporting drive and control scheme

Driver series input voltage output current (RMS) control protocol adapted to motor core functions

MicroFlex analog 105-250VAC (1/3 phase) 3A/6A/9A analog/pulse direction BSM N/C series (low power) automatic tuning, anti resonance filtering

MicroFlex e150 105-250VAC (1/3 phase) 3A/6A/9A EtherCAT/Ethernet/IP All Series Small Power Models Safe Torque Off (STO), Dual Encoder

MotiFlex e180 200-480VAC (3-phase) 3A-90A EtherCAT/POWERLINK full series (including BSM132C) 300% overload, multi axis synchronization

Control software - DriveSize+MCSize selection calculation tool

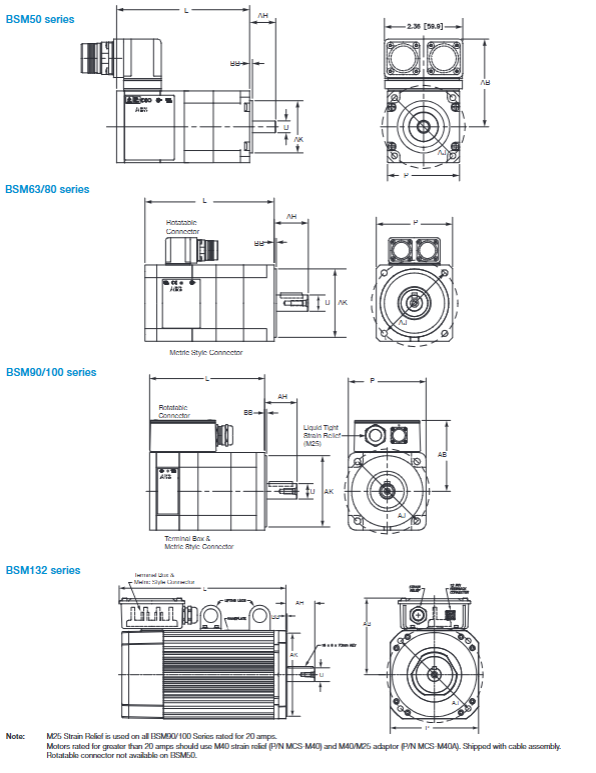

Installation and Dimensional Specifications

(1) Installation standards

IEC framework: 50/63/80/90/100/132, shaft diameter range 9mm-38mm

NEMA Framework: 23 (BSM50N), 34 (BSM63N), 42 (BSM80N/C), 56 (BSM90/100N/C)

Compatible accessories: flange adapter kit, strain relief (M25/M40), rotary connector

(2) Example of Critical Dimensions (IEC)

Motor model, frame length (without brake, mm), shaft diameter (mm), installation hole spacing (mm)

BSM50N 50 101.7-179.5 9 63

BSM80C 80 144.0-220.2 19 100

BSM132C 132 384-536.4 38 265

Selection and Engineering Support

(1) Selection calculation process

Load analysis: Calculate load inertia, fri

ction torque, and acceleration torque

Inertia matching: The recommended ratio of motor inertia to load inertia is 1:1-1:5

Torque calculation: RMS torque=√ [(acceleration torque ² x acceleration time)+(operating torque ² x operating time)+(deceleration torque ² x deceleration time)]/(total time)

Voltage selection: Match the bus voltage of 160Vdc/320Vdc/640Vdc according to the target speed

(2) Engineering resources

Technical documents: 2D/3D CAD files, wiring diagrams, performance curves

Conversion tool: Inertia/torque/length/power unit conversion table

Compliance certification: CE/UL/cUL/BSC/RoHS/WEEE, SSBSM additionally obtained FDA food contact certification
