ABB C310/0020/STD Wall-/Pipe-mount Universal Process Controller

From: | Author:Wang | Time :2025-05-27 | 620 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

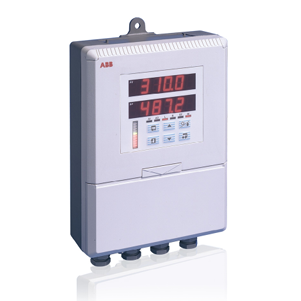

ABB  C310/0020/STD Wall-/Pipe-mount Universal Process Controller

Product overview

location:

A highly versatile single loop controller with an IP66/NEMA 4X wall/pipe mounting enclosure, suitable for process control in harsh environments, without the need for expensive instrument panels, and can be directly installed near equipment.

Core functions:

Support PID control, Ramp/Soak program settings, multiple input/output types, with Modbus communication function, suitable for temperature, pressure, flow and other parameter control in industrial processes.


Key functional characteristics

1. Input/output capability

Universal input (3-channel):

Supports signals such as thermocouple (THC), thermistor (RTD), millivolt, current (4-20mA), voltage, etc., with an accuracy of ± 0.1%, and built-in cold junction compensation (CJC).

Input impedance: millivolts/thermocouple>10M Ω, voltage 500k Ω, current 10 Ω.

Control output:

Analog output: 0-20mA, load ≤ 750 Ω, isolated 1kV AC.

Logic output: 12V DC (driving solid-state relay SSR), load ≤ 400 Ω.

Relay output: 3 SPDT relays (5A/120-240V AC), configurable for timed proportional control, valve drive, or alarm.

Auxiliary output:

Retransmission output (0-20mA), configurable as process variable, setpoint, or position feedback.

Two digital inputs (such as remote set point, valve position feedback).

2. Control and Programming

PID control: Supports P, PI, and PID modes, with built-in Autotune function.

Slope/Insulation Procedure:

9 programs, each with 30 segments, supporting segment event control of relay actions, suitable for scenarios such as heat treatment and temperature curve control.

Hot/Cold Control Strategy: Implement dual output control for heating/cooling through analog output and relay combination.

3. Communication and Integration

Interface: RS485 Modbus RTU protocol, 4-wire system, baud rate 1.2-9.6kbps, supports SCADA and PLC system integration.

Function: It can remotely transmit process data, set parameters, read status, and is compatible with Modbus function codes (such as reading registers and writing set values).

4. Environment and Protection

Protection level: IP66/NEMA 4X, dustproof and waterproof, suitable for humid, dusty or corrosive environments.

Working temperature: -10 ° C to 55 ° C (14 ° F to 131 ° F), humidity 0-95% (non condensing).

Electromagnetic compatibility (EMC): compliant with IEC 61326 standard, resistant to radio frequency interference (RF) and voltage spikes (>2kV).

Specification parameters

Display: 2 x 6-digit red LED, 0.56-inch (14mm) seven segment display, display range -9999 to+9999.

Power supply: 115V or 230V AC (± 15%), 50/60Hz, power consumption<10VA, supports brief power outage protection (<60ms without impact).

Accuracy: Measurement error ± 0.1% reading or ± 5 μ V, linearization error ± 0.1 ° C (typical value).

Size and weight: 160 x 250 x 107mm (height x width x depth), weight 2kg, supports wall or pipe installation (accessory 4600/0138).

Certification: CE, CSA/FM Class 1 Div.2 (hazardous area certification).


Application scenarios

Industrial process control: temperature and pressure closed-loop control in chemical, pharmaceutical, and food processing.

Heating, Ventilation, and Air Conditioning (HVAC): Valve control, heating/cooling system regulation.

Machinery and equipment: Slope heating/insulation control for heat treatment furnaces and reaction vessels.

Distributed system: Integrated into SCADA system through Modbus to achieve remote monitoring and data acquisition.


Ordering Information

Model example:

C310/01 1 3/STD

01: RS485 Modbus Communication

1: 115V AC power supply (with polarized plug)

3: CSA/FM Class 1 Div.2 certification

STD: Factory Standard Configuration

Optional accessories: Pipe Installation Kit (4600/0138), Custom Programming Service (CUS).


Summarize

ABB C310 is a compact, high protection process controller that is suitable for industrial scenarios that require on-site installation and remote monitoring, thanks to its universal input-output, flexible PID control, and Modbus communication capabilities. Its slope/insulation function and multi relay configuration make it perform well in complex process control, while the IP66 protection level ensures reliability in harsh environments.
