ABB CB801 3BSE042245R1 PROFIBUS DP panel

From: | Author:Wang | Time :2025-05-27 | 775 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

ABB CB801 3BSE042245R1 PROFIBUS DP panel

Product Overview

ABB CB801 3BSE042245R1 is a PROFIBUS DP communication panel designed specifically for industrial automation systems, used to connect operator panels (such as Panel 800 series) to the PROFIBUS DP bus. Its core function is to connect to the PROFIBUS network as a slave, support real-time data exchange, and be suitable for industrial scenarios that require efficient communication, such as manufacturing production lines, process control equipment, etc.


Technical parameters

Communication protocol: PROFIBUS DP V0 (compliant with EN 50170 standard), supports slave mode, adjustable baud rate from 9.6 kbps to 12 Mbps.

Interface type: 1 x PROFIBUS DP interface (9-pin D-sub, compliant with IEC 61158 standard), supporting shielded twisted pair connections.

Electrical isolation: Channel to channel electrical isolation, isolation voltage ≥ 500V AC, anti electromagnetic interference (EMI) and radio frequency interference (RFI).

Data transmission: Supports periodic data (process data) and non periodic data (parameter configuration) transmission, with a maximum input/output data size of 244 bytes.

Configuration tool: Use ABB Panel Builder 800 software for parameter configuration, supporting GSD file import.

Physical specifications

Size: Approximately 100mm (width) x 150mm (height) x 30mm (depth)

Weight: Approximately 0.2kg

Working temperature: -20 ° C~+60 ° C (industrial grade wide temperature design).

Protection level: IP20 (indoor installation), to be used in conjunction with panel protective casing.

Core functions

PROFIBUS DP slave integration:

As a PROFIBUS DP slave, it can communicate with the master station (such as ABB AC800M PLC, third-party PROFIBUS master station) to exchange real-time equipment status, control instructions, and other data.

Support device address (station number) 0-126, set through panel dip switch or software.

Data mapping and real-time performance:

Support input/output data mapping, which can correspond the registers of the panel (such as variables and alarm status) with the PROFIBUS data area, achieving fast data exchange.

Real time response time ≤ 10ms, suitable for scenarios with high real-time requirements (such as motion control, fast process adjustment).

Diagnosis and maintenance:

Built in LED indicator lights (such as power, communication status, error alarms) facilitate quick on-site diagnosis of communication faults.

Support firmware upgrade, remotely updated through Panel Builder 800 software or PROFIBUS master station.

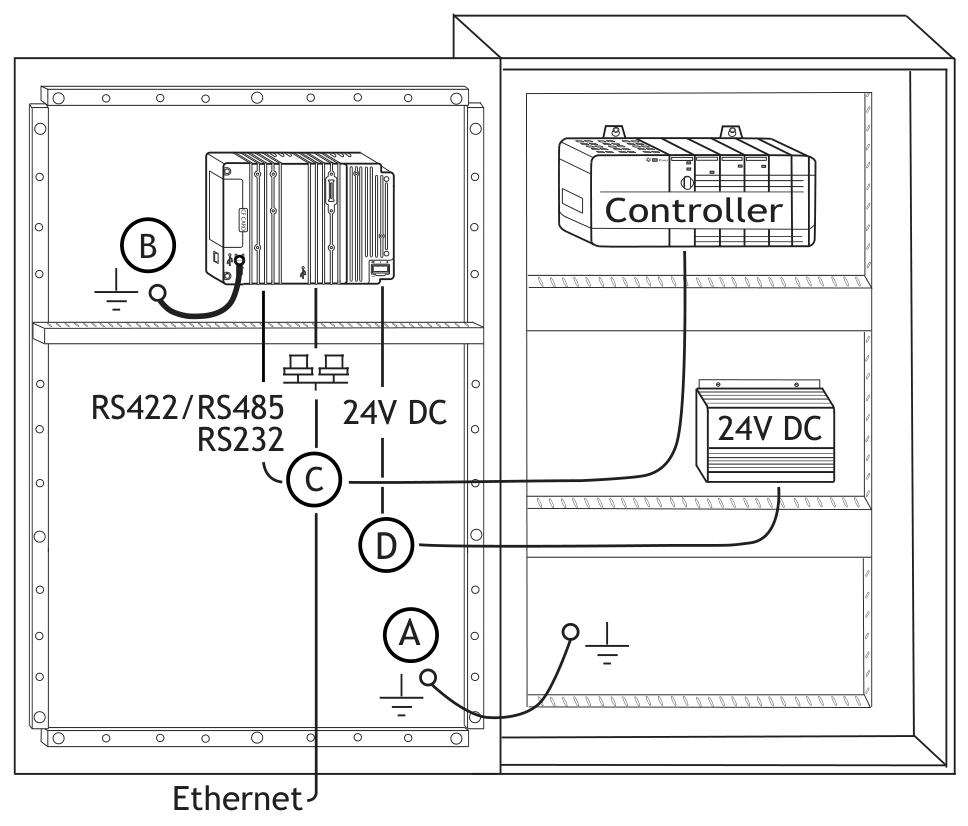

Installation and wiring

Installation method:

Directly insert into the expansion slot of the Panel 800 series operator panel, fix with screws, and support hot plugging (power-off operation required).

Wiring requirements:

PROFIBUS cables require shielded twisted pair cables with a wire diameter of ≥ 0.25mm ², and the terminal needs to be connected to a 120 Ω resistor.

Following the PROFIBUS wiring specification, pins 2/3 of the A/B line correspond to the interface, and the shielding layer is reliably grounded.

Configuration steps:

Select "PROFIBUS DP" as the communication protocol in Panel Builder 800, configure the slave address and data area length.

Import the GSD file of CB801 and map input/output variables to PROFIBUS addresses.

Add slave devices to the PROFIBUS master station, match baud rates and configuration parameters.


Application scenarios

Manufacturing automation:

Connect Panel 800 panel to PLC (such as ABB AC500) to achieve real-time monitoring and parameter adjustment of production line equipment, such as monitoring the status of robotic arms and sending control instructions in automotive assembly lines.

Process control industry:

In the chemical and food industries, as a human-machine interface, it is connected to the PROFIBUS network to monitor the temperature and valves of the reactor
