Honeywell CC-TCNT01 51308307-175 Solution

From: | Author:Wang | Time :2025-07-31 | 549 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:



Honeywell CC-TCNT01 51308307-175 Solution

Honeywell C300 related solutions

1. Overview

Honeywell C300 related solutions revolve around Expert ®  The core of the PKS C300 controller deployment lies in the application of new interfaces and pre assembled cables. IOTAs (Input Output Terminal Assemblies) adopt Weidm ü ller PCB connectors and terminal designs, with flexible connection methods. They can be directly wired to the field or combined with Weidm ü ller's FTAs (Field Terminal Assemblies) to use pre assembled cables.

Compared to traditional wire to wire wiring, this solution has significant advantages:

Reduce wiring workload: Minimize on-site wiring work by using pluggable connectors and cables.

Quick and easy connection: Pre assembled wiring harnesses can quickly and error free connect IOTA and FTA.

High current switching capability: The isolated digital output FTA has high current switching capacity in a compact design.

Clear identification: IOTA and FTA are equipped with the same Weidm ü ller connector and the same orientation for easy identification.

Excellent flexibility: Pre assembled cables can be made into different cross-sections, with lengths up to 50m.

Rich interface options: The Weidm ü ller interface provides multiple functions such as LED indicators, insulators, relays, or fuses, suitable for all C300 I/O cards.

2. Selection Guide

The selection guide aims to help users quickly and conveniently choose suitable products based on their application needs. The steps are as follows:

Step 1: Select the IOTA to use.

Step 2: Determine the number and type of cables required for the connection.

Step 3: Choose the interface that is most suitable for the application.

Taking CC-TDIL01 as an example, there are multiple options available. For example, option 1 can choose pre assembled cable C300-32B-320B (2 pieces) and interface 1221550000 (1 piece); Option 2 can choose pre assembled cables C300-32B-320B (2 pieces) and interfaces 1222980000 (2 pieces).

The selection guide table provides a detailed list of pre assembled cables (including cable type, required quantity per IOTA) and FTA (Weidm ü ller interface) information for different Honeywell IOTAs, covering card type, number of channels, connection method, whether to include LED per channel, whether to include disconnect and test points, whether to include fuse per channel, whether to include external power supply, required quantity per IOTA, and order number.

3. FTA C300 input/output passive interface

This type of interface is used to connect Honeywell C300 digital or analog IOTAs. The following is detailed information for some of the main models:

FTA-C300-32DI-LD: Suitable for CC-TDIL01 and CC-TDIL11, it is a passive input/output interface for digital cards. Technical data includes connection data and functions (control side connection, on-site connection, LED status display, etc.), rated data (working voltage, maximum current per channel, etc.), general data (ambient temperature, storage temperature, etc.), certification (CE, etc.), dimensions (clamping range, installation guide rail, length x width, etc.). There are two types of ordering data: screw connection and tension clamp connection, with corresponding order numbers. The accessories include 5x20 mm 0.63A fuses, etc.

FTA-C300-32DIOHV: Suitable for CC-TDIL01/11, CC-TDOB01/11, CC-TDI110/120/220/230, etc. The technical and ordering data are similar to the above, but there are slight differences in parameters for different application scenarios.

FTA-C300-16AI-TEST: Suitable for CC-TDIL01, CC-TDIL11, CC-TAIX01, CC-TAIX11, etc., it has the characteristics of disconnecting plug and testing point (diameter 2mm, used for voltage and current measurement) and M4 shielding connection. Its technical data and ordering data are also set according to its own functional characteristics.

Other models such as FTA-C300-32DO-LD、FTA-C300-32DO-FUSE、FTA-C300-16AI-SH、FTA-C300-16AO-SH、FTA-C300-16AO-TEST  Each has its own applicable IOTA model, detailed technical parameters, ordering information, and accessory requirements.

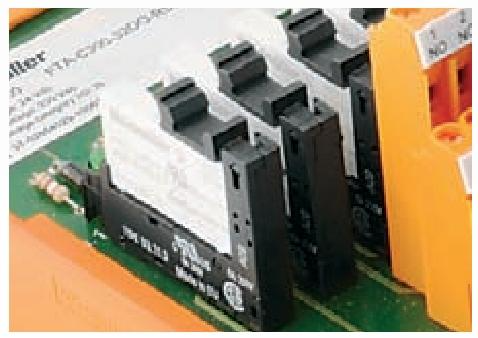

4. FTA C300 isolation interface (per relay)

Taking FTA-C300-32DO-RSLIM as an example, it is suitable for CC-TDOB01 and TDOB11 and is an isolated output interface for digital cards.

Technical data: including connection data and functions (control side connection, pole number, relay type, LED status display, etc.), rated input data (input voltage, input current, working voltage, etc.), rated output data (contact material, working voltage, maximum AC continuous current, etc.), general data (ambient temperature, storage temperature, etc.), certification (CE, etc.), dimensions (clamping range, installation guide rail, length x width, etc.).

Order data: Provide two types of screw connections and tension clamp connections, along with their corresponding order numbers.

Accessories: 5x20 mm 5A fuses, etc.

5. Interconnection cables

Used to connect CS300 cards to Weidm ü ller interfaces, it is divided into Premium series (with connector housing) and Basic series (without connector housing).

Technical data: rated data (wire/shielding capacity, wire/wire capacity), cable characteristics (cable type, material), general data (environmental operating temperature, storage temperature, etc.).

Ordering data: Models and order numbers for different types of cables such as 32 pole, 32 pole+4 pole, etc. The last 3 digits of the cable code indicate the length (e.g. ending with 100 indicates a cable length of 10m).


Cabling system with front-end adapter

Overview

The new Front End Adapter (FAD) is suitable for different PLC I/O cards and, when combined with Weidm ü ller's interface series, provides a more efficient method for on-site wiring of PLCs compared to traditional wire to wire wiring. Can be connected to standard active or passive interface series, or Weidm ü ller's MICROSYSTEMS relays or optocouplers.

Its characteristics include:

Wide range: The front-end adapter is suitable for various PLC I/O cards, such as Siemens S7-300 and S7-400, Rockwell Control and Compact Logix, Ge Fanuc and Schneider, etc. Depending on the type of PLC I/O card, the cable can come with or without a casing.

Simple and safe: With the help of plug type connectors and cables, on-site wiring work is minimized to the greatest extent possible, with no wiring errors. Due to the use of a cable system instead of a single wire, the wiring inside the cabinet is clear.

High flexibility: FAD and pre assembled cables can connect multiple interfaces, and Weidm ü ller's interface series features interesting functions such as LED, fuse, disconnect device, relay, and optocoupler with manual coil connection (optional). The individual modules of the MICROSYSTEMS series can be assembled directly in groups of 8 and connected to the PLC through standard cables and corresponding PLC front-end adapters.

Time saving: Reduce planning and design time, and minimize the time required for debugging and troubleshooting.

FAD Selection Guide

1. General FAD selection table

Select the corresponding PLC front-end adapter (FAD), pre assembled cable (PAC), and interface module group based on the PLC manufacturer, PLC I/O card connector type, analog or digital I/O. For example, the Siemens S7-300 has an input/output card with a 20 pole connector, the FAD corresponding to the digital card is 1127840000 FAD S7/300 HE20 UNIV, the pre assembled cable is 7789806LLL, and the interface module group is RSF 20 GROUP.

2. Specific FAD selection table

Select the corresponding PLC front-end adapter (FAD), pre assembled cable (PAC), passive module, and interface module (relay module/optocoupler module) based on the PLC manufacturer, PLC I/O card, and required on-site system. For example, the 6ES7 321-1BH01-0AA0 card of Siemens S7-300 has an interface corresponding FAD of 1127850000 FAD S7/300 HE20 16 DIO, a pre assembled cable of 7789806LLL, and a passive module group of H2016 GROUP.


FAD front-end adapter for Siemens S7-300 and Rockwell Control Logix

1. FAD front-end adapter for Siemens S7-300

Suitable for Siemens S7-300 cards with 20 and 40 poles, such as FAD S7/300 HE20 UNIV、FAD S7/300 HE20 16 DIO、FAD S7/300 HE40 UNIV、FAD S7/300 2XHE20 32DIO、FAD S7/300 HE40 32DIO  Wait.

Taking FAD S7/300 HE20 UNIV as an example, the technical data includes connection data (connection with the card, on-site connection), rated data (working voltage, maximum current per channel, etc.), general data (ambient temperature, storage temperature, etc.), certification (CE, etc.), dimensions (length x width), etc., with corresponding order numbers and applicable PLC card models.

2. FAD front-end adapter for Rockwell Control Logix

Suitable for Rockwell Control Logix cards with 20 and 36 poles, such as FAD CLTX HE20 UNIV、FAD CLTX HE20 16DI、FAD CLTX HE20 16DO、FAD CLTX HE40 UNIV、FAD CLTX 2XHE20 32DI、FAD CLTX HE40 32DI、FAD CLTX 2XHE20 32DO、FAD CLTX HE40 32DO  Wait.

Taking FAD CLTX HE20 UNIV as an example, the technical data includes connection data, rated data, general data, certification, dimensions, etc., and there are corresponding order numbers and applicable PLC card models.

5、 RSF PLC - Passive interface for digital signals

A passive interface used for transmitting 32 digital input/output signals, including 1-wire, 2-wire, and 3-wire digital signals.

1-wire digital signal interface: such as RSF PLC 1W 32IO, with signal grouping by byte (selected by jumper), selectable switching by positive or negative signal (selected by jumper), optional status indicator (LED) displaying working status and voltage, screw or tension clamp connection, and other features. Technical data covers connection data and functions, rated data, general data, certification, dimensions, etc., and has corresponding ordering data and accessory information.

2-wire digital signal interface: such as RSF PLC 2W 32IO, with characteristics and technical data similar to 1-wire, and adjusted parameters for 2-wire transmission mode.

3-wire digital signal interface: such as RS F40 NIT32 LMZF, which also has corresponding features, technical data, ordering data, and accessory information.

6、 RSM - Isolation Interface for Digital Signals

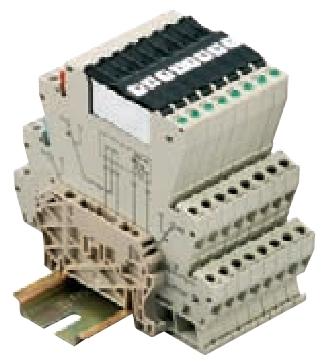

A relay digital output interface used to transmit electrical signals between PLC and the field through SIM cable or front-end adapter FAD, including interfaces for 16 and 32 isolated digital signals.

16 isolated digital signal interfaces: such as RSF40 16 RS OUT, with electrical insulation (using pluggable relays, interchangeable with solid-state relays), status indicators (LEDs), screw or tension clamp connections, and other features. Technical data includes connection data and functions, rated input data, rated output data, general data, certification, dimensions, etc., and corresponding ordering data and accessory information.

32 isolated digital signal interfaces: such as RSM-32 PLC C 1CO, with enhanced insulation between input/output (basic insulation between contacts), status indicators (LED), screw or tension clamp connections, etc. Technical and ordering data are also set according to their own characteristics.

MICRO - INTERFACE Solution

1. Overview

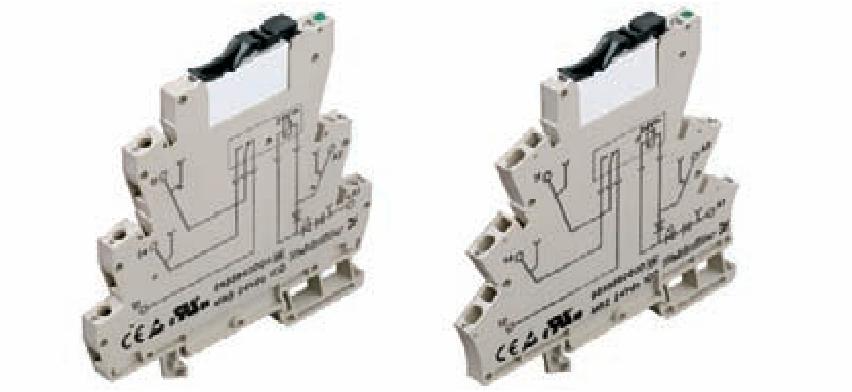

MICRO - PLC adapter is used to connect MICROSELES series relays and optocoupler modules to PLC or other controllers through pre assembled cables. The adapter is formed by a 15 pole SUB-D connector or a 10 pole ribbon cable, which can be connected to a set of 8 MICROSYSTEMS relay/optocoupler modules (with screws or tension clips).

2. Selection guide for different brands of PLCs

be directed against GE Fanuc 90 - 30、RX3i、OMRON CJ1W、Rockwell Compact Logix、Control Logix、Schneider M340、MICRO - PREMIUM、Siemens S7 - 300/ET - 200M、S7 - 400  We provide a detailed selection guide for PLC brands, including manufacturer codes for PLC input/output cards, number/type of channels, order numbers and quantities for standard cables, connection methods (screw or tension clamp connections), order numbers and quantities for MICROADAPTER, and information on corresponding input or output relays.
