YASKAWA Control Pack CP-317M System Controller

YASKAWA Control Pack CP-317M System Controller

Core advantages and features

1. High performance and high reliability

Adopting a 32-bit high-speed processor, the program processing speed is doubled compared to the previous generation, coupled with large capacity memory, to meet the computational needs of complex applications.

No cooling fan design, natural cooling is used to deal with the heat generated during high-speed operation, reducing mechanical failure points.

Equipped with a large capacity FPGA to enhance self diagnostic capabilities, and equipped with battery backup memory with ECC (error checking and correction) function to ensure data reliability.

2. Comprehensive compatibility

The software, size, and bus interface specifications are fully compatible with the previous generation CP-317, and all optional modules of the original CP-317 can be used directly.

Only a single operating module (CPU) needs to be replaced to upgrade the existing system, without the need to restructure the overall configuration, reducing upgrade costs.

3. Flexible scalability

Supports single CPU or dual CPU configuration (Changan installation base can accommodate 2 CPUs), dual CPUs can independently run different software, support synchronous/asynchronous scanning, and easily transfer up to 32K words of data through shared registers.

Up to 4 racks can be expanded, and various communication and I/O modules can be connected through expansion modules (EXIOIF). Some modules (such as LIO-01, AI-01, etc.) can be configured without restrictions.

Supports various open field networks such as PROFIBUS-DP, FL Net, DeviceNet, etc., to meet the communication needs of different industrial scenarios.

4. Convenient operability

Paired with CP-717 Engineering Workstation (EWS), it supports desktop (via CP-215 real-time network/Ethernet) and laptop (via RS-232C/Ethernet) connections, covering the entire process from system design to maintenance.

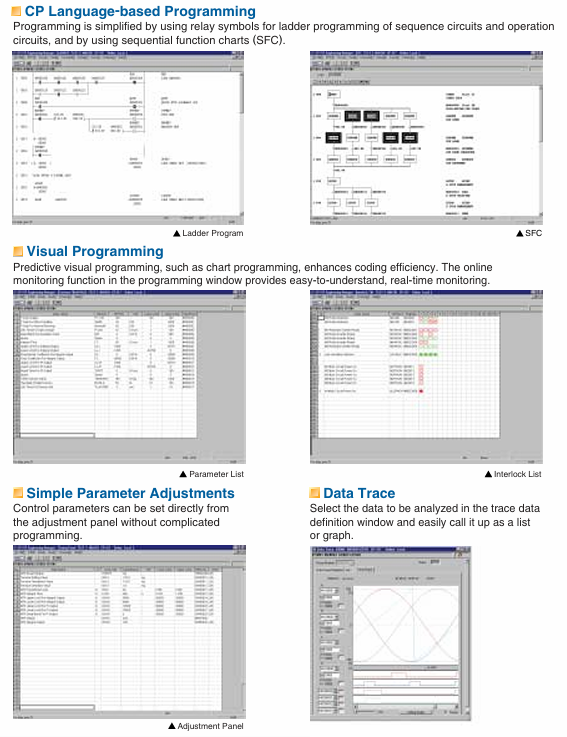

Support programming methods such as ladder diagrams and Sequential Function Diagrams (SFC), provide visual programming and online monitoring functions, simplify coding and debugging of complex configurations.

Equipped with functions such as direct parameter adjustment, data tracking (in list/chart format), and rapid fault location, it enhances operational efficiency.

Key specification parameters

1. Power supply and environment

Power module options: PS-01 (100VAC/100VDC), PS-02 (200VAC), PS-03 (24VDC), with voltage fluctuation range of ± 15%~± 20%, supporting instantaneous power outage within 10ms.

Working environment: temperature 0 ° C~55 ° C (24-hour average ≤ 50 ° C), humidity 5%~95% RH (non condensing), no corrosive gases, vibration and impact resistance in accordance with JIS B 3502 standards.

Grounding requirements: protective grounding resistance ≤ 100 Ω, insulation resistance ≥ 5M Ω (500VDC).

2. Performance parameters

Memory configuration: The program memory is equivalent to 128K steps, and the data memory includes 32768 words of input/output registers, 1024 words of system registers, etc. The battery backup can retain data for more than 1 year.

Running speed: Relay command 0.05 μ s/step, addition and subtraction operation 0.1 μ s/step, multiplication and division operation 0.1 μ s~0.3 μ s/step.

Supports data types such as bits, integers, double precision integers, real numbers, etc., with 133 built-in instructions covering program control, numerical operations, I/O control, and other functions.

Main components and models

1. Core components

CPU module (87317-3500x-S060y): Supports single/multiple CPU configurations.

Power modules: PS-01 (100VAC/100VDC), PS-02 (200VAC), PS-03 (24VDC).

Communication module: covering CP-213/215/216/217/218 and other series, supporting Ethernet, RS-232C/485, PROFIBUS-DP and other protocols.

I/O module: including digital input (DI-01), digital output (DO-01), analog input (AI-01), analog output (AO-01), etc., supporting local I/O and extended I/O connections.

2. Installation and Cable

Installation base: MB-01 (long base, single/multi CPU configuration), MB-03 (short base, single CPU configuration).

Expansion cables: EXIO expansion cables, 2000 I/O expansion cables, etc. are available, with lengths ranging from 0.5m, 1.0m, 1.5m, and other specifications.

Applicable scenarios

Mainly used for centralized control in industrial scenarios such as steel plants, water supply and drainage plants, and sewage treatment plants, it can serve as the main control station for medium and large factories, achieving integrated control of equipment such as frequency converters, sensors, and actuators. It supports networking and linkage with HMI (such as CP-519, CP-5800), other PLCs, computers, and other equipment.
