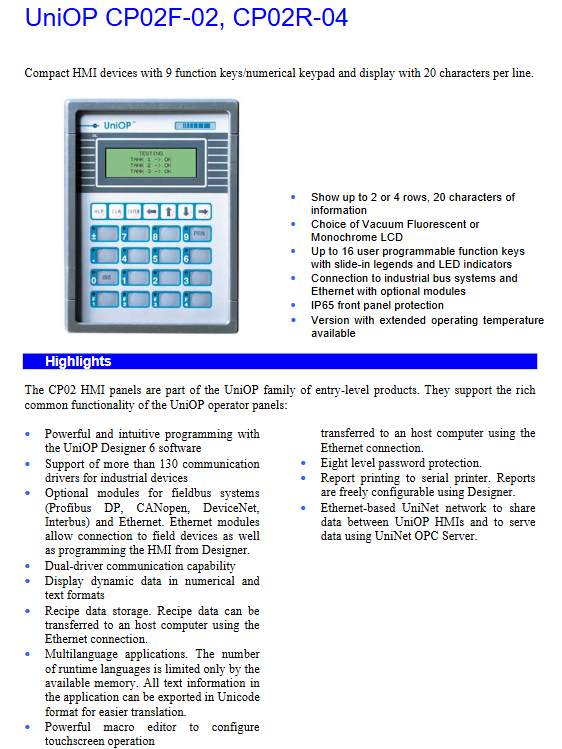

Product Core Positioning and Basic Design

Both devices are UniOP entry-level compact industrial HMI devices, integrating 9 function keys/numeric keyboards, suitable for entry-level human-machine interaction needs in industrial sites;

Core design highlights: 16 user programmable function keys (with slide in legend), 16 user LED indicator lights, front panel protection level up to IP65, supporting optional industrial bus/Ethernet modules, providing two versions of standard working temperature and extended working temperature.

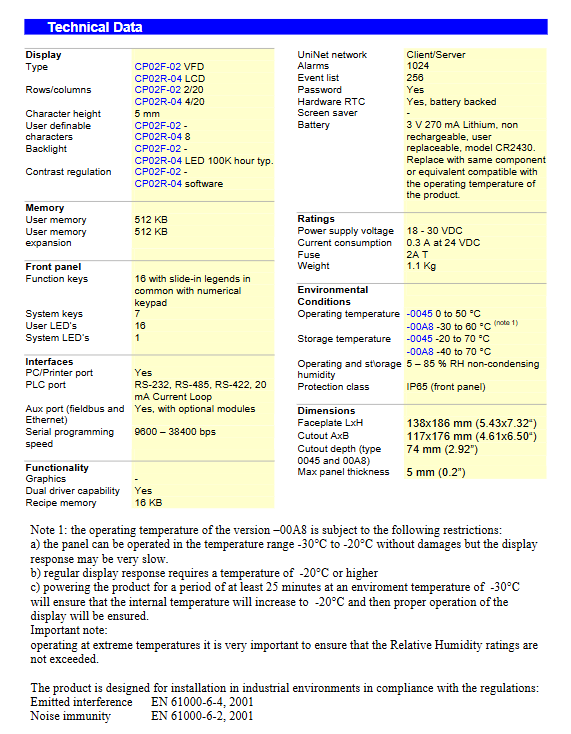

Display core specifications

The two devices are divided into two display types: vacuum fluorescent screen (VFD) and monochrome LCD. The core parameters are differentiated in configuration, and the LCD screen is equipped with long-life LED backlight. The specific specifications are shown in the table below:

table

Model Display Type Column Number Character Height Backlight Contrast Adjustment User defined Characters

CP02F-02 VFD 2 × 20- None None-

CP02R-04 monochrome LCD 4 × 20 5mm LED (with a typical lifespan of 100000 hours) software adjustment for 8 units

Hardware core configuration

（1） Button and LED indicator light

Function keys: 16 user programmable function keys (shared with numeric keypad, with slide in legend)+7 system keys;

LED indicator lights: 16 user LED indicator lights+1 system LED indicator light.

（2） Memory and Storage

Standard configuration includes 512 KB user memory, supports 512 KB memory expansion, and the total memory after expansion reaches 1MB;

Formula exclusive storage: 16 KB, supports reading, writing, and transmission of formula data.

（3） Clock and battery

Equipped with hardware RTC (real-time clock), powered by CR2430 lithium battery, with a battery parameter of 3V 270mA, non rechargeable, user replaceable, and must match the operating temperature of the device when replacing;

No screensaver function.

（4） Power supply, insurance, and weight

Supply voltage: 18-30 VDC, rated current consumption of 0.3 A at 24VDC;

Fuse: 2A T-shaped fuse, providing overcurrent protection for equipment;

Equipment weight: 1.1 Kg, lightweight design suitable for compact installation.

（5） Physical interface

Standard PC/printer port+PLC port: supports RS-232, RS-485, RS-422, 20mA current loop communication;

Auxiliary port: Optional module is required to achieve fieldbus (Profibus DP, CANopen, etc.) and Ethernet connection;

Serial programming speed: 9600-38400 bps, suitable for different programming transmission requirements.

Core functional characteristics

All functions are implemented based on UniOP Designer 6 software, which combines entry-level practicality and industrial level functionality. The key functions are as follows:

communication capability

Supports communication drivers for over 130 types of industrial equipment, compatible with the vast majority of industrial field devices;

Unique dual drive communication capability, enhancing communication compatibility and flexibility;

Dual purpose Ethernet module: connecting industrial field devices and remotely programming HMI through Designer 6.

Data Processing and Display

Support dynamic data display in digital and text formats, suitable for industrial field data monitoring needs;

16KB recipe storage, recipe data can be transmitted to the host through Ethernet connection for data synchronization;

Supports multilingual application development, with the number of languages limited by memory at runtime. All text information can be exported in Unicode format, simplifying the translation process.

Security and alarm management

Equipped with an 8-level password protection mechanism to prevent unauthorized personnel from operating critical functions;

Support 1024 alarm monitoring channels and retain a list of 256 historical events;

Alarm/event information can be printed through a serial printer or transmitted to the host via Ethernet for data retention.

Network and Custom Features

Equipped with an Ethernet based UniNet network, it supports data sharing between UniOP HMIs and can provide data services externally through UniNet OPC Server;

Equipped with a powerful macro editor, customizable operation logic can be configured;

Supports serial port report printing, and the report format can be freely configured through Designer 6.

Environmental adaptation and industrial certification

Protection level: IP65 protection for the front panel, dustproof and waterproof, suitable for complex industrial environments;

Temperature and humidity adaptation: divided into standard version (-0045) and wide temperature version (-00A8). The wide temperature version has special operating restrictions, and specific parameters are shown in the table below:

|Model suffix | Operating temperature | Storage temperature | Special restrictions (wide temperature version)|

|-0045 | 0 to 50 ° C | -20 to 70 ° C | None|

|-00A8 | -30 to 60 ° C | -40 to 70 ° C | 1. No damage during operation at -30~-20 ° C, but extremely slow display response; 2. Restore normal display at ≥ -20 ℃; Preheat at -30 ℃ for ≥ 25 minutes, and the internal temperature can operate normally after reaching -20 ℃|

Working/storage humidity: 5-85% RH (non condensing), wide temperature models must strictly comply with humidity limits at extreme temperatures;

Industrial certification: Compliant with electromagnetic compatibility standards, emitting interference EN 61000-6-4:2001 and anti-interference EN 61000-6-2:2001, meeting the electromagnetic environment requirements of industrial sites.

Physical installation dimensions

The installation dimensions of the two devices are completely unified and suitable for standardized industrial installation. The specific parameters are:

Panel size (length x height): 138x186 mm (5.43x7.32 inches)

Hole size (A × B): 117x176 mm (4.61x6.50 inches)

Hole depth (-0045/-00A8): 74 mm (2.92 inches)

Maximum panel thickness: 5 mm (0.2 inches)

Order Information

Three official ordering models, distinguished by display type and operating temperature version, with no other optional models, specifically:

CP02F-02-0045: VFD screen, standard operating temperature version

CP02R-04-0045: LCD screen, standard operating temperature version

CP02R-04-00A8: LCD screen, extended working temperature version
