ABB CP400 series human-machine interface

From: | Author:Wang | Time :2025-07-29 | 591 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

ABB CP400 series human-machine interface

Product positioning and core advantages

The CP400 series is a high-performance human-machine interface launched by ABB, aimed at improving operational efficiency and productivity in industrial automation scenarios. Its core advantages include:

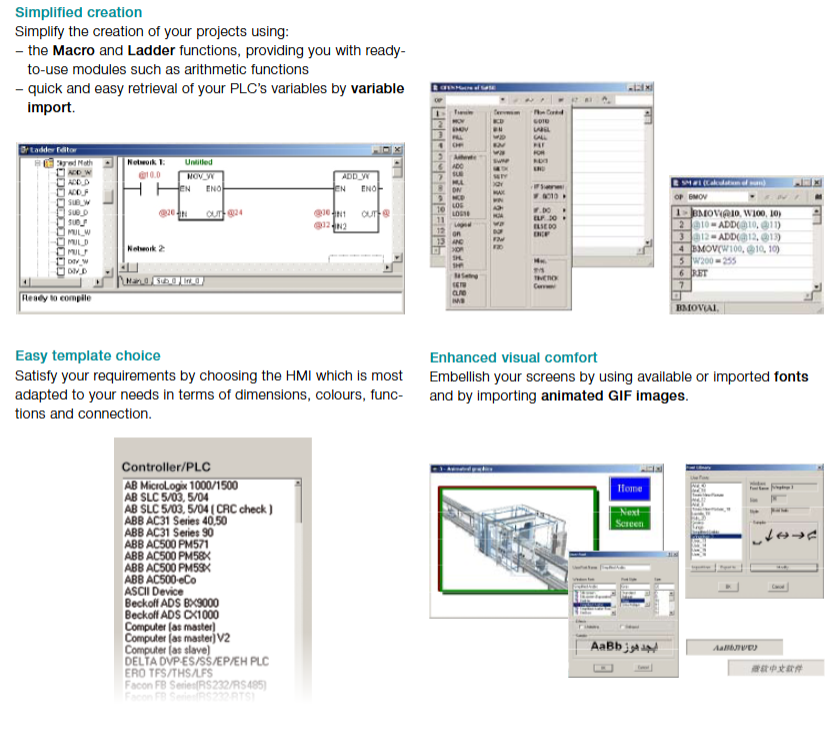

Simplified development: Supports macro instructions and ladder diagram functions, provides ready-made modules such as arithmetic operations, and can quickly obtain PLC variables through variable import, simplifying the project creation process.

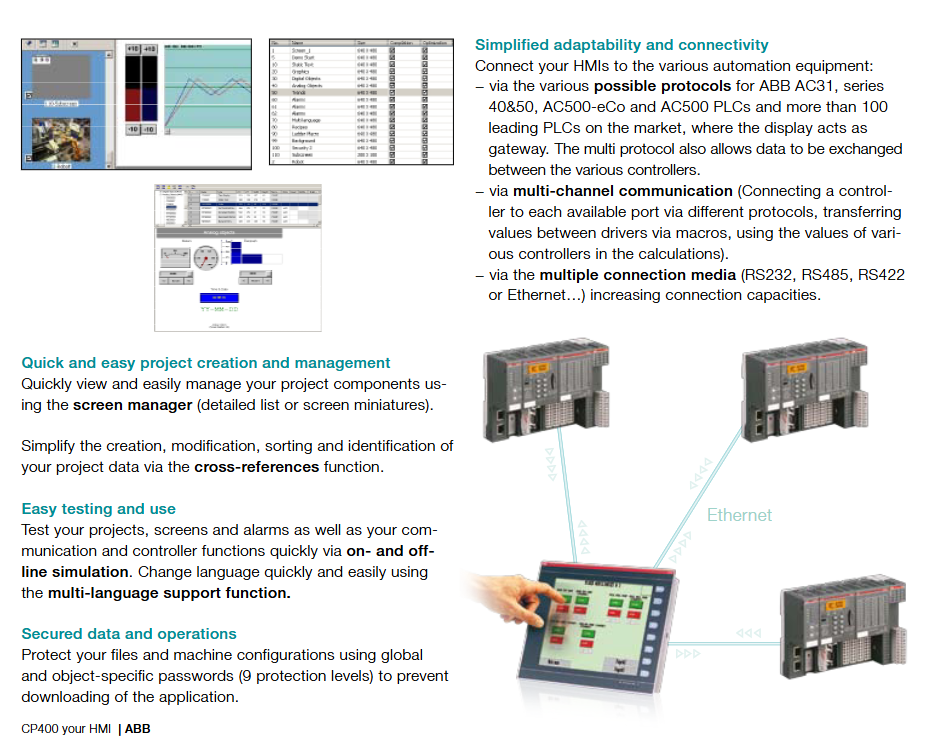

Flexible adaptation: Provides multiple sizes, display types, and functional models to meet different scene requirements, supporting communication with AB MicroLogix, AC31, AC500 and other controllers/PLCs.

Enhance visual experience: Support custom fonts and dynamic GIF import to improve interface aesthetics and interactivity.

Comprehensive compatibility: Compliant with ROHS standards, with a protection level of IP65, suitable for industrial environments, and a working temperature range of 0-50 ℃.

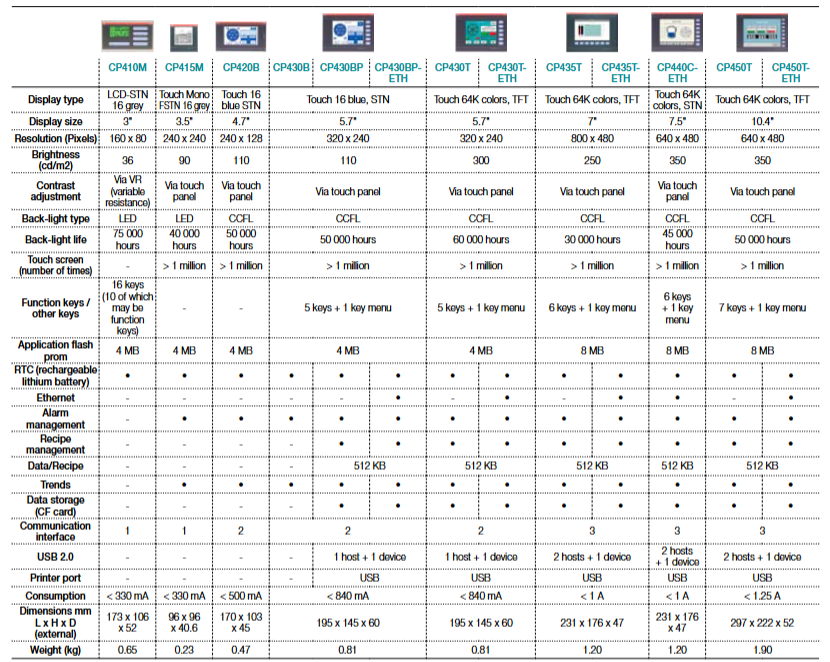

Main models and technical parameters

Model, display characteristics, core configuration, communication and expansion, physical parameters

CP410M: 3-inch LCD-STN (16 grayscale), 160 × 80 resolution 4MB flash memory, 16 keys (10 customizable), real-time clock (RTC), 1 communication interface, no Ethernet, size 173 × 106 × 52mm, weight 0.65kg, power consumption<330mA

CP415M: 3.5-inch touch FSTN (16 grayscale), 240 × 240 resolution 4MB flash memory, supports alarm management, RTC、 1 communication interface, no Ethernet, size 96 × 96 × 40.6mm, weight 0.23kg, power consumption<330mA

CP420B: 4.7-inch touch STN (16 blue), 240 × 128 resolution 4MB flash memory, 5 keys+menu key, supports trend management, 2 communication interfaces, no Ethernet, size 170 × 103 × 45mm, weight 0.47kg, power consumption<500mA

CP430B: 5.7-inch touch STN (16 blue), 320 × 240 resolution 4MB flash memory, supports alarm, trend management, 2 communication interfaces, no Ethernet, size 195 × 145 × 60mm, weight 0.81kg, power consumption<840mA

CP430BP-ETH: 5.7-inch touch STN (16 blue), 320 × 240 resolution, 4MB flash memory, supports recipe management and CF card storage, RTC、 Including Ethernet, 2 communication interfaces, 1USB host+1 device size 195 × 145 × 60mm, weight 0.81kg, power consumption<840mA

CP430T-ETH: 5.7-inch touch TFT (64K color), 320 × 240 resolution 4MB flash memory, supports data storage, trend analysis, including Ethernet, 2 communication interfaces, USB printing support, size 231 × 176 × 47mm, weight 0.81kg

CP435T-ETH: 7-inch touch TFT (64K color), 800 × 480 resolution, 8MB flash memory, supports multi recipe management, 2 USB hosts and 3 communication interfaces, Ethernet, supports CF card, size 231 × 176 × 47mm, weight 1.20kg, power consumption<1A

CP440C-ETH: 7.5-inch touch STN (64K color), 640 × 480 resolution 8MB flash memory, 7-key+menu key, supports complex trends, 3 communication interfaces, Ethernet, USB expansion, size 297 × 222 × 52mm, weight 1.20kg

CP450T-ETH: 10.4 inch touch TFT (64K color), 640 × 480 resolution 8MB flash memory, supports large capacity data storage, 3 communication interfaces, Ethernet, 2USB host+1 device, size 297 × 222 × 52mm, weight 1.90kg, power consumption<1.25A

Programming software and accessory details

programming software

Name: CP400Soft

Order number: 1SBS 260 284 R1001

Function: Used for project development of CP400 series HMI, supporting macro instructions, ladder diagram programming, variable import, online/offline simulation and other functions, simplifying interface design and logic configuration.


Communication and programming cables

Type, purpose, order number

TK401, RS232 programming cable, 1SBN 260 216 R1001

TK402、 Universal programming cable, 1SBN 260 217 R1001

TK403, RS232 interface, used for communication with AC31 controllers (40&50 series), 1SBN 260 218 R1001

TK405, RS232 interface, used for AC500 controller communication, 1SBN 260 221 R1001

TK406, RS485 interface, used for AC500 eCo controller communication, 1SBN 260 224 R1001


General characteristics

Hardware compatibility: All cables and programming software are compatible with the CP400 full range HMI and support communication with mainstream PLCs/controllers such as AB MicroLogix, AC31, AC500, etc.

Industrial standards: Compliant with ROHS environmental protection standards, the cables are made of durable materials that are suitable for complex industrial environments.
