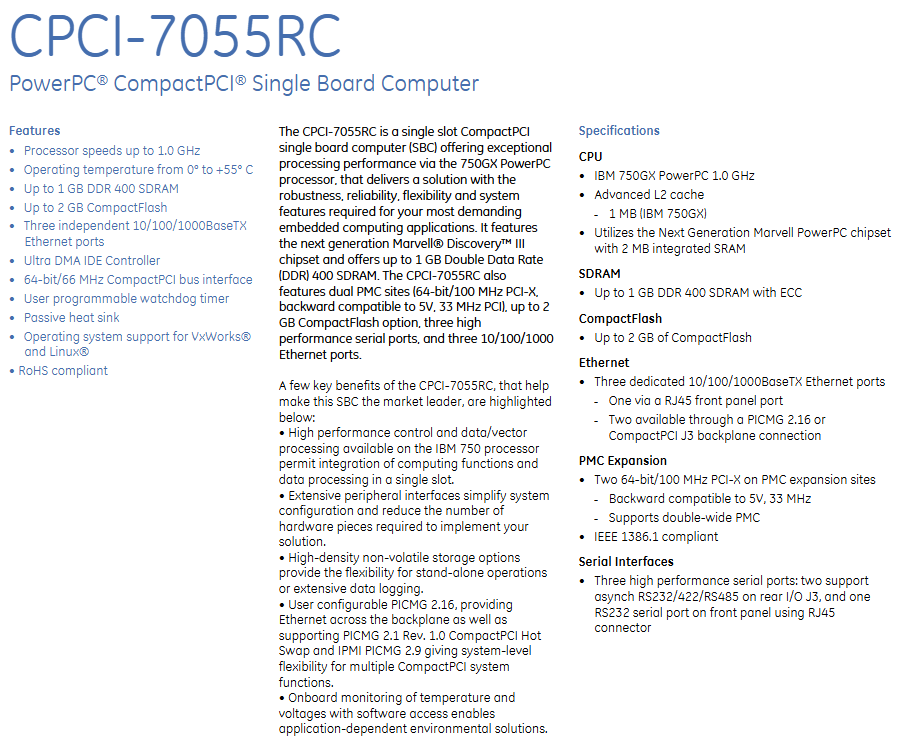

Product Overview

CPCI-7055RC is a single slot CompactPCI single board computer (SBC) equipped with a 750GX PowerPC processor that provides excellent processing performance, robustness, reliability, flexibility, and system characteristics to meet the most demanding requirements of embedded computing applications. It adopts the next generation of Marvel ®  Discovery ™  III chipset, equipped with rich interfaces and expansion functions.

Core Features

The processor speed can reach up to 1.0 GHz.

The working temperature range is from 0 ° C to+55 ° C.

Up to 1 GB DDR 400 SDRAM.

Up to 2 GB of CompactFlash.

Three independent 10/100/1000BaseTX Ethernet ports.

Supports Ultra DMA IDE controllers.

64 bit/66 MHz CompactPCI bus interface.

User programmable watchdog timer.

Equipped with passive radiator.

Support VxWorks ®  And Linux ®  Operating system.

Compliant with RoHS standards.

It has two PMC expansion sites (64 bit/100 MHz PCI-X, backward compatible with 5V, 33 MHz PCI).

Three high-performance serial ports.

Supports multiple PICMG specifications and provides system level flexibility.

On board temperature and voltage monitoring can be accessed through software to achieve application related environmental solutions.

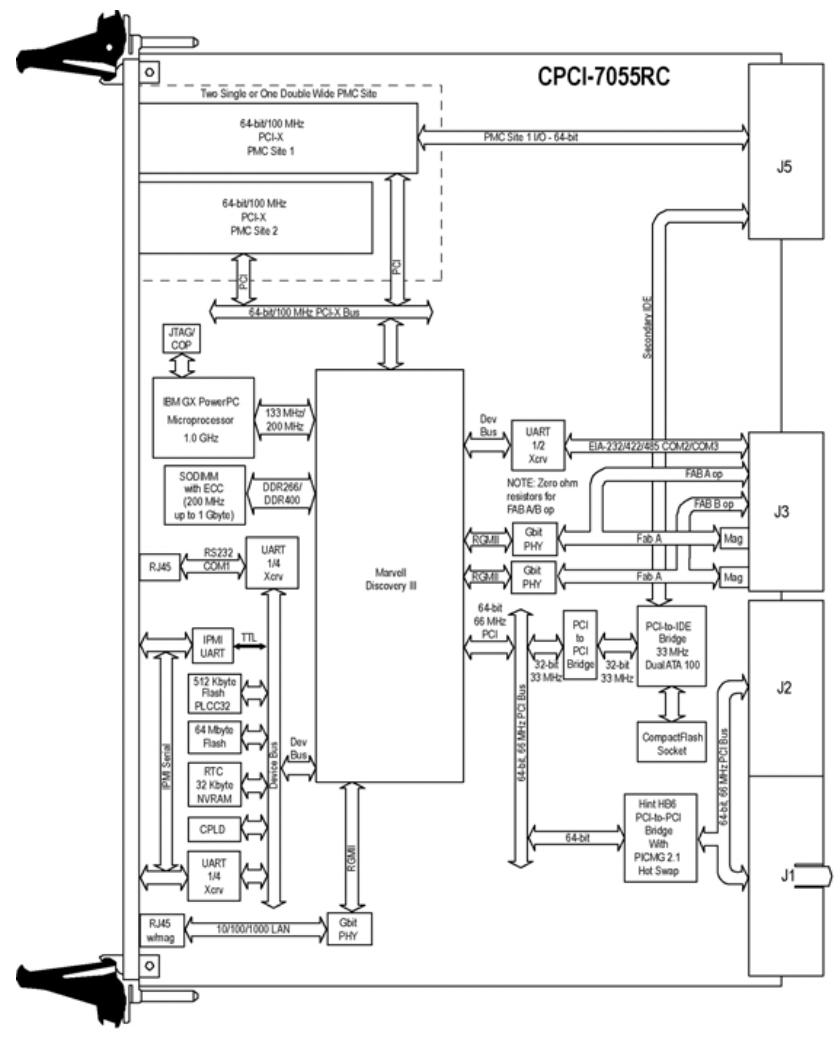

Specification parameters

CPU：IBM 750GX PowerPC 1.0 GHz， Equipped with 1 MB of advanced level 2 cache, utilizing the next-generation Marvel PowerPC chipset, and integrating 2 MB of SRAM.

SDRAM: Up to 1 GB DDR 400 SDRAM with ECC.

CompactFlash: up to 2 GB.

Ethernet: Three dedicated 10/100/1000BaseTX Ethernet ports, one via RJ45 port on the front panel, and two can be connected via PICMG 2.16 or CompactPCI J3 backplane.

PMC Expansion: Two 64 bit/100 MHz PCI-X PMC expansion sites, backward compatible with 5V and 33 MHz, supporting dual width PMC, compliant with IEEE 1386.1 standard.

Serial interface: Three high-performance serial ports, two of which support asynchronous RS232/422/RS485 on the rear I/O J3, and one RS232 serial port with RJ45 connector on the front panel.

Other interfaces: One serial port on the front panel, and two additional ports through the CPCI J3 connector; Support IDE and hard drive; Front panel hardware reset; User programmable watchdog timer; Front panel status LED.

PICMG compliance: Supports Intelligent Platform Management Interface (IPMI) architecture (PICMG 2.9 Rev. 1.0), high availability hot swappable (PICMG 2.1 Rev. 2.0), and universal signal support (PICMG 2.0 Rev. 3.0).

Front panel status LED: Main IDE interface activity, board status, power supply, hot plug, LAN activity (located on each RJ45).

Operating system support: Linux, VxWorks.

Power requirements:+3.3 VDC (± 5%) typical 1.7A, maximum 3.04A;+5 VDC (± 5%) typical 3.2A, maximum 6.0A; ± 12 VDC (± 5%) maximum 50 mA.

Environmental specifications: operating temperature from 0 ° C to+55 ° C; storage temperature from -25 ° C to+80 ° C; relative humidity from 10% to 90%, no condensation.

Shock: 10 Gs, 16 ms half sine wave, 6 axes, 10 pulses per axis.

Vibration: 6 Gs RMS (20-2000 Hz) random, 0.0185 G2 per Hz spectrum.

MTBF：361, 616 hours.

Size: 6U single slot European style card with a height of 9.2 inches (233.4 mm), depth of 6.3 inches (160 mm), and thickness of 0.8 inches (20.3 mm).

Order Information

VMICPCI-7055RC-32x100：6U cPCI SBC - 1 GHz 750GX，1 GB DDR SODIMM， No CompactFlash, via J3 Ethernet, 2x PMC, 64 MB boot flash, 32 KB NVRAM, 3x serial ports, compliant with RoHS standards.

VMICPCI-7055RC-31x100：6U cPCI SBC - 1GHz 750GH，512 MB SODIMM， No CompactFlash, via J3 Ethernet, 2x PMC, 64 MB boot flash, 32kb NVRAM, 3x serial ports, compliant with RoHS standards.

VMIAC-7055RC-000: The rear conversion module of PCI-7055 complies with RoHS standards.
