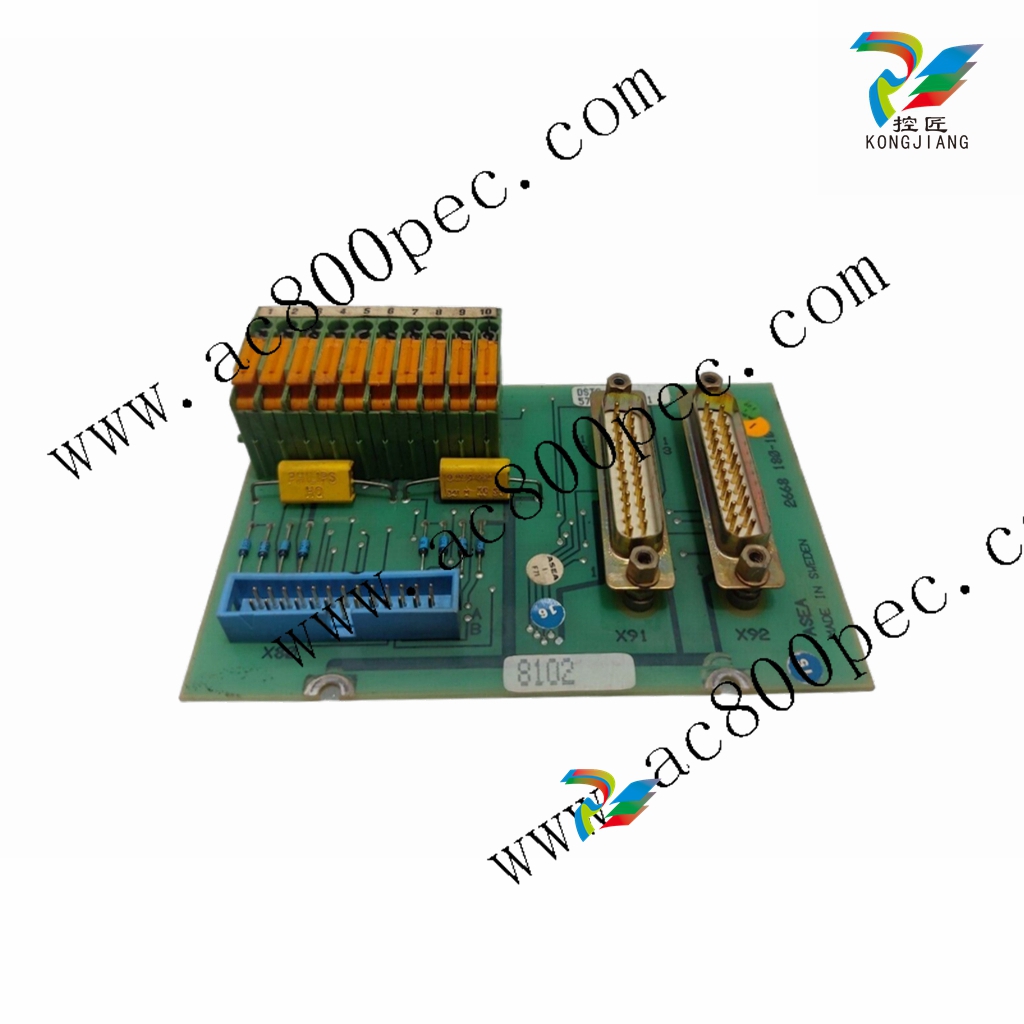

ABB DSTC175 57310001-KN terminal unit

From: | Author:Wang | Time :2024-12-04 | 191 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

ABB DSTC175 57310001-KN terminal unit

With this concept the RTU560 fulfills the highest
availability requirements.
Technical features
• Redundant communication lines or links;
communication via 2 communication lines in
a parallel mode (multi host with all available
protocols) or in an active/standby switchover
mode (redundant line/network with IEC 60870-
5-101/104)
• Redundant CMU performance;2 sets of CMU
boards in an active/standby switchover mode
• Redundant power supply 2 redundant power
supply;boards for the supply of the communication subrack
Due to modular architecture of the RTU560 it is
possible to use parts or combination of the redundancy elements.Benefits:
• Excellent reliability in performance and
communication
• High reliable remote control of important
substations
• Reduction of service and maintenance cost
• Scalable redundancy and cost optimized
concepts
Benefits:
• Excellent reliability in performance and
communication
• High reliable remote control of important
substations
• Reduction of service and maintenance cost
• Scalable redundancy and cost optimized
concepts


Time Synchronization
The accuracy and resolution of the time stamp for
a process event is important for analysing a process
disturbance,especially when it is necessary to analyse events from and between different stations.
The RTU560 meets this requirement.The internal
time management is controlled by the CMU communication boards.
The time resolution of the RTU560 is 1 ms for
events,scanned by the directly connected I/O
boards.Synchronization with absolute time can be
achieved by one of the following four methods:
• Time synchronization by the network control
center (NCC) via a periodically transmitted synchronization instruction with a communication
protocol supporting this function
• Time synchronization using a real-time clock that
receives the date and time from the GPS system
• Time synchronization using a real-time clock that
receives date and time information from the
DCF 77 time standard
• Time synchronization using SNTP V4 (RFC2030)
on a LAN/WAN network
The RTU560 time management system synchronizes the RTU with the supplied absolute time
with a high degree of accuracy.The absolute
accuracy is mainly provided by the source for
synchronization used,whereby GPS and DCF 77
allow an accuracy of 5 ms and better.The accuracy
