EATON 9000X AF series (SVX9000/SPX9000) frequency converter

EATON 9000X AF series (SVX9000/SPX9000) frequency converter

Basic Information and Core Product Specifications

Product positioning and applicable scenarios

Equipment type: Industrial grade voltage source type frequency converter, which converts three-phase AC power into adjustable frequency and voltage AC power through IGBT inverter, achieving smooth motor speed regulation, supporting induction motor and permanent magnet synchronous motor (PM motor) control;

Core difference: SVX9000 only supports V/f control and open-loop vector control, while SPX9000 additionally supports closed-loop vector control (requiring encoder feedback);

Applicable fields: Designed specifically for industrial equipment such as pumps, fans, and machine tools, suitable for constant torque and variable torque loads, capable of achieving energy-saving operation and precise speed regulation.

Core hardware and model division

Framework and rated parameters: Divided according to the FR4-FR14 framework, the core parameters are shown in the following table (excerpted key specifications):

Framework input voltage rated power range (hp) rated current (IH/A) protection level weight (kg) fixed torque (Nm)

FR4 208-240V 3/4-3 3.7-11 IP21/IP54 5 0.6

FR6 380-500V 1-30 2.2-46 IP21/IP54 18.5 4

FR9 525-690V 100-200 100-208 IP21/IP54 146 40/22

FR14 380-500V 1200-2200 1600-2700 Open Type --

Core configuration: Built in AC reactor (smoothing input current), DC bus capacitor (stabilizing DC voltage), IGBT inverter bridge; The control unit includes 5 expansion slots and comes standard with A9 I/O board and A2 relay board;

Control power supply: Built in 24Vdc auxiliary power supply (± 15%, maximum 250mA), supports external backup power supply.

Key technical parameters

Electrical characteristics:

Project specifications

Input voltage range: 208-240V ± 10%/-15%, 380-500V ± 10%/-15%, 525-690V ± 10%/-15%

Input frequency 50/60Hz (compatible with 45-66Hz)

Output voltage 0- Input voltage

Output frequency 0-320Hz (standard), frequency resolution 0.01Hz

Overload capacity 1.5 times rated current, 1 minute/10 minute cycle

Starting current 200% rated current, lasting for 2 seconds

Switching frequency 1-16kHz (low power), 1-6kHz (high power), adjustable parameters

Environmental adaptability: operating temperature -10 ℃~50 ℃ (40 ℃ under high overload), storage temperature -40 ℃~70 ℃, humidity 0-95%, no condensation; Full load at altitude ≤ 1000m, with a capacity reduction of 1% for every 100m above sea level, up to a maximum of 3000m;

EMC compliance: Complies with EN 61800-3 standard, emission level meets Class H, and anti-interference capability meets the standard.

Safety regulations and core taboos

Personnel and operational requirements

Qualification requirements: Installation, operation, and maintenance personnel must undergo professional training and be familiar with high-voltage safety operation standards;

Core taboos:

Do not open the lid or connect wires with electricity. Internal capacitors may still be charged after power failure, and it is necessary to wait for at least 5 minutes for discharge;

The control terminal is only allowed to connect to a 24Vdc power supply and is prohibited from connecting to 120Vac (which will permanently damage the circuit board);

When installing an isolation switch on the output side, a shutdown linkage mechanism must be configured, otherwise it may cause equipment failure;

Before resetting the fault, it is necessary to remove the external startup signal to avoid safety accidents caused by accidental restarts.

Core security risks and preventive measures

Potential risk prevention measures

During high-voltage electric shock operation, stand on an insulation pad and operate with one hand; The equipment is well grounded, and the cross-sectional area of the grounding wire is ≥ 1.5mm ²

After discharging the capacitor and cutting off the power, wait for 5 minutes to confirm that the indicator light is off before opening the cover; Do not short-circuit DC bus capacitors

Release static electricity before damaging touch devices with static electricity; Avoid contact with interface pins and sensitive components of the circuit board

Motor damage, correct configuration of motor nameplate parameters and protection parameters, prohibit disabling critical protection functions

Before installation, check that the insulation resistance of the motor/cable is greater than 1M Ω and the measured voltage does not exceed 1000V due to insulation failure

Installation and wiring specifications

Installation prerequisites

Installation location: inside the control cabinet or on the wall, horizontal/vertical can be used; Ventilation gap ≥ 30mm, away from heat sources (such as transformers) ≥ 15cm;

Installation surface requirements: panel thickness 2-5mm (FR4-FR6) or 1.5-2mm (FR10+), flatness ≤ 0.5mm, non flammable and no severe vibration;

Cooling requirements: According to the framework, meet the minimum heat dissipation air volume (such as 41cfm for FR4 and 765cfm for FR9) to avoid blockage of the heat sink.

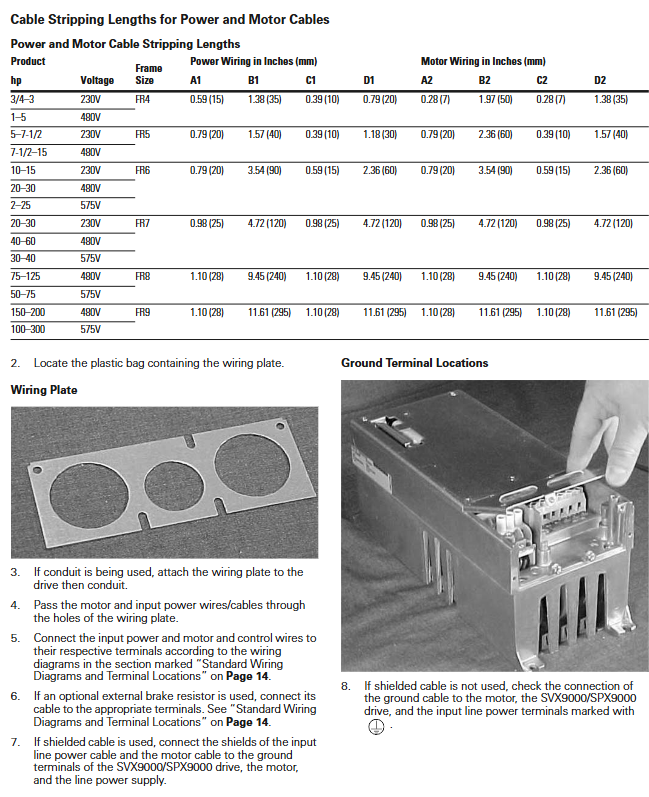

Cable and wiring specifications

Power cable:

Cable type specification requirements

Material: Copper wires at 75 ℃ and above, aluminum wires are prohibited (unless equipped with dedicated terminals)

Section selection based on frame (e.g. 14-2AWG for FR4, 300kcmil for FR9)

Length of motor cable up to 300m (1-2hp 230V model up to 100m)

The minimum spacing between signal cables is 0.3m (≤ 50m) or 1m (≤ 200m), and cross wiring requires a 90 ° angle

Control cable: 20-14AWG shielded wire, shielded layer single end grounded; Wiring torque 0.25-0.5Nm (M2.6/M3 screws);

Grounding specifications: The equipment protection ground must be reliably connected, with a grounding wire cross-section of ≥ 1.5mm ² and a length of ≤ 350mm;

Special interface:

CAN bus: characteristic impedance of 120 Ω, terminal resistors need to be connected at both ends of the bus;

Ethernet: CAT5e/6 shielded twisted pair, up to 100m in length;

Encoder (closed-loop control): It needs to be matched with OPTA4/OPTA5 expansion card, and the pulse number parameter can be configured.

Equipment fixation and insulation inspection

Fixing method: Fix with 4-8 bolts according to the frame (4 for FR4 and 12 for FR14), with bolt grade ≥ 5.8;

Insulation inspection (mandatory after installation):

Motor cable: Disconnect the motor and frequency converter, measure the phase to phase and relative to ground insulation resistance>1M Ω;

Input cable: Disconnect the power grid and frequency converter, measure phase to phase and relative to ground insulation resistance>1M Ω;

Motor winding: Disconnect the cable, measure the insulation resistance of each winding to be greater than 1M Ω, and measure the voltage to be ≥ the rated voltage of the motor and ≤ 1000V.

Operation and Debugging

Menu System and Operating Logic

Main menu structure: 8 main menus (M1-M8), with the following core functions:

Main menu core functions

M1 parameter motor parameters, control mode, protection parameters and other configurations

M2 key controls keyboard frequency setting and motor direction selection

M3 active fault display shows current active faults (up to 10)

M4 fault history stores 30 fault records, including fault time and operation data

M5 system language, application selection, parameter backup/recovery, password protection

M6 expansion board expansion card parameter configuration and status monitoring

M7 monitoring real-time display of output frequency, motor current, bus voltage, etc. (updated in 0.3 seconds)

M8 operation mode allows quick viewing of key operating parameters and supports frequency setting

Operating device: Equipped with backlit LCD display screen (4 lines of 20 characters), 9 function buttons (start/stop/reset/direction keys, etc.), supporting local/remote control switching.

Start debugging process

Core steps:

Initial power on: Automatically enter Startup Wizard, select language and application type (standard/pump/fan, etc.);

Parameter input: Enter the motor nameplate parameters (rated voltage, frequency, current, speed, power factor);

No load test: Disconnect the motor load, test the output frequency of the frequency converter to follow the command, and verify the I/O control logic;

ID operation (motor parameter recognition):

Open loop mode: The motor has no load, and the frequency converter automatically identifies parameters such as stator resistance and inductance to optimize the V/f curve;

Closed loop mode (SPX only): An encoder needs to be connected to identify the position and dynamic parameters of the motor rotor;

Load testing: Connect the load to verify the acceleration/deceleration curve, torque response, and effectiveness of protection functions.

Core parameter configuration

Required parameters (motor related):

Parameter group key parameter configuration range default values

Basic parameters: Motor rated voltage 0-690V-

Basic parameters: Motor rated frequency 1-320Hz, 50/60Hz

Basic parameters: motor rated current 0.1- rated current-

Motor control mode V/f/open-loop vector/closed-loop vector V/f

Slope setting acceleration time 0.1-3000 seconds 20 seconds

Slope setting deceleration time 0.1-3000 seconds 20 seconds

Protection parameters (default enabled): overcurrent, overvoltage, undervoltage, ground fault, motor overload, motor stalling, phase loss protection, IGBT overheating protection.

Troubleshooting and Maintenance

Fault classification and core fault codes

Fault level: Level 4 fault, corresponding to different response strategies:

Fault type definition and response method

A (alarm) abnormal operation status does not stop, displaying for 30 seconds

F (Fault): If there is a serious abnormality, immediately stop the machine and manually reset it

AR (Automatic Restart Fault) can restore anomalies, automatically reset and restart, and switch to FT if it fails

FT (Fault Trip) failed to restart and shut down, manual reset and fault handling are required

Common fault codes and solutions:

Fault code, fault type, possible causes, and solutions

F1 overcurrent motor short circuit, cable short circuit, load mutation inspection motor/cable insulation to reduce load mutation rate

F2 overvoltage deceleration time is too short, and the voltage fluctuation of the power grid prolongs the deceleration time. Install a braking resistor and check the power grid

F3 grounding fault motor/cable insulation damage measurement of insulation resistance, replacement of faulty components

F14 frequency converter overheating heat sink blockage, fan failure, high ambient temperature. Clean the heat sink, replace the fan, and improve ventilation

F15 motor blockage load stuck, improper blockage parameter settings, clear load obstacles, adjust blockage protection parameters

Daily maintenance and accessories

Regular maintenance:

Cleaning: Clean the heat sink and ventilation holes monthly to avoid dust accumulation;

Inspection: Check the wiring tightness, terminals for overheating and discoloration, and fans for normal operation every quarter;

Verification: Verify the effectiveness of protection parameters every six months and test the fault response function;

Accessory selection:

Accessory Type Core Model Function

Interface expansion card OPTA9 6DI/2AI/1AO/1DO, standard configuration

Communication cards OPTC3 (PROFIBUS) and OPTC7 (DeviceNet) support industrial bus communication

Internal/external absorption of regenerative electrical energy during deceleration by the braking resistor to avoid overvoltage

Remote keyboard OPTRMT-KIT-9000X remote installation keyboard, including 10ft cable

Storage and disposal

Storage and transportation

Storage conditions: temperature -40 ℃~70 ℃, humidity 0-95%, no condensation, avoid corrosive environment and severe vibration;

Transportation requirements: Use original packaging, heavy frames (such as FR9+) need to be transported with air cushions to prevent equipment damage.

Disposal standards

The equipment contains electronic components such as IGBT, capacitors, lithium batteries (auxiliary power supply), etc., which need to be classified and recycled according to local environmental regulations;

Packaging materials (cardboard, PE film) can be classified and recycled, and are strictly prohibited from being discarded at will.
