Product foundation and core positioning

Core function: As a multiplexed interface for the HART protocol, it centrally connects dispersed on-site HART devices to PC management software, supports device parameter reading and writing, calibration, fault diagnosis, and alarm log recording, without interrupting 4-20mA analog signal transmission.

Applicable scenarios:

Safe area: directly connected to HART devices, suitable for conventional industrial automation scenarios;

Dangerous area: equipped with MTL4500 series intrinsic safety (IS) isolation module for explosion-proof environment (in compliance with local explosion-proof regulations);

Compatible systems: Supports mainstream DCS/PLC systems such as Emerson DeltaV, HIMA HiMax, Siemens ET200M, etc. (see Appendix A).

Core advantages:

High scalability: A single module supports 32 field devices, and cascading 63 modules can cover 2016 devices;

Redundant design: supports dual redundant power supply to ensure stable system operation;

Flexible adaptation: Provides 3 connection methods to meet the needs of different installation scenarios.

Core technical specifications

Category key parameter details

Communication interface type/baud rate RS485 (2-wire half duplex), 300-38400 baud rate (automatic detection)

The maximum transmission distance for communication is 1000m (shielded cable)

Equipment capacity single module/cascaded 32 channels/device; 63 modules cascaded (2016 devices)

Power supply parameters voltage/current 20-35V DC redundant power supply; HTP-SC32： 75mA@24V  DC；CPH-SC32： 1.2A@24V DC (full load)

The terminal requires a matching resistor of 100-200 Ω (to be provided externally, usually integrated into RS232/485 converters)

The installation location of the work environment is inside the control cabinet (DIN rail/panel installation), without independent protection level

The software driver supports DD files (compatible with Emerson AMS) and DTM files (compatible with Fieldcare), which can be downloaded for free from the MTL official website

Three core connection methods

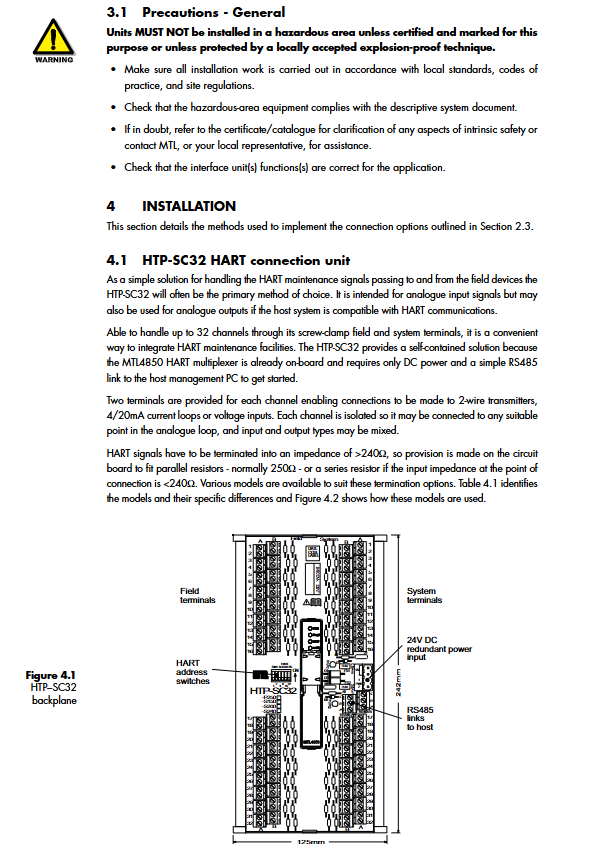

Integrated Connection (HTP-SC32)

Features: Built in MTL4850 module, 32 channel integrated design, no need for additional interface units;

Applicable scenarios: Safe area, directly connected to 2-wire/4-wire HART devices, 4-20mA current loop;

Model options: Divided into 5 types based on terminal resistance configuration (such as HTP-SC32-P250 with 250 Ω parallel resistor);

Installation: DIN rail installation, weight 120g (module)+500g (carrier), height 152mm.

Interface Connection (HMP-HM64+HCU16/HCU16AO)

Components: HMP-HM64 interface unit (accommodating 2 MTL4850 modules, 64 channels)+HCU16 (16 channel ordinary connection unit)/HCU16AO (16 channel filtered output unit);

Applicable scenarios: safe areas that require channel expansion or adaptation to low impedance output systems;

Connection: Connect the interface unit and the connection unit through a 20 core ribbon cable (HM64RIB20, 0.5-6m);

Address configuration: HMP-HM64 only supports even numbered addresses, and the second module automatically occupies adjacent odd numbered addresses (such as address 24 corresponding to module 1, 25 corresponding to module 2).

Intrinsically Safe Backplane Connection (CPH-SC16/32)

Features: Compatible with MTL4500 series IS isolation module, supporting access to hazardous area equipment;

Model difference:

CPH-SC16 (R): 16 channels, compatible with single channel isolation modules (such as MTL4541), R version includes a 250 Ω resistor;

CPH-SC32 (R): 32 channels, compatible with dual channel isolation modules (such as MTL4544), R version includes a 250 Ω resistor;

Redundant design: dual independent power supply interfaces, supporting circular power supply (maximum loop current of 12A);

Installation: Installation kit (SMS01 panel installation/DMK01 DIN rail installation) is required, weighing approximately 420g.

Key steps for installation and configuration

Mechanical Installation

Installation method:

DIN rail installation: Use DMK01/DMK04 kit, compatible with T/G type rails;

Panel installation: Use SMS01 kit, with panel openings according to the size of the backplate (such as CPH-SC32:335 × 170mm);

Fixed requirements: The module needs to be tightly pressed in place, and the MTL4850 module needs to tighten the fixing screws on both sides to ensure reliable electrical connection.

Wiring specifications

RS485 wiring:

Cable type: shielded twisted pair (recommended Belden 8132/9841);

Terminal connection: Connect wire A to terminal A, wire B to terminal B, and shield layer to terminal C;

Cascading method: Module cascading is achieved through Port A (input)/Port B (output), with reversed polarity not damaging the device but preventing communication;

Power supply wiring: Redundant power supply requires the connection of dual independent power sources, with LED indicator lights displaying the power supply status;

Dangerous area wiring: The on-site wiring terminates at the blue terminal of the isolation module and cannot be directly connected to the backplane.

address configuration

Configuration method: Set the address (0-63) through the 6-digit DIP switch (binary encoding) on the module/backplane;

Encoding rule: The switch corresponds to values 1, 2, 4, 8, 16, and 32, and the ON state is accumulated and summed (such as address 29=16+8+4+1);

Special requirement: The HMP-HM64 interface unit only supports even address settings.

Operation and maintenance

Power on self-test and status indication

Normal process: After power on, the PWR (green) stays on, the FAULT (red) flashes evenly (to build a device scanning list), and the FAULT light goes out after completion, entering the running state;

LED status description:

LED name, color, status, meaning

PWR green off/on, no power supply/normal power supply

FAULT red uniform flashing scanning device

FAILT red flashing short/long, no HART device detected

FAULT red constant light module fault, stop running

HOST yellow short flash receives valid messages

HART yellow flashing sends response message

routine maintenance

Maintenance cycle: once every 2 years (shortened in harsh environments);

Maintenance content:

Check whether the module is firmly connected to the backplane, and whether the wiring is loose or corroded;

Verify that the power supply voltage is within the range of 20-35V DC and the fuse (0.5A/2A) is intact;

Confirm that the cable is not damaged and the shielding layer is reliably grounded;

Taboos for operating in hazardous areas:

When plugging or unplugging hazardous area connectors, it is necessary to insert the MTL4599 dummy isolation module or temporarily fix it to avoid contact with safe area circuits;

It is prohibited to disassemble the MTL4500 isolation module by oneself, and faulty modules need to be returned to the factory for repair.

troubleshooting

No communication: Check the polarity of the RS485 wiring, whether the terminal resistance is installed, and whether the module address conflicts;

Module without power supply: Check the power wiring and fuses, replace the faulty power supply;

FAULT light is always on: there is an internal fault in the module. Record the alarm log and return to the factory;

Device not recognized: Check if the on-site device supports the HART protocol, if the wiring is correct, and reconstruct the scan list through software.

Software configuration

Driver installation: Download the corresponding driver files (DD/DTM) from the MTL official website and complete the installation according to the software manual;

Communication settings: Configure RS485 baud rate, module address, and match hardware parameters in the PC instrument management software;

Core functions:

Device management: Add/remove HART devices, configure device parameters;

Diagnostic monitoring: Real time monitoring of equipment status, recording logs when an alarm is triggered;

Calibration and maintenance: remotely calibrate on-site equipment and optimize valve maintenance plans.
