Product positioning and core values

The Eaton B-Line series is a comprehensive infrastructure support and enclosure subsystem solution for multiple industries worldwide. Its core goal is to help users solve complex problems in the installation and maintenance of electrical, mechanical, and communication systems. The core values focus on three dimensions:

Time saving: By using prefabricated components and convenient installation designs (such as snap on splicing), up to 50% of installation time can be saved;

Reduce complexity: Provide products that combine standardization and customization, with complete technical documentation and engineering support;

Maximizing ROI: Optimizing product design and installation processes, reducing total installation costs, while supporting future expansion needs.

Core Product Matrix (Detailed Classification Explanation)

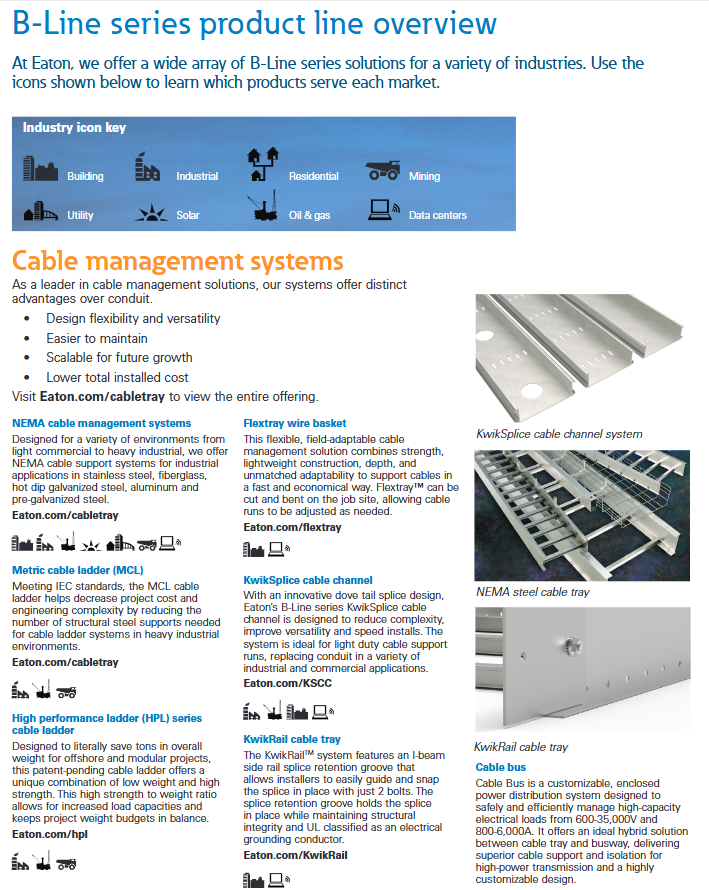

Cable Management System (Core Product+Advantages)

Product Name Key Features Applicable Scenarios Core Advantages

The NEMA cable support system is made of materials such as stainless steel, fiberglass, hot-dip galvanized steel, etc., suitable for light commercial to heavy industrial environments, and meets NEMA standards such as Eaton. com/cable tray

Measurement Cable Ladder (MCL) complies with IEC standards for heavy industrial environments, reducing the number of structural steel supports and lowering costs and complexity.

High performance ladder (HPL) patented design, high-strength and lightweight offshore and modular projects with light weight and high strength, balancing project weight budget

Flextray wire basket can be cut and bent on site, flexibly adapting to various types of cable laying and installation, fast and economical, and adapting to on-site adjustment needs.

KwikSplice cable tray dovetail splicing design simplifies installation with lightweight cable support, enhancing versatility Eaton. com/KSCC

KwikRail Cable Ladder Type I Beam Side Rail Splicing Slot, 2 Bolt Fixed Universal Cable Support Splicing Convenient, Combining Structural Integrity and UL

Grounding Certification

Customized enclosed design of Cable Bus, with a hybrid advantage of 600-35000V, 800-6000A high-capacity power transmission cable ladder and bus duct, providing excellent support and isolation.

Support System (Core Products+Advantages)

Product Name Key Features Applicable Scenarios Core Advantages

Strut Systems offers a full range of products and accessories that can be assembled on-site for electrical/mechanical/pipeline/data communication support. The product line is diverse and flexible to install.

The Z-shaped design of the conduit hanger system is suitable for multiple specifications of conduits/cable conduits and cable supports, saving 50% of installation time compared to traditional brackets.

Fasteners adapt to the installation of conduits, cables, boxes, and other rough decoration stages, accelerating the entire installation process and saving time and costs.

Pipeline hanger made of carbon steel/stainless steel material, with multiple surface treatments for commercial indoor to corrosive industrial environments in compliance with MSS/federal standards, partially UL/FM certified

Seismic Support (TOLCO Series) Rigid/Cable Support Optional Mechanical/Electrical/Pipeline/Fire Protection System Compliant with UL/FM/HCAI Standards, Provides Compliant Design Support

Snap'N Shield solution snap on installation, compatible with brackets/pipe hangers, pipeline and insulation layer protection to prevent damage and leakage, allowing natural expansion and contraction of pipelines Eaton. com/snap-n-shield

Dura Blok roof supports 100% recycled rubber material, soft composite structure roof electrical/mechanical/communication equipment support protects the roof, no additional rubber pads required

Server rack and wiring channel steel/aluminum material, including a complete set of cable management accessories, suitable for various data center scenarios in network rooms and data centers, supporting equipment and cables

Other core solutions

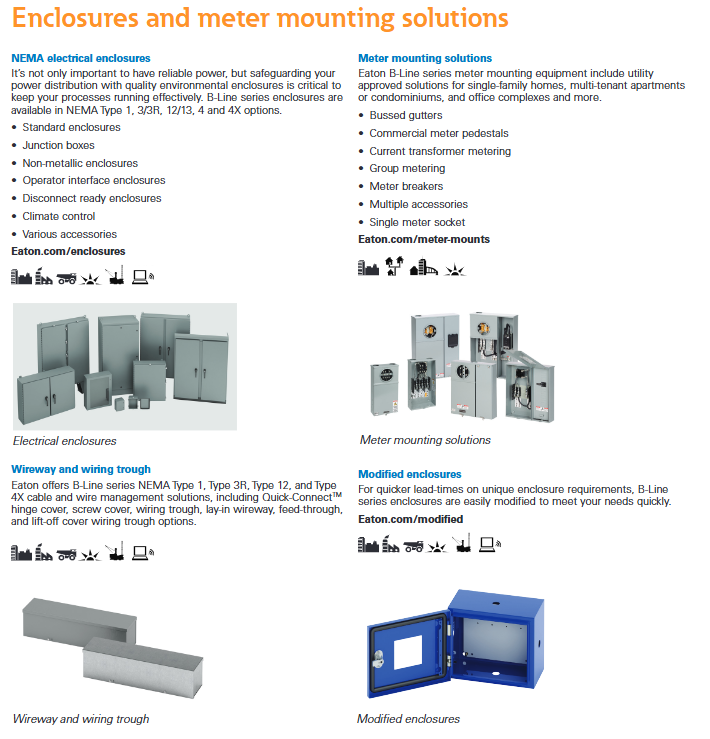

Enclosures: Provide standardized and customized enclosure products to meet the protection needs of electrical and communication equipment;

Data communication solution: Focusing on data centers and network rooms, providing racks, cable trays, and supporting cable management accessories to ensure orderly deployment of communication systems.

Supporting Services and Digital Tools

Engineering and Technical Services

Project review: covering specification, design, and application scenario evaluation;

Drawing support: Provide 2D/3D drawings and support model review;

Engineering calculation: including structural calculation, ROI calculation, and environmental impact analysis (such as wind and snow);

Document delivery: Provide a submission package and Bill of Materials (BOM) with the seal of a Professional Engineer (PE);

Customized optimization: Combining standard products with customized solutions to achieve project cost savings.

Product Value Added Services

Customized processing: fixed length cutting brackets, prefabricated components, product kits;

Shell modification: Provide personalized shell customization services.

Digital Tools and Resources

Design tools: 2D/3D drawing downloads, specification guides, and product catalogs;

Calculation tools: Save Calculator, ROI Calculator;

Knowledge resources: White papers, instructional videos

Global layout and innovation capability

Global Service Network

Production/distribution/service locations: covering the United States (6 locations), Canada (2 locations), Europe (Coventry, UK), the Middle East (Sandman), Asia (5 locations including Shanghai, China, Seoul, South Korea), and Australia (Smithfield);

Innovation and Testing Capability

Global Innovation Center: located in Highland, Illinois, USA, with rapid prototyping capabilities;

Core testing capabilities: Cable ladder load testing (compliant with IEC/NEMA standards), mechanical strength testing, salt spray/accelerated aging testing;

Innovative technologies: 3D printing (FDM), digital optical comparator, CNC machining (milling/turning/drilling), waterjet cutting.

Applicable industries and users

Applicable industries: industrial manufacturing, commercial buildings, data centers, offshore engineering, modular buildings, energy facilities, etc;

Target users: electrical/mechanical contractors, installers, project engineers, architects, data center maintenance personnel, etc.
