Product Overview

Product positioning: Eaton XV series supercapacitors adopt an electrochemical double-layer capacitor (EDLC) structure, combined with high-performance materials, and are ultra-high capacity energy storage devices that can adapt to diverse current requirements from microampere level (lasting for several days) to ampere level (lasting for milliseconds).

Core strengths

Long lifespan: 10 years of working life at room temperature, 500000 cycles of charge and discharge life

Excellent performance: ultra-low equivalent series resistance (ESR) achieves high power density, and large capacity design achieves high energy density

Compliance: UL certified, compliant with ROHS standards, halogen-free, environmentally friendly and pollution-free

Core specification parameters

Basic electrical parameters | Parameters | Specification details|

|Capacity Range | 300F, 400F, 600F (Tolerance: -5%~+10%)|

|Working voltage | 2.7V | | Surge voltage | 2.85V|

|Working temperature range | -40 ° C~+65 ° C|

|Extended working temperature range | -40 ° C~+85 ° C (needs to be reduced to 2.3V)|

|Capacity/ESR/Leakage Current Test Conditions | IEC 62391-1 Standard,+20 ° C Environment|

Performance parameters of each model (standard product) | Capacity (F) | Model | Maximum initial DC ESR (m Ω) | Maximum continuous current (A) | Peak current (A) | Maximum leakage current (mA) | Maximum power (W) | Stored energy (Wh) | Typical weight (g)|

| 300 | XV3550-2R7307-R | 4.5 | 20 | 160 | 0.60 | 410 | 0.30 | 62 |

| 400 | XV3560-2R7407-R | 3.2 | 26 | 220 | 0.85 | 570 | 0.41 | 72 |

| 600 | XV3585-2R7607-R | 2.6 | 33 | 320 | 1.30 | 790 | 0.60 | 108 |

Note: ① Continuous current is based on a temperature rise of 15 ° C; ② The peak current lasts for 1 second (calculation formula: 1/2 working voltage x capacity/(1+DC ESR x capacity)); ③ Measure the leakage current after 72 hours at+20 ° C environment; ④ Maximum power calculation formula: Operating voltage ²/4/DC ESR; ⑤ Calculation formula for energy storage: 1/2 × capacity × working voltage ²/3600.

Lifespan and cycle performance

|Test conditions | Capacity change (initial value percentage) | ESR change (maximum initial value percentage)|

|Maximum operating voltage+maximum operating temperature, 1500 hours | ≤ 20% | ≤ 200%|

|At room temperature, 500000 charge and discharge cycles (0-50% maximum operating voltage) | ≤ 20% | ≤ 200%|

|Uncharged storage, -40 ° C~+65 ° C, 1500 hours | ≤ 20% | ≤ 200%|

|Unprocessed storage, ≤ 30 ° C, 3 years | ≤ 5% | ≤ 10%|

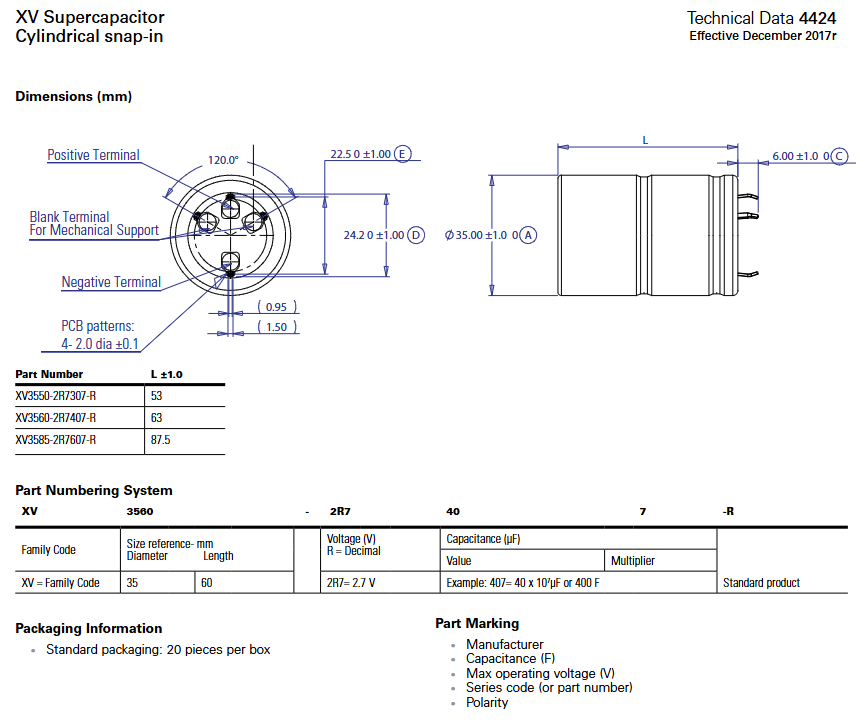

Physical dimensions and model codes

Key dimensions (mm)

Diameter: 35.00 ± 1.00mm

Length: 53mm for 300F model, 63mm for 400F model, 87.5mm for 600F model

Pin related: Positive/negative terminal design, including mechanical support blank terminals, PCB compatible aperture 2.0 ± 0.1mm (4 hole positions)

Model coding rules (taking XV3560-2R7407-R as an example) | coding segments | meaning analysis|

|XV | Product Series Code|

|3560 | Size reference (diameter 35mm, length 60mm)|

|2R7 | Operating voltage (2.7V, R represents decimal point)|

|407 | Capacity (40 × 10 μ F=400F)|

|- R | Standard Product Identification|

Application scenarios and usage standards

Typical Applications

Hybrid battery or fuel cell system

High pulse current demand scenario

UPS/backup power supply (continuous power supply)

Welding and cleaning requirements

Wave soldering parameters

Welding Type Preheating Maximum Temperature Preheating Maximum Time Peak Temperature Range Peak Duration Cooling Rate (max) Full Time

Lead welding (SnPb) at 100 ° C for 60 seconds, 220-260 ° C for 10 seconds (≤ 5 seconds per wave), 5K/s for 4 minutes

Lead free soldering at 100 ° C for 60 seconds, 250-260 ° C for 10 seconds (≤ 5 seconds per wave), 5K/s for 4 minutes

Manual welding: Not recommended. If it must be used, it should be controlled within 350 ° C and completed within 4-5 seconds

Cleaning requirements: Avoid cleaning the circuit board; If necessary, soak in standard cleaning solution with static/ultrasonic immersion for ≤ 5 minutes, temperature ≤ 60 ° C, and thoroughly rinse and dry afterwards

Packaging and labeling

Standard packaging: 20 pieces/box

Product identification: including manufacturer information, capacity (F), maximum operating voltage (V), series code/model, polarity marking
