Product Overview

Core positioning: PAC8000 Remote I/O is a fully modular remote I/O solution developed by Emerson for the process industry. It adopts a carrier based architecture and supports applications in general scenarios and hazardous areas (including intrinsic safety signals). It can be seamlessly integrated with PACSystems RX3i and RSTi EP controllers through PROFINET/Modbus TCP, suitable for process control requirements in harsh environments.

Core design concept: With "high reliability, wide environment adaptation, and convenient operation and maintenance" as the core, it supports live operation and hot plugging in hazardous areas, provides comprehensive diagnostic functions, and reduces downtime and maintenance costs.

Key features and advantages

Key information of characteristic category

Environmental adaptability working temperature: -40 ° C to+70 ° C; corrosion resistance: ISA Level G3; Impact resistance: 30g; Vibration resistance: 5g

Hazardous Area Adaptation Certification: UL HAZLOC C1D1, ATEX Zone 1/2, Division 1/2; Support intrinsic safety (Exi) and increased safety (Exe) wiring

Redundancy capability system redundancy: PNSR (PROFINET), Modbus TCP; Network redundancy: MRP, dual LAN; I/O redundancy: dual redundancy

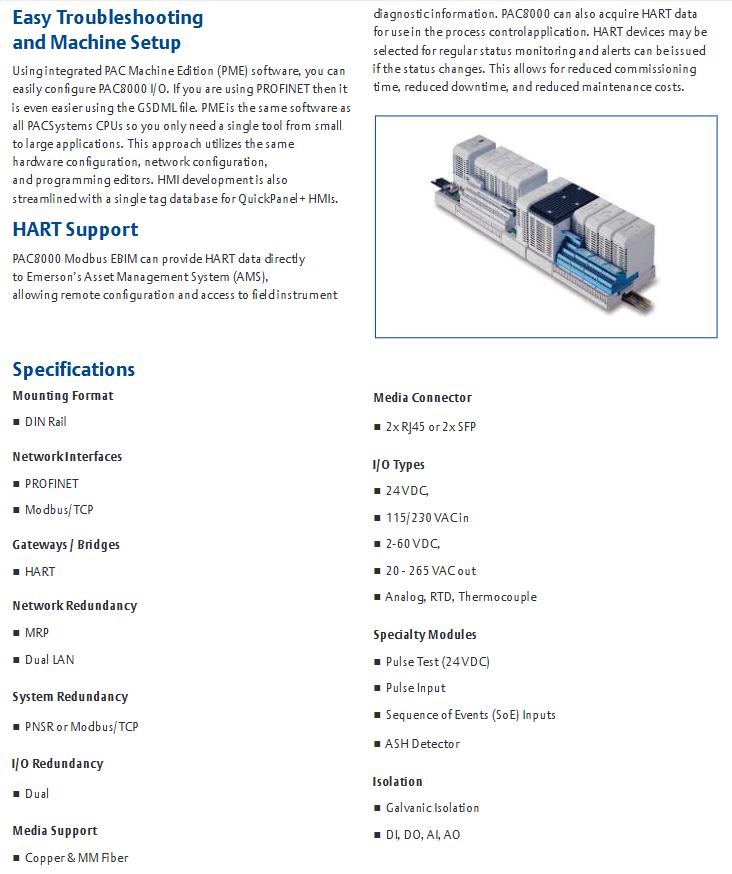

Usability hot swappable: supported; Configuration software: PAC Machine Edition (PME), GSDML file (PROFINET); Diagnosis: Comprehensive diagnosis of all modules

Protocol supports communication protocols: PROFINET, Modbus TCP; Extension Protocol: HART (Supports AMS Asset Management System)

Hardware configuration details

network interface

Communication protocols: PROFINET, Modbus TCP

Media support: Copper cable, multimode fiber optic

Connector: 2 x RJ45 or 2 x SFP

Gateway/Bridge: Supports HART protocol

I/O module types and specifications

|Module category | Specific type | Channel specification|

|Universal I/O Module | Digital Input (DI), Digital Output (DO), Analog Input (AI), Analog Output (AO) | 4/8/16/32 Channels|

|Special I/O Module | RTD Input, Thermocouple (TC) Input, Sequence of Events (SoE) Input, Smoke/Heat Detector | 4/8/32 Channels|

|Intrinsic Safety Module | Intrinsic Safety AI (4-20mA, with HART), Intrinsic Safety AO (4-20mA), Intrinsic Safety DI/DO | 4/8/16 Channels|

|Safety module | Safety AI (4-20mA, with HART), Safety DI/DO (24VDC) | 8 channels|

Carrier and accessories

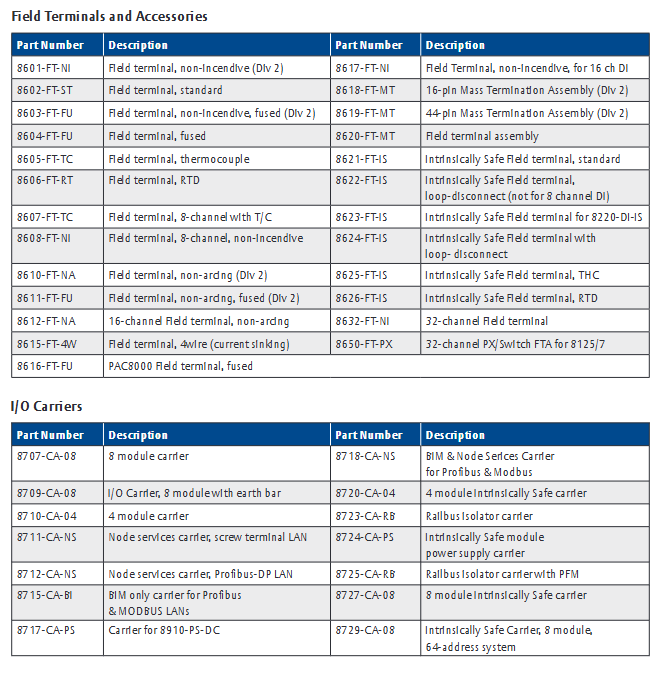

Carrier: 4-module/8-module universal carrier, intrinsic safety carrier, node service carrier, BIM specific carrier

On site terminals: standard type, intrinsic safety type, fused type, thermocouple/RTD specific type (supporting 16/32 channels)

Cable: Carrier extension cable (0.35m/0.85m/2.0m, etc.), 16/44 pin Mass Termination cable (1m/2m/3m)

Power supply: 8913-PS-AC (5A 12VDC+5A 24VDC), 8914-PS-AC (10A 24VDC)

Certification and Compliance

Core certifications: UL, CE, ATEX Zone 1, UL HAZLOC C1D1, Intrinsic Safety Certification

Classification Society Certification: Lloyd's Register (LR)

Protection level: IP20

Isolation feature: All DI/DO/AI/AO modules have galvanic isolation

Product Comparison (with Emerson's Other I/O Products)

Product model type, working temperature, hazardous area certification system, redundant heat plugging and unplugging

PAC8000 Intrinsically Safe -40 ° C~+70 ° C UL C1D1, ATEX Zone1 PNSR/Modbus TCP

RSTi EP distributed slicing type -20 ° C~+60 ° C UL C1D2, ATEX Zone2 PROFINET/Profibus is

RX3i rack mounted 0 ° C~+60 ° C (optional -40 ° C) UL C1D2, ATEX Zone2 PNSR/EGD

RSTi-OM airborne distributed -20 ° C~+60 ° C UL C1D2, ATEX Zone2- No
