Eaton XVS-440-57MPI-1-10 HMI-PLC Function 5.7-inch Infrared Touch Panel

Eaton XVS-440-57MPI-1-10 HMI-PLC Function 5.7-inch Infrared Touch Panel

Product Overview

Core positioning: HMI-PLC integrated industrial touch panel, belonging to Eaton XVS400 series 5.7-inch product line, supports users to enable PLC functions by themselves, suitable for equipment visualization, operation and control in industrial automation scenarios.

Key identification:

Model: XVS-440-57MPI-1-10

Catalog Number: 139968

Certification standards: UL508, cUL, EN 60950, EN 50178, EN 61131-2, etc

UL File Number: E208621

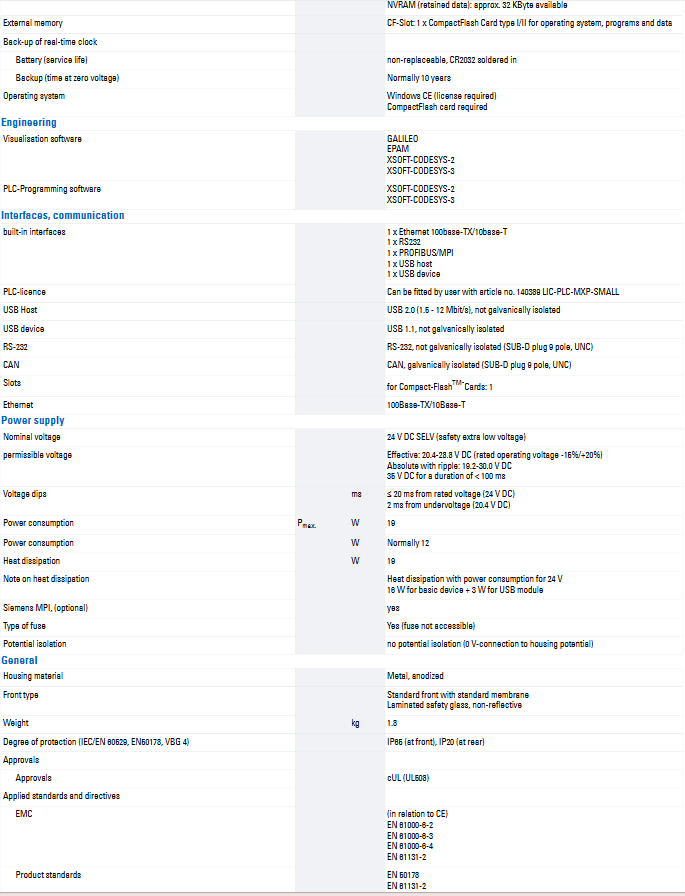

Hardware parameter details

Category specific parameters

Display system screen size: 5.7 inches; Type: CSTN color screen; Resolution: 320 × 240 pixels (QVGA); Visible area: 115 × 86mm

Color count: 256 colors; Contrast ratio: 35:1; Brightness: 150cd/m ²

Backlight: 1 CCFL (software dimmable); Backlight lifespan: 50000 hours

Touch system technology: infrared touch; Logical channel: 47 × 31; Protective glass: Anti reflective laminated safety glass

Internal Memory and Storage: 64MB DRAM (OS/Program/Data), 1.5MB Flash (Data Backup), 32KB NVRAM (Data Retention)

External storage: 1 CompactFlash Card Type I/II slot (required for operating system)

Interface configuration Network interface: 1 × Ethernet (10/100Base TX/10Base-T)

Serial interface: 1 x RS232 (9-pin SUB-D, non isolated), 1 x PROFINET/SPI (optional)

USB interface: 1 x USB 2.0 Host (non isolated), 1 x USB 1.1 Device (non isolated)

Power characteristic rated voltage: 24V DC SELV; Allowable voltage: 20.4-28.8V DC (effective), 19.2-30.0V DC (with ripple)

Voltage drop tolerance: ≤ 20ms at 24V, ≤ 2ms at 20.4V; maximum power consumption: 19W; typical power consumption: 12W

Physical characteristics: Shell material: metal (anodized); Front dimensions: 212 × 156mm; installation depth: 55mm

Weight: 1.8kg; Protection level: IP65 (front), IP20 (back)

Software and functional features

Operating System and License:

Operating System: Windows CE (requires separate purchase of license and CF card)

PLC function: supports user self activation, requires license (model 140389 LIC-PLC-MXP-SMALL)

Interface License: License certificate for expanding onboard interfaces according to requirements

Programming and development tools:

PLC programming software: XSOFT-CODESYS-2, XSOFT-CODESYS-3

Visualization software: GALILEO EPAM

Core functions:

Security protection: 200 level password protection

Multi language support: 100 online languages

Data processing: recipe management, process value input/output, message prompts (including buffer and confirmation functions)

Extended features: Supports print output and can load additional software components

Environmental and Compliance Characteristics

Environmental adaptability:

Working temperature: 0-50 ° C

Storage/transportation temperature: -20-60 ° C

Relative humidity: 10-95% (no condensation)

Mechanical characteristics: comply with IEC 60068-2-27 impact standard and IEC 68-2-6 vibration standard

Compliance requirements:

Pollution level: Level 2

Power supply requirement: It needs to be powered by SELV power supply

Network restriction: Ethernet only allows connections to internal networks

Fire and electrical requirements: dependent on the terminal product casing meeting relevant standards
