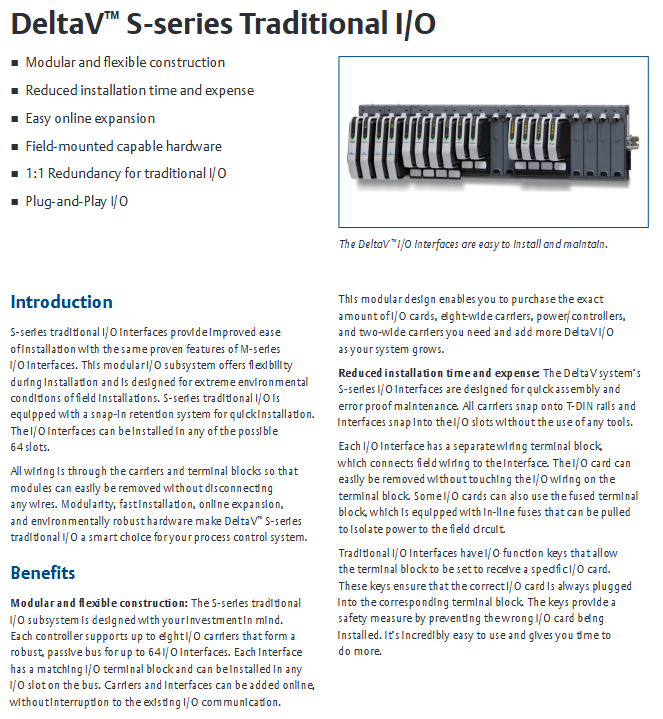

Emerson DeltaV™ S-series Traditional I/O

Emerson DeltaV ™  S-series Traditional I/O

Core advantages

Key Explanation of Advantage Categories

Efficient installation 1. Tool free quick installation: The carrier is fixed to the T-shaped DIN rail in a snap in manner, and the I/O card is snap in installed;

2. Anti misoperation design: The I/O card and terminal block are equipped with function keys to avoid incorrect installation;

3. Staged deployment: Terminal blocks can be pre wired, and I/O cards do not require rewiring for subsequent installation.

Flexible Expansion 1. Online Expansion: Supports adding I/O carriers (up to 8/controller) and interfaces online without interrupting existing communication;

2. Multi slot compatibility: 64 I/O slots, interfaces can be installed freely;

3. Expansion cable: Supports extender cables, and the carrier can be installed across rails.

Environmental adaptation 1. Wide temperature operation: -40~70 ℃, meeting extreme weather and on-site installation requirements;

2. Durable protection: IP20 protection, shock resistance of 10g, vibration resistance of 5-150Hz, in compliance with ISA G3 level anti-corrosion standards;

3. On site installation: Reduce the amount of long-distance cables, eliminate terminal blocks, and lower costs.

High availability 1. 1:1 redundancy: supports AI/AO/DI/DO card redundancy, with backup cards automatically activated;

2. Disturbance free switching: Analog signal switching dual card drive<5ms, digital devices maintain power supply;

3. Fault alarm: Hardware abnormalities are automatically reported, and the safe area supports hot swapping to replace faulty cards.

Product composition and general specifications

（1） Core components

I/O interface carrier: DIN rail installation, supports up to 8 carriers/controllers, forming a passive bus with 64 I/O slots;

Power module: AC to 24V DC bus power supply, integrated main/auxiliary power distribution, independent fuse protection for each slot;

I/O interface: including I/O card and terminal block, I/O card supports hot plugging, terminal block includes standard, fuse, redundant, large quantity and other types;

Auxiliary components: Expansion cable, third-party wiring adaptation module (Phoenix/P+F safety barrier).

（2） General Environmental and Electrical Specifications

Specification category specific parameters

Temperature range: -40~70 ℃ (long-term high temperature will shorten the service life); Storage: -40~85 ℃

Humidity conditions of 5-95%, no condensation

Mechanical performance impact: 10g ± sine wave, continuous for 11ms; vibration: 5-13.2Hz (1mm peak to peak), 13.2-150Hz (0.7g)

Protection level IP20

Certification standards CE (EN 61326-1), FM 3600/3611, CSA C22.2 No.213/1010-1, ATEX, IECEx, Class Certification (IACS E10)

Hazardous Area Adaptation FM Class I Division 2, ATEX II 3G Ex ec IIC T4 Gc

Core I/O card types and key parameters

（1） Analog input (AI) card

Card type, channel number, signal type, core parameter, isolation level

4-20mA HART 8 2/4-wire system 4-20mA HART accuracy 0.1% span, 16 bit resolution, HART scanning 600-800ms/channel, channel and system 1500V DC optical isolation

AI Plus (4-20mA HART) 16 2/4-wire 4-20mA HART accuracy 0.2% span, 16 bit resolution, field circuit power 500mA@24V Channel and system 1000V DC optical isolation

RTD 8 Pt100/Pt200/Ni120/Cu10 has an accuracy of ± 0.2~± 3.5 ℃, an excitation current of 100 μ A, and supports a 2/3/4 wire common mode rejection ratio of 120dB (50/60Hz)

Thermocouple/mV 8 B/E/J/K/N/R/S/T type thermocouple accuracy ± 0.5~± 2.4 ℃, supports cold end compensation (± 1 ℃), channel and system 1500V DC optical isolation

Isolation input card with 4 thermocouples/RTDs/mV/V channels, 3100V DC isolation, accuracy ± 0.003%, full range channel and system 5000V DC optical isolation

（2） Analog output (AO) card

Card type, channel number, signal type, core parameter, isolation level

4-20mA HART 8 4-20mA (full range 1-23mA) accuracy 0.25% (-40~60 ℃)/0.4% (60~70 ℃), 14 bit resolution channel and system 1500V DC optical isolation

AO Plus (4-20mA HART) 16 4-20mA (full range 1-23mA) accuracy 0.25% span, field circuit power 400mA@24V ， HART scan 600-800ms/channel, channel and system 1000V DC optical isolation

（3） Discrete Input (DI) Card

Card type, channel number, signal type, core parameter, isolation level

24V DC dry contact 8 dry contact/NAMUR sensor conduction current>2.2mA, turn off current<1mA, input impedance 5K Ω, channel and system 1500V DC optical isolation

24V DC isolation type 8 24V DC discrete signal conduction voltage>10V, turn off voltage<5V, pulse count<120Hz, 1500V DC optical isolation between channels

24V DC high-density (Plus) 32 dry contact conduction current>2mA, turn off current<0.25mA, supports terminal fault detection channel and system 1500V DC optical isolation

120V AC dry contact 8 120V AC discrete signal conduction current>1.4mA, turn off current<0.56mA, input impedance 60K Ω, channel isolated from system 250V AC optically

SOE (Event Sequence) 16 24V DC dry contact timestamp accuracy ± 0.25ms/card, ± 1ms/controller, scanning rate 0.25ms/16 channel and system 1500V DC optical isolation

Pulse counter 4 24V DC pulse signal frequency 0.1Hz~50kHz, 32-bit counter, minimum pulse width 10 μ S, 1500V DC optical isolation between channels

（4） Discrete Output (DO) Card

Card type, channel number, signal type, core parameter, isolation level

24V DC high side type 8 24~60V DC output current 1.0A/channel, surge 4.0A (<100ms), supports instantaneous/pulse output channel and 1500V DC optical isolation from the system

24V DC isolation type 8 24~60V DC output current 1.0A/channel, turn off leakage current ≤ 1.2mA, 1500V DC optical isolation between channels

DO Plus (24V DC high side type) 32 24V DC ± 10% output current 100mA/channel, total current 3.2A, supports terminal fault detection channel and system 1500V DC optical isolation

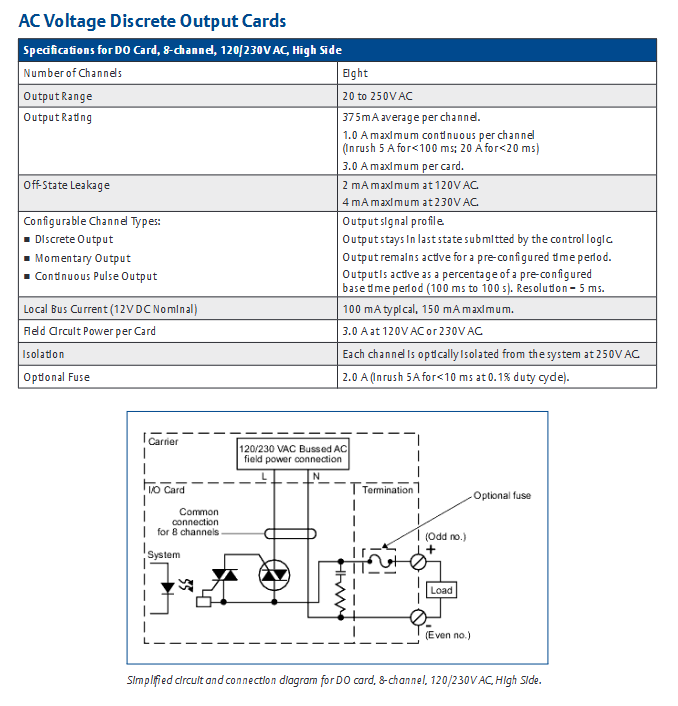

120/230V AC isolation type 8 20~250V AC output current 1.0A/channel, 3.0A/card, surge 20A (<20ms), 250V AC optical isolation between channels

Redundancy design and system compatibility

（1） Redundant design details

Redundancy support: AI/AO/DI/DO cards support 1:1 redundancy, and the redundant terminal blocks are wired the same as the single terminal blocks, without the need for additional wiring;

Switching mechanism: When the main card fails, it automatically switches to the backup card with a switching time of less than 5ms. The analog signal transitions without disturbance, and the digital device continues to be powered on;

Fault handling: Hardware alarms are automatically reported to the system event log, and the faulty card can be replaced in the safe area. The new backup card is automatically debugged and activated.

（2） System compatibility

Controller adaptation: SQ/SX controllers are required, and a single controller can support up to 8 I/O carriers;

Software requirements: The Plus series cards (AI Plus/AO Plus/DI Plus/DO Plus) require DeltaV v13.3 or higher version;

Cross series compatibility: v11.3.1 and above versions support S series and M series controllers sharing the same network, and control modules can be allocated across controllers;

Installation restrictions: The S series only supports horizontal carriers and is not compatible with the M series carriers. It needs to be used in conjunction with the corresponding series controller.

Ordering information and spare parts

（1） Core product models (some key models)

Product Category Description Model Example

AI card 8-channel 4-20mA HART (standard terminal block) SE4003S2B1

AO card 16 channel 4-20mA HART Plus (large number of terminal blocks) SE4005S2B5

DI card 32 channel 24V DC dry contact (large number of terminal blocks) SE4001S2T2B5

DO card 8-channel 24V DC high side type (fused terminal block) SE4002S1T2B2

（2） Key spare parts

250V 2A fuses (20 per box): KJ4010X1-BC1, compatible with fuse type terminal blocks.
