Product Overview

The Honeywell FSL100 series flame detector includes three types: UV, UV/IR, and IR3, with powerful, fast, and reliable flame detection capabilities, suitable for a variety of scenarios. Its design is compact and lightweight, easy to install, and can work in harsh indoor and outdoor environments as well as potentially explosive atmospheres. Through precise sensing and signal analysis technology, it achieves rapid fire detection and effectively reduces false alarms.

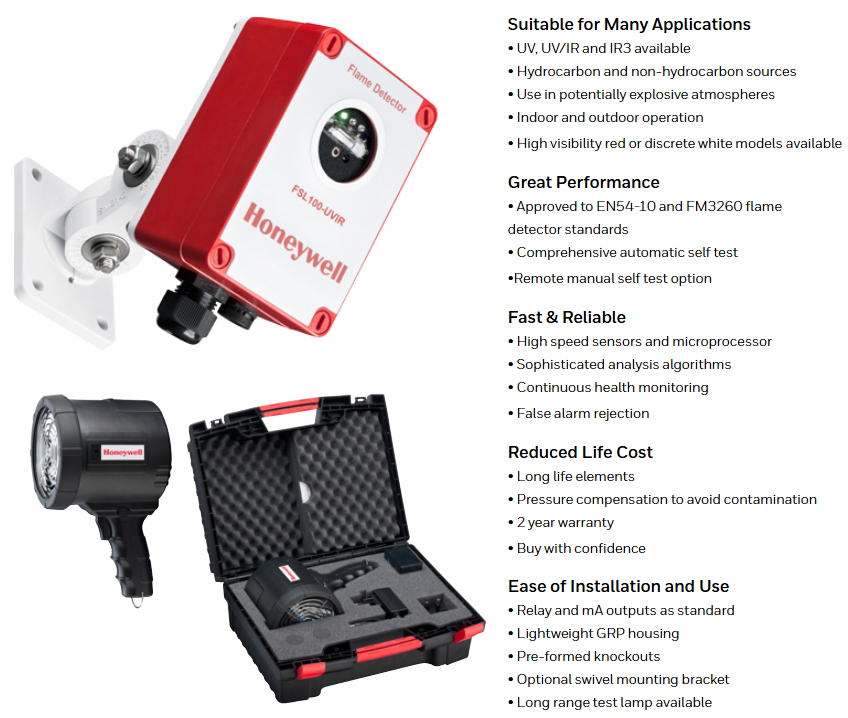

Core advantages

Wide applicability: covering UV, UV/IR, IR3 types, capable of detecting various sources of fire such as hydrocarbons and non hydrocarbons, suitable for potential explosive environments and indoor and outdoor scenes, providing high visibility red or low profile white models.

Excellent performance: Complies with EN54-10 and FM3260 flame detector standards, with comprehensive automatic self checking function and supports remote manual self checking options.

Fast and reliable: Using high-speed sensors and microprocessors, combined with complex analysis algorithms, continuous health monitoring is carried out to effectively suppress false alarms.

Reduce lifecycle costs: The components have a long lifespan, have pressure compensation function to avoid pollution, and provide a 2-year warranty.

Easy to install and use: Comes with standard relays and milliampere output, featuring a lightweight glass fiber reinforced plastic (GRP) housing, pre molded knockout design, optional rotating mounting bracket, and long-distance test light.

Characteristics of each model

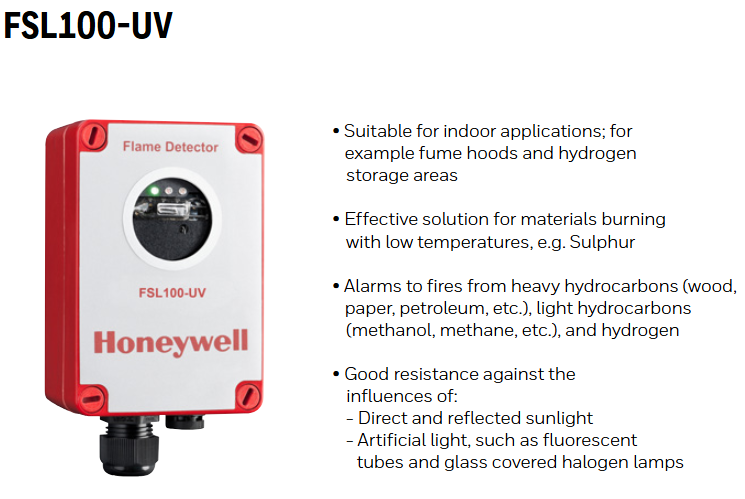

FSL100-UV：

Suitable for indoor scenarios such as fume hoods and hydrogen storage areas.

Good detection effect on low-temperature combustion substances (such as sulfur).

Can detect heavy hydrocarbons (wood, paper, petroleum, etc.), light hydrocarbons (methanol, methane, etc.), and hydrogen fires.

Has good resistance to artificial light sources such as direct/reflected sunlight, fluorescent lamps, and glass covered halogen lamps.

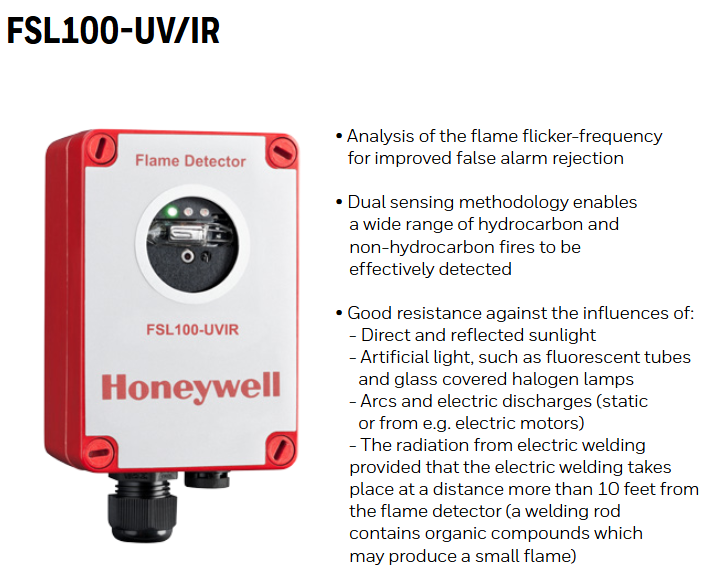

FSL100-UV/IR：

Improve false alarm suppression capability by analyzing flame flicker frequency.

The dual sensing method can effectively detect various hydrocarbon and non hydrocarbon fires.

Has good resistance to sunlight, artificial light sources, electric arcs and discharges (generated by static electricity or motors), and welding radiation at a distance of more than 10 feet.

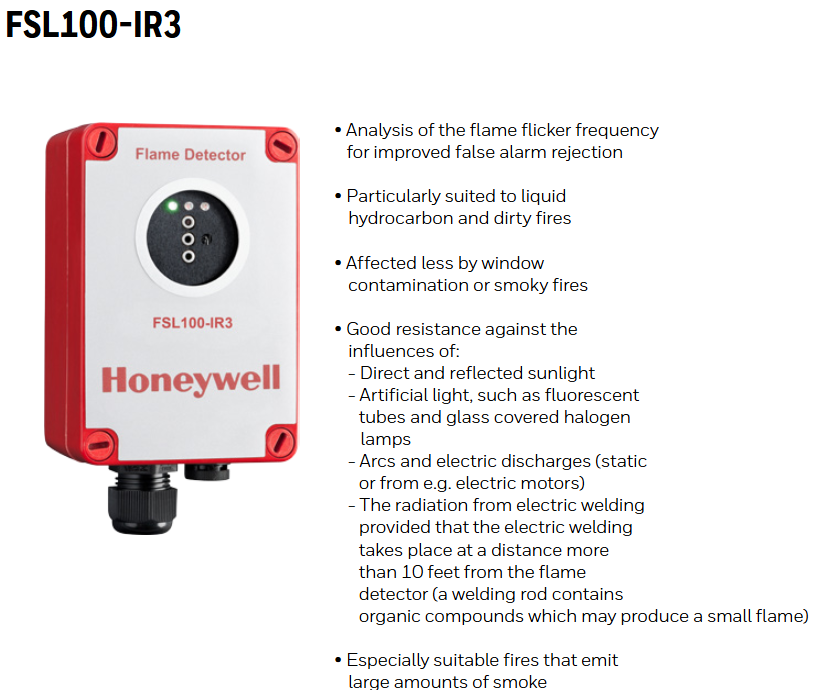

FSL100-IR3：

Analyze flame flicker frequency to reduce false alarms, especially suitable for liquid hydrocarbon fires and smoke fires.

Less affected by window pollution or smoke.

The anti-interference ability is similar to UV/IR, especially suitable for fire scenarios with high smoke levels.

Applicable scenarios

It covers various scenarios such as aircraft hangars, atriums, battery storage rooms, biogas facilities, parking lots, clean rooms, CNG refueling stations, cold storage, engine rooms, laboratories, loading and unloading docks, oil and gas pipeline pump stations, outdoor storage areas, etc. Different models have slightly different applicable scenarios (please refer to the application table in the document for details).

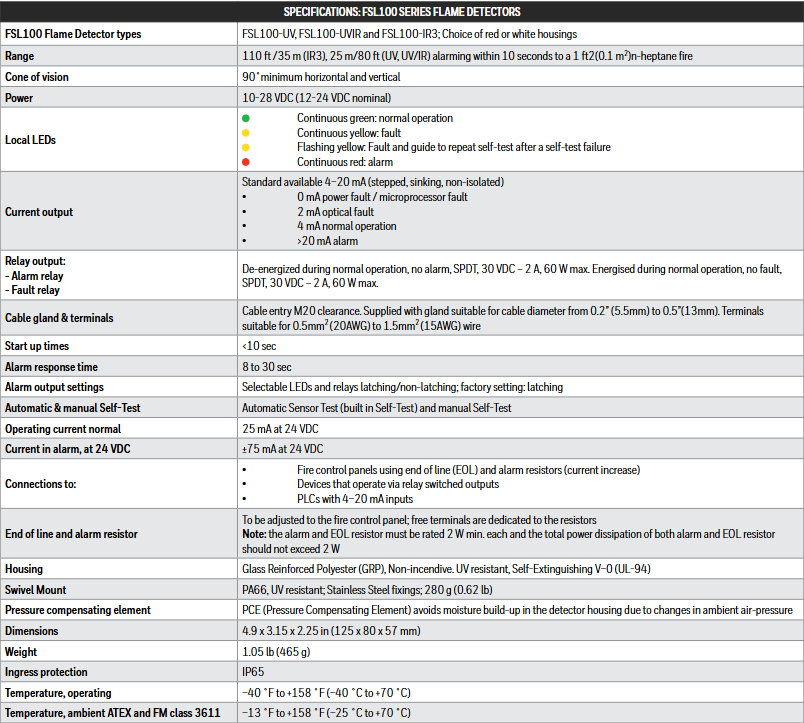

General Technical Specifications

Parameter details

Model types FSL100-UV, FSL100-UVIR, FSL100-IR3, optional red or white casing

The detection range is IR3 at 110 feet/35 meters, UV and UV/IR at 25 meters/80 feet (for 1 square foot n-heptane fire, an alarm will be triggered within 10 seconds)

Field of view with a minimum horizontal and vertical angle of 90 °

Power supply 10-28 VDC (nominal 12-24 VDC)

The local LED indicates green constant light (normal operation), yellow constant light (fault), yellow flashing (repeat self-test after self-test failure), and red constant light (alarm)

Current output standard 4-20 mA (step, sinking, non isolated), 0 mA (power/microprocessor failure), 2 mA (optical failure), 4 mA (normal),>20 mA (alarm)

Relay output alarm relay (normally powered off, SPDT, 30 VDC-2A, maximum 60 W); Fault relay (powered normally, SPDT, parameters the same as alarm relay)

Cable gland and terminal M20 cable entry, compatible with 0.2-0.5 inch (5.5-13mm) cables; Terminal compatible with 0.5mm ² (20AWG) to 1.5mm ² (15AWG) wires

Start time<10 seconds

Alarm response time 8-30 seconds

Self checking function: automatic sensor testing and manual self checking

When the working current is normal, it is 25 mA (24 VDC); ± 75 mA (24 VDC) during alarm

Glass fiber reinforced plastic (GRP) shell, non flammable, UV resistant, UL-94 V-0 self extinguishing

Protection level IP65

Normal operating temperature: -40 ° F to 158 ° F (-40 ° C to 70 ° C); ATEX and FM 3611 levels: -13 ° F to 158 ° F (-25 ° C to 70 ° C)

Size and weight 4.9 x 3.15 x 2.25 inches (125 x 80 x 57 mm), weight 1.05 pounds (465 g)

Other information

Can connect fire control panel, relay switch equipment, PLC with 4-20 mA input, etc.

The terminal resistor needs to be compatible with the fire control panel, with a rated power of at least 2 W for alarm and terminal resistors, and a total power consumption not exceeding 2 W.
