Product Overview

MC024-010 and MC024-012 are PLUS+1 under Sauer Danfoss ™  Part of the series of mobile machinery management products, it belongs to the universal controller. They are suitable for both distributed machine control systems (where each node has intelligence) and can be used as independent controllers, with characteristics such as flexibility, powerful performance, scalability, and economy.

Product Highlights

MC024-010: Equipped with a digital signal processor (DSP), it has extremely fast single cycle processing speed and built-in 128K flash memory.

MC024-012: Includes application key, compatible with the GUIDE machine control solution developed by Sauer Danfoss.

Two controllers can share the same GUIDE HWD file.

Application development

Users can use Microsoft based ®  Windows ®  The PLUS+1 GUIDE development environment is used for application development, which features user-friendly and proven icon based graphical programming tools, application downloaders, and service/diagnostic tools.

Main characteristics

Processor and Storage: 32-bit fixed-point DSP, operating at a frequency of 150 MHz.

Connector: 24 pins, including 2 individually key controlled Deutsch ®  DTM 12 pin connector.

Input:

14 inputs, including 5 universal inputs (can be defined as analog, digital, or frequency inputs), 6 digital inputs, 2 analog inputs (can be used for temperature or rheostat), and 1 fixed range analog input (can be configured as a CAN shield pin).

The analog input range can be configured, the digital input can be configured as pull-up, pull-down, or center pull, and the frequency input range is 1 Hz to 10 kHz.

Output:

Four universal outputs can be defined as digital output (3 A, configurable as source or drain), PWM output (30 to 4000 Hz, configurable as open-loop or closed-loop with current control), or analog voltage output (4000 Hz open-loop PWM).

Any PWM output/digital output/PVGOUT can provide reference power for a PVG valve.

Power and Communication:

9 to 36 Vdc power supply, internal monitoring.

1 CAN 2.0 B port, fixed range analog input can be configured as a shielded pin.

Provide internal regulated power supply of 5 Vdc, 300 mA for external sensors.

Other: 2 user controllable LEDs; 3 installation methods (stacked, end mounted, side mounted); Compliant with CE standards.

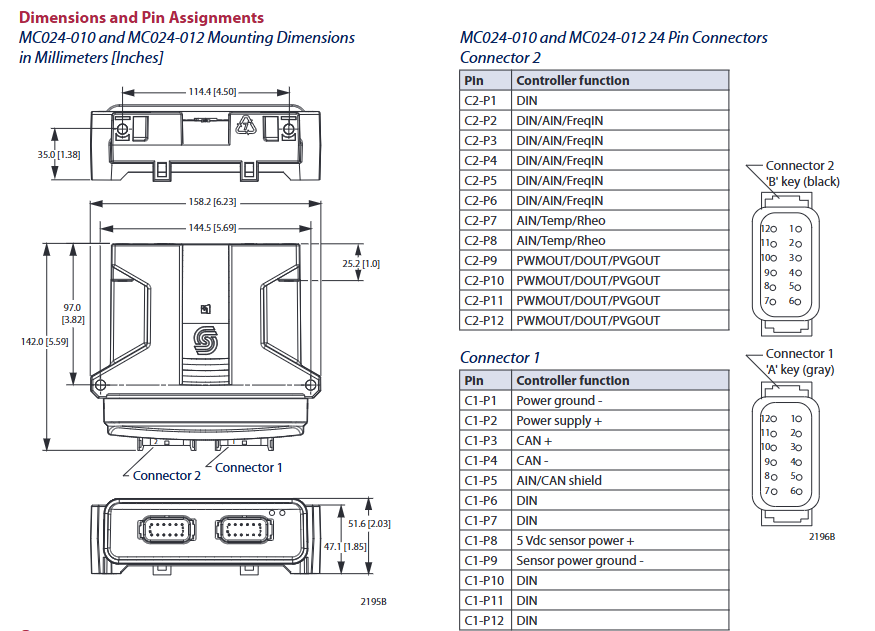

Size and Pin Allocation

Dimensions (millimeters/inches): Some key dimensions include 114.4 [4.50], 35.0 [1.38], 158.2 [6.23], etc. (please refer to the dimension diagram for details).

Pin allocation:

Connector 2 (24 pins): Includes multiple functional pins such as DIN, DIN/AIN/FreqIN, AIN/Temp/Reo, PWMOUT/DOUT/PVGOUT, etc.

Connector 1: Includes power ground, power positive, CAN positive and negative, AIN/CAN shielding DIN、 Sensor power supply and other functional pins.

Attention: This device cannot be repaired on site, opening the casing will void the warranty.

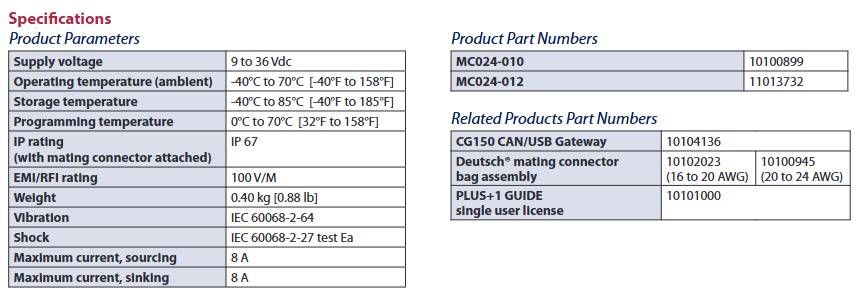

Specification parameters

Supply voltage: 9 to 36 Vdc

Working temperature (environment): -40 ° C to 70 ° C (-40 ° F to 158 ° F)

Storage temperature: -40 ° C to 85 ° C (-40 ° F to 185 ° F)

Programming temperature: 0 ° C to 70 ° C (32 ° F to 158 ° F)

IP rating (with matching connector): IP 67

EMI/RFI level: 100 V/M

Weight: 0.40 kg (0.88 lb)

Vibration: Complies with IEC 60068-2-64

Impact: Complies with IEC 60068-2-27 test Ea

Maximum source current: 8 A

Maximum current: 8 A

Product model and related products

Product model: MC024-010 corresponds to model 10100899; MC024-012 corresponds to model 11013732.

Related products: CG150 CAN/USB gateway Deutsch ®  Match connector component (10100945, suitable for 20 to 24 AWG), PLUS+1 GUIDE single user license.
