YASKAWA GA500 series AC micro driver

YASKAWA GA500 series AC micro driver

Core positioning and advantages of the product

Applicable scenarios: General in the industrial field, capable of precise control of induction motors, permanent magnet motors, and synchronous reluctance motors, supporting multiple application scenarios without the need for complex debugging.

Core advantage: Equipped with EZ Vector mode, it can adapt to all supported motor types without the need for comprehensive tuning; Easy installation, simple maintenance, strong system integration, more reliable machine design, can save time and costs.

Protection level: The standard model has an IP20 protection level (protective casing), suitable for clean environments.

Product model and specification system

1. Model coding rules

Taking "GA50U4004ABA" as an example, the meanings of each paragraph are as follows:

Product series: GA500; Region codes: U (Americas), M (Moisture resistant), S (Vibration resistant);

Voltage level: B (240V single-phase), 2 (240V three-phase), 4 (480V three-phase);

Type of chassis: B (IP20/protective type), J (no heat sink type); EMC filters: A (no built-in), E (built-in).

2. Classification of core specifications

Voltage type, power range, output current (regular/heavy load)

240V single-phase input 1/6~5HP (0.1~3.7kW) conventional: 1.2~12.2A; heavy load: 0.8~17.5A

240V three-phase input 1/6~30HP (0.1~22kW) conventional: 1.2~82A; heavy load: 0.8~75A

480V three-phase input 1/2~40HP (0.2~30kW) conventional: 1.2~60A; heavy load: 1.2~45A

3. Special model variants

Covering variants such as high-frequency output (2000Hz), anti vibration type, moisture resistant type, and no heat sink type, some variants (except for high-frequency output) have a delivery cycle of 16 weeks when there is no forecast order.

Core selection plan

1. Explanation of single-phase input derating

When a three-phase driver is used in a single-phase input scenario, it needs to be reduced in capacity. For example, the 240V three-phase 2001 model driver reduces the conventional power from 1/6HP to 1/8HP during single-phase input, which can be avoided by a single-phase converter. The power factor is close to 1, and the total harmonic distortion rate is less than 10%.

2. Installation method selection

The IP20 standard model supports three installation methods:

Installation inside an independent cabinet (with built-in heat sinks, no additional brackets required);

Installation inside an independent cabinet (with external heat sinks, requiring an external heat sink adapter);

Direct installation of inorganic cabinet (requires UL Type 1 adapter).

3、 Core selection plan (including capacity reduction and installation)

1. Single phase input derating rules

When a three-phase driver is used for single-phase input scenarios, it needs to be reduced in capacity. Taking the 240V three-phase model as an example, the core reduction data is as follows (partial excerpt):

Driver model (GA50U) without reactor (Open) without reactor (UL Type 1 closed) with reactor (AC input type)

Motor Power (HP) Current (A) Motor Power (HP) Current (A) Reactor Model Corresponding Power (HP)

2001 - - 1/8 0.61 URX000283 1/8

2002 1/8 0.61 1/4 1.16 URX000291 1/4

2004 1/4 1.16 1/3 1.52 URX000295 1/3

2006 1/3 1.52 1/2 2.20 URX000299 1/2

Solution: Capacity reduction can be avoided through a "single-phase converter (SPC)", such as the 240V 20HP single-phase converter (SPBC-240-20HP), which supports a maximum motor load of 20HP and an input current of 79A. It needs to be paired with a DC link reactor (URX000530).

2. Installation method and adaptation requirements

The IP20 standard model supports three installation methods, which need to be selected according to the environment:

(1) Classification of installation methods

Installation method, applicable scenarios, key requirements, and compatible accessories

Method 1: Inside an independent cabinet (with built-in heat sinks) in a clean room with sufficient space and no need for additional brackets. The cabinet should be well ventilated-

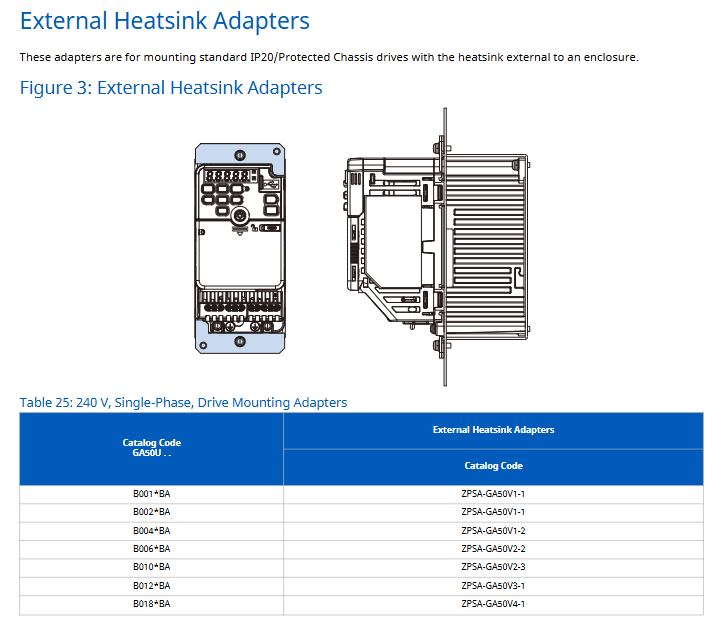

Method 2: Inside an independent cabinet (with external heat sinks) in a clean room, if the cabinet space is limited, an external heat sink adapter should be selected according to the drive model. For example, the 240V single-phase B001 model is compatible with the ZPSA-GA50V1-1 external heat sink adapter (ZPSA series)

Method 3: Install the inorganic cabinet directly in the clean room, and all models without dedicated cabinets need to be equipped with UL Type 1 adapters. For example, the 240V single-phase B001 model is compatible with the ZBAA-GA50V1-1 UL Type 1 adapter (ZBAA series)

🔶 4-42 🔶 4-43 🔶 4-44

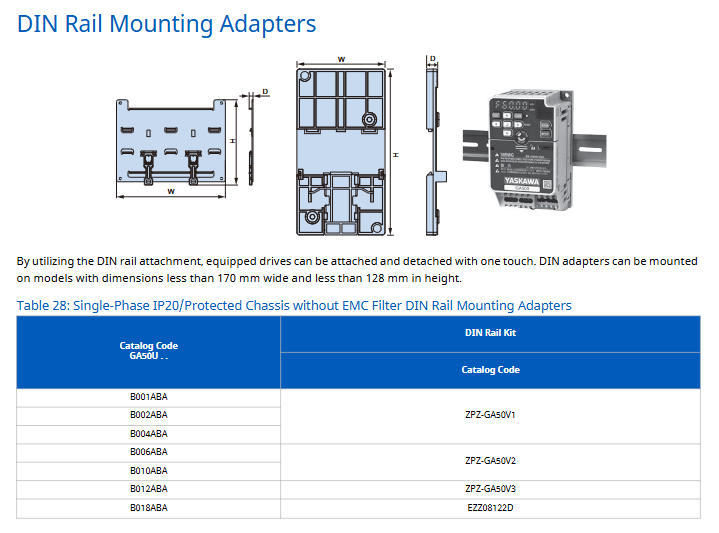

(2) DIN rail installation adaptation

Only models with a width<170mm and a height<128mm are supported, such as 240V single-phase B002ABA compatible with ZPZ-GA50V1, B010ABA compatible with ZPZ-GA50V2, and high-power models (such as B018ABA) that require a dedicated kit (EZZ08122D) 🔶 4-237.

Key components and power optimization options

1. Installation and operation of accessories

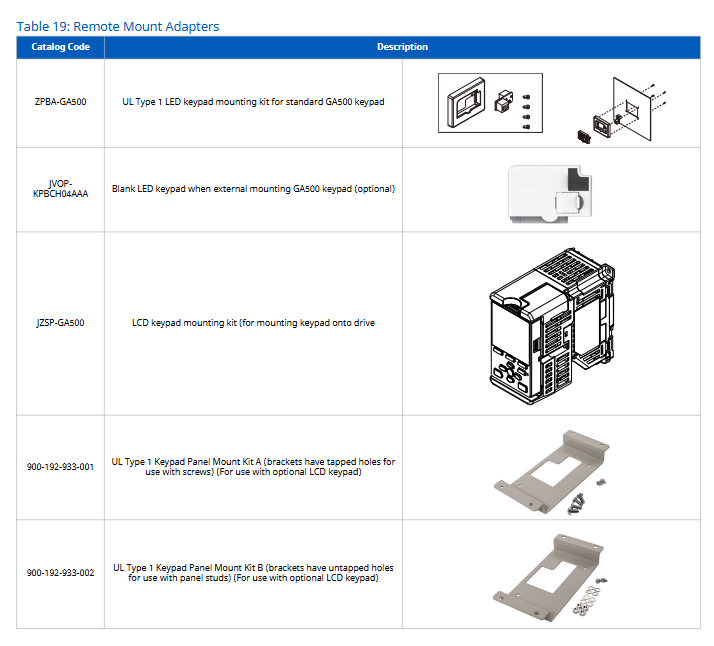

(1) Operation panel and cables

Type, Model, and Function Description of Accessories

Standard LCD panel JVOP-KPPLCA04MEB without Bluetooth, supports parameter setting, operation monitoring, and fault reset

JVOP-KPLCC04MBB with Bluetooth LCD panel supports mobile APP control and requires remote cable

Remote installation of cables UWR0051 (1 meter) and UWR0052 (3 meters) for panel remote installation, extending the control distance

PC communication cable UWR01258 (3 meters) for USB communication between PC and driver, used for parameter upload/download

Android device cables UWR01516-B (Micro-B), UWR01516-C (Type-C) Android device connection driver USB port, supports debugging

🔶 4-170 🔶 4-186

(2) Install adapters and shielding accessories

Example of accessory type and model for adaptation scenarios

Installation of UL Type 1 adapter ZBAA-GA50V1-1 (240V single-phase B001/B002) inorganic cabinet, converting IP20 to UL Type 1 protection

External heat sink adapter ZPSA-GA50V1-1 (240V single-phase B001/B002) for external installation of heat sinks, saving cabinet space

DIN rail adapter ZPZ-GA50V1 (240V single-phase B002) DIN rail quick installation, supports one click loading and unloading

Shielding clip kit ZHZ-GA50V1 (240V single-phase B002) for grounding and fixing the shielding layer of the shielded motor cable to reduce interference

🔶 4-204 🔶 4-222 🔶 4-239

2. Power optimization options (reactors, filters, braking components)

(1) EMC filter

Used to suppress electrical noise on the input side, in compliance with EN 61800-3 C2 level requirements, classified by voltage:

Voltage type driver model example EMC filter model

240V single-phase B001A * * FS23638-10-07

240V three-phase 2001A * * FS23637-8-07

480V three-phase 4001A * * FS23639-5-07

🔶 4-281 🔶 4-283

Size example: FS23638-10-07 (240V single-phase) measures 169 × 71 × 45mm and weighs 0.97lbs.

(2) AC reactor (input/output)

3%/5% impedance, improve power factor, reduce harmonics, separate amplifier and UL Type 1 enclosed type according to installation form, such as 240V three-phase 2001 model:

3% input reactor (open type): URX000283;

3% input reactor (enclosed type): URX000652;

5% input reactor (open type): URX000284;

5% input reactor (enclosed type): URX000585;

Power loss: URX000283 (240V three-phase) has a power loss of 4.8W, dimensions of 114.3 × 94 × 38.1mm, and a weight of 0.9lbs.

(3) Braking resistor and regeneration unit

Example of brake type duty cycle adaptation scenario model

Dynamic braking resistor 3% low-frequency braking, compatible with R7508 for ordinary conveyor belt 240V single-phase B001 model

Dynamic braking resistor with 10% medium frequency braking, suitable for small elevators with 240V single-phase B001 model and USR000032

R1000 regeneration unit 25% high-frequency braking, such as elevator, centrifuge 240V 5HP compatible R1000-240-5HP kit (including R1000 module 2A03P5FAA)

🔶 4-416 🔶 4-442

The R1000 kit includes: R1000 module, current suppression reactor, power coordination reactor, fuse and bracket, which can feed back regenerative energy to the grid and replace traditional braking resistors.

(4) DC bus reactor

Reduce transient and input current THD on the DC side, such as the 240V three-phase 2001 model:

3% impedance (open type): URX000042;

3% impedance (closed type): URX000216;

5% impedance (open): URX000039;

5% impedance (closed type): URX000215;

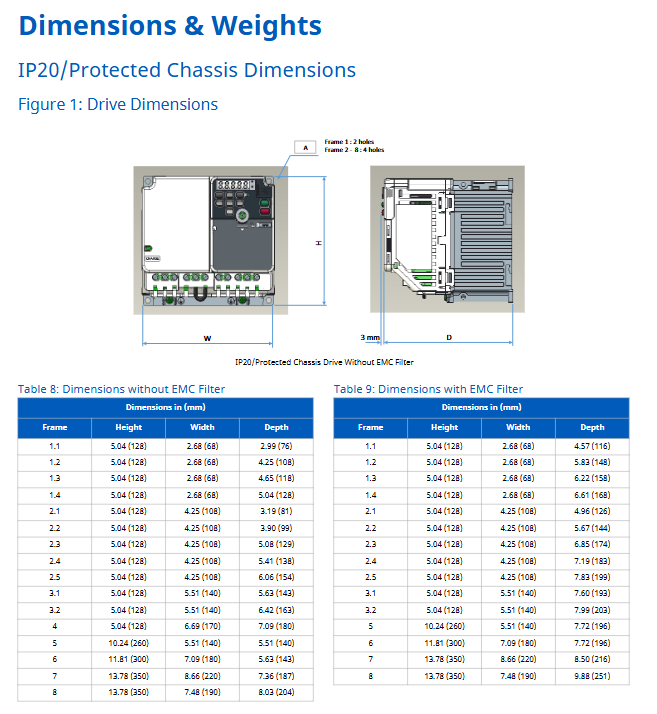

Size and weight (IP20/models without heat sinks)

1. IP20 protective casing (without EMC filter)

Chassis frame height (mm) width (mm) depth (mm) weight (kg) example of compatible models

1.1 128 68 76 0.5 2001ABA、B001ABA

1.2 128 68 108 0.5 2002ABA、B002ABA

1.3 128 68 118 0.8 2004ABA、B004ABA

1.4 128 68 128 0.9 2006ABA、B006ABA

2.1 128 108 81 0.9 4001ABA

2.2 128 108 99 0.9 4002ABA

2.3 128 108 129 1.5 2010ABA、B010ABA

3.1 128 140 143 2.2 2021ABA

4 128 170 180 2.9 B018ABA

5 260 140 140 3.4 2030ABA、2042ABA

6 300 180 143 5.5 2056ABA

7 350 220 187 7.5 2070ABA、2082ABA

8 350 190 204 8.0 4044ABA、4060ABA

2. No heat sink type chassis (240V single-phase)

Model Width (mm) Height (mm) Depth (mm) Weight (kg)

B001 68 128 71 0.6

B002 68 128 71 0.6

B004 68 128 81 0.6

B006 108 128 81 0.9

B010 108 128 92.5 1.0

B012 140 128 98 1.2

Environmental and safety regulations

1. Environmental requirements

Temperature: IP20/protective casing -10~+50 ℃, IP20/UL Type 1 model -10~+40 ℃, over+50 ℃ requires capacity reduction (2% reduction for every 1 ℃ increase);

Humidity: ≤ 95% RH (no condensation);

Altitude: ≤ 1000 meters without capacity reduction, with a capacity reduction of 8% for every 1000 meters increase between 1000-4000 meters;

Vibration: 10-20Hz (9.8m/s ²), 20-55Hz (5.9m/s ²);

2. Safety certification and standards

Certification: CE, UL, cUL, KC, RCM, EAC, RoHS;

Functional safety: IEC/EN61508 SIL3 (STO), PLe (ISO 13849-1);

PCB coating: compliant with IEC 60721-3-3 Class 3C2 (chemical gases), 3S2 (solid particles);
