HIMA HICore 1 Assessment Kit

HIMA HICore 1 Assessment Kit

Product basic information

Core positioning: Designed specifically to evaluate the usability and flexibility of the HICore 1 security SoC (HTPC1301 A0), while serving as an application software development platform during the target hardware design phase, in line with the HIMA "intelligent security" concept, pre installed with reference applications, ready to use out of the box.

Core hardware parameters:

Processor: DP80390 8-bit processor, high energy efficiency, maximum clock frequency of 100MHz

Power consumption mode: Supports APL power levels A (540mW) and C (1100mW)

Security features: Integrated watchdog, secure operating system, communication module, with on-chip redundancy

Working temperature: -40 ° C to+85 ° C

Safety certification: certified by IEC 61508 SIL 3, ISO 13849-1 PLe/Cat. 4, EN 62061

Kit model and core differences

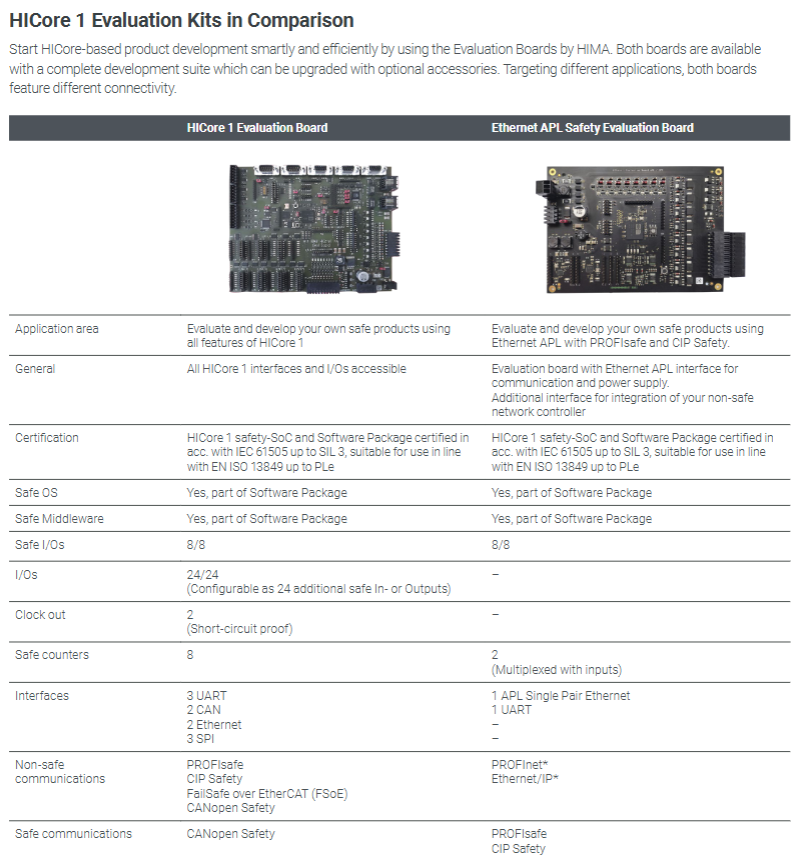

Features HICore 1 Evaluation Board Ethernet APL Security Evaluation Board

Evaluate the full features of HICore 1 in application scenarios, develop universal safety products, evaluate Ethernet APL/SPE safety communication, and develop products that are compatible with PROFIsafe/CIP Safety

Consistent safety certification (SIL 3, PLe/Cat. 4) Consistent (SIL 3, PLe/Cat. 4)

Safe I/O 8 inputs/8 outputs 8 inputs/8 outputs

Extra I/O 24/24 (configurable as extra safety I/O)-

8 safety counters and 2 (multiplexed with input)

Clock output 2 (short circuit protection)-

Main interfaces: 3 x UART, 2 x CAN, 2 x Ethernet, 3 x SPI, 1 x APL single pair Ethernet, 1 x UART

Safety communication protocols PROFIsafe, CIP Safety, FSoE, CANopen Safety PROFIsafe, CIP Safety

Non secure communication - PROFInet *, Ethernet/IP * (requires external network controller)

Delivery Content and Development Environment

Standard Delivery Checklist:

Hardware: Corresponding model evaluation board, 24V switch power supply, anti-static pad

Software: Software packages that comply with security standards (secure operating systems, secure middleware), security manuals, hardware design guidelines

Development tool: DCD HAD2 JTAG debugger

Development environment support:

Compatible software: IAR Embedded Workbench for 8051 (requires authorization)

Digital resources: complete digital documents, security manuals, hardware design guidelines

Optional accessories:

IAR Embedded Workbench authorization, DCD HAD2 kit, RS232/422/485 USB adapter

Core advantages

One stop development: including hardware, software, and tools, no need for additional configuration, quick start of development;

Safety compliance: Both software and hardware have passed the highest SIL 3 safety certification, reducing product certification risks;

Scenario adaptation: Two models respectively cover the development requirements of general security products and Ethernet APL security communication products;

Flexible Expansion: Supports additional I/O configurations and optional accessories to adapt to different development scenarios.
