HONEYWELL Expert PKS C300 Controller

From: | Author:Wang | Time :2026-03-23 | 296 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

HONEYWELL Expert PKS C300 Controller

The Honeywell ExperionPKS C300 controller is an industrial process controller based on the Control Execution Environment (CEE), with two core configurations: 50ms CEE (general scenario) and 20ms CEE (turbo control only). It supports redundant deployment, adapts to FTE control networks (100Mbit/sec transmission rate), supports up to 96 nodes (with expanders), has 14852 MU user memory, up to 4095 tag blocks, communication performance supports up to 2500 PPS parameter access rate, I/O adaptation Series C/PM IO modules, engineering tools support 12 concurrent clients, and is widely used in process control and equipment monitoring in the process industry. The core meets the requirements of high reliability and flexible scalability.

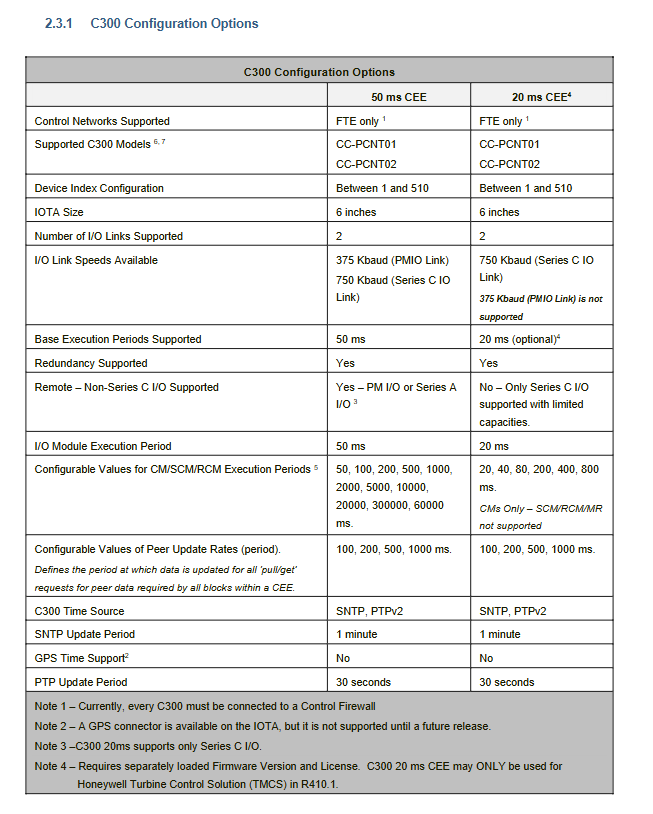

Core configuration and positioning of the product

The core configuration classification of this controller is based on the unified CEE software architecture and is divided into two core configurations according to the execution cycle, with significant differences in functionality and applicable scenarios:

|Configuration Type | 50ms CEE | 20ms CEE|

|Applicable scenarios | General process control (chemical, energy, etc.) | Honeywell Turbomachinery Control (TMCS) only|

|Support I/O | Series C IO, PM IO, Series A IO | Only Series C IO (up to 12 IOMs, single link ≤ 8)|

|Core Function | Supports all modules such as SCM/RCM/PCDI | Disable SCM/RCM/Exchange modules, only supports basic control|

|Redundancy Support | Yes, Switching Interrupt ≤ 500ms (≤ 2.5s under EIM configuration) | Yes, Switching Interrupt ≤ 200ms|

|Firmware requirements | Standard firmware | Need to load dedicated firmware separately+authorization|

deployment mode

Non redundant: One C300 is connected to the CF9 firewall through FTE and connected to the L1 FTE network;

Redundancy: Two C300 are configured as redundant pairs, with device indices of consecutive odd and even numbers (such as n and n+1), connected via Ethernet STP cables, and synchronized for ≤ 240 seconds.


Key Performance Specifications

1. Communication performance (core digital)

Performance index 50ms CEE 20ms CEE

Maximum parameter access rate (PPS) 2500 700

Total subscription parameters 4000 4000

Read/write speed (PPM) read 3000/write 1500 read 750/write 375

Peer to Peer Pull Rate (PPS) 1000 250

Peer Connection Units (PCUs) 303 53

Maximum number of Modbus TCP devices 8 3

2. Processing and memory capacity

Processing ability:

50ms CEE: 5500 XUs (user controlled I/O、 Communication sharing);

20ms CEE: 5000 XUs (additional load weight at high execution rate);

Processing Unit (PU): Platform independent indicators, typical simulation acquisition module 4.4 PU/module, adjustment control module 3.1 PU/module.

Memory capacity:

Total user memory: 14852 MU (1 MU=1KB);

Maximum number of marker blocks: 4095 (including CM/SCM/RCM/DOM);

Maximum component blocks for a single CM: 100, maximum component blocks for a single SCM/RCM: 400.

3. Typical module resource consumption

Module Type Processing Resources (PU/Module) Memory Consumption (MU/Module)

Small simulation acquisition module (1 AI+1 DataAcq) 0.5 1.0

Adjustment control module (1 PID+AI/AO+6 logic block) 3.1 3.8

Digital acquisition module (10 DI+10 Flag) 1.2 1.5

Sequence control module A (10 steps+10 transitions) 6.0 21.0

Formula control module B (10 stages+parameters) 2.8 19.3

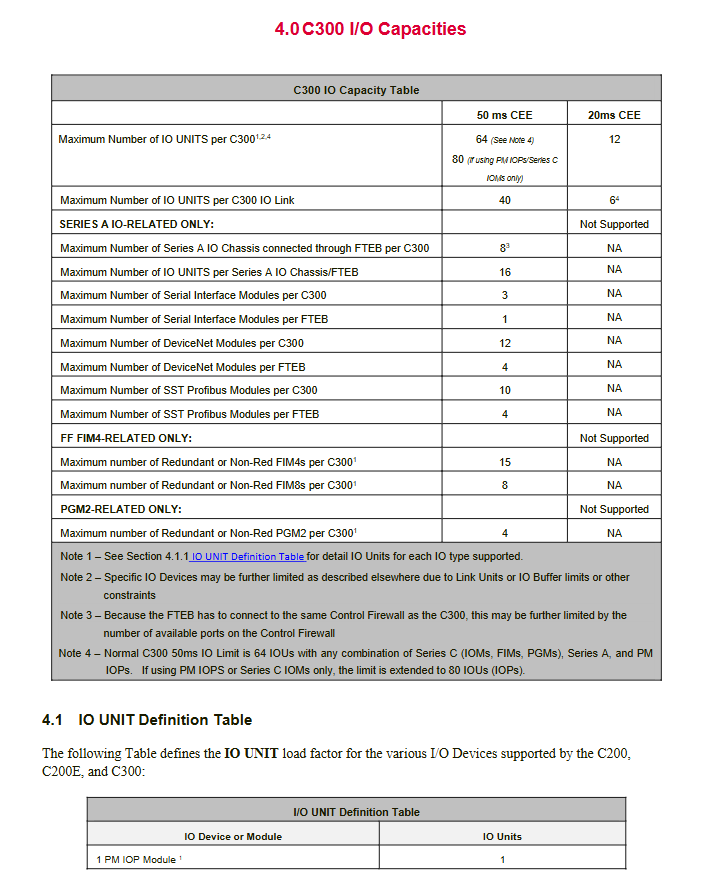

I/O Capacity and Adaptation

I/O link and module support

Number of links: up to 2 I/O links, supporting 375/750 Kbaud rates;

Adaptation modules: Series C IO (AI/AO/DI/DO/FIM4/FIM8), PM IO (50ms only), Serial Interface Module (SIM);

Disabled module: The 20ms model does not support PM IO, FIM4/FIM8, Series A IO.

I/O Unit (IOU) Limitations | I/O Module Types | IOU Count (applicable to C300)|

|Series C IO Module (Single/Redundant) | 1 IOU/Module (Redundancy Count 1)|

|FIM4 (Fieldbus Interface) | 4 IOUs|

|FIM8 (Fieldbus Interface) | 8 IOUs|

|Non redundant FIM2 | 2 IOUs (64 unit limit)/3 IOUs (24 unit limit)|

|Redundant FIM2 pair | 2 IOUs (64 unit limit)/4 IOUs (24 unit limit)|

|Maximum total IOU count for a single C300 | 64|


Performance of engineering tools

Client and operation restrictions

Maximum concurrent client count: 12 per cluster;

Simultaneously executing major database operations (SDO) clients: up to 6 (timeout linearly increasing);

Maximum operation objects for a single client: 1000 typical CMs and 100 typical SCM/RCMs.

Key operation time | Operation content | Maximum time consumption|

|100 typical CM SDO operations | 20 minutes|

|SDO operation of 100 mixed typical objects | 110 minutes|

|SDO operations for 100 automated SCM | 240 minutes|

|700 mixed object imports (single client) | 180 minutes|

|100 object templates propagation | 60 minutes|

Other restrictions

Single operation import/export mixed objects: up to 25000;

Maximum length of tagged object name: 40 characters;

Maximum character count for expression block: 1024 characters;

Template inheritance hierarchy: up to 3 levels (outside the system template).


Differences in Core Functions between 50ms and 20ms CEE

Function item 50ms CEE (universal) 20ms CEE (turbine specific)

Supports I/O types Series C/PM/Series A, only Series C (non Mark II)

The module supports SCM/RCM/PCDI/Exchange and other full support. Only basic control blocks are supported, and SCM/RCM/Exchange is disabled

Simulation function supports Profit Controller, EIM does not support

Simulation mode supports SIM-C300 disabling simulation

Special modules do not support servo valve positioners/speed protection modules support turbine control dedicated modules
