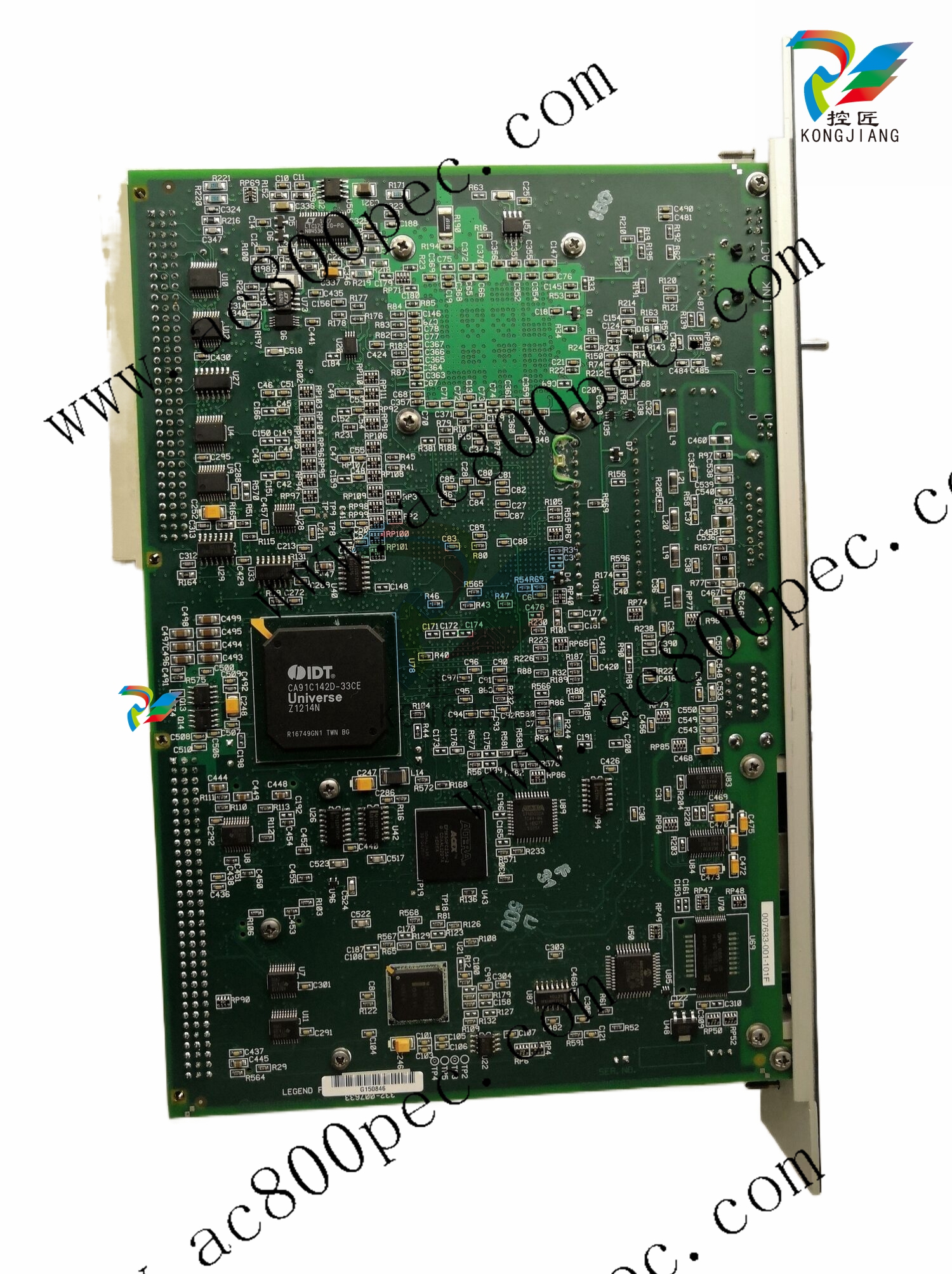

GE IC698CPE020 RX7i VME 700Mhz CPU with Embedded 10/100 Ethernet

From: | Author:Wang | Time :2024-12-27 | 217 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

GE IC698CPE020 RX7i VME 700Mhz CPU with Embedded 10/100 Ethernet

configured for a production period of 0, indicating the
exchange is to be produced every output scan. These “as
fast as possible” exchanges are not produced more often
than 2msec. RX7i CPUs support enhanced EGD
freshness, providing better EGD timeliness than Series
90-70 CPU products.
During EGD configuration, RX7i Ethernet interfaces are
identified by their Rack/Slot location.
User Web Pages (Web Server)
The CPU Ethernet Interface provides basic remote control
system monitoring from a web browser and allows a
combined total of up to 16 web server and FTP
connections. The CPU Ethernet interface contains a basic
set of predefined PLC web pages that display Reference
Table data, PLC Fault Table contents, and IO Fault Table
contents.
Firmware Upgrades
The CPU and its Ethernet interface receive their firmware
upgrades through a CPU serial port (COM 1 or COM 2).
Since you are connecting directly to the CPU, there is no
need to specify the Rack/Slot location. During the firmware
upgrade the CPU and Ethernet modules are presented as
a single entity. WinLoader seamlessly upgrades first the
CPU firmware and then the Ethernet firmware without user
intervention.


Battery Memory retention 5 years at 20°C (68°F)
40 days nominal without applied power.
Program storage Up to 10 Mbytes of battery-backed RAM
10 Mbytes of non-volatile flash user memory
Current required from 5V bus CPE010: 3.2 Amps nominal
CPE020: 4.5 Amps nominal
Operating Temperature CPE010: 0 to 50°C (32°F to 122°F)
0 to 60°C (32°F to 140°F) with fan tray
CPE020: 0 to 60°C (32°F to 140°F) with fan tray, required
Floating point Yes
Boolean execution speed, typical
CPE010
CPE020
0.33ms per 1000 Boolean contacts/coils
0.14ms per 1000 Boolean contacts/coils
Time of Day Clock accuracy Maximum of 9 seconds per day
Elapsed Time Clock (internal timing) accuracy 0.01% maximum
Embedded communications RS-232, RS-485, Ethernet interface
Ethernet Ports Embedded auto-sensing 10/100 Mbps half/full duplex Ethernet
interface
Serial protocols supported Modbus RTU Slave, SNP, Serial I/O
VME Compatibility System designed to support the VME64 standard ANSI/VITA 1
Program blocks Up to 512 program blocks. Maximum size for a block is 128KB.
Memory %I and %Q: 32Kbits for discrete
%AI and %AQ: configurable up to 32Kwords
%W: configurable up the maximum available user RAM
Symbolic: configurable up to 10Mbytes
* For environmental specifications and compliance to standards (for example, FCC or European Union Directives), refer to
Appendix A of the PACSystems RX7i Installation Manual, GFK-2223.
Ordering Information
Description Catalog Number
RX7i VME 300Mhz CPU IC698CPE010
RX7i VME 700Mhz CPU IC698CPE020
Lithium Battery pack IC698ACC701
Rack Fan Assembly, 120VAC
Rack Fan Assembly, 240VAC
Rack Fan Assembly, 24VDC
IC697ACC721
IC697ACC724
IC697ACC744
RX7i PLC Power Supply, 85 to 264 VAC at 47 to 63 Hz Input, 100 watt output IC698PSA100
RX7i PLC Power Supply, 85 to 264 VAC at 47 to 63 Hz Input, 350 watt output IC698PSA350
[Optional] RS-232 cable; also Station Manager cable for Ethernet interface IC200CBL001
