SEW MOVIDRIVE ® MDX60B/61B frequency converter

SEW MOVIDRIVE ®  MDX60B/61B frequency converter

MOVIDRIVE ®  The MDX60B/61B frequency converter is a high-performance variable frequency drive device launched by SEW-EURODRIVE. It supports 380~500V (3-phase) and 200~230V (3-phase) power inputs, with a power coverage of 0.55kW~132kW. It offers 7 specifications from 0 to 6 and is suitable for three-phase asynchronous motors and permanent magnet synchronous motors. The equipment has multiple operating modes such as VFC, CFC, SERVO, etc., and supports DBG60B operation panel MOVITOOLS ®  Software or external terminal debugging, expandable encoder cards, communication modules and other options to meet speed/torque/position control requirements, certified by CE, UL, C-Tick, etc., widely used in industrial machinery, lifting equipment and other scenarios, with complete safety protection and fault diagnosis functions.

Product Overview

Core positioning: A high-precision variable frequency drive equipment designed specifically for medium to high power industrial motors, supporting multi-mode control and flexible expansion, suitable for industrial scenarios with strict requirements for speed, torque, and position

Compliance standards: Complies with low voltage standards (73/23/EEC), EMC standards (89/336/EEC), certified by CE, UL, C-Tick, CSA, and meets standards such as EN 61800-3 and EN 55011

Core advantages: wide specification coverage, rich control modes, strong scalability, complete security protection, global service support

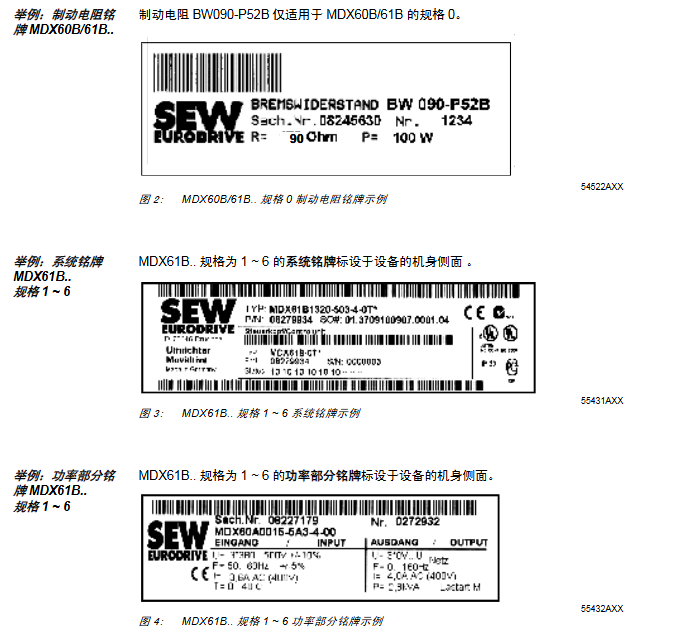

Equipment specifications and basic parameters

Specification adaptation, power range, rated output current (example), size range (width x height x depth), weight range

0 380~500V (3-phase) 0.55kW~1.5kW 2.0A~4.0A 45 × 317 × 260mm 2.0kg~2.8kg

380~500V/200~230V (3-phase) 1.5kW~4.0kW 4.0A~9.5A 105 × 314 × 234mm 3.5kg~6.6kg

2S/2 380~500V/200~230V (3-phase) 5.5kW~11kW 12.5A~24A 105 × 335 × 294mm 6.6kg~14.3kg

3 380~500V/200~230V (3-phase) 15kW~30kW 32A~60A 200 × 465 × 308mm 15.0kg

4 380~500V/200~230V (3-phase) 37kW~45kW 73A~89A 280 × 522 × 307mm 27kg

5 380~500V (3-phase) 55kW~75kW 105A~130A 280 × 610 × 330mm 35kg

6 380~500V (3-phase) 90kW~132kW 170A~250A 280 × 1000 × 382mm 60kg

Core functions and operation mode

(1) Classification of operating modes

Core characteristics of applicable scenarios for operation mode

VFC ordinary industrial loads and constant/variable torque loads have a simple structure and high stability, supporting DC braking and fast starting

VFC-n-Control requires precise speed control in scenarios with speed closed-loop control, adapted to encoder feedback

CFC requires high dynamic performance and fast load torque response, supporting torque feedforward control

SERVO high-precision position control scene supports IPOSplus ®  Positioning function, high positioning accuracy

VFC - Lift mode lifting equipment (cranes, elevators) adapted to lifting load characteristics, with pre magnetization function

(2) Debugging and operation methods

Applicable scenarios for operation mode tools/carrier core functions

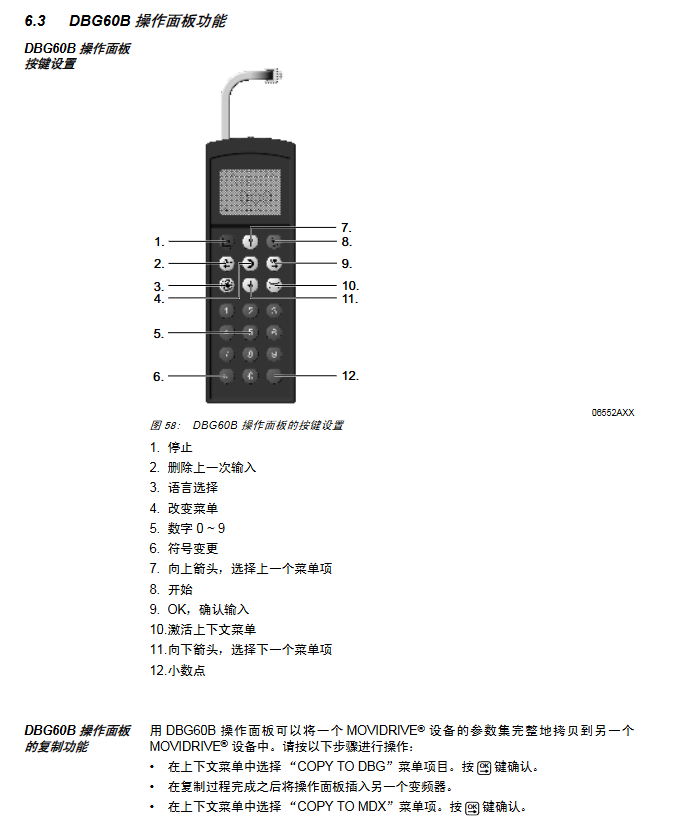

DBG60B operation panel parameter setting, fault reset, data copying, manual speed regulation on-site quick debugging, simple operation

Software operation MOVITOOLS ®  MotionStudio (≥ 4.20 version) visualization debugging, parameter monitoring, batch configuration, IPOS programming, complex system integration, remote control

External control binary/analog terminal external signal triggering, fixed speed control, remote enabling industrial PLC linkage, automated production line

Extended control encoder/rotary transformer speed closed-loop control, high-precision position positioning control scenarios (such as machine tools, robots)

(3) Security and protection functions

Electrical protection: overcurrent (F-01), ground fault (F-03), DC side overvoltage (F-07), power phase failure (F-06)

Thermal protection: frequency converter thermal overload (F-11), motor temperature monitoring (TF/TH/KTY sensor)

Operation protection: speed monitoring (F-08), slope timeout (F-34), encoder failure (F-14), limit switch protection (F-27)

Safety mechanism: Safety stop (compliant with EN 50178), controller prohibition, emergency stop ramp, supports manual/automatic reset

Option Expansion and Communication

(1) Core Options

Option Model Type Core Function Adaptation Scenarios

DEH11B encoder card supports HIPERFACE ®、 Sine/cosine, TTL encoder input speed/position closed-loop control

DER11B rotary transformer card is connected to a 2-pole rotary transformer, supporting encoder simulation output for high-precision speed feedback scenarios

DIO11B I/O expansion card expands 8-channel binary input/output and 2-channel analog input/output for multi signal interaction scenarios

DFC11B CAN bus module supports CANopen/MOVILINK ®  Protocol to achieve bus communication, multi device networking, and centralized control

USB11A/UWS21A communication adapter realizes USB/RS232 connection software debugging and data transmission between PC and inverter

(2) Communication parameters

System Bus (SBus): Supports CANopen protocol, baud rate 125~1000 kBaud, maximum 64 nodes, maximum transmission distance 320m (125 kBaud)

RS485 interface: Supports Modbus protocol, baud rate of 9.6~57.6 kBaud, maximum 32 devices connected to the network, maximum transmission distance of 200m

Fieldbus: Supports Profibus, Ethernet and other extensions, compatible with industrial bus control systems

Fault diagnosis and maintenance

(1) Fault handling mechanism

Typical fault code processing points for fault type response methods

Immediately shut down F-01 (overcurrent) and F-03 (ground fault) to cut off the output in case of serious faults, and reset after troubleshooting for short circuits/grounding issues

Emergency stop F-11 (high temperature) and F-84 (motor overload) for general faults, stop according to the emergency ramp, reduce the load and restart

Warning fault: Quickly abort F-28 (fieldbus timeout) and F-43 (RS485 timeout) prompts an alarm, and automatically resets after communication is restored

(2) Maintenance points

Environmental requirements: working temperature of 0~+50 ℃, storage temperature of -25 ℃~+75 ℃, relative humidity of 20%~95% (non condensing)

Storage and maintenance: For long-term storage, power on for at least 5 minutes every 2 years; Failure to maintain as required requires graded voltage boosting (230V equipment is divided into 3 levels: 170V → 200V → 240V)

Cleaning and maintenance: Regularly clean the dust on the heat sink, check the tightness of the terminal wiring, and ensure that the shielding layer is grounded at both ends

Key technical parameters (general)

Parameter category specific specifications

Speed range -6000~+6000 rpm (resolution 0.2 rpm)

PWM frequency 4/8/12/16 kHz (VFC mode); 8 kHz (CFC/SERVO mode)

Current limit 150% IN (specification 1-6), 200% IN (specification 0), duration depends on capacity

Analog input -10~+10V (impedance>40k Ω), 4~20mA (impedance 250 Ω), resolution of 12Bit

Binary input signal level+13~+30V (1), -3~+5V (0), response time 1ms

Binary output maximum load current 150mA (DB00), 50mA (DO02~DO05), short circuit protection

Cooling methods include self cooling (small size) and forced air cooling (medium to high power)
