ABB Pressductor Pillowblock Load Cells Vertical Measuring PFCL201

From:ABB | Author:Wang | Time :2024-12-31 | 498 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

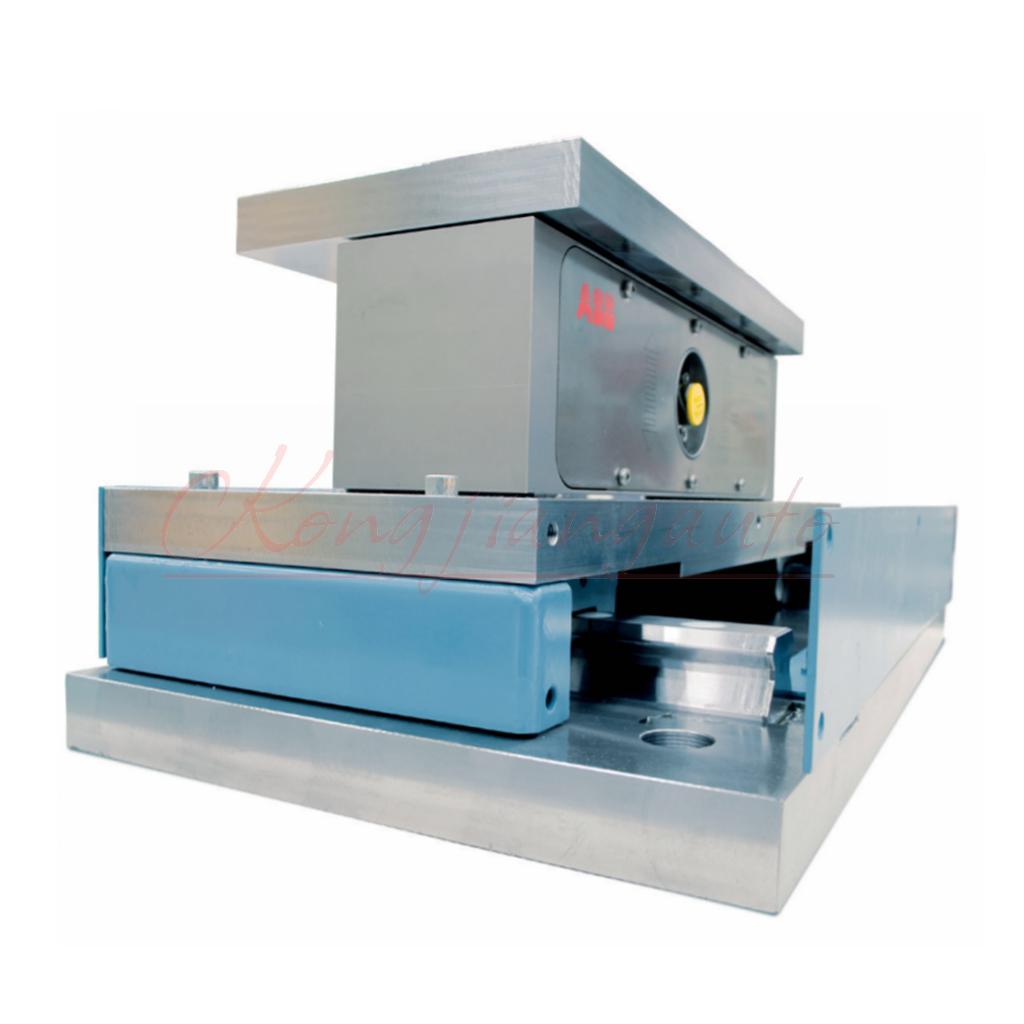

ABB Pressductor Pillowblock Load Cells Vertical Measuring PFCL201

This publication includes the following symbols with information regarding safety or other important information:
CAUTION
Caution icon indicates important information. Risk of damage to equipment, property or software.
DANGER
Danger icon indicates a hazard which could result in personal injury or even death.
ELECTRICAL
Electrical warning icon indicates the presence of a hazard which could result in electrical shock.
ESD
ESD icon indicates that electrostatic discharge precautions are needed.
Information
Information icon alerts the reader to relevant facts and conditions.
Tip
Tip icon advise how to design your product or how to use a certain function.
NOTICE
The information in this document is subject to change without notice and should not be construed as a commitment by ABB
AB. ABB AB assumes no responsibility for any errors that may appear in this document.
In no event shall ABB AB be liable for direct, indirect, special, incidental or consequential damages of any nature or kind arising
from the use of this document, nor shall ABB AB be liable for incidental or consequential damages arising from use of any
software or hardware described in this document.
This document and parts thereof must not be reproduced or copied without ABB AB’s written permission, and the contents
thereof must not be imparted to a third party nor be used for any unauthorized purpose.
The software described in this document is furnished under a license and may be used, copied, or disclosed only in accordance with the terms of such license.
CE and UK regulations marking
Provided that the installation is carried out in accordance with the installation instructions given in this manual this product
meets the requirements for CE-marking specHfied in: the RoHS directive 2011/65/EU + AD 2015/863/EU, EMC directive
2014/30/EU and the Low Voltage Directive 2014/35/EU and Conformity to UK regulations: The Electrical Equipment (Safety)
Regulations 2016, S.I.2016:1101, The Electromagnetic Compatibility Regulations 2016, S.I.2016:1091 and The Restriction
of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012, S.I. 2012:3032


About this Manual
This manual describes the load cells PFCL 201C/201CE/201CD in a Pressductor® Strip Tension
Measuring System.
The purpose of this manual is to describe the general function and design of the load cells and also
to be a guidance at installation, commissioning, preventive maintenance and fault tracing.
1.2 Disposal and Recycling
1.2.1 Environmental Policy

ABB is committed to its environmental policy. We strive continuously to make our products envi ronmentally more sound by applyin

Disposing of this product correctly will help save valuable resources and prevent any potential neg ative
effects on human health and the environment, which could otherwise arise from inappropriate

waste handling.
1.2.3 Recycling the Transport Material
ABB designs all transport material to be recyclable where practical. The recycling of the transport
material depends on the material type and availability of local recycling programs.
After receiving the system into the site, the package and the transportation locking have to be
removed. Recycle the transport material according to local regulations.
1.2.4 Disposal of the Product
When the product is to be disposed, it should be dismantled and the components recycled
according to local regulations.
1.2.4.1 Dismantling and Recycling of the Product
Dismantle and recycle the components of the product according to local regulations.
CAUTION
Some of the components are heavy! The person who performs the dismantling of
the system must have the necessary knowledge and skills to handle heavy
components to avoid the risk of accidents and injury from occurring.
• Load cell: These parts are made of structural steel, which can be recycled according to
local instructions. All the auxiliary equipment, such as cabling or hoses must be removed
before recycling the material.
1.3 Function and Design
1.3.1 General
A complete measuring system normally consists of two load cells, a junction box, one control unit
with two measurement channels and cabling.

results obtained in recyclability and life cycle analyses. Prod ucts, manufacturing process as well as logistics
have been designed taking into account the envi ronmental aspects.

Our environmental management system, certHfied to ISO 14001, is the tool for carrying out our
environmental policy. However it is on the customer’s responsibility to ensure that local legislation is
followed.
1.2.2 Recycling Electrical and Electronic Equipment, WEEE
The crossed – out wheeled bin symbol on the product(s) and / or accompanying documents
means that used electrical and electronic equipment (WEEE) should not be mixed with general
household waste.
If you wish to discard electrical and electronic equipment (EEE), in the European Union, please
contact your dealer or supplier for further information.
Outside of the European Union, contact your local authorities or dealer and ask for the correct
method of disposal.


Load Cells PFCL 201
The load cells are installed under the roll bearings, where they measure forces at right angles to the
mounting surface.
The reactive force from the strip, which is proportional to the strip tension, is transferred to the load
cells via the roll and the bearings.
The load cells are connected to the control unit via a junction box. The control unit converts the
load cell signals to DC voltages that are proportional to the reaction force. Depending on which
control unit is chosen, it is possible to have the analog signals for the two individual load cells (A
and B), the sum of the load cell signals (A+B), and/or the difference between the load cell signals
(A-B).
1.3.3 Principle of Measurement
The load cell only measures force in the direction FR. The measurement force may be positive or
negative. The load cell is normally installed under the roll bearings. When there is a strip in tension
over the roll, the tension (T) gives rise to two force components, one in the direction of measure ment of the load cell (FR) and one at right angles (FV).
The measuring force depends on the relationship between the tension (T) and the wrap angle
formed by the strip around the measuring roll.
General
The load cell is machined from a single piece of stainless steel. The sensors are machined directly
in the piece of steel and are positioned so that they are sensitive to force in the direction of meas urement and insensitive in other directions.
The load cell is mounted on a base with four screws, and the bearing housing is mounted on top
of the load cell with four screws.
Every load cell comes calibrated and temperature compensated.
The load cells PFCL 201C/201CE/201CD are available in four measurement ranges, all variants
have the same external dimensions.
The load cell PFCL 201C is equipped with a connector for the pluggable connection cable.
The load cell PFCL 201CE has a fiWed connection cable with protective hose.
The load cell PFCL 201CD is provided with an acid-proof cable gland with a fiWed PTFE- insulated
connection cable.
