ABB PM864AK01 Classic System 800xA hardware selector

From: | Author:Wang | Time :2025-06-24 | 16 visit: | Share:
ABB PM864AK01 Classic System 800xA hardware selector
The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

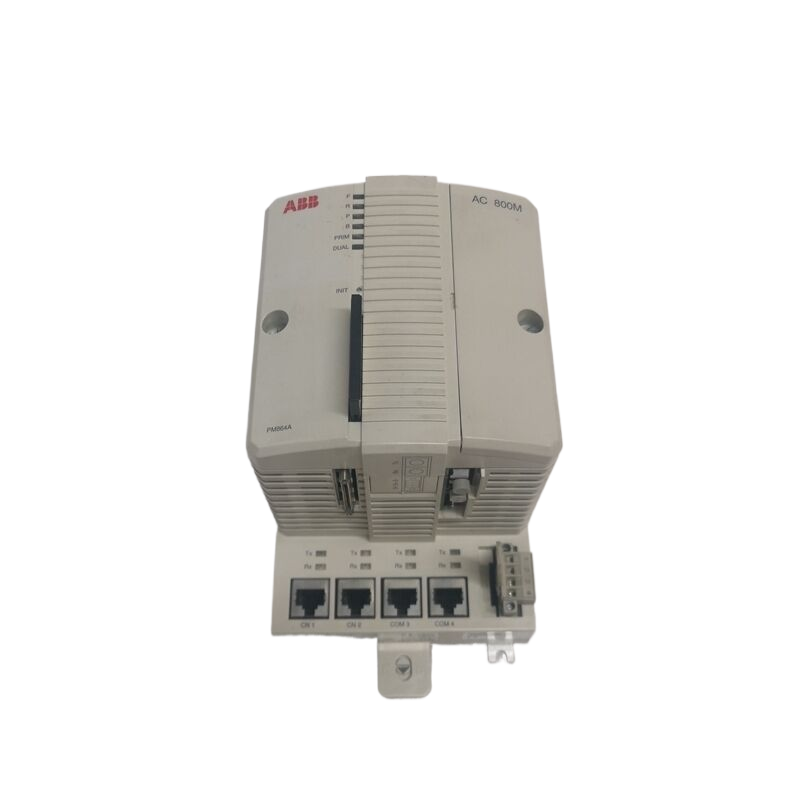

The base plate of the PM864A controller has two RJ45 Ethernet ports(CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port(COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability(CPU, CEX-Bus, communication interfaces and S800 I/O).

Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.


Features and benefits
Reliability and simple fault diagnosis procedures
Modularity, allowing for step-by-step expansion
IP20 Class protection without the requirement for enclosures
The controller can be configured with 800xA control builder
The controller has full EMC certification
Sectioned CEX-Bus using a pair of BC810
Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)
Built-in redundant Ethernet Communication ports


Power supply and power consumption

Power input: 24V DC (19.2-30V DC).

Power consumption: The typical value is 287mA (+24V), and the maximum value is 487mA; the typical value of power consumption is 6.9W, and the maximum value is 11.4W.


Work environment

Temperature: The operating temperature is+5 to+55 ° C (+41 to+131 ° F), the storage temperature is -40 to+70 ° C (-40 to+158 ° F), and the temperature change rate is 3 ° C/minute (in accordance with IEC/EN 61131-2).

Altitude: 2000 meters (compliant with IEC/EN 61131-2).

Pollution level: Level 2 (compliant with IEC/EN 61131-2).

Corrosion protection: G3 level in accordance with ISA 71.04.

Relative humidity: 5% to 95%, no condensation.

Noise emission:<55dB.

Vibration: amplitude 0.0375mm when 10<f<50Hz, acceleration 0.5g when 50<f<50Hz, acceleration 0.2g when 5<f<500Hz.

Isolation voltage: The rated isolation voltage is 500V A.C., and the dielectric test voltage is 50V.

Protection level: IP20 (compliant with EN 60529, IEC 529).

Electromagnetic compatibility: The emission and immunity comply with EN 61000-6-4 and EN 61000-6-2.

Certification: Possessing the CE mark, complying with electrical safety standards EN 50178, IEC 61131-2, UL 508, suitable for hazardous locations (UL 60079-15), certified by classification societies (ABS, BV, DNV-GL, LR), and complying with the WEEE Directive (Directive/2012/19/EU).


Size and weight

Width: 196mm (7.3 inches).

Height: 119mm (4.7 inches).

Depth: 135mm (5.3 inches).

Weight: 1200g (2.6 pounds).
