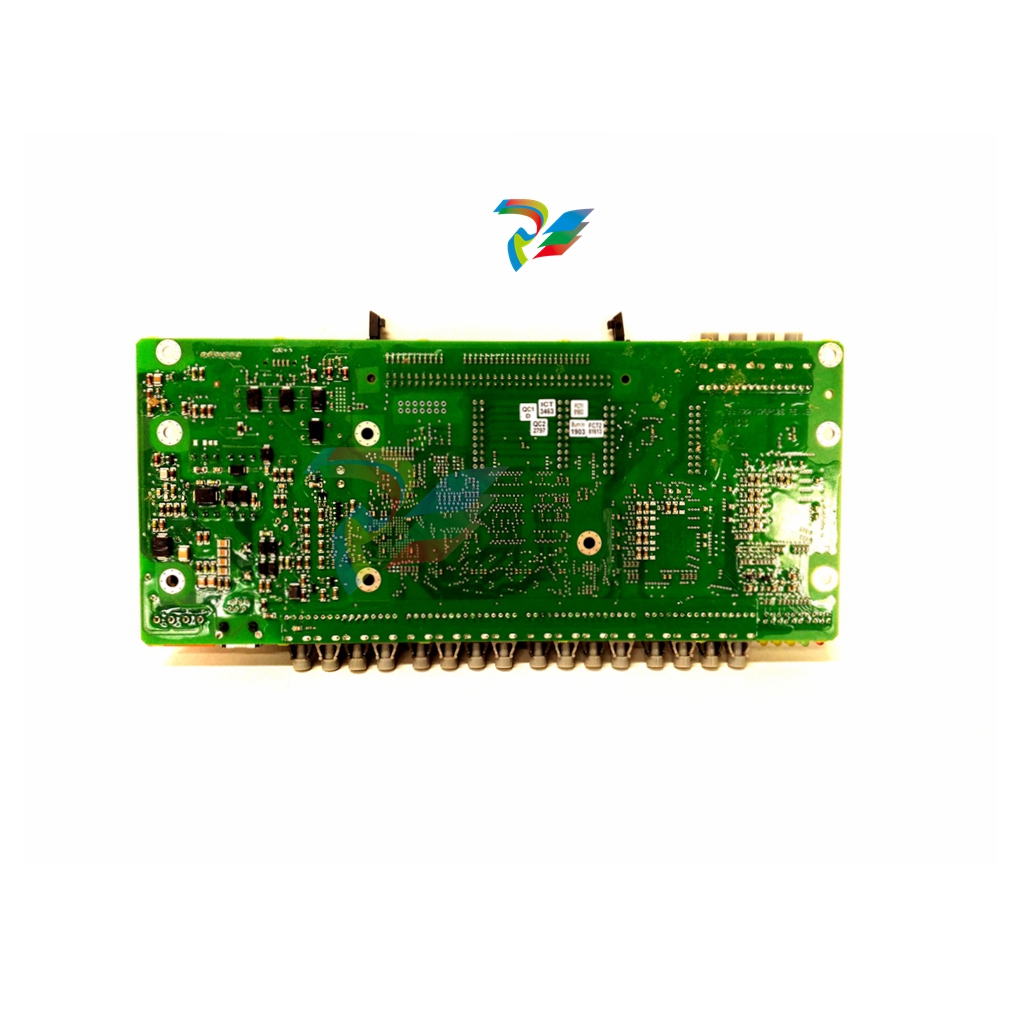

ABB PPC902AE101 3BHE010751R0101 Medium and high voltage frequency conversion cabinet control unit

From: | Author:Wang | Time :2024-12-12 | 223 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

ABB PPC902AE101 3BHE010751R0101 Medium and high voltage frequency conversion cabinet control unit

Technical data
Data at Ta
= 25 °C, Uin = 230 V AC and rated values, unless otherwise indicated
Input circuits - Supply circuits 1SVR 427 014 R0000
Rated input voltage Uin L, N 110‑240 V AC
Typical current / power consumption 110 V AC 240 V AC
2.2 A / 135 W 1.2 A / 135 W at 110‑240 V AC
Input voltage range AC 85‑264 V AC
DC 100‑350 V DC (at U > 264 V use additionally an ap‑
propriate external fuse)
Frequency range AC 47‑63 Hz
DC 0 Hz
Inrush current limiting < 23 A
I²t at cold start approx. 0.9 A2
s
Discharge current towards PE < 3,5 mA
Power failure buffering time min. 100 ms
Transient overvoltage protection Varistors
Internal input fuse (apparatus protection, not accessible) 4 A slow‑acting
Power factor correction (PFC) no
Indication of operational states 1SVR 427 014 R0000
Output voltage OUTPUT OK: green LED V: output voltage OK
Output circuits 1SVR 427 014 R0000
Rated output voltage L+, L+, L‑, L‑ 24 V DC
Tolerance of the output voltage ‑1...+5 %
Rated output power 120 W
Rated output current Ir Ta ≤ 60 °C 5 A
Peak output current (power reserve) Ta ≤ 40 °C typ. ≤ 7.25 A
Derating of the output current 60 °C < Ta ≤ 70 °C 2.5 % per Kelvin temperature increase
Deviation load change statical 10-90 % typ. <± 0.1 %
load change dynamical
10‑90 %
typ. <± 3 %
change of input voltage
± 10 %
typ. <± 0.05 %
Control time typ. < 1 ms
Starting time after applying supply voltage < 200 ms
Rise time 10‑90 % typ. < 30 ms
Residual ripple and switching peaks BW = 20 MHz typ. < 50 mVpp
Parallel connection yes, up to 5 devices, to enable redundancy, current
not symmetrical
Series connection yes, to increase voltage
Resistance to reverse feed approx. 35 V DC
Characteristic curve of output U/I characteristic curve with power reserve
Short‑circuit protection continuous short‑circuit stability
Current limiting at short circuit approx. 11 A
Overload protection thermal protection

Starting of capacitive loads unlimited

General data 1SVR 427 014 R0000

Power dissipation typ. < 15 W
Dimensions (W x H x D) 60 x 130 x 135.5 mm
(2.36 x 5.12 x 5.35 inches)
Material of enclosure enclosure shell aluminium
cover zinc‑coated sheet steel
Efficiency typ. 89 %
Weight approx. 0.96 kg (approx. 2.12 lb)
Mounting position horizontal
Minimum distance to other units
normal operation mode horizontal 10 mm (0.39 inch)
vertical 80 mm (3.15 inch)
Mounting DIN rail (IEC/EN 60715),
snap‑on mounting
Degree of protection enclosure / terminals IP20 / IP20
Class of protection (EN 61140) I
Electrical connection 1SVR 427 014 R0000
Input circuit
Wire size fine‑strand with wire end
ferrule
0.2‑2.5 mm2
(24‑14 AWG)
fine‑strand without wire end
ferrule
0.2‑2.5 mm2
(24‑14 AWG)
rigid 0.2‑2.5 mm2
(24‑14 AWG)
Stripping length 7 mm (0.28 inches)
Tightening torque 0.4 Nm
Output circuit
Wire size fine‑strand with wire end
ferrule
0.12‑2.5 mm2
(26‑14 AWG)
fine‑strand without wire end
ferrule
0.12‑2.5 mm2
(26‑14 AWG)
rigid 0.12‑2.5 mm2
(26‑14 AWG)
Stripping length 8 mm (0.31 inches)
Tightening torque 0.4 Nm
Environmental data 1SVR 427 014 R0000
Ambient temperature range operation ‑25...+70 °C
rated load 0...+60 °C
storage ‑40...+85 °C
Damp heat (IEC/EN 60068‑2‑3) 93 % at +40 °C, no condensation
Climatic category (IEC/EN 60721) 3k3
Vibration (IEC/EN 60068‑2‑6)
Shock (IEC/EN 60068‑2‑27)
