Product overview

ABB PP877 3BSE069272R2 is a 10.4-inch touch standard panel in the ABB Panel 800 Version 6 series, mainly used in industrial automation and control systems, providing operators with a convenient human-machine interaction interface.

The ABB Panel 800 Version 6 series operator panel is designed to be user-friendly, intuitive to operate, and ergonomic, combining compact and space saving dimensions with rich advanced features, aiming to simplify process automation operations. The panel controls the process and equipment through the function keys next to the screen or by touching the LCD display screen, making it suitable for various industrial automation scenarios.

Basic information

Belonging to the Panel 800 Version 6 series, this series is designed to meet the needs of human-machine communication, with rich functions and easy operation.

Product type: Touch standard panel, realizing monitoring and control of industrial processes through touch operation.

Origin and brand: The origin is Sweden, the brand is ABB, and it has a high reputation in the fields of electrical and automation.

Performance parameter

Display performance: Equipped with a TFT-LCD display screen with a resolution of 640 × 480 (4:3), LED backlight, brightness of up to 450cd/m ², viewing angle of 160 °/140 °, clear display, wide viewing angle, ensuring image quality even when viewed from different angles. Equipped with dimming function, the screen brightness can be adjusted according to the ambient light.

Processing capability: Equipped with ARM9 (400MHz) processor, it has 128MB (DDR2) main memory and 80MB application memory, which can meet the basic needs of industrial application program operation and data processing.

Storage Expansion: Equipped with one SD card slot (supporting SDHC), convenient for storing project files, data records, etc.

Communication interface: Integrate one 10/100Base-T Ethernet interface (shielded RJ45) for network communication with other devices; It also has 2 combination ports, supporting 2 × RS232 and 2 × RS422/485 serial communication, making it easy to connect various serial devices.

Mechanical specifications: The external dimensions are 280 × 228 × 51mm, and the installation opening size is 262 × 209mm. It adopts panel installation and VESA 75 × 75 installation methods, making installation convenient. Net weight of 1.5kg, made of powder coated aluminum, with a sturdy and lightweight structure.

Electrical parameters: The power supply is+24VDC (18-32VDC), with a power consumption of 9.6W, which can adapt to a certain range of voltage fluctuations and ensure stable operation in different power supply environments.

Environmental adaptability: The protection level is IP66 (front)/IP20 (back), which can effectively prevent dust and water from entering and is suitable for various industrial environments. The working temperature range is -10 ° C to+60 ° C, the storage temperature is -20 ° C to+70 ° C, and the relative humidity is 5-85% (non condensing), which can adapt to a certain degree of temperature and humidity changes.

Functional Features

Interface and operation: The resistive touch screen supports 1 million touch operations, combined with an intuitive user interface, making it easy for operators to monitor and control industrial processes. Built in multiple functions, such as text display and control, dynamic indication, time channel, alarm and formula processing, etc., make it convenient for users to manage industrial processes.

Communication capability: Supports multiple communication protocols and can be used as a master or slave to communicate with other devices, such as ABB COMLI protocol, Modbus protocol, etc. It can exchange data with devices of different brands and types.

Convenient configuration: The Panel Builder configuration tool can be used to configure on a PC, supporting multiple languages, and the operating interface is similar to the Microsoft Windows environment, making it easy for users to get started.

Application areas: Widely used in multiple industrial fields such as power systems, manufacturing, water treatment, facility management, HVAC systems, machine control, power generation, and distribution, to achieve real-time monitoring and precise control of industrial processes

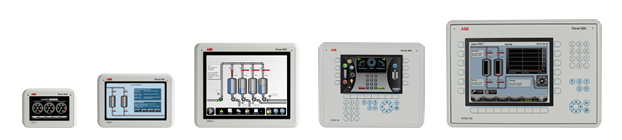

Main models and classifications

（1） Standard panel

PP871, 3BSE069270R2, 4.3 ", 480 × 272 (16:9), TFT-LCD 64k color, LED backlight, brightness 350 cd/m ², viewing angle 140 °/115 °, resistive touch (1 million touch operations)

PP874, 3BSE069271R2, 7 ", 800 × 480 (16:9), TFT-LCD 64k color, LED backlight, brightness 350 cd/m ², viewing angle 140 °/130 °, resistive touch (1 million touch operations)

PP877, 3BSE069272R2, 10.4 ", 640 × 480 (4:3), TFT-LCD 64k color, LED backlight, brightness 450 cd/m ², viewing angle 160 °/140 °, resistive touch (1 million touch operations)

PP874K, 3BSE069273R1, 7 ", 840 × 480 (16:9), TFT-LCD 64k color, LED backlight, brightness 350 cd/m ², viewing angle 140 °/130 °, buttons (1 million button operations)

PP877K, 3BSE069274R1, 10.4 "640 × 480 (4:3), TFT-LCD 64k color, LED backlight, brightness 450 cd/m ², viewing angle 160 °/140 °, buttons (1 million button operations)

（2） High performance panel

PP882, 3BSE069275R1, 12.1 ", 1280 × 800 (16:10), TFT-LCD 262k color, LED backlight, brightness 400 cd/m ², viewing angle 176 °/176 °, resistive touch (1 million touch operations)

PP885, 3BSE069276R1, 15.4 ", 1280 × 800 (16:10), TFT-LCD 262k color, LED backlight, brightness 450 cd/m ², viewing angle 160 °/140 °, resistive touch (1 million touch operations)

（3） Other specific model panels

Including PP874M, PP885M, PP885H, etc. Taking PP885H as an example, it has a display size of 15.4 inches, a resolution of 1280 × 800 (16:10), TFT color LCD, 16.7 million colors, LED backlight, brightness of 1000 cd/m ², and resistive touch (5 million touch operations).

（4） Durable panel

PP880R, 3BSE069295R1, 7 ", 800 × 480 (16:9), TFT color LCD, 16.7 million colors, LED backlight, brightness 500 cd/m ², viewing angle 140 °/120 °, resistive touch (1 million touch operations)
