ABB Panel 800 version 6

From:ABB | Author:Wang | Time :2025-01-07 | 463 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

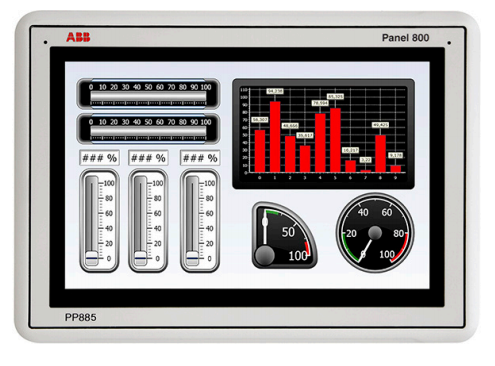

ABB Panel 800 version 6

Panel 800 family comprises of user-friendly, intuitive and ergonomic operator panels
thath combine slim, space-saving dimensions with a comprehensive range of advanced
functions. Designed to make process automation easy, all panels are equipped with
advanced functionality for process and equipment control, maneuvered either by
function keys located next to the screen or by touching the LCD display.
Panel PP871 PP874 PP877 PP874K PP877K
Article number 3BSE069270R2 3BSE069271R2 3BSE069272R2 3BSE069273R1 3BSE069274R1
Display size 4.3" 7" 10.4" 7" 10,4"
Display resolution, ratio 480 × 272 (16:9) 800 × 480 (16:9) 640 × 480 (4:3) 840 x 480 (16:9) 640 × 480 (4:3)
Display colors TFT-LCD 64k LED backlight
Brightness (cd/m2
) 350 350 450 350 450
View angle (H/V) 140° / 115° 140° / 130° 160° / 140° 140° / 130° 160° / 140°
Dimming Yes
Interaction type Resistive touch, 1 million finger touch operations Key, 1 million key press operations
Processor ARM9 (400 MHz)
Main memory 128 MB (DDR2)
Application memory 80 MB
External storage media 1 × SD card slot (or SDHC with latest image loaded)
Realtime clock Yes
Ethernet (shielded RJ 45) 1 × 10/100 Base-T
USB 1 x USB 2.0, max. 200 mA
Serial port 1/2 2 combined ports: 2 × RS232, 2 × RS422/485
Dimension W×H×D (mm) 145 × 103 × 49 204 × 143 × 49 280 × 228 × 51 410 × 286 × 83
Cut-out dimension W×H (mm) 128 × 87 187 × 126 262 × 209 394 × 270
Mounting depth (mm)(1) 43 (143) 44 (144) 76 (176)
Mounting Panel Mount and VESA
50 × 50
Panel Mount and VESA 75 × 75
Net weight (kg) 0.5 0.8 1.5 1.7 3.8
Frame material, front foil Powder-coated aluminum, Polyester Autotex EBA180L Powder-coated aluminum, Polyester Autotex F150.
Membrane switch keyboard with metal domes.
Power supply +24 VDC (18-32 VDC)
Power consumtion 3.6 W 6.0 W 9.6 W 6.0 W 9.6 W
Protection (front/rear) IP66 / IP20 IP65 / IP20
Operating temperature -10 to +60 °C
Relative operating humidity 5-85% non-condensing
Storage temperature -20 to +70 °C
Vibration and shock 0.7 G / 10 G
Environmental and
Certification (2)
CE, UL508(3), DNV(3) CE, UL, DNV
RoHS compliance: EN 50581:2012
WEEE compliance: DIRECTIVE/2012/19/EU


Panel PP882 PP885
Article number 3BSE069275R1 3BSE069276R1
Display size 12.1" 15.4"
Display resolution, ratio 1280 x 800 (16:10)
Display colors TFT-LCD 262k LED backlight
Brightness (cd/m2) 400 450
View angle (H/V) 176° / 176° 160° / 140°
Dimming Yes
Interaction type Resistive touch, 1 million finger touch operations
Processor Intel® Atom (1.1GHz)
Main memory 1GB (DDR2)
Application memory >=1.4GB
External storage media 1 × SD card slot (or SDHC with latest image loaded)
Realtime clock Yes
Ethernet (shielded RJ 45) 2 built-in ports: 1 x 10/100/1000 Mbit/s, 1 x 100 Mbit/s
USB 3 × USB 2.0, max. 500 mA
Serial port 1/2 2 combined ports: 2 × RS232, 2 × RS422/485
Dimension W×H×D (mm) 340 × 242 × 79 410 × 286 × 83
Cut-out dimension W×H (mm) 324 × 226 394 × 270
Mounting depth mm[1] 72 (172) 76 (176)
Mounting Panel Mount and VESA 75 × 75
Net weight (kg) 2.6 3.85
Frame material, front foil Powder-coated aluminum, Polyester Autotex EBA180L
Power supply +24 VDC (18-32 VDC)
Power consumption 22W 24W
Protection (front/rear) IP65 / IP20
Operating temperature -10 to +50 °C
Relative operating humidity 5-85% non-condensing
Storage temperature -20 to +70 °C
Vibration and schock 0.7 G / 10 G
Environmental and Certification (1) CE
UL UL 508
RoHS compliance: EN 50581:2012
WEEE compliance: DIRECTIVE/2012/19/EU


Panel PP874M PP885M PP885H
Article number 3BSE069279R1 3BSE069280R1 3BSE069281R1
Display size 7" 15.4" 15.4"
Display resolution, ratio 800 x 480 (16:9) 1280 x 800 (16:10)
Display colors TFT Color LCD, 64k LED backlight TFT Color LCD with 16.7 million colors LED backlight
Brightness (cd/m2) 500 450 1000
View angle (H/V) 140/120 160/140 160/140
Dimming Maritime optimized to 0 cd/m2
Interaction type Resistive touch,
1 million finger touch operations
Resistive touch,
5 million finger touch operations
Processor ARM9 400MHz 1.0 GHz Intel® Atom™
Main memory 128 MB 1 GB
Application memory 80 MB (SSD) 3,5 GB (SLC)
External storage media 1 × SD card slot (or SDHC with latest image loaded)
Realtime clock Yes
Ethernet (shielded RJ 45) 1 × 10/100 Base-T 1 × 10/100 Base-T, 1 × 10/100/1000 Base-T
USB 1 × USB 2.0, max. 200 mA 3 × USB Host 2.0, max 500mA
Serial port 2 combined ports:
2 × RS232, 2 × RS422/485
1 × RS232, 1 × RS422/485 (isolated)
Dimension W×H×D (mm) 204 × 143 × 52.2 410 × 286 × 83
Cut-out dimension W×H(mm) 187 × 126 394 × 270
Mounting depth mm[1] 43 (143) 76 (176)
Mounting Panel Mount and VESA 75 × 75
Net weight (kg) 0.8 4.4
Frame material, front foil Black powder-coated aluminum,
polyester Autoflex EBA 180L
Black powder-coated aluminum, polyester Autoflex EB
Power supply 24 VDC (18-32 VDC)
Power consumption 6.0 W 28 W
Protection (front/rear) IP65 / IP20 IP66 / IP20, NEMA-4X
Operating temperature -15 to +55 °C
Relative operating humidity 5-85% non-condensing
Storage temperature -20 to +70 °C
Vibration /shock 0.7 G / 10 G
Environmental and Certification (1) CE: EN61000-6-4, EN61000-6-2
UL/cUL 508 UL/cUL 61010-2-201 (replacement for UL 508)
DNV, GL, ABS, LR, KR DNV, GL, ABS, LR
RoHS compliance: EN 50581:2012
WEEE compliance: DIRECTIVE/2012/19/EU
Panel PP880R PP885R PP886H
Article number 3BSE069295R1 3BSE069296R1 3BSE069297R1
Display size 7" 15.4" 15.4"
Display resolution, ratio 800 x 480 (16:9) 1280 x 800 (16:10)
Display colors TFT Color LCD with 16.7 million colors LED backlight
Brightness (cd/m2) 500 450 1000
View angle (H/V) 140/120 160/140 160/140
Dimming Maritime optimized to less than 1 cd/m2
Interaction type Resistive touch,
1 million finger touch operations
Resistive touch, 5 million finger touch operations
Processor 1.0 GHz Intel® Atom™ 1.6 GHz Intel® Atom™
Main memory 1 GB
Application memory 3,5 GB (SLC)
External storage media 1 × SD card slot (or SDHC with latest image loaded)
Realtime clock Yes
Ethernet (shielded RJ 45) 1 × 10/100 Base-T, 1 × 10/100/1000 Base-T
USB 3 × USB Host 2.0, max 500mA
Serial port 1 × RS232, 1 × RS422/485 (isolated)
Dimension W×H×D (mm) 204 × 143 × 73 410 × 286 × 83
Cut-out dimension W×H(mm) 188 × 127 394 × 270
Mounting depth mm[1] 43 (143) 76 (176)
Mounting Panel Mount and VESA 75 × 75
Net weight (kg) 1.4 4.7
Frame material, front foil Gray powder-coated aluminum, polyester Autoflex EB
Power supply 12 or 24 VDC (10-32 VDC)
Power consumption 15.8 W typical @ 24 VDC 28 W typical @ 24 VDC
Protection (front/rear) IP66, NEMA 4X / IP20
Operating temperature -30 to +70 °C
Relative operating humidity 5-85% non-condensing
Storage temperature -40 to +85 °C
Vibration/shock 4 G / 40 G
Environmental and Certification (1) CE: EN61000-6-4, EN61000-6-2
UL/cUL 61010-2-201 (replacement for UL 508), UL50E Type 4X outdoor
DNV, GL, ABS, LR, KR DNV, GL, ABS, LR
Hazardous Location: Ul/cUL 12.12.01 (UL1604 replacement) Class I Div 2, ATEX (Zone 2), IECEx Ex nA IIC Gc, IEC 60079-0
and IEC 60079-15
RoHS compliance: EN 50581:2012
WEEE compliance: DIRECTIVE/2012/19/EU
