Rockwell Automation MD60 AC Drive

Rockwell Automation MD60 AC Drive

The Rockwell Automation MD60 AC driver is a universal motor speed control device that supports 1-3 phase input and 0-240Hz output. It has a rated power of 0.2-3.7kW (0.25-5HP) and a three-level parameter system of basic (P series), advanced (A series), and display (d series). It supports keyboard/terminal/RS485 remote control, built-in multiple protections such as overcurrent/overload/overtemperature/grounding, and is compatible with 2-3 line control logic. It must strictly follow the installation grounding specifications and 3-minute capacitor discharge safety requirements. It is widely used in industrial motor speed control scenarios and can achieve personalized functions such as acceleration and deceleration, DC braking, and preset frequency through parameter configuration.

Product basic parameters

Detailed parameter notes for specification items

Input voltage: 115VAC (1 phase), 230VAC (1/3 phase), 460VAC (3 phases) Voltage range: ± 10%

Output frequency 0-240Hz, accuracy ± 0.05% (digital input), ± 0.5% (analog input), adjustable carrier frequency 2-16kHz

Rated power 0.2kW (0.25HP) -3.7kW (5HP) corresponds to output current 1.4A-17.5A

Motor protection Class 10 overload protection, 150% overload for 60 seconds, 200% overload for 3 seconds can be set with a derating factor through A090

Control input digital input (6mA current), 0-10V (100k Ω impedance), 4-20mA (250 Ω impedance), supports SNK/SRC two wiring modes

Communication interface RS485 (Modbus RTU), baud rate 1200-38400bps, node address 1-247 can be set

Environmental conditions: Working temperature -10~50 ℃ (IP20), -10~40 ℃ (NEMA 1), humidity 0-95%, no condensation, altitude ≤ 1000m, no capacity reduction

Detailed explanation of core functions

Parameter configuration system

Basic parameters (P series): Core essential parameters, including motor rated voltage (P031), frequency (P032), overload current (P033), starting source (P036), acceleration and deceleration time (P039/P040), can be accessed without a password.

Advanced parameters (A series): Extended functional parameters, such as digital input function definition (A051/A052), DC braking parameters (A080/A081), communication configuration (A103-A107), preset frequency (A070-A073), need to be familiar with the equipment logic before configuration.

Display parameters (d series): Read only monitoring parameters, including output frequency (d001), current (d003), voltage (d004), fault codes (d007-d009), operating status (d006), and real-time feedback of equipment operating conditions.

Control mode and operation

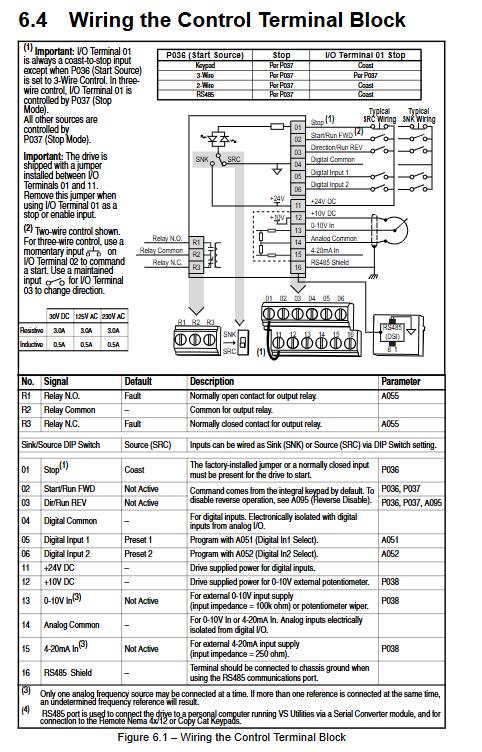

Startup source selection (P036): Supports keyboard (default), 3-wire control, 2-wire control, RS485 remote, different modes correspond to different wiring logic (such as 3-wire control requiring Start/Stop terminal configuration).

Speed reference source (P038): keyboard potentiometer, internal frequency, 0-10V analog, 4-20mA analog, preset frequency, RS485 command can be selected, and digital input can override priority.

Operation functions: forward and reverse rotation (can be disabled through A095), jog (A078 sets jog frequency, A079 sets jog acceleration and deceleration), S-curve acceleration (A083 sets curve ratio), DC braking (P037 selects braking mode, A080/A081 sets braking time/current).

protection mechanism

Electrical protection: overcurrent (hardware 300% instantaneous protection), overvoltage (DC bus 405V/810V trip), undervoltage (DC bus 210V/390V trip), ground fault (output short circuit detection to ground).

Thermal protection: heatsink overheating (trip at 80 ℃), motor overload (I ² t thermal accumulation protection), driver overload (150% rated current for 1 minute).

Other protections: parameter verification errors, I/O board failures, communication loss (A105 can be set to fault/stop/continue running).

Installation and wiring specifications

Installation requirements

Installation method: Vertically installed on a flat metal surface, supporting 35mm DIN rail or screw fixation (M4 screw, torque 1.56-1.96N · m).

Heat dissipation gap: ≥ 120mm on both sides, ≥ 25mm at the top, no mandatory requirement at the bottom, avoid covering ventilation openings.

Environmental restrictions: Keep away from dust, corrosive gases, flammable materials, and avoid parallel laying with power cables (spacing ≥ 0.3 meters).

Wiring specifications

Wiring type requirements, details, recommended configuration

Power wiring wire diameter 1.3-5.3mm ² (AWG16-10), torque 1.7-2.2N · m 230V/3.7kW, using 2.5mm ² copper wire

Control wire diameter 0.13-1.3mm ² (AWG26-16), torque 0.5-0.8N · m shielded wire (Belden 8760), length ≤ 30 meters

Grounding requirements: PE grounding should use ≥ 2.5mm ² copper wire, and the grounding impedance should comply with local regulations. For ungrounded systems, the MOV grounding jumper should be removed

Motor wiring shielded cable (600V grade), length ≤ 170 meters (480V), unlimited (240V), long cable needs to be equipped with a reflection wave suppressor

safe operation

Capacitor discharge: After power failure, wait for 3 minutes to confirm the completion of capacitor discharge before opening the cover.

Emergency stop: An external hard wired emergency stop circuit must be configured, independent of the driver control logic.

Zero speed warning: The drive supports zero speed operation and requires the installation of mechanical protection or sound and light alarm devices.

Malfunctions and troubleshooting

Common fault codes and their solutions

Key points for troubleshooting fault codes and types

F4 undervoltage (UVP) check for input voltage, loose power wiring, and insufficient cable diameter

F5 overvoltage (OVP) check for grid voltage, short deceleration time (extended P040), and excessive regenerative energy

F7 motor overload (OL) reduces load, increases P033 setting value, checks motor stalling

F8 radiator overheating (OH): Clean the heat sink, improve ventilation, and reduce carrier frequency (A091)

F13 Grounding Fault (GF) Check motor winding grounding, output cable insulation, and internal grounding of the driver

F81 communication loss check RS485 wiring, baud rate/address matching, terminal resistance (120 Ω)

Fault handling process

Manual reset: Press the keyboard Stop key, power off and restart, trigger reset through A100 parameter or numerical input.

Automatic restart: A092 sets the number of restarts (0-9 times), A093 sets the restart delay (0.1-120 seconds), only applicable to self recoverable faults.

Fault record: d007-d009 stores the last 3 fault codes, arranged in chronological order for easy traceability.

Communication and Remote Control

RS485 communication configuration

Parameter settings: A103 (baud rate), A104 (node address), A107 (data format, default RTU 8-N-1), modified to take effect after power failure.

Support functions: read operating parameters (frequency, current), modify control parameters, start stop control, fault reset.

Wiring method: Shielded twisted pair cable is used, with 120 Ω terminal resistors connected at both ends, and the shielding layer is grounded at one end.

Remote operation extension

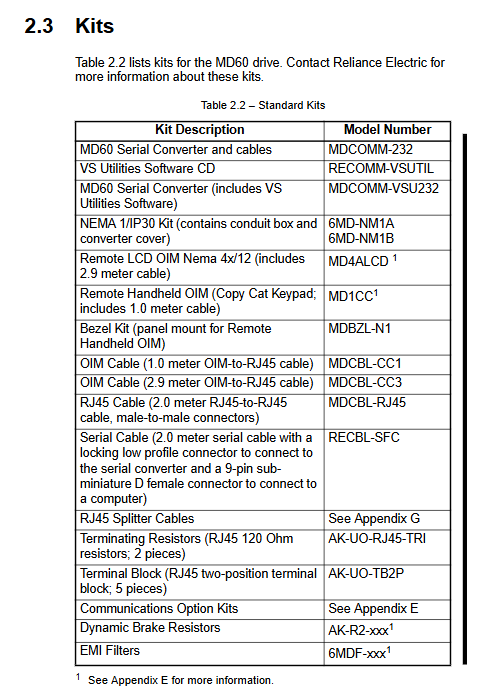

Optional accessories: Remote LCD control panel (MD4ALCD, IP66 protection), handheld copy keyboard (MD1CC), RS232 converter (MDCOMM-232).

Multi machine connection: Supports networking through RS485, with up to 32 drivers for centralized monitoring.
