The APC Back UPS Pro series (including BR1000MS/BR1350MS/BR1500MS models) is a high-end battery backup and surge protection device designed for small/home office, gaming devices, and other scenarios. Its core features include sine wave output, 6 battery backup sockets, 2 USB charging ports (Type-C+Type-A), 1Gb network and coaxial cable surge protection, support for Active PFC compatibility and PowerChute personal version automatic shutdown software, with output capacity covering 1000-1500VA (600-900W), and a maximum battery life of up to 150 minutes (BR1500MS with entry-level desktop and display devices). It provides a 3-year standard warranty and a maximum device protection policy of $500000, which can protect critical electronic devices in power outages, surges, and other scenarios. Continuously running.

1、 Product positioning and applicable scenarios

(1) Core positioning

High end battery backup and surge protection equipment, focusing on "stable power supply+comprehensive protection", suitable for electronic devices with high power supply quality requirements.

(2) Target device

Specific examples of equipment types

Computing devices such as desktop computers, laptops, workstations, and gaming PCs

Entertainment equipment, game consoles (Xbox/PlayStation), smart TVs (LCD/LED/plasma), speakers

Network equipment modems, routers, VoIP telephone systems

Mobile devices, smartphones, tablets (charged through USB port)

2、 Core functions and highlights

(1) Core functions of power supply and protection

Specific description of functional categories

Waveform output sine wave output, suitable for high-end PCs, gaming devices, and other devices that are sensitive to power waveform

10 NEMA5-15R sockets (6 battery backup+surge protection, 4 pure surge protection)

Charging function with 2 USB charging ports (Type-C+Type-A), supporting fast charging for multiple devices simultaneously

Surge protection 1080 joule surge energy level; 1Gb network (10/1000BT)+coaxial cable protection to avoid data line surges

Compatibility supports Active PFC (power factor correction) and is compatible with modern high-end PCs and gaming devices

The software supports PowerChute Personal Edition software to achieve automatic shutdown and power management

(2) Visualization and operation

LCD display screen: Quickly read key information such as mains power status, UPS working status, battery level, load status, etc

Alarm function: visual (LCD display)+auditory alarm, timely prompt abnormal status

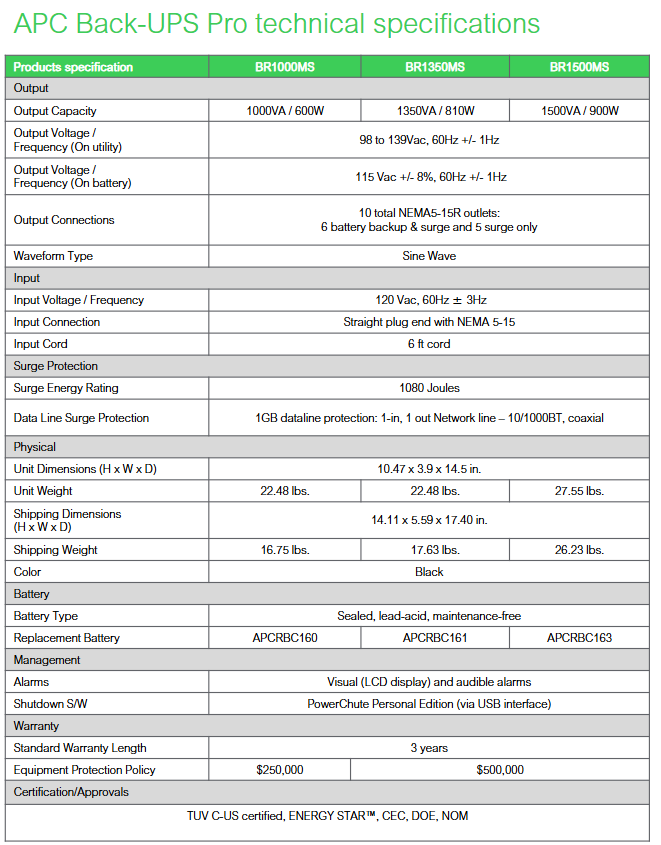

3、 Key specification parameters

(1) Output and input specifications

Parameter category BR1000MS BR1350MS BR1500MS

Output capacity 1000VA/600W 1350VA/810W 1500VA/900W

Commercial power output voltage/frequency 98-139Vac, 60Hz ± 1Hz same left same left

Battery output voltage/frequency 115Vac ± 8%, 60Hz ± 1Hz same left and same left

Input voltage/frequency 120Vac, 60Hz ± 3Hz Same Left Same Left Same Left

Input cable 6 feet, NEMA5-15 plug same left and same left

(2) Range performance (under different device loads)

Connect device combination power load BR1000MS battery life BR1350MS battery life BR1500MS battery life

Entry level desktop computer+20 inch display+modem+router 40W 92 minutes 110 minutes 150 minutes

Laptop+network gateway+modem+router 79W 53 minutes 66 minutes 94 minutes

Mid end PC+20 inch LCD+laptop+network gateway+modem+router 119W 36 minutes 46 minutes 66 minutes

Game PC+24 inch LCD+external active speaker+modem+router 240W 16 minutes 22 minutes 32 minutes

42 inch LCD TV+game console 335W 10 minutes 14 minutes 21 minutes

Note: The battery life varies depending on the device type, usage scenario, and power settings

(3) Physical and battery parameters

Parameter category specific specifications

Device color: Black

Equipment size (H × W × D) 10.47 × 3.9 × 14.5 inches

Equipment weight BR1000MS/BR1350MS: 22.48 lbs; BR1500MS：27.55 lbs

Shipping dimensions (H × W × D) 14.11 × 5.59 × 17.40 inches

Transport weight BR1000MS: 16.75 lbs; BR1350MS：17.63 lbs； BR1500MS：26.23 lbs

Battery type: Sealed lead-acid maintenance free battery

Replace battery model BR1000MS: APCRBC160; BR1350MS：APCRBC161； BR1500MS：APCRBC163
