TeSys ®  The GV2/GV3 series are specialized circuit breakers for electric motors launched by Schneider Electric, including two categories: domestic and imported. They cover two types: thermal magnetic (GV2-ME/PM, GV3-P/ME) and electromagnetic (GV2-LE/L, GV3-L), with a rated current range of 0.1-80 A, suitable for motor power up to 37 kW, rated insulation voltage up to 690 V, and breaking capacity of 3-100 kA. They comply with the IEC 60947 series standard and have overload, short circuit, and phase loss protection functions. They support screw/spring/ring terminal connections and can be matched with auxiliary contacts, undervoltage/shunt release, current limiter and other accessories. The highest protection level is IP65, and the working temperature is -20 ° C~+60 ° C. Widely used in circuit protection scenarios for various industrial motors.

Product Overview

(1) Product Classification and Core Positioning

Classification dimensions, specific types represent model core positioning

High cost-effectiveness of domestically produced GV2-ME and GV2-PM, meeting the basic motor protection needs

Imported GV2-P/LE, GV3-P/ME/L with full functional coverage, suitable for high-end industrial scenarios

Protection type: Thermally magnetic GV2-ME, GV3-P integrated overload+short circuit protection, no additional relay required

Electromagnetic GV2-LE and GV3-L only have short-circuit protection and need to be equipped with LRD/LR2-K thermal overload relays

The operation mode button controls the precise start and stop of GV2-ME and GV3-ME, suitable for frequent operation scenarios

Knob control GV2-PM, GV3-P gear adjustment is convenient, suitable for multi power motors

Joystick control GV2-RT suitable for starting high current motors (such as transformer coils)

(2) Summary of Key Technical Parameters

Parameter Type Range/Standard Remarks

Rated current (Ith) 0.1-80 A GV3-ME maximum 80 A

Rated voltage and rated insulation voltage (Ui): 690 V; Rated operating voltage (Ue): 230-690 V in accordance with IEC 60947-2 standard

Breaking capacity (Icu) 3-100 kA varies depending on the model, with a maximum of 100 kA at 400V

Suitable for motor power of 0.06-37 kW (400V AC-3 class) GV3-P65, suitable for 37 kW

Tripping characteristic overload: 1.5-10Ir (thermal magnetic type); Short circuit: 13In ± 20% (fixed) phase loss protection in accordance with IEC 60947-4-1

Environmental temperature working: -20 ° C~+60 ° C (open), -20 ° C~+40 ° C (closed); Storage: -40 ° C~+80 ° C temperature automatic compensation

Protection level: IP20 for the main body, IP41 (GV2-MC01), IP55 (GV2-MC02), IP65 (GV3-PC01) with cover, dustproof and waterproof, suitable for harsh environments

Mechanical/electrical lifespan: 30000 to 100000 cycles; Electrical: 30000 to 100000 cycles (AC-3 440V) Thermal magnetic type has a longer lifespan than electromagnetic type

Detailed explanation of core products

(1) Domestic series (GV2-ME/PM)

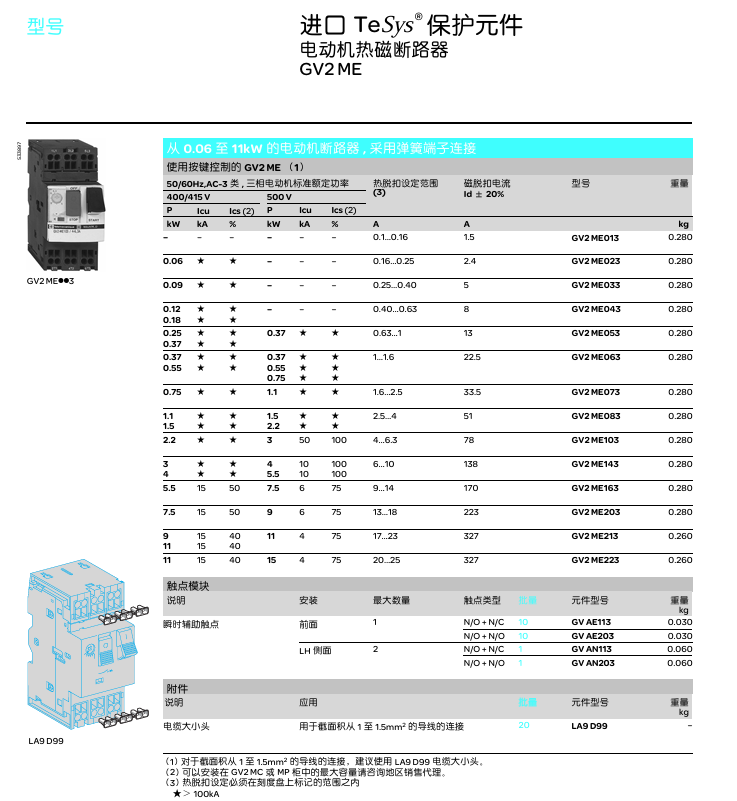

Core models: GV2-ME01C (0.1-0.16A) to GV2-ME32C (24-32A), GV2-PM01C to GV2-PM32C

Characteristics:

Hot trip setting range 0.1-32 A, magnetic trip current 1.5-416 A

Supports connecting 2 hard wires (1-6 mm ²) or soft wires (0.75-6 mm ²), with a tightening torque of 1.7 N · m

The phase sensitivity meets the IEC 60947-4-1 standard and is resistant to 5 gn of vibration

Can be paired with GV-AE (auxiliary contact), GV-AU (undervoltage trip), GV1-L3 (current limiter) accessories

(2) Key models of imported series

Series representative model, rated current, adaptive power (400V), core characteristics

GV2-P GV2-P32 24-32 A 15 kW rotary control, IP20， Spring terminal connection

GV2-RT GV2-RT21 17-23 A 11 kW joystick control, suitable for high starting current motors

GV3-P GV3-P65 48-65 A 37 kW EverLink ®  Screw connection, Icu=100 kA

GV3-ME GV3-ME80 56-80 A 37 kW button control, integrated auxiliary contact module

GV3-L GV3-L65 25-65 A 30 kW electromagnetic type, requires LRD3359 thermal overload relay

Attachment system

(1) Core Attachment Classification

Attachment type represents model, function, and compatible product

Auxiliary contact GV-AE11, GV-AN20 instantaneous signal output (N/O/N/C combination) full series

Remote control tripping of attachments GV-AU025 (under voltage) and GV-AS025 (shunt), GV-AX compatible with hazardous equipment GV2-ME/GV3-P

Protect attachments GV1-L3 and LA9-LB920 with current limiting protection, Ith=63 A GV2-ME/P

Connect accessories GV2-G454 (busbar) and GV1-G09 (terminal block) for multi circuit convergence, supporting 2-5 taps for the entire GV2/GV3 series

Operate attachments GV2-AP02 (padlock handle), GV3-AP01 cabinet door locking, IP54 protection GV2-P/L, GV3-P/L

Package attachments GV2-MC02 (IP55), GV3-PC02 (IP65) are dustproof and waterproof, suitable for outdoor scenes GV2-ME, GV3-P

(2) Key parameters of attachments

Auxiliary contact: agreed heating current of 2.5-6 A, mechanical life of 100000 times

Release attachments: Pull in voltage 0.7-1.1 Un (shunt), 0.35-0.7 Un (undervoltage)

Current limiter: threshold 1000-1500 A (non adjustable), compatible with wires 1.5-25 mm ²

Installation and adaptation

(1) Installation method

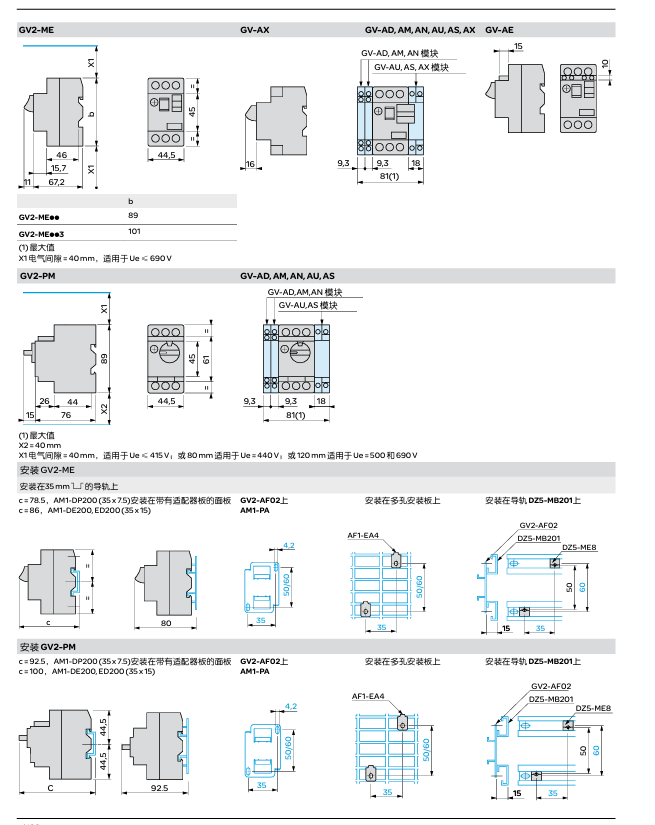

Installation type: 35mm DIN rail installation, panel installation (requires adapter GV2-AF02), modular combination (paired with LC1 series contactor)

Installation requirements:

Vertical installation does not reduce capacity, horizontal installation has a maximum ambient temperature of 40 ° C

Circuit breaker spacing ≥ 9 mm (imported GV3 series), electrical clearance ≥ 40 mm (Ue ≤ 690V)

Wire tightening torque: screw terminal 1.7 N · m, spring terminal 1.4 N · m

(2) Adaptation scenario

Motor type: three-phase asynchronous motor, transformer coil, starting high current motor

Application scenarios: General industrial equipment, hazardous machinery (requiring INRS release accessories), outdoor/humid environments (with IP55/65 packaging)

Matching plan:

Thermal magnetic type: directly used independently, integrated with full protection

Electromagnetic type: needs to be combined with LRD/LR2-K thermal overload relay to achieve overload+short circuit protection
