SIEMENS 5SY/5SP series miniature circuit breakers

The Siemens 5SY/5SP series miniature circuit breakers, 5SM/5SU/5SV series residual current and arc fault protection devices, 5TE/5TL/5TT series modular switches and control products, and NEB/HEB series molded case circuit breakers have four core product lines. The products have passed multiple standard certifications such as UL, IEC, CE, GB, etc., with a current coverage of 0.3A-125A and a breaking capacity of up to 50kA. They have the advantages of precise indication, finger touch safety, and tool free installation, and are suitable for multiple scenarios such as residential, industrial, and non residential buildings, providing a complete terminal distribution protection solution.

Core product classification and technical parameters

1. Miniature Circuit Breaker (5SY/5SP Series)

Product Model Core Type Rated Current Breaking Capacity Rated Voltage Tripping Curve Applicable Scenarios

5SY6 Standard Type 0.3A-80A 6KA 230/400V AC B/C/D General Building and Industrial Terminal Distribution

5SY4 high breaking type 0.3A-80A 10kA 230/400V AC B/C/D high short-circuit current environment

5SY7 ultra-high breaking type 0.3A-63A 15kA (up to 50kA) 230/400V AC C/D heavy-duty equipment, high-risk circuit

5SY5 DC type 0.3A-80A 10kA 220/440/880V DC B/C DC distribution system

5SP4 heavy-duty type 80A-125A 10kA 230/400V AC C/D high current load protection

5SY60 Compact 2A-40A 6KA 230V AC B/C Save Distribution Box Space Scene

2. Residual current and arc fault protection device

Product type Core model Remaining operating current Rated current Protection type Core function

Residual current protection circuit breaker 5SU1 10/30/300mA 6A-40A electromagnetic (A/AC type) integrated overload/short circuit/leakage protection

5SU9 10/30mA 6A-3A electronic (A/AC type) optional overvoltage protection, short delay anti misoperation

5SV9 30mA 6A-32A electronic (A/AC type) 1 module compact design

Residual current protection module 5SM2 30/300mA 0.3A-63A electromagnetic (A/AC type) for use with circuit breakers, supporting optional types

5SM9 10/30/100/300mA 0.3A-63A electronic (A/AC type) with overvoltage protection option

Residual current protection switch 5SV3 10/30/100/300/500mA 16A-80A electromagnetic (A/AC type) multi type (instantaneous/short delay/selective type)

5SV4 10/30/100/300/500mA 16A-80A electromagnetic (AC type) foundation instantaneous type, anti finger touch design

Arc fault protection device 5SM6- ≤ 16A AFD type detects arc faults and reduces fire risks

Residual current monitoring device 5SV8 0.03A-30A - A/AC type uninterrupted power supply, real-time monitoring and alarm

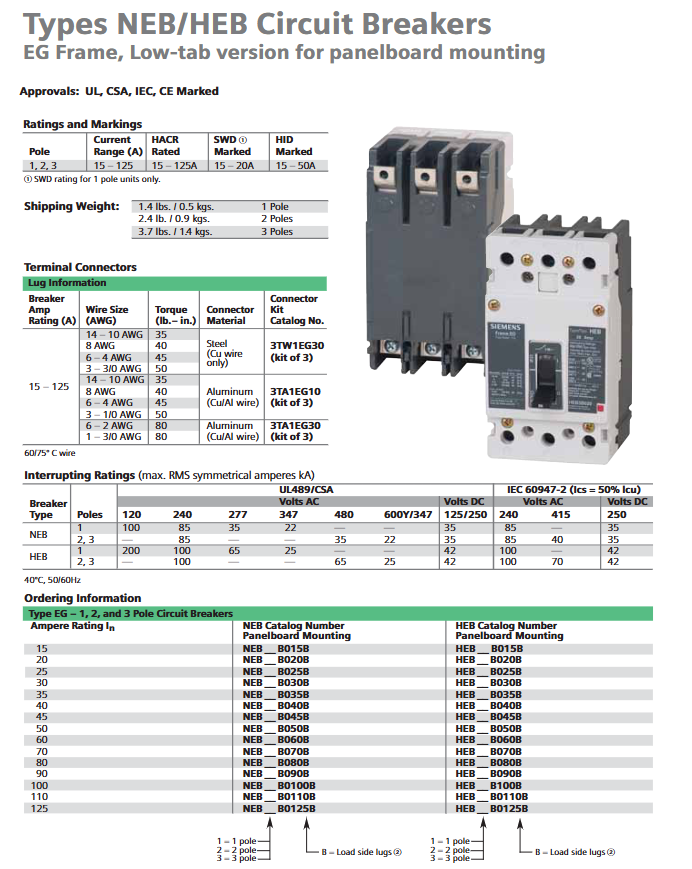

3. NEB/HEB series molded case circuit breakers

Product Model Pole Number Rated Current Breaking Capacity (UL489) Wiring Specification Certification Standard

NEB 1/2/3 pole 15A-125A 100kA (1 pole), 85kA (2/3 poles) 14-3/0 AWG (copper/aluminum wire) UL, CSA, IEC, CE

HEB 1/2/3 pole 15A-125A 200kA (1 pole), 100kA (2/3 pole) 14-3/0 AWG (copper/aluminum wire) UL, CSA, IEC, CE

Core advantages of the product

safety protection

The wiring terminal is designed to prevent finger contact, with overvoltage category III and pollution level 3, reducing the risk of electric shock.

The residual current protection device covers an operating current of 10mA-500mA, balancing personal safety and fire prevention.

Some products have a maximum surge current resistance of 3kA, while the NEB/HEB series can withstand high short-circuit currents.

Operation and Installation

The sliding buckle design realizes tool free disassembly and assembly, and the assembly of 5SY series accessories does not require additional tools.

The window design intuitively displays the on/off status (red=powered on, green=disconnected), and the ergonomic anti slip handle is easy to operate.

Up and down incoming lines are optional (DC type according to polarity), dual terminals support dual strand wiring, and busbars simplify wiring.

Adaptability and reliability

The pole number covers 1P-4P and 1P+N/3P+N, and the trip curve B/C/D type is suitable for different loads (lighting/motors/industrial equipment).

Storage temperature -40 ℃~+75 ℃, ambient temperature -25 ℃~+55 ℃, suitable for harsh environments.

The maximum mechanical lifespan is 20000 cycles, and the maximum electrical lifespan is 10000 cycles, ensuring long-term stable operation.

Application scenarios and authentication

Application field

Residential buildings: Overload/short circuit/leakage protection for lighting circuits, socket circuits, and air conditioning circuits.

Industrial field: equipment terminal protection, remote control, railway signal system, fan control.

Non residential buildings: Terminal power distribution isolation for shopping malls and office buildings, and infrastructure power distribution protection.

Special scenarios: DC systems (photovoltaic, energy storage), harsh environments (chemical, swimming pool), export equipment (UL certified models).

certification standard

International standards: UL 489, CSA C22.2, IEC 60898-1, IEC 60947-2, CE Marked.

Domestic standards: GB 10963.1, GB 14048.2, GB 16916, GB 16917, CCC, RoHS.

Key accessories and supporting products

Attachment Type Core Model Function

Remote tripping and voltage abnormality protection for trip dividers (ST), undervoltage (UR), overvoltage (OV)

Auxiliary/fault signal contact 5ST3 series circuit status indication and fault alarm

Remote control device 5ST3053-5ST3058, remote operation, automatic reclosing (ARD)

Busbar 5ST37 series simplifies wiring and supports 10/16mm ² wires

Locking devices 5ST3806 and 5ST3802 prevent misoperation and ensure maintenance safety

Surge protector 5SD74 for lightning protection and surge current protection

Small distribution box 8GB SIMBOX equipment installation carrier, saving space
