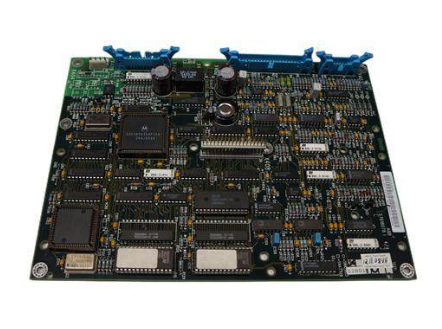

ABB SNAT603 CNT Control Board

ABB SNAT603 CNT Control Board

Product Overview

The ABB SNAT603 CNT Control Board is a critical control board used in the field of industrial automation, responsible for core control and data exchange in complex industrial control systems. It can accurately regulate various industrial equipment to ensure stable and efficient production processes. With advanced technology and reliable performance, it has become a powerful assistant for many industrial enterprises to achieve automated production, improve production efficiency and product quality.

Specification parameters

Power input: Supports 380-500V AC, three-phase, 50/60Hz power connection, suitable for common industrial power environments, ensuring stable power supply.

Power output: The transformer output voltage has adjustable function, and the maximum output current can reach 10A, providing sufficient and flexible power support for connected devices.

Size: The external dimensions of the product are 180mm x 150mm x 120mm. The compact design makes it easy to install in various control cabinets or equipment spaces, saving space while not affecting its powerful functionality.

Weight: Approximately 2.5kg, moderate weight facilitates handling and installation operations, while also ensuring the stability and reliability of the product's structural design.

Interface type: Equipped with threaded interface, the connection is stable and reliable, effectively preventing connection failure caused by vibration, looseness and other reasons, ensuring the stability of signal transmission and power supply.

Temperature range: The working temperature range is -25 ℃ to+55 ℃, with excellent environmental adaptability. It can operate stably in harsh industrial environments such as high and low temperatures, ensuring that the production process is not affected by environmental temperature fluctuations.

Protection level: reaching IP20 protection level, it can effectively prevent solid foreign objects larger than 12mm from entering, providing basic safety protection for internal precision electronic components and reducing the risk of malfunction caused by foreign object intrusion.

Shell material: The shell is made of aluminum alloy material, which has good heat dissipation performance and helps the control board dissipate heat quickly during operation, maintaining a stable working temperature; At the same time, aluminum alloy material also has certain strength and corrosion resistance, which improves the durability and service life of the product.

Functional Features

Precise control: With high-precision control capabilities, it can accurately control the operating parameters of various equipment, such as speed, position, pressure, etc., to ensure the stability of the production process and the consistency of product quality. For example, in the automobile manufacturing production line, the motion trajectory of the robotic arm can be precisely controlled to achieve precise assembly of components.

Data processing and transmission: It can quickly process data from various sensors and transmit the processed data to other devices or systems. At the same time, it can also receive instructions from the higher-level control system to achieve collaborative work between devices.

Multiple communication interfaces: Equipped with rich communication interfaces such as Ethernet interface, RS485 interface, CAN bus interface, etc., it can easily connect and communicate with other devices, achieving system integration and expansion.

High reliability: Using high-quality electronic components and advanced manufacturing processes, it has strong anti-interference ability and stability, and can operate stably for a long time in harsh industrial environments.

Application area

Industrial Robot Control: In the field of industrial robots, the SNAT603 CNT Control Board can serve as the core control board for robots, responsible for controlling joint movements, posture adjustments, etc., enabling them to complete various complex tasks such as welding, handling, assembly, etc. according to preset programs.

Industrial robot

Automated production line control: used for controlling automated production lines, it can coordinate and control various equipment on the production line, achieve automation of material conveying, processing, assembly and other processes, and improve production efficiency and product quality.

Elevator control system: In the elevator control system, SNAT603 CNT Control Board can achieve functions such as speed control, floor positioning, safety protection, etc., ensuring the safe and stable operation of the elevator.

lift

Process control: In the process control of industries such as chemical, power, and metallurgy, this control board can be used for precise control of process parameters such as temperature, pressure, and flow rate, ensuring the safety and efficiency of the production process.

Connection method with other devices

Connecting with sensors: Connect with temperature sensors, pressure sensors, displacement sensors, etc. through various input interfaces to obtain real-time operation status and environmental parameters of the equipment.

Connected to actuators: Connected to motors, solenoid valves, cylinders, and other actuators through output interfaces to control the action and operation of the equipment.

Connect with the upper computer: Connect with the upper computer (such as PLC, industrial control computer, etc.) through Ethernet or other communication interfaces, receive instructions and programs from the upper computer, and send equipment operation data and status information to the upper computer.

Working principle

Receiving instructions: Receive control instructions and programs from upper level computers (such as PLCs, industrial control computers, etc.) through communication interfaces, which contain information such as equipment operating parameters, action sequences, task requirements, etc.

Data processing: parsing and processing received instructions, while collecting data from connected sensors such as position sensors, speed sensors, pressure sensors, etc., analyzing and computing these data according to preset algorithms and logic to determine the current state of the device and the next control strategy.

Output control signal: Based on the results of data processing, generate corresponding control signals and send them to connected actuators such as motor drivers, solenoid valves, relays, etc. through output interfaces to control the actions of the actuators and achieve precise control of the equipment.

Feedback and adjustment: Real time monitoring of the operating status and feedback signals of the equipment, comparing the actual operating situation with the preset goals, and adjusting the control strategy and output signals in a timely manner if there is a deviation, to ensure that the equipment operates according to the predetermined trajectory and parameters, achieve closed-loop control, and improve control accuracy and stability.

Precautions

Installation environment: It should be installed in a dry, well ventilated environment without severe vibration and electromagnetic interference. Avoid installing in damp, dusty, high-temperature, or corrosive gas environments to prevent affecting the performance and service life of the control board. The installation location should be away from strong electromagnetic interference sources such as large motors and transformers. If unavoidable, effective shielding and grounding measures should be taken.

Power connection: When connecting the power supply, it is necessary to strictly follow the product specifications and correctly connect the appropriate power supply voltage and phase sequence. Check whether the power supply circuit is firm and reliable to prevent loosening, short circuits, and other situations. It is strictly prohibited to connect or disconnect the power supply while it is live, in order to avoid electric shock accidents or damage to the control board.

Operation and maintenance: Operators should receive professional training and be familiar with the operation methods and parameter settings of the control board. When adjusting parameters, caution should be exercised to avoid abnormal device operation caused by incorrect settings. Regularly clean and inspect the control board, remove dust and debris from the surface, check for loose interface connections, and inspect for signs of damage to components. If any abnormalities are found, the equipment should be shut down in a timely manner for handling, and it is strictly prohibited to operate the equipment with problems.

Software upgrade: If a software upgrade is required, the original configuration data should be backed up first to avoid data loss during the upgrade process. Download officially recognized upgrade software and follow the correct upgrade steps. During the upgrade process, ensure stable power supply to the equipment to avoid upgrade failure caused by power outages or other reasons, which may result in damage to the control board.

Similar model supplement

The SNAT603CNT series also includes other models, such as:

SNAT603CNT-40207041: Its rated current is 4A. Compared with SNAT603CNT-6100041, it has better applicability in some industrial equipment control scenarios with relatively small current requirements, which can effectively reduce costs while ensuring stable operation of the equipment. Suitable for small motor drive control, partial sensor power supply and control scenarios.

SNAT603CNT-80407041: With a rated current of 8A, it can provide stronger power support for equipment with high electricity demand. In the control system of large mechanical equipment, such as joint drive of large industrial robots and speed control of high-power motors, the advantages of high current output can be fully utilized to ensure stable operation of the equipment under high load and high requirements.
