ABB UNITROL ® 6080 excitation system

ABB UNITROL ®  6080 excitation system

Product overview

UNITROL ®  6080 is an automatic voltage regulator (AVR) and static excitation system (SES) launched by ABB, suitable for small and medium-sized power applications. The system adopts mature prefabricated functional modules, supports single channel/dual channel configuration (with the option to add backup channels as needed) and multiple thyristor bridge module options, which can meet different on-site data and availability requirements and comply with international and local standards. All systems undergo 100% functional testing before leaving the factory.

Core Configuration and Design

Channel design: Up to three control/inverter channels can be constructed, including two full function channels and one backup channel for emergency generator control. Each channel can handle the maximum excitation current and has diagnostic, maintenance, and transient recorder functions.

Hardware foundation: Based on the AC 800PEC high-performance processor family, integrated into the UC D240 control, communication, and measurement board (CCM), it has high-speed processing capabilities and can achieve fast analog and digital process I/O, closed-loop control, and other functions.

Power Converter: Each channel's power converter is selected based on the maximum excitation current and voltage requirements, providing various thyristor power converters such as D1 to D5, UNL 13300, etc. It supports single/three-phase AC power supply, has a wide rated frequency range, and can meet high availability requirements through redundant channels and online maintenance (optional).

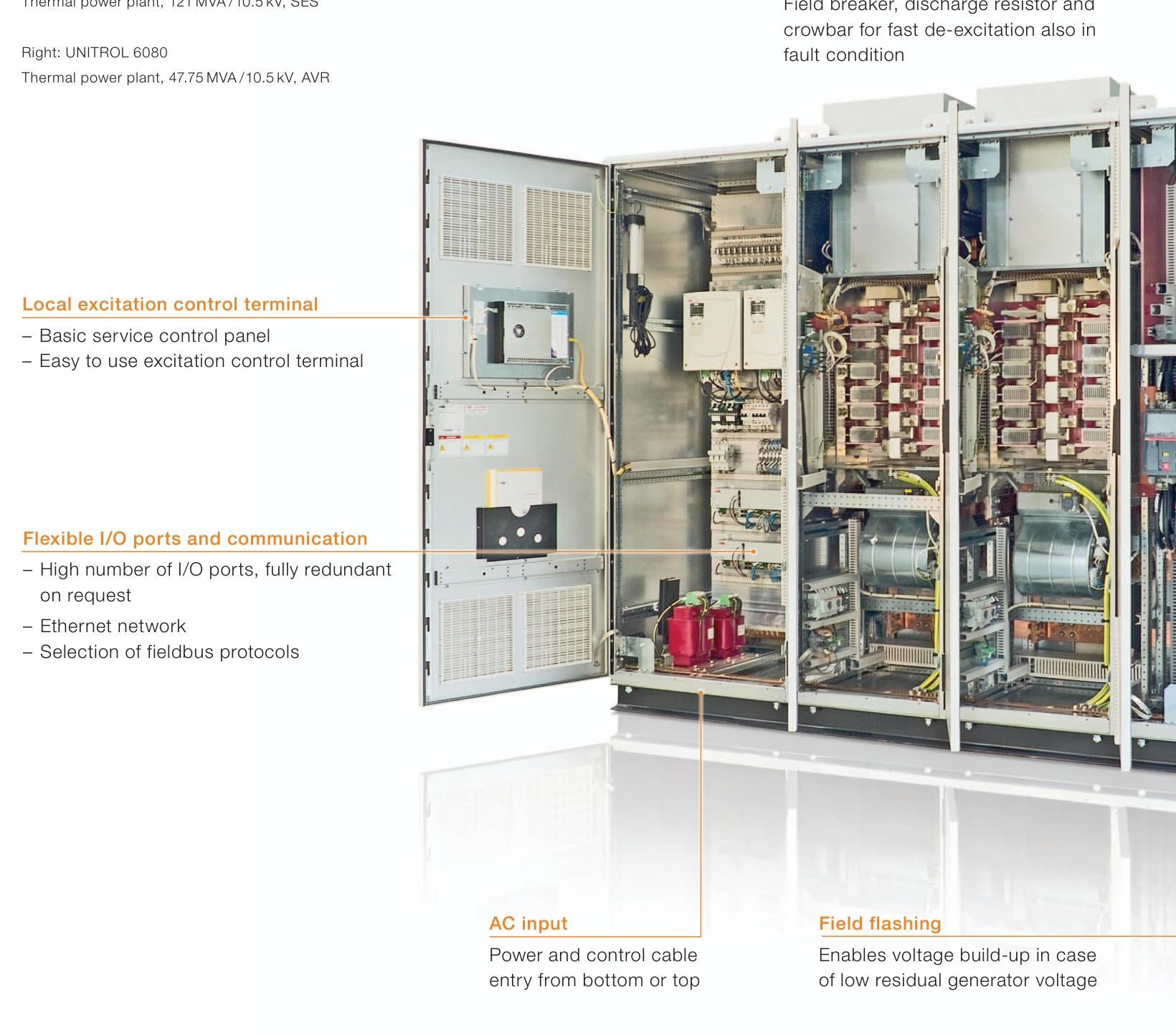

Structural features: Adopting a compact design, saving installation space, no need for rear access, can be placed close to walls or back-to-back; The cabinet protection level standard reaches IP52, and IP54 can be provided as needed; The cooling methods include natural or forced air cooling, with the air inlet at the front and the outlet at the front or top.

Main functions and features

Control function: The standard firmware includes the necessary regulation, protection, and monitoring functions for safe operation, which can be adapted to specific needs by expanding I/O signals or adding optional software functions, including voltage regulators, excitation current regulators, various compensation and limiting circuits, etc.

Protection and Monitoring: The monitoring and protection functions can be freely configured at three different action levels, including alarm only, redundant circuit switching, instantaneous excitation tripping, etc., with multiple functions such as overcurrent protection and volt/hertz protection.

Data recording: The internal event recorder can process and store up to 2000 events, each with a timestamp; The data logger includes a pre configured section and a freely configurable section, and the recorded data can be displayed and analyzed through the excitation control terminal software.

Time synchronization: The system clock of all controllers can be synchronized with the time source through SNTP, with an accuracy of better than 1ms. The time signal can come from internal or external sources, and GPS and other signals can also be received through an optional receiver.

Communication function: Equipped with a user-friendly excitation control terminal (ECT), supporting Ethernet and multiple fieldbus protocols, capable of communicating with power plant control systems, and supporting remote service and troubleshooting.

Advantages and Value

Excellent performance: 64 bit floating-point CPU ensures no data scaling or range limitations, enabling fast and accurate measurement and control; The integrated power system stabilizer (PSS) option helps optimize grid stability.

Easy to operate: With a user-friendly interface, it is convenient for system operation, monitoring, and maintenance; Convenient debugging, parameter setting, and other functions can be achieved through the excitation control terminal (ECT).

High flexibility: It can be customized according to individual operation and environmental conditions, supporting multiple redundant configurations, including optional redundancies in control, power module, cooling, etc. The software can be programmed based on IEC 61131 standard through ABB Control Builder M, fully compatible with ABB's Extended Automation System 800xA.

Efficiency and Guarantee: Adopting mature prefabricated functional modules to shorten delivery time; Equipped with offline tuning function, the system can be tuned and tested through a closed-loop real-time generator simulator; Provide efficient product lifecycle management to extend asset lifespan at the lowest cost, with technical support from ABB's global excitation service network.

Application scenarios

Suitable for various scenarios, including pumped storage power plants, nuclear power plants, magnetic pole transformation of dual speed motors, online power conversion, electric braking and other engineering solutions.

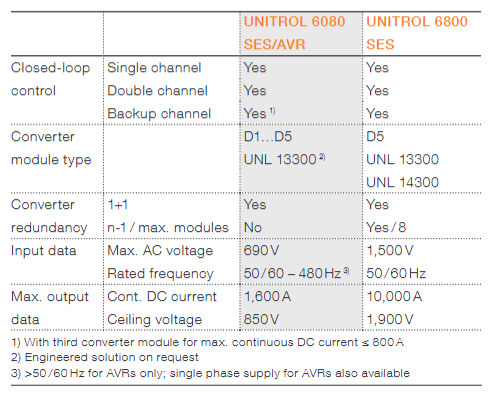

Technical parameter comparison (with UNITOL 6800 SES)

Parameters: UNITOL 6080 SES/AVR/UNITROL 6800 SES

Closed loop control: supports single channel, dual channel, and backup channel (requires a third inverter module, maximum continuous DC current ≤ 800A)/supports single channel, dual channel, and backup channel

Converter module types: D1... D5, UNL 13300 (customized engineering solution as needed)/D5, UNL 13300, UNL 14300

Converter redundancy: 1+1/1+1, n-1/up to 8 modules

Maximum input AC voltage: 690V/1500V

Rated frequency: 50/60-480Hz (only AVR supports>50/60Hz, AVR also supports single-phase power supply)/50/60Hz

Maximum output continuous DC current: 1600A/10000A

Top voltage: 850V/1900V

Service and Support

Installation and commissioning: Services provided by ABB engineers with professional competence, extensive experience, and multilingual abilities.

Training: ABB University offers standard and customized training courses, as well as on-site training.

Lifecycle management: Through a lifecycle management model, we help customers extend the asset lifecycle at the lowest cost, providing various services such as technical support, remote services, maintenance and repair, and expansion upgrades.

Software tool

ECT software: can be loaded on the excitation control terminal or installed on a Windows system PC for system debugging, operation, monitoring, and maintenance. It has built-in multilingual user documentation for easy troubleshooting.

Control Builder M: Compliant with IEC 61131 standard, used for managing and customizing AC 800PEC application software, is part of ABB Extended Automation System 800xA and can run on Windows PC.
