Product core positioning

WEB-HMI10/CF is a 10.1-inch HTML5 web human-machine interface (HMI) product under Honeywell's CentraLine series, featuring industrial grade high reliability and advanced connectivity, suitable for building automation, infrastructure automation, and OEM scenarios. It can provide a cost-effective solution for HMI applications in factories and building automation, with a design life of over 10 years.

Key hardware and display configuration

1. Display and Touch Control

Screen specifications: 10.1-inch TFT color display screen, 16:10 ratio, resolution 1280 × 800 (WXGA), supports 16 million colors, typical brightness value of 500 Cd/m ², and can achieve 0% dimming (LED backlight).

Touch technology: Pure glass projected capacitive touch screen, supporting multi touch, with scratch resistance, UV resistance, and chemical corrosion resistance, smooth and durable operation.

2. Core performance

Processor: i.MX8M Mini quad core ARM Cortex-A53, ensuring smooth operation.

Storage and Memory: 2GB RAM+4GB Flash, meeting the program running and data storage requirements in industrial scenarios.

Additional features: Equipped with real-time clock (RTC) and backup battery (non replaceable by the user), buzzer, to enhance user convenience.

3. Interface configuration

Quantity and specification description of interface types

Three Ethernet ports (ports 0:10/100/1000Mb; ports 1-2:10/100Mb) support high-speed network connections and meet the communication needs of multiple devices

Two USB ports (USB 2.0 host mode, maximum 500mA) can be used to connect external devices such as mice, USB drives, etc

0 serial ports are not supported for serial connection

0 SD card slots do not support SD card expansion

Expansion slot 0 without plugin module extension function

Environment and installation parameters

1. Environmental adaptability

Working temperature: -20 ° C~+60 ° C (vertical installation), if connected to a USB device, the maximum temperature limit is+50 ° C.

Storage temperature: -20 ° C~+70 ° C.

Humidity: 5%~85% RH (non condensing), suitable for various humidity environments.

Protection level: IP66 on the front (dustproof and waterproof), IP20 on the back (dustproof), suitable for installation in industrial control cabinets.

2. Size and weight

Panel size (length x height): 282mm x 197mm (11.10 inches x 7.76 inches).

Hole size (length x height): 271mm x 186mm (10.67 inches x 7.32 inches), suitable for standard control cabinet openings.

Depth: 52mm (main body)+8-8.5mm (protruding part), total depth 2.05 inches+0.31-0.33 inches.

Weight: 2.5kg, strong installation stability.

Software and Security Features

Operating System: Based on Linux system, ensuring system stability and security.

Browser: Equipped with modern HTML5 Chromium browser, it can access CentraLine WebServer or ARENA NX applications, supporting web-based control and data viewing.

Network security: With a high level of network security, it can prevent unauthorized access and protect device and data security.

Certification and Compliance

CE certification: Compliant with EN 61000-6-4 (radiation) and EN 61000-6-2 (immunity) standards, suitable for installation in industrial environments.

UL certification: Complies with UL 61010-1 (3rd edition) and UL 61010-2-201 (1st edition) standards, and meets international safety regulations.

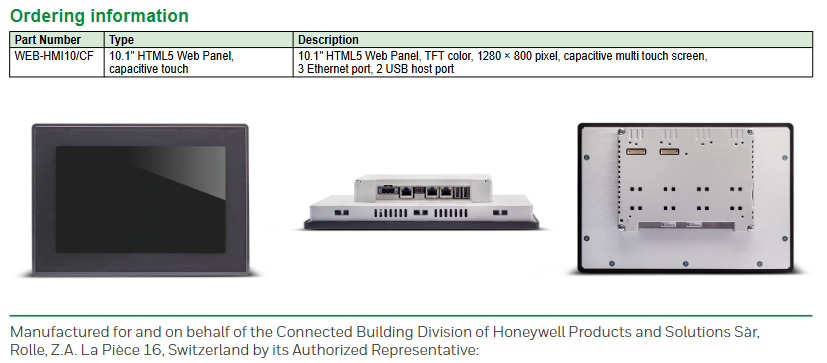

Order Information

WEB-HMI10/CF 10.1-inch HTML5 web panel (capacitive touch) 10.1-inch TFT color screen (1280 × 800 pixels), capacitive multi touch, 3 Ethernet ports, 2 USB host ports
