Eaton XV-440-10TVB-1-20 Human Machine Interface (HMI)

Eaton XV-440-10TVB-1-20 Human Machine Interface (HMI)

Core positioning and basic information of the product

Eaton XV-440-10TVB-1-20 (catalog number 139906) is a 10.4-inch human-machine interface (HMI-PLC) with integrated PLC functionality in the Eaton XV400 series, positioned as an "operation control+data interaction" terminal in industrial automation scenarios. It combines visual monitoring and logical control capabilities, and can directly communicate with on-site devices such as sensors, drivers, and PLCs to achieve equipment status display, parameter settings, fault alarms, and simple logical control. It is suitable for manufacturing production lines, mechanical equipment control, process automation, and other scenarios.

This product should pay attention to the * * "Non New Application Recommendation" * * label, which is more suitable for upgrading or replacing existing systems, rather than the preferred model for brand new projects.

‍

Core hardware and display specifications

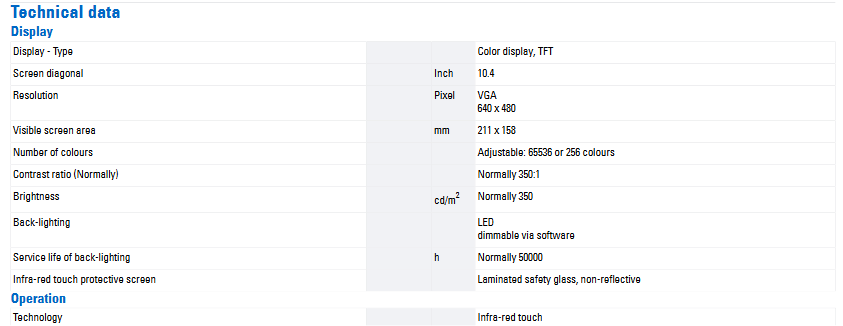

（1） Display and Touch Configuration

Category specific parameter description

Display screen type: 10.4-inch TFT color LCD screen with a diagonal of 10.4 inches, supporting portrait installation, suitable for different control cabinet layouts

VGA resolution (640 × 480 pixels) meets the clear display requirements of equipment status, parameters, and curves in industrial scenes

Color and contrast can be adjusted to 65536 or 256 colors, with a contrast ratio of 350:1 for high color richness. The 350:1 contrast ratio ensures visibility in strong light or industrial environments

Brightness and backlight of 350 cd/m ², moderate brightness of LED backlight (software adjustable), LED backlight lifespan of up to 50000 hours, reducing maintenance costs in the later stage

Touch technology infrared (IR) touch, coupled with anti reflective laminated safety glass, has sensitive touch response. The anti reflective glass is suitable for strong light environments in the workshop, and the safety glass enhances impact resistance

（2） Core hardware parameters

Category specific parameter description

32-bit RISC CPU with a main frequency of 400 MHz ensures smooth switching of HMI interface and efficient operation of PLC logic

Memory Configuration - Internal DRAM: 64 MB (for operating system, programs, and data)

-Flash storage: approximately 1.5 MB (data backup)

-NVRAM: Approximately 32 KB (critical data is retained during power outages). The memory combination balances running speed and data security, and NVRAM ensures that parameters are not lost after power outages

External storage requires 2 CompactFlash (CF) card slots (supporting Type I/II) to be used in conjunction with CF cards for installing operating systems, storing applications, and historical data

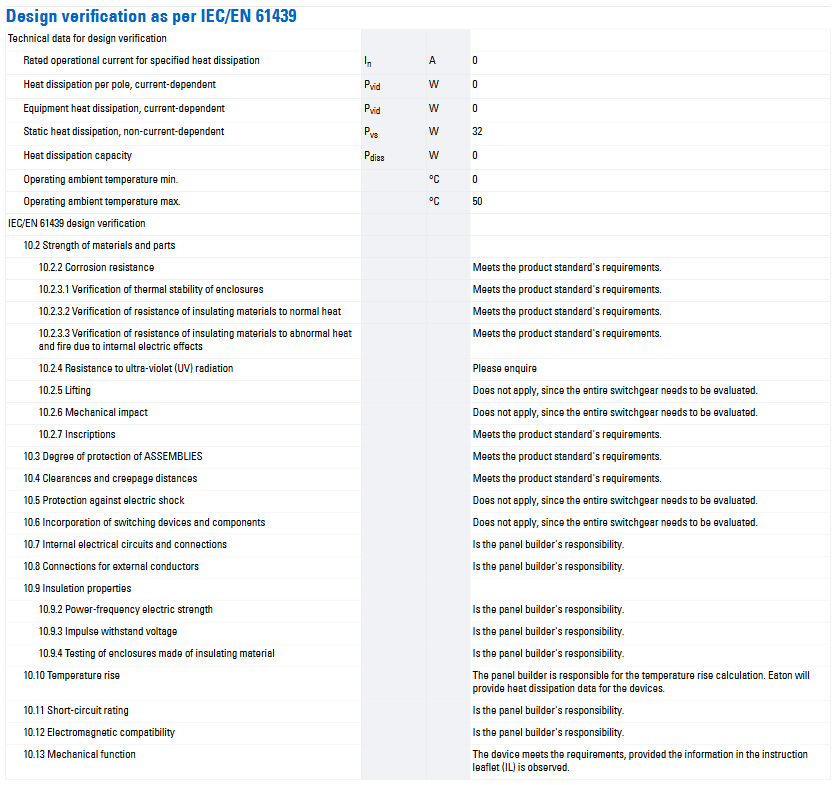

Heat dissipation and power consumption - Power consumption: rated 14 W, maximum 32 W

-Heat dissipation: 32 W (control cabinet heat dissipation design needs to be considered) Low power design, but if communication modules or USB devices are installed, additional heat dissipation space needs to be reserved

Physical specifications - Weight: 4.1 kg

-Protection level: IP65 on the front (dustproof and waterproof), IP20 on the back (to be installed inside the control cabinet)

-Installation method: flush mounting, front four hole fixed IP65 front protection suitable for industrial dust and oil environments, embedded installation saves control cabinet space

Communication interface and protocol support

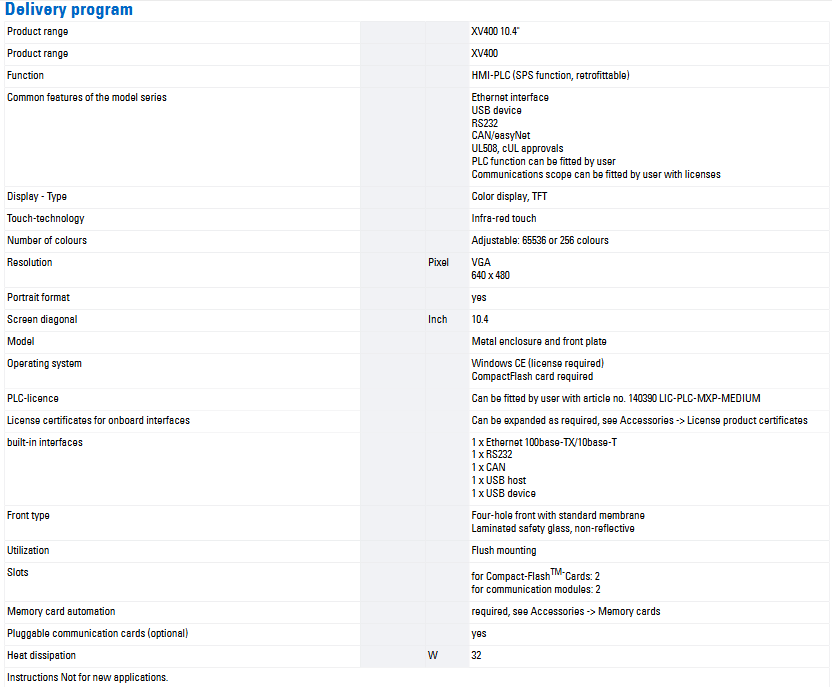

（1） Built in interface (standard)

Number and specifications of interface types, functional purposes

One 100Base TX/10Base-T Ethernet interface is used to connect to an upper computer (such as a computer), PLC, or industrial Ethernet network for remote data transmission and monitoring

RS-232 1 (9-pin SUB-D plug, non isolated) connected to serial devices (such as printers, barcode scanners, old-fashioned PLCs)

One CAN bus (9-pin SUB-D plug, globally isolated) supports CAN/EasyNet protocol and connects CAN bus devices (such as drivers and sensors). The isolation design enhances anti-interference performance

USB -1 USB 2.0 host interface (non isolated)

-One USB 1.1 device interface (non isolated) host interface can be connected to a USB flash drive (data export), mouse/keyboard (auxiliary operation); The device interface is used for communication with a computer (program download)

Expansion slots with 2 communication module slots (optional plugins) can be equipped with dedicated communication modules such as PROFIBUS and DeviceNet according to needs, expanding compatibility

（2） Supported industrial protocols

This product supports multiple mainstream industrial protocols through hardware interfaces and software configurations, ensuring compatibility with devices of different brands. The core protocols include:

Ethernet protocols: TCP/IP, EtherNet/IP

Bus protocols: CAN, PROFIBUS, DeviceNet, KNX, MODBUS

Serial protocol: Standard serial protocol corresponding to RS-232 (such as ASCII, RTU)

Note: Some agreements require the installation of communication modules or the purchase of corresponding software licenses.

Software and Function Configuration

（1） Operating System and Programming Software

Category specific requirements description

The operating system Windows CE requires installation through a CF card and a separate Windows CE license must be purchased

The HMI visualization software GALILEO EPAM is used to design HMI interfaces (such as device status screens, parameter settings windows, alarm pages), supporting graphical drag and drop operations

The PLC programming software XSOFT-CODESYS-2 or XSOFT-CODESSYS-3 complies with the IEC 61131-3 standard and supports five programming languages, including ladder diagram (LD) and functional block diagram (FBD), for writing PLC logic control programs

PLC function activation requires the purchase of a license (model: 140390 LIC-PLC-MXP-MEDIUM). The standard configuration does not include PLC function, and users need to purchase and install a separate license before activating the logic control

（2） Core functions

HMI visualization function:

Support switching between 100 online languages and adapt to multilingual workshop environments;

200 level password permission management to prevent unauthorized personnel from modifying key parameters;

Equipped with a messaging system (including buffer and confirmation functions), it can display real-time device fault alarms;

Supports recipe management, historical data recording, and printer output (requires USB printer connection).

PLC control function (activated):

Support 79 × 59 logical channels, which can achieve simple logic control (such as device start stop, interlock protection);

Compatible with CODESYS programming environment, the program can be downloaded to the device via USB or Ethernet.

Environmental adaptability and compliance certification

（1） Environmental parameters

Category specification description

The working temperature is between 0 ° C and 50 ° C, and it is necessary to ensure that the temperature inside the control cabinet does not exceed 50 ° C to avoid equipment failure caused by high temperature

Storage/transportation temperature -20 ° C~60 ° C meets the temperature requirements of industrial logistics and warehouse storage

Relative humidity of 10%~95% (non condensing) is suitable for humid workshop environments (such as food processing and chemical industry), but direct contact with condensed water should be avoided

Anti interference and protection - Mechanical shock: compliant with IEC 60068-2-27 standard

-Vibration: Complies with IEC 60068-2-6 standard

-EMC electromagnetic compatibility: EN 61000-6-2/3/4 anti impact and vibration design enhances equipment durability, EMC compliance ensures stable operation in industrial strong electromagnetic environments

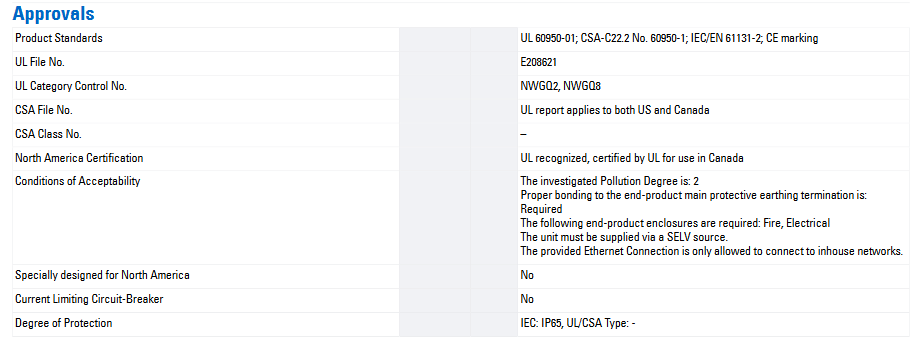

（2） Compliance certification

Safety certifications: UL 508, cUL (North American market), IEC/EN 61131-2, EN 60950 (electrical safety);

Explosion proof certification: ATEX 94/9/EC II 3D Ex II T70 ° C IP5x (applicable to Zone 22 area, dust explosion-proof);

CE certification: Complies with EMC and low voltage directives, and can be sold in the EU market.

Accessories and ordering information

（1） Essential accessories

Accessory type, model/specification, and purpose

CompactFlash (CF) card Type I/II (capacity needs to meet operating system and program requirements) for installing Windows CE system, storing HMI projects and PLC programs

PLC license 140390 LIC-PLC-MXP-MEDIUM activates the PLC control function of the device

Power supply 24 V DC SELV (safe extra low voltage), voltage range 20.4-28.8 V DC, requires a separate industrial power supply that meets specifications to ensure stable power supply to the equipment

（2） Optional accessories

Accessory type, model/specification, and purpose

The communication module is compatible with the XV400 series PROFIBUS/DeviceNet module expansion bus interface, connecting more types of field devices

Ethernet cable (100Base TX), RS-232 cable, CAN bus cable, communication connection between equipment

Install the attachment with four hole fixing screws and embedded mounting brackets to assist in the fixed installation of equipment

（3） Product Model Interpretation

Taking "XV-440-10TVB-1-20" as an example, the key parameter meanings are:

10 ": 10.4-inch display screen;

TVB: Touch type (infrared touch)+interface configuration (including CAN and Ethernet);

1-20 ": Hardware version and compliance label.
