Product overview

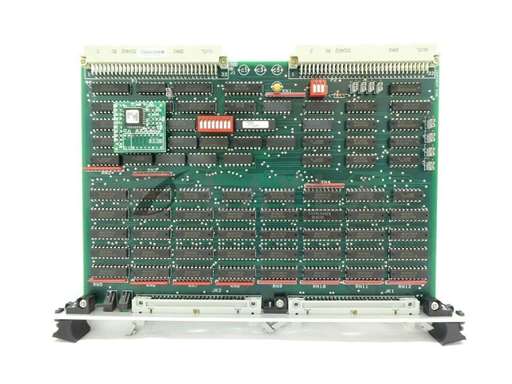

As a VME digital counter input/output module board, Xycom XVME-203 is mainly aimed at industrial application scenarios that require high-precision counting and diversified input/output control. Accurate counting and efficient control signal transmission are crucial in complex industrial automation production lines, precision machinery manufacturing, and other environments, and XVME-203 was born for this purpose. For example, in the automated production line of automotive parts manufacturing, it is necessary to accurately count the number of processing times of the parts to ensure consistency in product quality, while also controlling the start and stop of various equipment according to the production process. XVME-203 can well meet these requirements.

Characteristic

High counting accuracy: It can achieve high-precision counting function and meet various industrial application scenarios that require high counting accuracy, such as accurate counting of product quantities in automated production lines or accurate counting of the number of movements of moving parts in mechanical equipment.

Multiple counting modes: Supports multiple counting modes, such as increasing counting, decreasing counting, bidirectional counting, etc. Users can flexibly choose the appropriate counting mode according to specific application requirements to adapt to different workflows and control requirements.

High speed data processing: With high-speed data processing capabilities, it can quickly respond to changes in input signals and output counting results in a timely manner, ensuring accurate counting and data transmission even in high-speed operating systems. It is suitable for some high-speed motion control or high-frequency signal processing applications.

Rich I/O interfaces: Provides a wide range of input/output interfaces, not only for connecting input signals to counters, but also for communicating and interacting with other devices such as PLCs, industrial computers, etc., facilitating system integration and expansion, and flexibly connecting and collaborating with various industrial automation equipment.

High reliability: Adopting industrial grade design and manufacturing processes, it has strong anti-interference ability and stability, and can operate stably for a long time in harsh industrial environments, reducing system failures and downtime, improving production efficiency and equipment reliability.

Application area

Industrial automation: In industrial automation production lines, it can be used to count products on the production line, monitor and control the operating status of equipment, etc. For example, on a food and beverage production line, the number of filled bottles is counted, and when the set quantity is reached, the packaging equipment is controlled to proceed to the next step of operation.

Mechanical equipment manufacturing: used for motion control and monitoring of mechanical equipment, such as counting and controlling the number of machining times of machine tools, the number of running times of conveyor belts, etc., to achieve precise operation and maintenance management of equipment, ensuring the normal operation and service life of mechanical equipment.

Energy management: In the energy management system, data from measuring devices such as electricity meters, water meters, and gas meters can be collected and processed to achieve accurate measurement and monitoring of energy consumption, helping enterprises to manage energy and control costs, and improve energy utilization efficiency.

Transportation: In the field of transportation, it can be used to calculate and monitor the mileage and number of stops of vehicles, providing data support for vehicle scheduling, maintenance management, etc. It can also be used for traffic flow statistics, providing a basis for traffic planning and management.

Intelligent building: In the intelligent building system, it can be used to count and manage the number of elevator operations, card swiping times of access control systems, etc., to achieve intelligent monitoring and management of equipment inside the building, and improve the safety and comfort of the building.

Working principle

Counting principle: The counting function is achieved by detecting the edges of the input signal. When the input signal undergoes a rising or falling edge change, the value of the counter will increase or decrease according to the set counting mode.

Signal processing: The input signal is first filtered and shaped to remove noise and interference signals, ensuring the stability and accuracy of the signal. Then, the processed signal is counted by a counting circuit and the counting result is stored in an internal register.

Data output: The counting results can be output to external devices such as PLC, industrial computer, etc. through VME bus or other communication interfaces. External devices can perform corresponding processing and control based on the received counting results, achieving automated control and monitoring of the system.

Technical Parameter

Counting range: It usually has a wide counting range, ranging from 0 to millions or even higher counting values, to meet the counting needs of different application scenarios.

Input signal types: Supports multiple input signal types, such as TTL level signals, differential signals, etc., and can adapt to different types of sensors and signal sources.

Output signal types: There are also various types of output signals, such as TTL level signals, relay output signals, etc., which can be easily connected and controlled with other devices.

Working voltage: Standard industrial power supply voltages such as+5V,+12V, etc. are generally used to ensure power compatibility with other industrial equipment.

Communication interface: Equipped with VME bus interface, it may also support other communication interfaces such as RS232, RS485, Ethernet, etc. to meet different communication requirements.
