YOKOGAWA CENTUM CS 3000 Integrated Production Control System

From: | Author:Wang | Time :2026-03-31 | 331 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:


YOKOGAWA CENTUM CS 3000 Integrated Production Control System

Technical Overview Manual for Yokogawa Electric's CENTUM CS 3000 Integrated Production Control System and Supporting ProSafe-RS Safety Instrumented System, covering system architecture, hardware configuration, control functions, operation monitoring, engineering maintenance, and safety compliance; Supporting control of large-scale factories in multiple industries such as petroleum, chemical, and pharmaceutical, it can connect up to 256 sites and monitor 1 million tags. It has a V net/Ethernet dual network architecture, dual redundancy design, and SIL3 safety certification, integrating conventional control, advanced control, batch management, and other functions. At the same time, it provides open interfaces and multi system compatibility, providing efficient, safe, and flexible solutions for the full lifecycle operation of factories.


System core architecture and hardware configuration

1. Hardware composition and classification

Key types/functions of core devices at the hardware level

Operation monitoring layer human-machine interface station (HIS) console type (closed/open display), desktop type; Support multiple displays and touch operation

Engineering PC (ENG) system configuration, maintenance and management; Can share one PC with HIS

Control layer field control station (FCS) FIO type (Fieldnetwork I/O), RIO type (Remote I/O), compact type; Support dual redundancy

Safety Control Station (SCS) ProSafe RS core equipment; Single configuration up to SIL3, dual redundancy improves availability

Network layer V net 10Mbps real-time control bus; Dual redundancy, maximum expansion of 20km

Ethernet connects HIS, ENG and upper computer; Used for data file transfer and database synchronization

Fieldbus supports FOUNDATION Fieldbus; Replacing 4-20mA analog signals to achieve bidirectional communication between devices

Expansion Device Bus Converter (BCV) connects different domains or old Yokogawa systems (such as CENTUM-XL)

Communication Gateway (CGW) connects V net and Ethernet; Support remote wide area communication

I/O module FIO (compact), RIO (screw terminal); Including analog/digital/communication modules

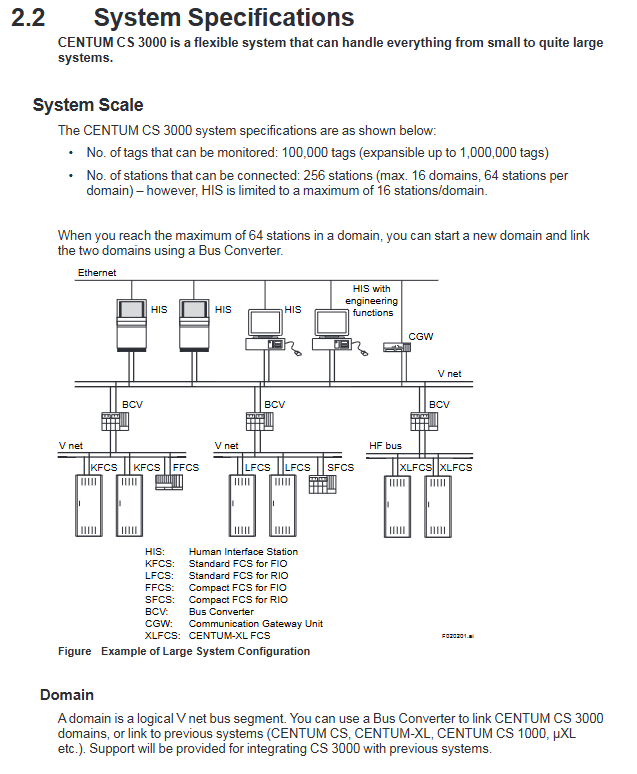

2. System scale and redundancy design

Upper limit of system size:

Number of domains: up to 16, each domain supports 64 sites (HIS up to 16/domain)

Monitoring tags: basic 100000 points, expandable to 1 million points

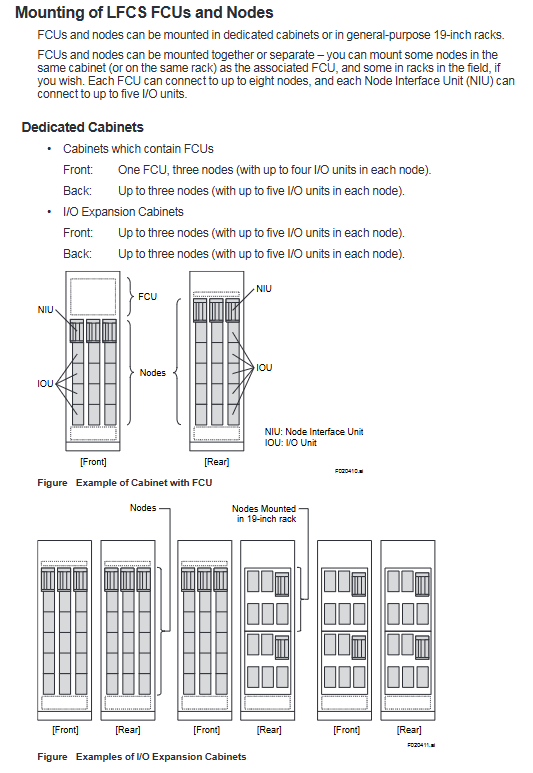

FCS Expansion: A single FCS can connect up to 9 I/O nodes and support long-distance expansion (RIO up to 20km)

Redundant design:

Core redundancy: CPU, power module, V net/Ethernet bus, ESB/ER bus dual redundancy

Fault switching: active/standby mode, switching without control interruption

Data protection: ECC (Error Correction Code) memory to prevent data damage

Core functional characteristics

1. Control function

(1) Conventional control functions

Adjustment control: Supports PID, PI-HLD sampling control, ON/OFF control, etc., providing self-tuning function

Sequential control: Implement process control through sequence tables, logic diagrams, SFC (Sequential Function Diagram), and SEBOL language

Computational functions: arithmetic operations, analog processing (filtering, integration), logical operations, general computing blocks

Unit management: Control equipment groups (such as reactors and furnaces) as units to support batch production processes

(2) Advanced control functions

Advanced Control Station (APCS): PC based advanced process control to optimize production efficiency

Batch Management (CS Batch 3000): Compliant with ISA S88 standard, supports multi product and variable batch production

Process Resource Management (PRM): Equipment status monitoring, maintenance plan development, and fault warning

ProSafe RS safety control:

Safety functions: Emergency Shutdown (ESD), Interlock Control, Fire and Gas Protection (F&G)

Safety level: SIL3 certification (IEC 61508), PFD (probability of failure when required) ≥ 10 ⁻⁴ to<10 ⁻³

Independent design: physically/logically separated from the control system, while sharing the operating environment

2. Operation and monitoring functions

(1) Windows and Visualization

Multi window operation: Supports full screen/multi window mode, displaying up to 5 operation monitoring windows simultaneously

Dynamic window group: can register commonly used window combinations and be called with one click; Support Panel Set cross HIS display

Navigation function: Navigator window (similar to Windows Explorer), quickly locate devices/tags

Data display

Graphic Window: Device Process Diagram, Dashboard (Full/Half Size), Overview Objects

Trend window: up to 8 color tracks, supporting short-term (48 minutes) and long-term (20 days) data

Alarm processing: 5-level priority alarm, supporting alarm filtering, historical query, and voice prompt

(2) Auxiliary functions

Multi monitor support: Connect 2 monitors to a single PC and set full screen/multi window modes separately

Remote operation: Windows Remote Desktop, Web Monitoring (HTML/Java Applet), VTSPortal portal

Data export: supports Excel report generation, historical data archiving, and external recorder output


3. Engineering and maintenance functions

(1) Engineering configuration

Concurrent Engineering: Multiple engineers share databases over the network for parallel development

Virtual testing: No need for FCS hardware, simulate control logic and processes on PC

Data Reuse: Engineering data can be reused across projects/sites, supporting standard templates

Automatic document generation: Automatically output system configuration reports, label lists, and graphical window documents

(2) Maintenance and Diagnosis

Equipment management: PRM tool provides equipment navigation, maintenance plan, and fault location

Remote maintenance: Connect to Yokogawa server through public network to achieve remote diagnosis

Troubleshooting: System alarm window, FCS/SCS status display, error logs (up to 20 entries)

Online maintenance: supports online modification of control logic without affecting the operation of other functions

4. Communication and compatibility

Open interface:

OPC DA/A&E: Supports upper computer (ERP/MES) access to process data and alarms

Web service: Monitor graphics/trend windows through a browser

Third party compatibility: Supports Modbus, PROFIBUS-DPV1, FOUNDATION Fieldbus

System integration

Connected to Yokogawa's old systems such as CENTUM CS, CENTUM-XL, μ XL, etc. via BCV/CGW

With third-party devices: PLC (OMRON, Siemens, Rockwell), analyzer, ITV camera

Data transmission: supports cross domain communication (up to 8 levels), long-distance expansion (fiber/bus repeaters)


Key technical parameters

1. FCS Core Performance

Performance index specification range

I/O point count FIO type: up to 5120 points; RIO type: supports remote distributed deployment

Scan cycle Basic control cycle: minimum 10ms; Advanced control: configurable

Maximum program capacity of 250K steps (by model)

Data memory DM area 32K words+EM area 32K words x 13 (maximum 448K words)

The communication port is equipped with RS-232C and peripheral ports; Expandable to 36 serial ports

2. Network parameters

V net: 10Mbps speed, dual redundancy, maximum transmission distance 185m (YCB141 cable)/500m (YCB111 cable), expandable to 20km through repeaters

Ethernet: Supports 10BASE-T/100BASE-TX for HIS upper computer data transmission and file sharing

Fieldbus:FOUNDATION Fieldbus H1(31.25kbps), Supports 32 devices/segments

3. Environmental and safety parameters

Working temperature: Standard type 0~55 ℃, Wide temperature type -20~70 ℃

Humidity: 10% -90% (without condensation)

Safety certification: CE (EMC/LVD), C-Tick, T Ü V SIL3, ABS/BV classification society certification

Power requirements: AC 100-240V, DC 24V (some modules)


Safety and Compliance

1. Security mechanism

Hardware security: dual redundancy design, automatic fault switching; Support output hold/preset value in case of I/O module failure

Software security: User permission classification (S1/S2/S3/U1-U7), supporting function block level/window level permission control

Safety circuit: The safety circuit of ProSafe RS is independent of the control circuit and supports fault detection (disconnection/short circuit)

Operation protection: Critical operations need to be confirmed, operation logs are recorded throughout the process, and audit tracking is supported

2. Compliance requirements

Functional safety: ProSafe RS complies with IEC 61508 (SIL3), IEC 61511, ISA S84.00.01

Data Compliance: Supports FDA 21 CFR Part 11, providing electronic signatures, data integrity protection, and permanent preservation of historical records

Electromagnetic compatibility: Complies with EN 55011 Group 1 Class A and EN 61000 series standards

Low voltage command: Complies with EN 61010-1 to ensure the safety of operators
