Product basic information

Product Series and Positioning: The Toshiba e-STUDIO 7516AC series is a color multifunctional printer designed specifically for large workgroups. It includes three models: e-STUDIO 5516AC, e-STUDIO 6516AC, and e-STUDIO 7516AC. The core goal is to simplify office processes, improve efficiency, and balance safety and environmental protection through advanced features.

Core function coverage: integrating four major functions of copying, printing, scanning, and faxing, supporting diverse document processing needs, and possessing the ability to customize UI and automate workflow, adapting to personalized office scenarios of different enterprises.

Core Performance Parameters (Table Display)

Specific parameters of performance category (in order of e-studIO5516AC/6516AC/7516AC)

Printing/copying speed color: 55 PPM/65 PPM/75 PPM; Black and White: 65 PPM/75 PPM/85 PPM

First print output time color: 6.4 seconds/6.4 seconds/5.4 seconds; Black and white: 5.2 seconds/4.5 seconds/4.1 seconds

Resolution copying: 600 × 600 dpi; Printing: 600 × 600 dpi (8-bit), 1200 × 1200 dpi (color/2-digit), 3600 × 1200 dpi (black and white/with smoothing, PS3 only)

Maximum monthly copy volume of 480K pages/540K pages/600K pages

Preheating time is about 20 seconds

Scanning speed dual scan document feeder (DSDF): up to 240 IPM for double-sided and up to 120 IPM for single-sided (black and white/color compatible)

Color toner capacity (CMY): 39200 pages (5% coverage); Black (K): 106600 pages (5% coverage)

Hardware and operational configuration

Core hardware: Equipped with Intel Atom 1.75GHz dual core processor, 4GB memory and 320GB self encrypting hard drive (SED), providing hardware foundation for high-speed processing and data security; Support external device expansion such as Bluetooth keyboard and wireless LAN to enhance operational flexibility.

Display screen and operation: Equipped with a 10.1-inch color WSVGA tiltable touch screen, built-in embedded web browser, operation logic similar to a tablet, supports custom homepage taskbar, only displays high-frequency usage functions, reduces operation clutter; Simultaneously supporting accessible designs such as tilted panels and universal paper tray handles.

Paper processing capability

Capacity configuration: The standard 4-drawer design can accommodate 2280 sheets of paper, while the serial drawer version has a standard capacity of 3520 sheets; The maximum capacity can be expanded to 4780 sheets (4 drawers) or 6020 sheets (series drawers), and the MP2502B 2500 large capacity feeder can be optionally selected to further enhance paper storage.

Supports sizes and types: can handle regular paper from 3.9 "× 5.8" to 13 "× 19", banners from 12 "× 47", and envelopes; The paper weight range is 16 pounds Bond to 140 pounds Index (standard drawer), 16 pounds Bond to 110 pounds Cover (bypass feed), suitable for various document printing needs.

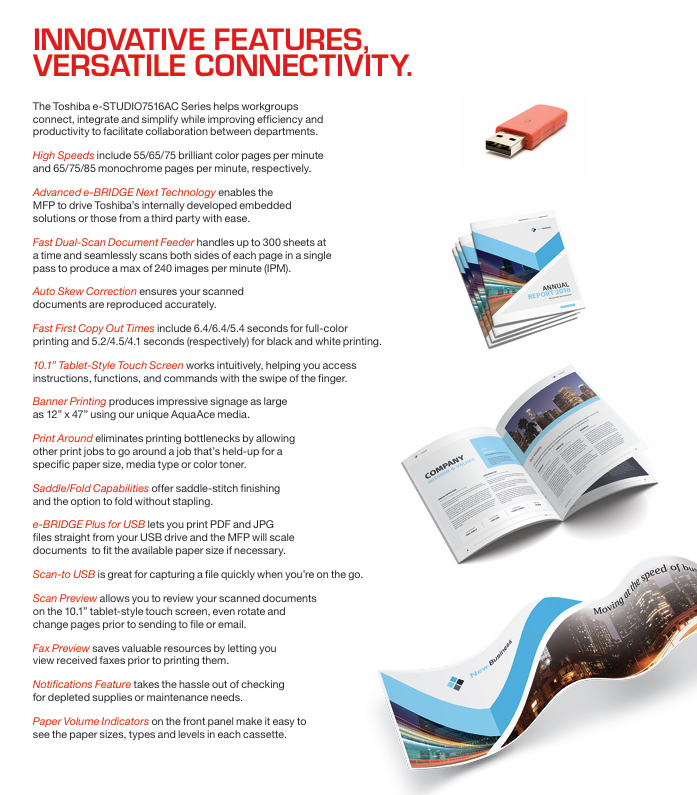

Featured features and connectivity

Workflow optimization function

Elevate function: It can customize automated workflows based on enterprise business processes, simplify multi-step operations into "one click execution", reduce manual operations and paper consumption, lower costs, and improve efficiency.

Print Around: When a printing task is stalled due to paper size, type, or toner issues, allow other tasks to print first to avoid clogging the print queue.

Scan and fax enhancement: Supports scan preview (viewing, rotating, adjusting scanned documents on the touch screen), fax preview (viewing received faxes before deciding whether to print, saving consumables), and scans can be directly saved in Office formats such as DOCX, XLSX (with embedded OCR enabler).

Connection and compatibility

Mobile and wireless connectivity: Supports AirPrint ® (Apple devices) Mopria ® (Android devices) Wi-Fi Direct， Paired with the e-BRIDGE Print&Capture application, it enables direct printing and scanning of documents from mobile phones/tablets to be sent back to mobile devices.

Cloud service integration: Through the e-BRIDGE Plus series of applications, it supports OneDrive access ®  for Business、SharePoint ®  Online、Exchange Online、Google Drive ™、 DropBox ®  Wait for cloud storage to print documents, or scan documents and upload them directly to the cloud platform.

System and protocol compatibility: compatible with Windows ® (8.1/10/Server 2012 and above) Macintosh ® (macOS X 10.7.4 and above) Unix ®、 Linux ®  System; Support printing protocols such as SMB, LPR/LPD, IPP, Port 9100, etc., to meet different office network environments.

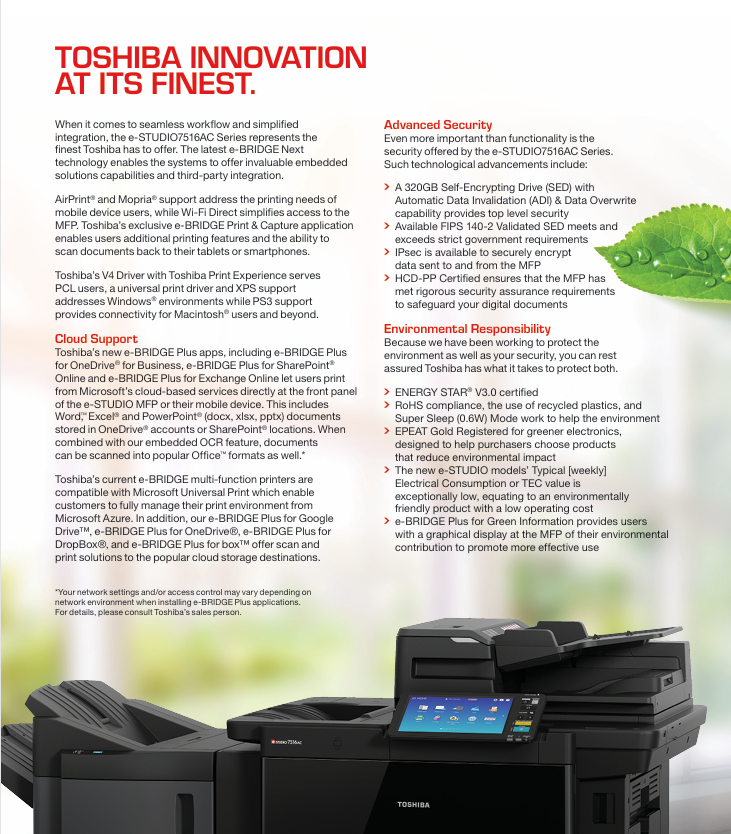

Safety and Environmental Protection Standards

Security protection system

Data Security: 320GB SED supports automatic data invalidation (ADI) and data overwrite to prevent hard disk data leakage; Optional FIPS 140-2 certified SED, compliant with government level security requirements; Support IPsec encryption to ensure secure data transmission between devices and networks.

Access control: supports user authentication (device side/Windows domain/LDAP server), MAC/IP address filtering (10 groups each), role-based access control (RBAC), secure PDF, firmware digital signature, to prevent unauthorized operations and malicious attacks.

Compliance certification: Through HCD-PP certification and CC certification (ISO/IEC15408), it meets strict security compliance requirements and is suitable for industries sensitive to data security, such as finance and government.

environmental performance

Certification standard: Compliant with ENERGY STAR ®  V3.0 certification, EPEAT Gold registration, use RoHS compliant materials, use recycled plastics to reduce environmental impact.

Energy saving design: Supports super sleep mode (with a power consumption of only 0.6W), low monthly average energy consumption (TEC value), and reduces operating costs; The green information function of e-BRIDGE Plus can display environmental contribution data on the touch screen, guiding efficient use.

Optional accessories (table display)

Accessory category, model, and function

Auxiliary operation accessories GR1330 (accessory tray), GR9000 (Bluetooth keyboard), GR1340 (10 key numeric keypad)

Binding and output accessories MJ1111B (50 page console stapler), MJ1112B (50 page saddle stitch stapler), MJ6106N (punching unit), KA6551 (side paper tray)

Connection and security accessories GD1370N (fax unit/second fax line), GN4020 (wireless LAN/Bluetooth module), GE1230 (FIPS 140-2 SED), GP1080 (IPsec enabler)

Function extension accessories GS1080NODE (embedded OCR enabler, authorized by seat), GS1090NODE (multi workstation printing enabler, authorized by seat) GB2300NODE（e-BRIDGE Plus for Business V3.0）

Paper expansion accessory MP2502B (2500 large capacity feeder, only supports LT size)

Key issues

Question 1: What are the core advantages of Toshiba e-STUDIO 7516AC series in high load office scenarios? What are the corresponding key parameter supports?

Answer: The core advantages are high speed, high capacity, and high stability, which can meet the high-frequency and large-scale document processing needs of large workgroups. The specific parameter support is as follows:

Speed support: Color printing/copying speed up to 75 PPM, black and white up to 85 PPM, first print output time as short as 4.1 seconds (black and white) and 5.4 seconds (color), preheating time of about 20 seconds, reducing waiting time;

Capacity support: The maximum monthly copying capacity is up to 600K pages, with a standard paper capacity of up to 3520 sheets (series drawer), and can be expanded to 6020 sheets+2500 sheets (optional feeder), reducing frequent paper additions;

Stability support: Equipped with Intel Atom dual core processor, 4GB memory, and 320GB self encrypting hard drive, the hardware configuration is strong, and it also supports Print Around function to avoid printing queue congestion and ensure smooth operation under high loads.

Question 2: How does this series of printers ensure the security of sensitive documents for enterprises? What levels of security measures are covered?

Answer: To ensure the security of sensitive documents through four levels of data storage security, transmission security, access control, and compliance authentication, specific measures are as follows:

Data storage security: Equipped with a 320GB self encrypting hard drive (SED), supporting automatic data invalidation (ADI) and data overwrite functions to prevent data leakage after the hard drive is stolen or the device is scrapped; Optional FIPS 140-2 certified SED, meeting government level encryption standards;

Data transmission security: Supports IPsec encryption protocols (IKEv1/IKEv2) to ensure the security of data transmission between devices and networks, avoiding interception or tampering during the transmission process;

Access control security: supports multi-dimensional authentication (device authentication, Windows domain authentication, LDAP server authentication), MAC/IP address filtering (10 groups each), role-based access control (RBAC), only authorized users can operate copy/print/scan/fax functions; Simultaneously supporting secure PDF and firmware digital signatures to prevent malicious software attacks;

Compliance certification and security: Through HCD-PP certification and CC certification (ISO/IEC15408), it complies with internationally recognized information security assessment standards to ensure the compliance and reliability of security measures.

Question 3: From the perspective of environmental protection and cost control, what are the design highlights of this series of printers? What practical benefits can it bring to the enterprise?

Answer: The highlights of environmental protection and cost control design are concentrated in three aspects: energy conservation and consumption reduction, consumables optimization, and process paper reduction. The actual benefits are as follows:

Energy saving and consumption reducing highlights: compliant with ENERGY STAR standards ®  V3.0 certification and EPEAT Gold registration, supporting super sleep mode (power consumption of only 0.6W), with low monthly average energy consumption (TEC value); Actual benefits: Reduce electricity expenses while lowering the company's carbon footprint, in line with green office policies;

Highlights of consumables optimization: Large toner capacity (color 39200 pages/black 106600 pages, 5% coverage), reducing toner replacement frequency; Support fax preview (view before printing), scanning and electronicization (save directly to Office format); Actual benefits: Reduce the procurement cost of consumables such as carbon powder and paper, and decrease the labor cost of replacing consumables;

Highlights of process paper reduction: Elevate function simplifies multi-step processes into one click automated operations, reducing manual paper processes; Support cloud scanning/printing to reduce the circulation of paper documents; Actual benefits: Reduce paper consumption while improving work efficiency, indirectly reducing the time and storage costs associated with managing paper documents.
