Product Overview

1.1 Basic Information

Product Name: TOSHIBA CANVIO BASICS Mobile Hard Drive

Packaging components: Consists of three types of fixed items, as shown in the table below:

Component name, quantity, and purpose

CANVIO BASICS hard disk body 1 core storage carrier

One USB 3.0 Micro-B cable connects the hard drive to the computer, transferring data and providing power

1 set of supporting documents (including security guidelines) including multilingual operation instructions, security specifications, and compliance statements

Language version: covering more than 20 languages, including English (EN), German (DE), French (FR), Italian (IT), Spanish (ES), Turkish (TR), Russian (RU), Ukrainian (UK), etc., to meet the needs of users in different regions.

Interface specifications: Adopting USB 3.2 Gen 1 interface (compatible with USB 3.0/2.0), with Micro-B connector on the hard drive end and Type-A connector on the computer end.

System requirements

2.1 Operating System Adaptation

Windows system:

Supported versions: Windows 10, Windows 8.1;

Format requirement: Pre installed with NTFS file system, can be used directly without additional formatting.

MacOS system:

Supported versions: macOS v10.15 (Catalina), v10.14 (Mojave), v10.13 (High Sierra);

Format requirement: Must be reformatted (default format incompatible), it is recommended to format to APFS or Mac OS Extended format supported by macOS.

2.2 Hardware and Power Requirements

Port requirements: The computer requires one free USB 3.0 or USB 2.0 port (USB 3.0 is backward compatible with USB 2.0, and if a USB 2.0 port is used, the transfer speed will be reduced to USB 2.0 level);

Power supply method: Bus powered, no external power supply required, all current is provided through USB port;

Disabled devices: Cannot connect passive USB hubs (without independent power supply), keyboard/mouse and other USB device expansion interfaces, which may result in insufficient power supply or data transmission errors.

Operation process

3.1 Connection steps

Hard drive connection: Insert the USB 3.2 Gen 1 Micro-B connector into the corresponding port of the hard drive (note polarity, do not forcefully plug or unplug);

Computer connection: After the computer is fully powered on and the operating system is loaded, insert the USB Type-A connector into the USB Type-A port of the computer;

Status confirmation:

Windows: The Power/Data indicator light is on, the hard drive is automatically mounted, and a new hard drive icon is displayed in "My Computer";

Mac: The Power/Data indicator light is on, the hard drive is ready directly, and the desktop displays the hard drive icon.

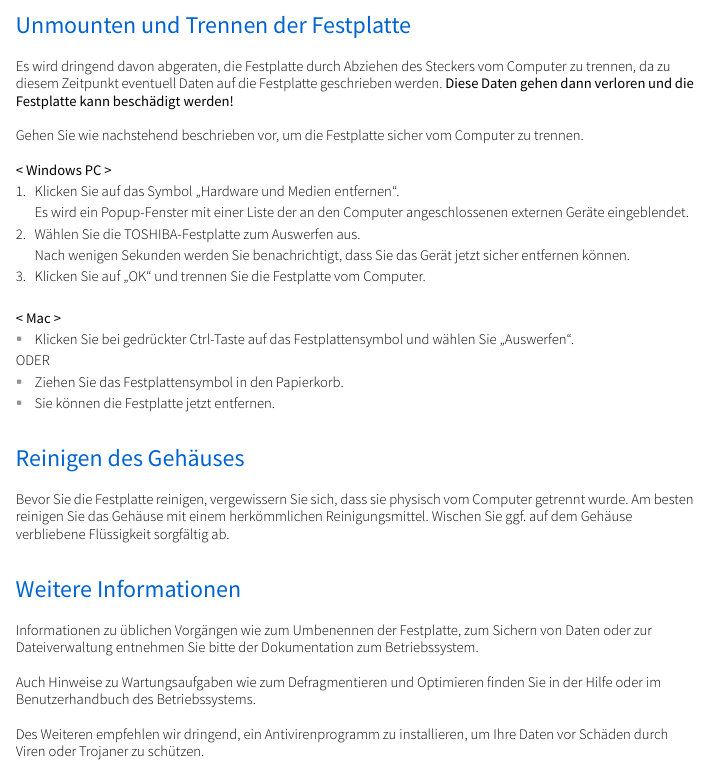

3.2 Secure uninstallation

It is strictly prohibited to directly unplug the cable (which may cause data loss or physical damage to the hard drive), and it should be operated according to the system type:

System type uninstallation steps

Windows 1. Click on the "Hardware and Pop Up Media" icon on the taskbar;

2. Select TOSHIBA hard drive from the pop-up list;

3. After receiving the "Safely Removable" notification, click "OK" and unplug the cable

Mac 1. Ctrl click on the desktop hard drive icon and select "Eject";

2. Alternatively, simply drag the hard drive icon to the trash can;

3. After the icon disappears, unplug the cable

3.3 Cleaning and Maintenance

Cleaning prerequisite: The hard drive must be physically disconnected from the computer first (unplug the USB cable);

Cleaning supplies: Use standard cleaning agents (such as neutral cleaning agents), and prohibit the use of corrosive liquids (such as phenol, gasoline, diluents, etc.);

Operation requirements: After cleaning, wipe off any residual liquid on the surface to prevent liquid from seeping into the interior of the hard drive and causing a short circuit.

Frequently Asked Questions (FAQ) and Troubleshooting

4.1 Frequently Asked Questions and Answers

Problem Description Answer

Does Windows require an additional USB driver? No need, the driver is integrated into the Windows system and plug and play

2. Can the computer system be started from this hard drive? No, Windows does not support booting the system from an external hard drive

Why does a hard drive not require a fan? Adopting optimized heat dissipation structure, it can naturally dissipate heat and achieve near silent operation (without fan noise)

Why does Windows display a smaller capacity than indicated? Differences in calculation methods: Manufacturers use decimal (1TB=1000GB), systems use binary (1GB=1024MB), and 1TB hard drives display approximately 931GB

Can I copy the operating system to another computer? No, you need to reinstall according to the installation guide provided by the operating system manufacturer. Simple copying cannot achieve system operation

4.2 Fault Handling Plan

Fault 1: The computer does not recognize the hard drive at all

Troubleshooting steps: ① Check if the USB cable connection is secure; ② If using a USB hub, confirm that the hub has independent power supply; ③ If using an expansion card, check if the expansion card is working properly and update the firmware.

Fault 2: The hard drive displays' unable to start device '

Possible reasons: ① Insufficient power supply (check if the USB port is in good contact); ② Hard disk hardware malfunction (requires contact with after-sales maintenance).

Fault 3: The hard drive is not displayed in "My Computer", but it exists in the Device Manager

Solution steps:

Right click on "My Computer" and select "Manage";

Enter 'Disk Management' and confirm that the hard drive is in the list;

Right click on the hard disk partition and select "Delete Partition" (note: data may be lost);

Right click on unallocated space and select 'New Primary Partition', then follow the wizard to complete the setup;

Confirm formatting (recommended NTFS format), and once completed, it can be displayed.

Fault 4: When formatting, it prompts' unable to complete formatting '

Reason: Mostly caused by the use of FAT file system (insufficient compatibility);

Solution: Replace with NTFS file system and reformat.

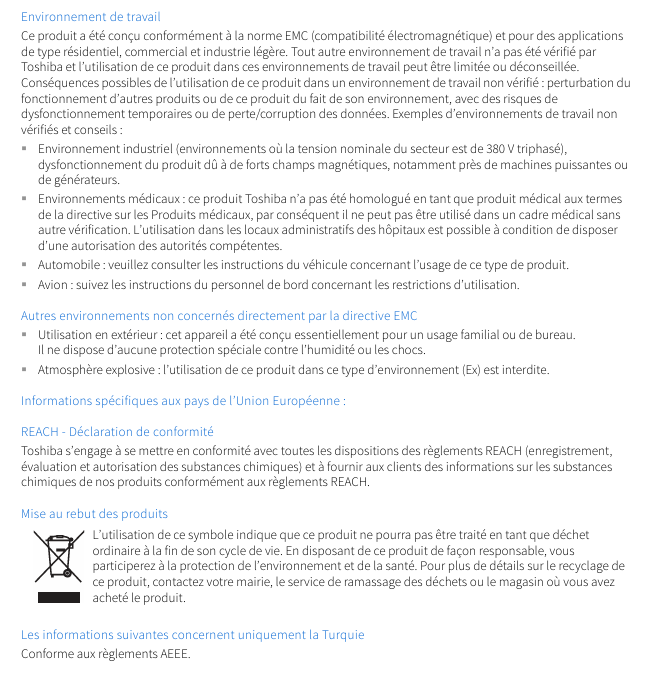

Compliance and environmental requirements

5.1 Certification Compliance

CE certification: The product complies with relevant EU directives (such as the EMC electromagnetic compatibility directive), and the responsible party is Toshiba Electronics Europe GmbH (Dusseldorf, Germany);

UKCA certification: compliant with British standards, responsible by Toshiba Electronics Europe GmbH UK branch (Surrey, UK);

REACH compliance: Toshiba will provide users with relevant information on chemical substances in its products to comply with the EU's Chemical Registration, Evaluation, Authorization and Restriction Regulations.

5.2 Environmental Protection Disposal

Disposal requirements: The product must bear the label "Prohibited from being disposed of as household waste" and must be handled by a professional industrial waste organization (such as a qualified recycler);

Special regional requirements: Türkiye market shall comply with AEEE regulations (electronic waste recycling regulations);

Risk Warning: Self disassembly may cause capacitor explosion or release of toxic gases, violating the Waste Disposal and Cleaning Law.
