I/O module classification and core types

The 1756 series I/O modules can be divided into four categories based on their functions: digital I/O, analog I/O, HART interface module, and special function module. Each type of module is distinguished by its core characteristics through model suffixes (such as "D" representing diagnostic function, "E" representing electronic fuse, and "I" representing isolation). The specific classification and typical models are as follows:

（1） Digital I/O module

Covering AC/DC power supply, supporting enhanced functions such as diagnosis, electronic melting, isolation, etc., suitable for switch signal acquisition and actuator control.

Module type, typical model, core characteristics

AC digital input 1756-IA8D, 1756-IA16I 120V/240V AC power supply, 1756-IA8D includes point level diagnosis, 1756-IA16I supports channel independent isolation

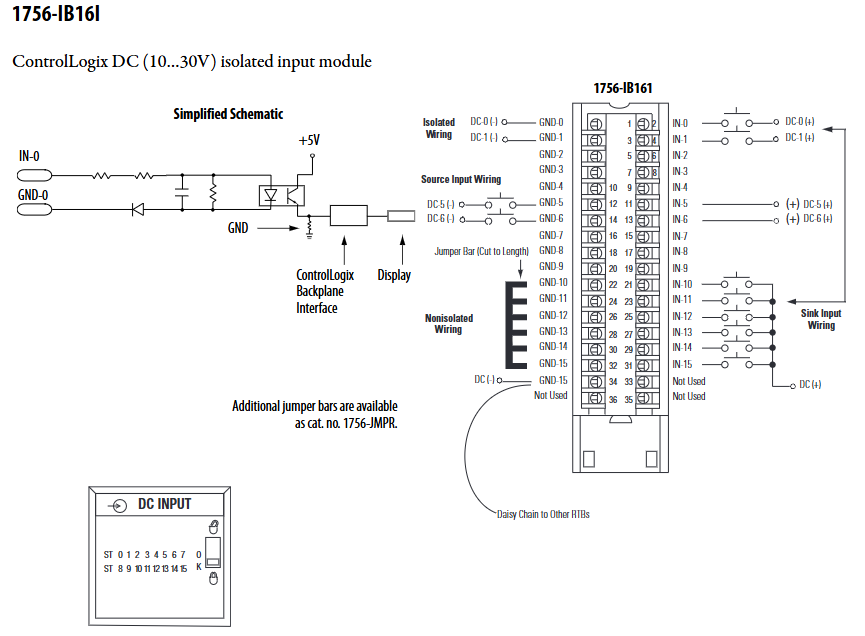

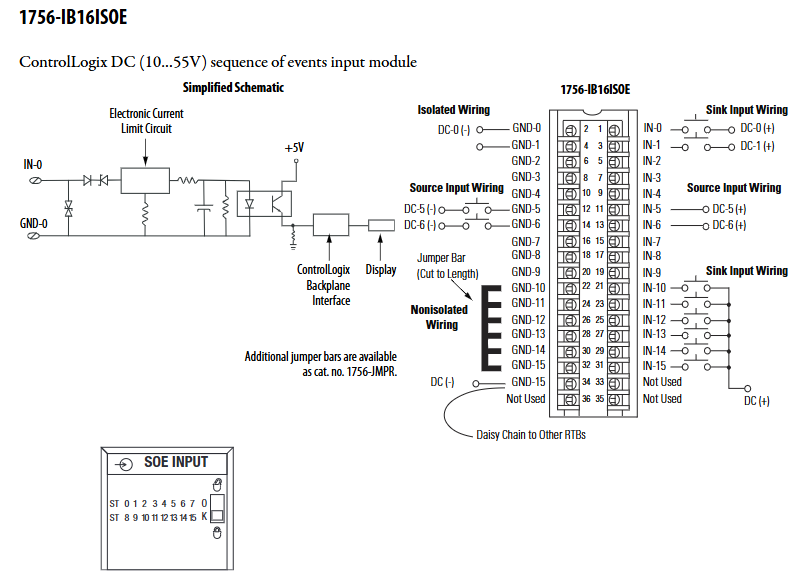

DC digital input 1756-IB16D, 1756-IB16I 12/24V DC sinking/tracing input, 1756-IB16D supports wire breakage detection, 1756-IB16I is fully isolated

AC digital output 1756-OA8E, 1756-OA16I 120/240V AC output, 1756-OA8E with electronic fuse, 1756-OA16I channel independent isolation

DC digital output 1756-OB8EI, 1756-OB16D 12/24V DC output, 1756-OB8EI includes electronic fuse+isolation, 1756-OB16D supports fault diagnosis

Common parameters: Most digital quantity modules have a working temperature range of 0-60 ℃, a storage temperature of -40... 85 ℃, anti vibration (2g @ 10... 500Hz), anti impact (30g working/50g storage), and EMC compliance with CISPR 11 Class A standards.

（2） Analog quantity I/O module

Used for high-precision acquisition and output of voltage and current signals, supporting multiple ranges and isolation designs, suitable for signal processing of sensors such as pressure and flow sensors.

Module type, typical model, core characteristics

Analog input 1756-IF8, 1756-IF16 support ± 10V/0... 10V/0... 20mA range, 1756-IF16 includes 16 channels, Sigma Delta conversion technology

Analog output 1756-OF4, 1756-OF8I output range ± 10V/0... 20mA, 1756-OF8I supports channel isolation, accuracy 0.1% range

High speed analog I/O 1756-IF4FXOF2F with 4 high-speed inputs and 2 high-speed outputs, sampling time of 300 μ s, supporting floating-point/integer data formats

Accuracy characteristics: The calibration accuracy of most analog modules is better than 0.1% of the range (25 ℃), with a temperature drift coefficient of 15-50 ppm/℃, input impedance voltage type>1M Ω, and current type around 249 Ω.

（3） Temperature measurement module

Specially designed for RTD (resistance temperature detector) and thermocouple, supporting multiple types of sensors and temperature ranges, suitable for industrial process temperature monitoring.

Module type, typical model, core characteristics

The RTD input modules 1756-IR6I and 1756-IR12 support RTDs such as Pt100/Pt1000/Ni120/Cu10. The 1756-IR12 includes 12 channels with a range of -200... 870 ℃

Thermocouple input modules 1756-IT6I and 1756-IT16 support thermocouples such as B/E/J/K/R/S/T. 1756-IT16 includes 16 channels and integrates cold junction compensation (CJC)

Mixed temperature module 1756-IRT8I 8-channel configurable RTD/thermocouple, supports ITS-90 linearization, isolation voltage 250V continuous

Temperature range: Thermocouple module covers -270... 2320 ℃ (such as Type C thermocouples), RTD module covers -200... 870 ℃ (Pt100), cold end compensation accuracy ± 0.3 ℃.

（4） HART interface and special modules

Support HART protocol communication and special industrial scenarios, such as safety interlocking, high-speed counting, etc.

Module type, typical model, core characteristics

The HART input modules 1756-IF8H and 1756-IF16H support the HART protocol, 8/16 channel current input, are compatible with HART smart sensors, and have an isolation design

High speed counting module 1756-HSC high-speed pulse counting and position detection, supports multiple counting modes, suitable for motor speed and encoder signal acquisition

Safety module 1756-LSC8XIB8I safety logic control, with 8 inputs and 8 outputs, meets safety standards and is suitable for interlocking in hazardous scenarios

Common core technologies and installation requirements

（1） Electrical and mechanical commonalities

Power supply and power consumption: All modules need to be powered from the rack backplane, with a 5.1V DC current consumption of 100... 400mA (depending on the module type), a 24V DC current consumption of 2... 150mA, and a total backplane power of 0.5... 10W;

Isolation and protection: The isolation voltage is mostly 250V continuous (basic insulation), and some modules (such as 1756-OB8I) support enhanced isolation. The terminal block supports user-defined mechanical key control to prevent misconnection;

Response time: The input delay of the digital module is 0.2... 10ms (configurable filtering), the sampling time of the analog module is 1ms... 50ms, and the minimum sampling time of the high-speed module (such as 1756-IF4FXOF2F) is 300 μ s.

（2） Environmental and installation requirements

Environmental parameter requirement standards

Working temperature: 0... 60 ℃ (some modules can be extended to -20... 70 ℃, please refer to the specific model)

Relative humidity 5... 95% non condensing (IEC 60068-2-30)

Electromagnetic compatibility (EMC) anti ESD: 6kV contact/8kV air discharge; Anti radiation interference: 10V/m (80... 2000MHz)

Installation method: Rack mounted, single slot width (some special modules occupy 2 slots), supports DIN rail or wall mounted rack

Compliance certification and application scenarios

（1） Global Compliance Certification

All 1756 series modules have passed multi regional safety and electromagnetic compatibility certification, with core certifications including:

North America: UL Listed (UL Document E65584), CSA Certified (Class I Division 2 Hazardous Area);

Europe: CE certification (compliant with EN 61326-1, EN 61000-6-2/4), ATEX certification (II 3 G Ex nA IIC T4 Gc);

Other: FM hazardous area certification, KC Korean radio certification, C-Tick Australian electromagnetic certification.

（2） Typical application industries

Module based high reliability and flexibility, widely used in:

Process industry: petroleum and natural gas, chemical industry, cement (analog quantity+HART module monitoring pressure/flow);

Discrete manufacturing: automobiles, food and beverage (digital quantity module controls motors/valves);

Energy and Transportation: Power Plants, Ships (Temperature Module Monitoring Equipment Temperature, Safety Module Interlocking).

Key selection and usage tips

Model identification: quick judgment function through model suffix, such as "D"=diagnosis, "E"=electronic fuse, "I"=isolation “H”=HART；

Terminal block selection: Select RTB based on the number of module channels and wiring requirements. For example, 1756-TBCH is suitable for multi-channel isolation modules, while 1756-TBNH is suitable for ordinary digital modules;

Calibration cycle: It is recommended to calibrate the analog and temperature modules every 6-12 months to ensure accuracy;

Dangerous area use: For Class I Division 2 areas, modules with corresponding certifications (such as CSA LR69960C, FM certification) should be selected to avoid direct use of non certified modules.
